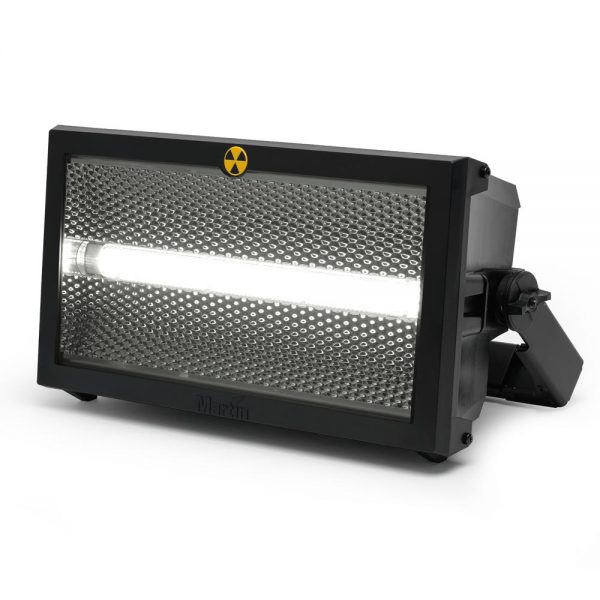

Martin - Atomic 3000 LED Strobe front right strobe tube whiteMartin - Atomic 3000 LED Strobe front right strobe tube white

Martin – Atomic 3000 LED

Martin

Not only a strobe, this fixture delivers stunning eye candy looks incorporating a backlight illumination with RGB-controlled LEDs pointing into the reflector.

SKU: MAR90425000 Categories: , , ,

Description

The Atomic™ 3000 LED is the perfect blend of a traditional strobe and cutting-edge LED technology. Capitalizing on the original Atomic™ 3000 DMX’s 15 years of success, this new version features identical functionality and behaviour – with the added benefits of LED technology. It offers the same extreme brightness as its iconic predecessor, but with substantially lower peak power consumption.

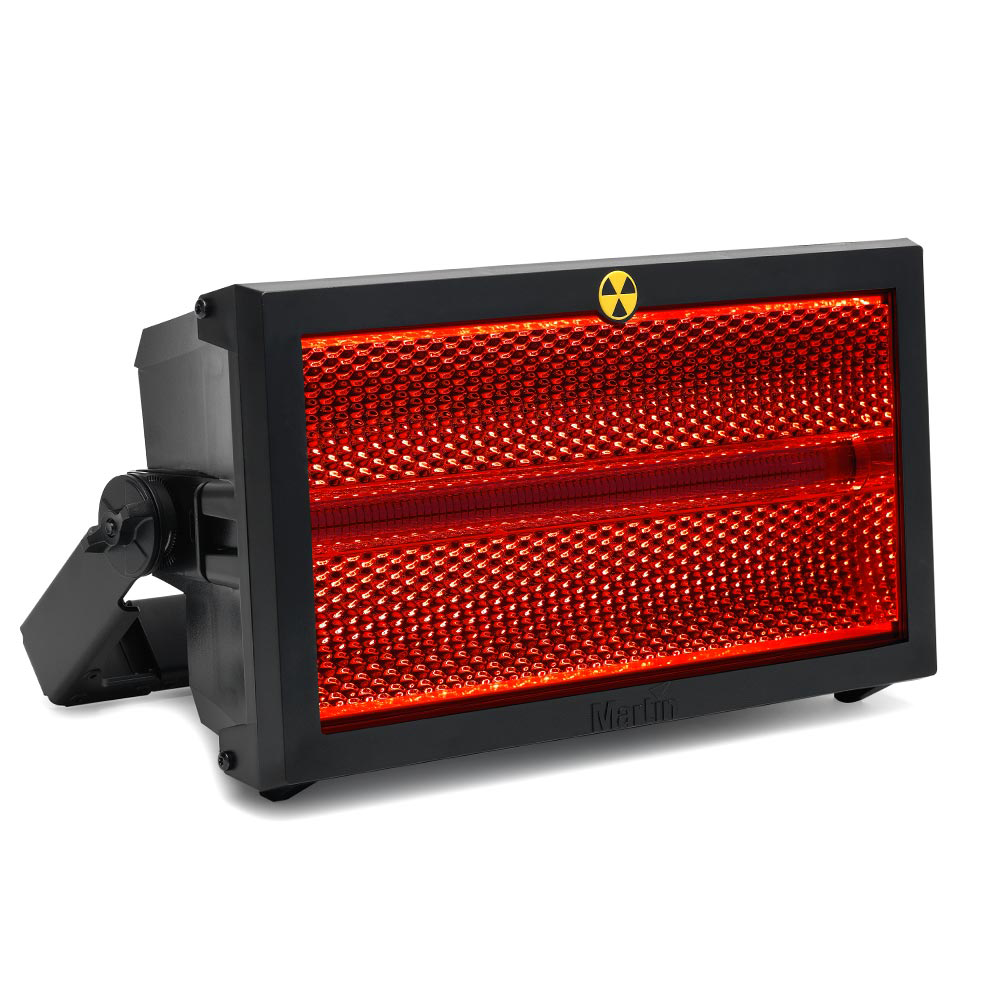

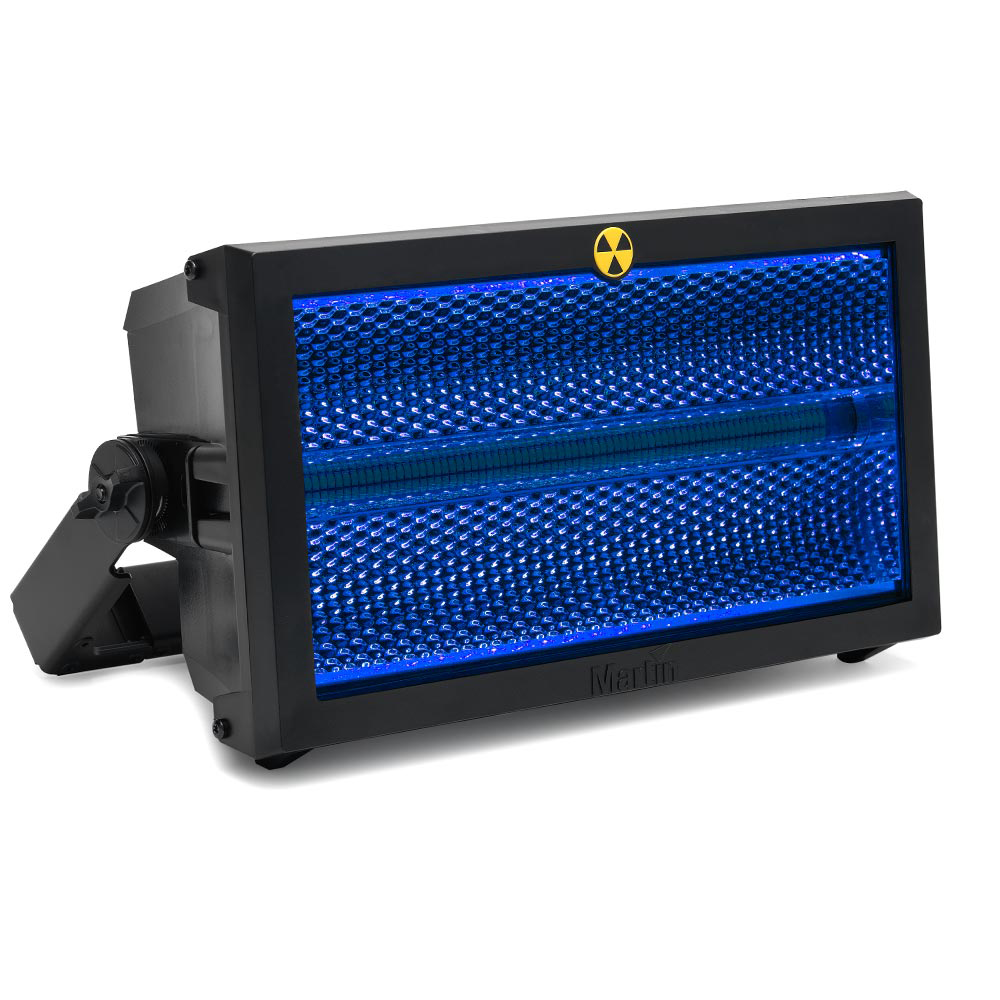

The Atomic 3000 LED is not only a strobe, but also a creative tool that incorporates backlight illumination with RGB-controlled LEDs pointing into the reflector. It delivers stunning eye candy looks similar to the MAC Aura™ and the MAC Quantum™ Wash.

Internal FX macros and simplified re-use of the original Atomic Colours scroller complete the full-feature package and empower the Atomic 3000 LED to become the ultimate creative lighting tool.

  • Brightest LED-based strobe on the market
  • Unique RGB-controlled Aura backlight for stunning eye candy looks
  • Same look and feel as the original Atomic 3000 DMX

Features

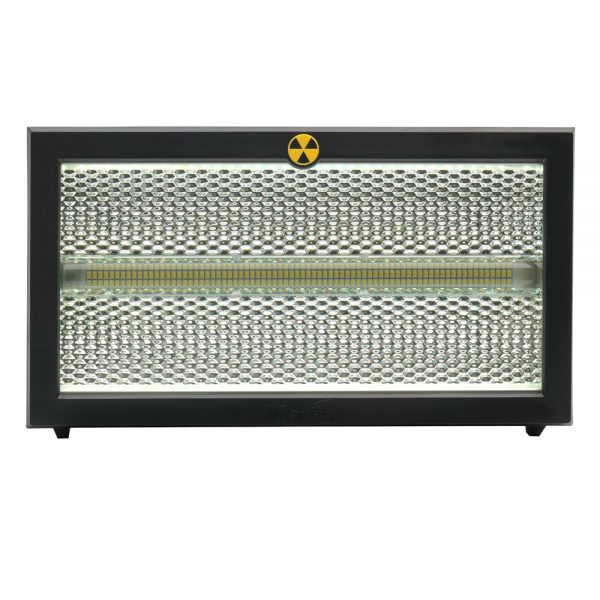

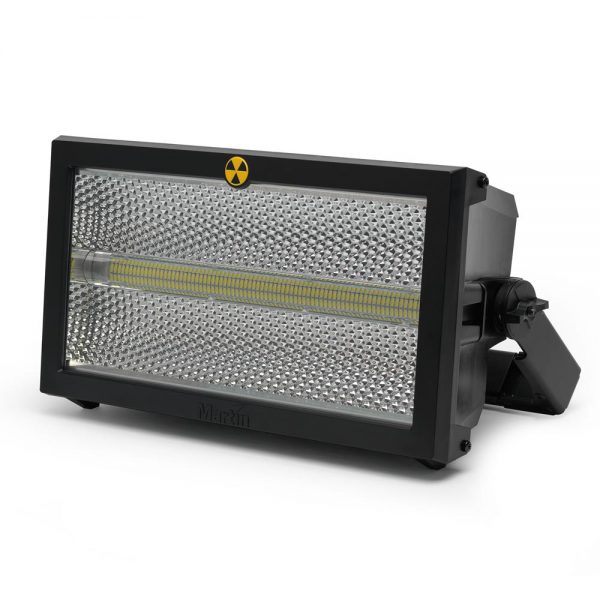

  • Classic reflector look
  • Iconic letterbox shape and industrial design

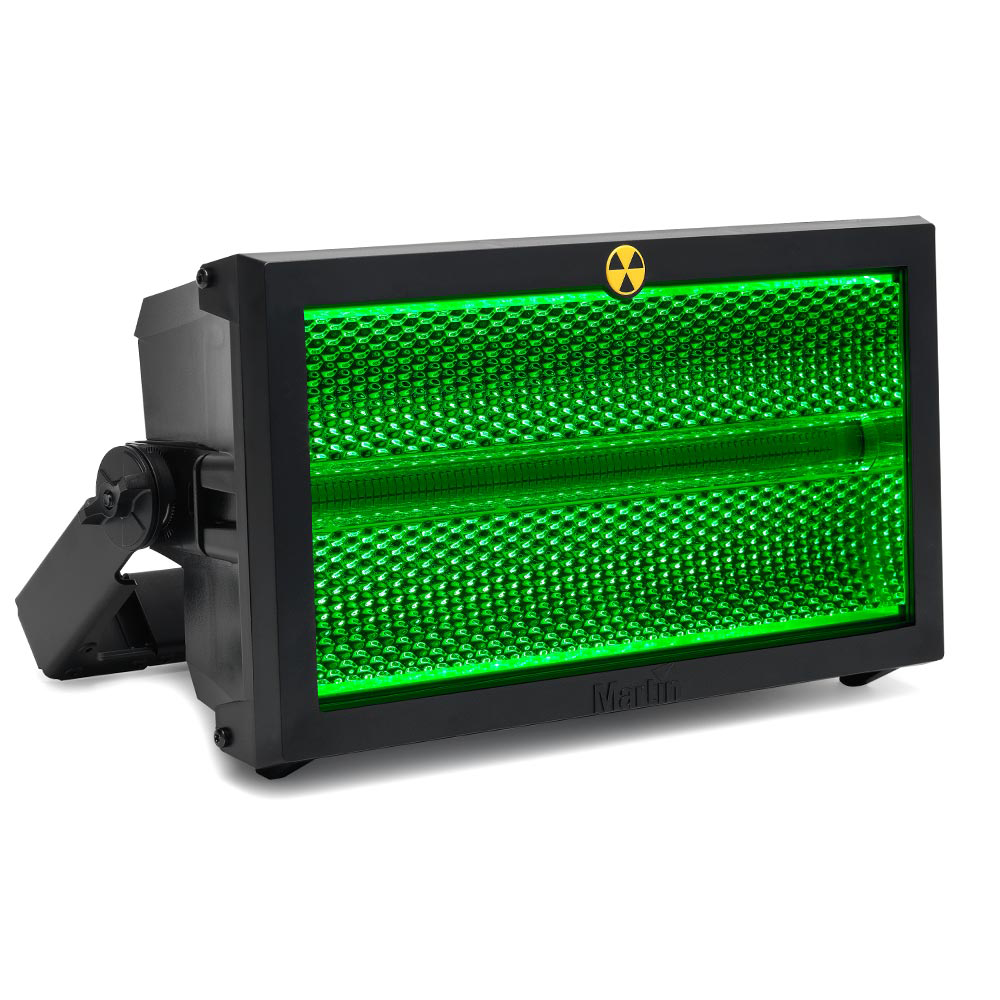

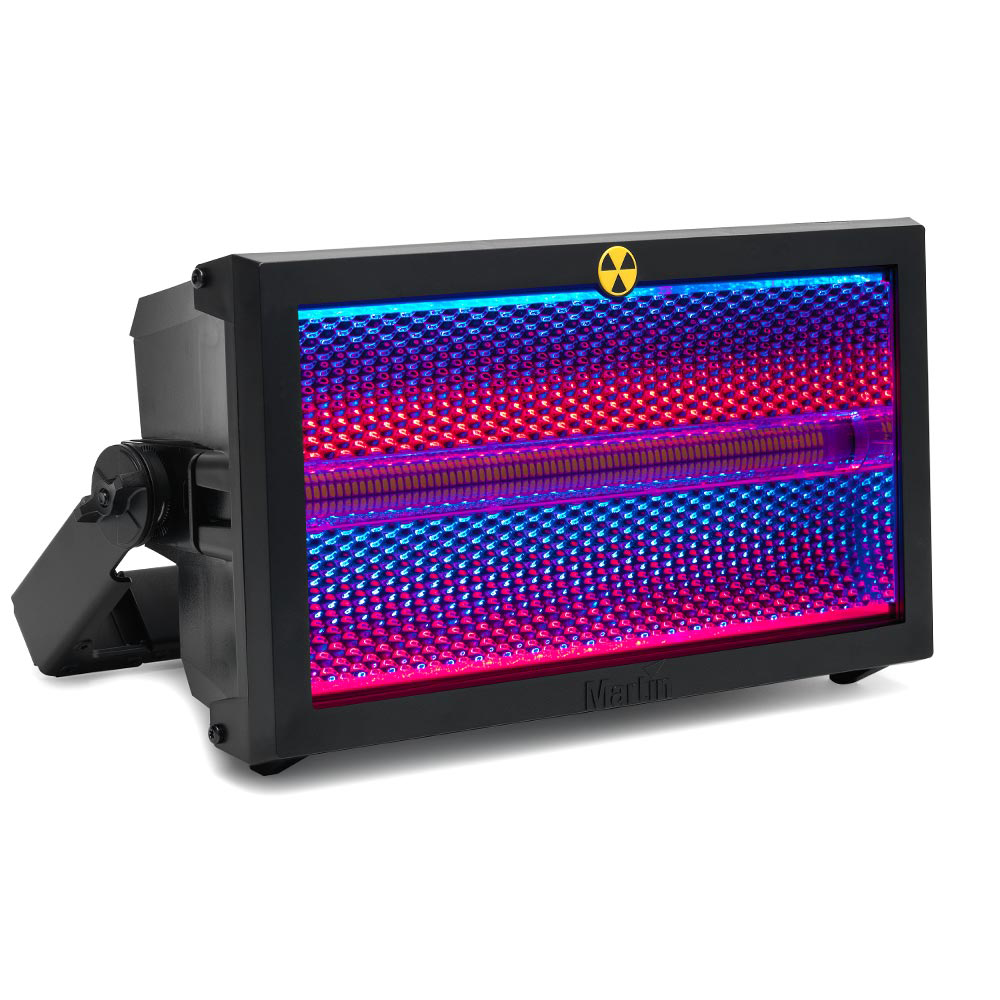

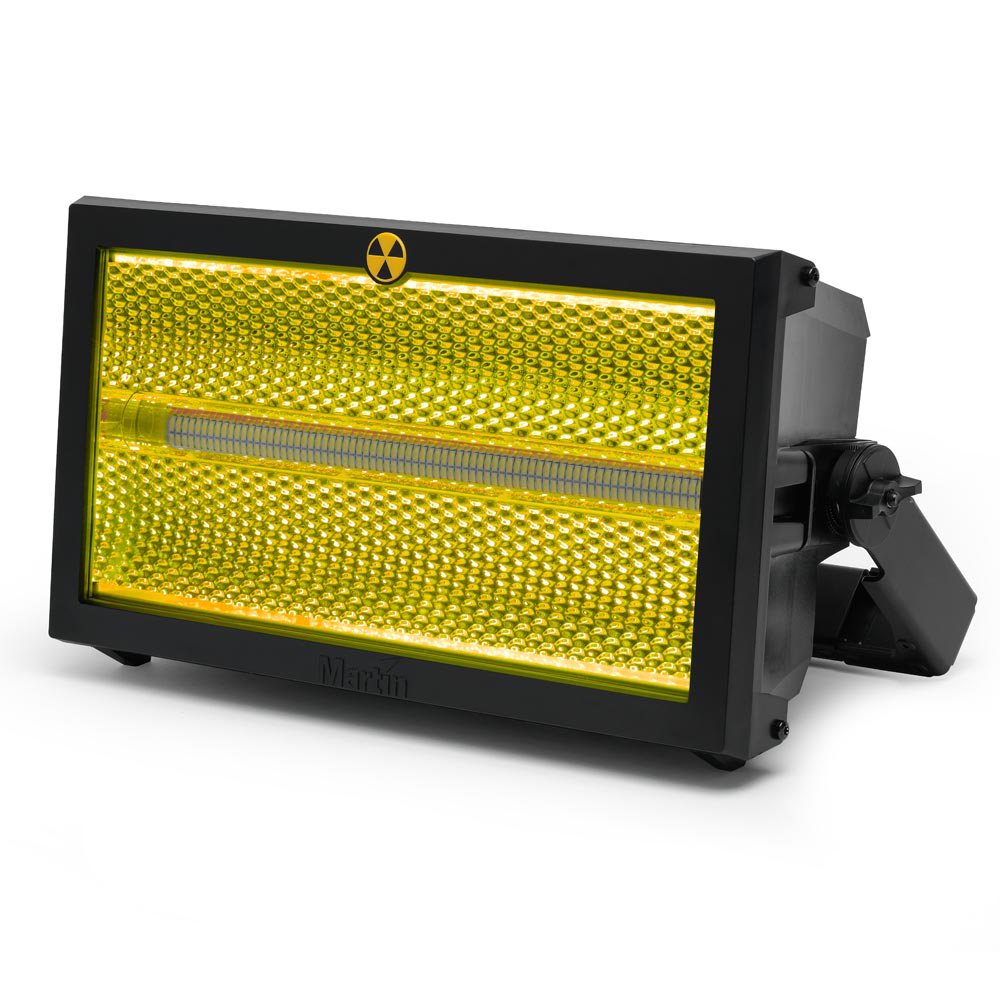

  • Aura backlight (RGB) into reflector
  • Dimmable house-light function at reduced brightness and power consumption
  • LED and Xenon mode available via menu and DMX control channel
  • Use of original Atomic colour scroller made easy via internal power and data supply

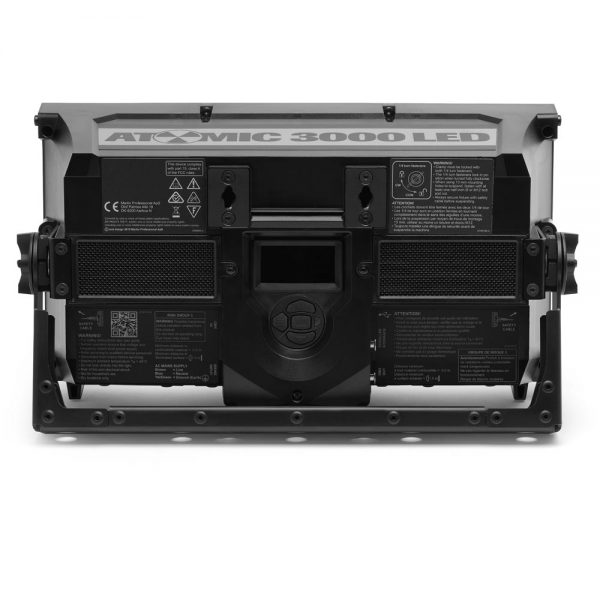

  • 4 button menu and LCD display for quick and easy setting adjustment

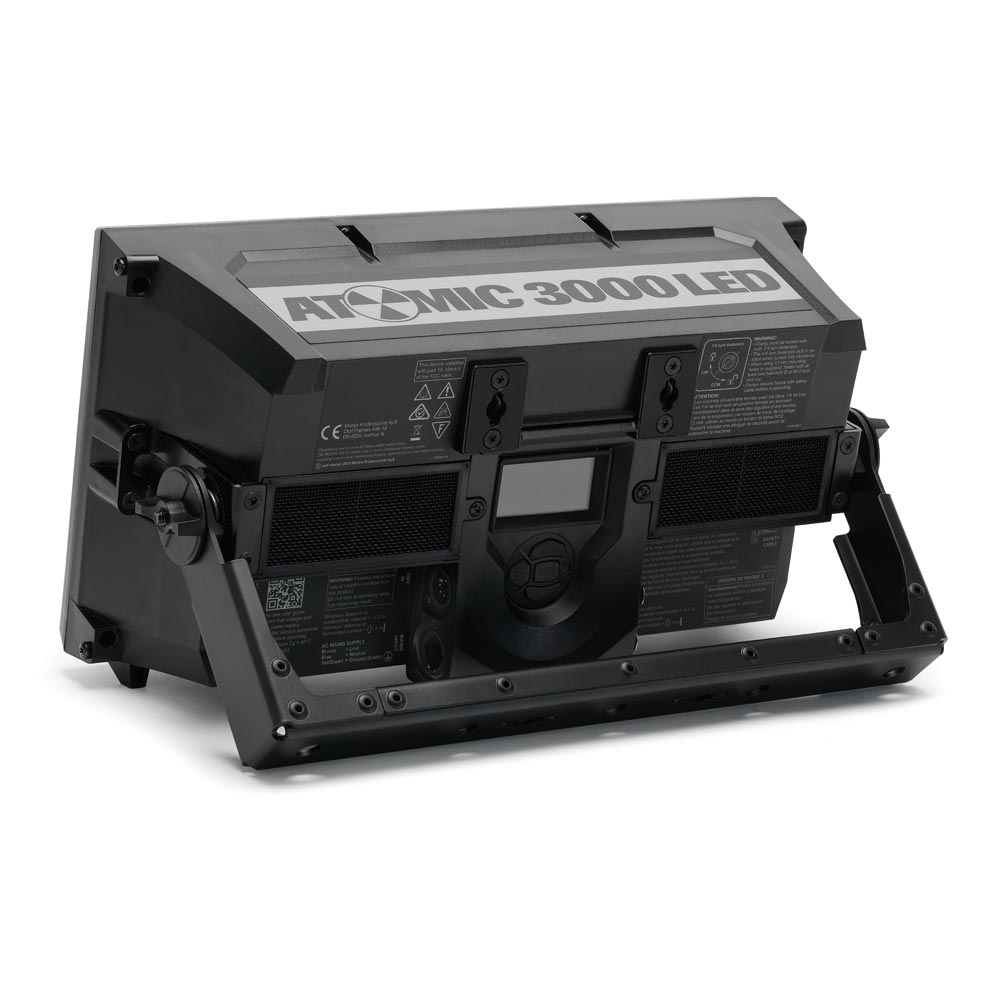

  • Clever rigging and bracket solution
  • 4 Channel DMX mode as Atomic 3000 (easy replacement)
  • 14 Channel Extended DMX mode incl. Aura control and internal FX macros
  • RDM compatible, USB port for software updates

Video

Atomic 3000 LED

We are pleased to announce the official launch of the Atomic 3000 LED.

Additional information

Weight 7.8 kg
Physical

Length: 245 mm (9.7 in.)
Width: 425 mm (16.8 in.)
Height: 240 mm (9.5 in.)
Weight: 7.8 kg (17.2 lbs.)
All data including mounting bracket
Dynamic Effects

Strobe: 0.289 – 16.667 Hz, variable flash rate, intensity and duration
Special effects: Blinder, ramp up/down, random flash, lightning. spikes, pre-programmed FX
Aura (secondary LED array illumination) color mixing: RGB
Control & Programming

Control systems: DMX, RDM
Setting and addressing: Control panel with backlit monochrome graphic display
DMX channels: 3/4/14
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Transceiver: RS-485
Firmware update: via USB type A memory device or via DMX using Martin Companion
Optical & Photometric Data

Max. total output: 180,000 lumens*
Beam (strobe) array:
Light source: 228 x Cree XLamp XP-L, 10 W white LEDs (color temperature 5,700 K)
Resolution: 8-bit
Dimming, above 16.7% output intensity: Current-controlled, flicker-free
Dimming, below 16.7% output intensity: PWM (refresh rate 6,000 Hz)
Binning: Tight color and flux binning
Minimum LED lifetime: 50,000 hours**

Aura (backlight) array:
Light source: 64 x Osram RGB LEDs
Resolution: 8 bits per color plus 8-bit dimming
Dimming: PWM (refresh rate 1,001 Hz)
Binning: Tight color and flux binning
Minimum LED lifetime: 50,000 hours**

*For full photometric data, click on Photometrics in menu bar
**To >70% output, figure obtained under manufacturer’s test conditions
Construction

Housing: Steel. high-impact thermoplastic, flame-retardant to UL 94 5VA
Color: Black
Protection rating: IP 20
Installation

Mounting points: Two pairs of quarter-turn fastener points, M12 holes in adjustable bracket
Location: Indoor use only, must be fastened to structure or surface
Orientation: Any
Minimum distance to combustible materials: 200 mm (8 in.) from fixture
Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixture
Connections

AC Power: Neutrik PowerCON TRUE1 TOP male socket
DMX data in/out: 5-pin locking XLR
Atomic Colors color gel scroller: 4-pin locking XLR
Software upload: USB 2.0
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.7 A
Typical earth-leakage current: 0.18 mA
Power Factor: 0.98 @ 100 V , 0.96 @ 120 V , 0.89 @ 208 V , 0.88 @ 230 V , 0.87 @ 240 V
Max current draw: 8.4 A @ 100 V / 120 V , 3.9 A @ 208 V / 230 V / 240 V
Typical current draw: 6.8 A @ 100 V , 5.7 A @ 120 V , 3.5 A @ 208 V , 3.2 A @ 230 V , 3.1 A @ 240 V *
Power Consumption
Maximum: 740 W
Typical: 663 W *
Idle: 25 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Allow for peak currents that exceed these figures when using the blinder effect.
Typical: full output white, regulated fan speed.
Idle: no output, regulated fan speed.
Thermal

Cooling: Forced air (temperature-regulated, low noise, user-definable fan settings)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Typical heat dissipation (calculated, +/- 10%): 2270 BTU/hr.
Approval

EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015 Class B, EN 61547, EN 55032, EN 55035, EN 61000-3-2 Class A, EN 61000-3-3
US safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian safety: CSA E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
United Kingdom: UKCA
Thailand: TIS
