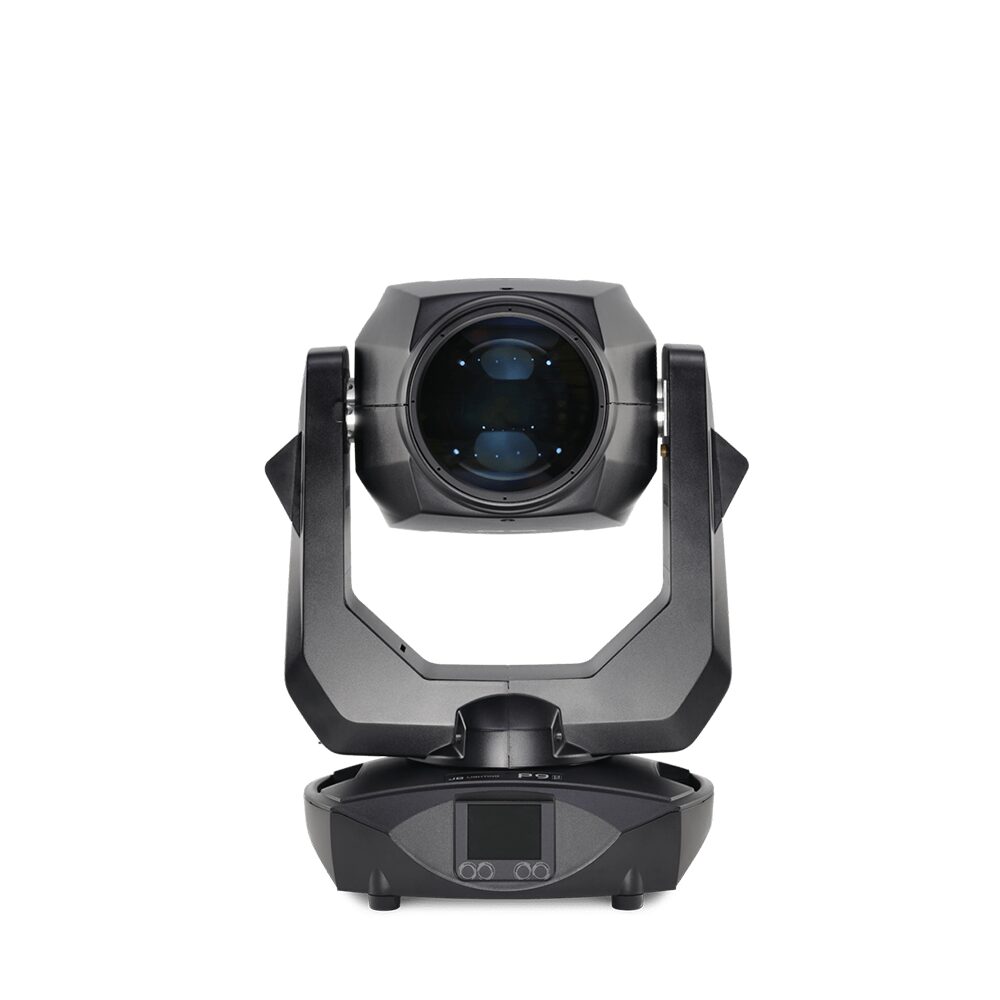

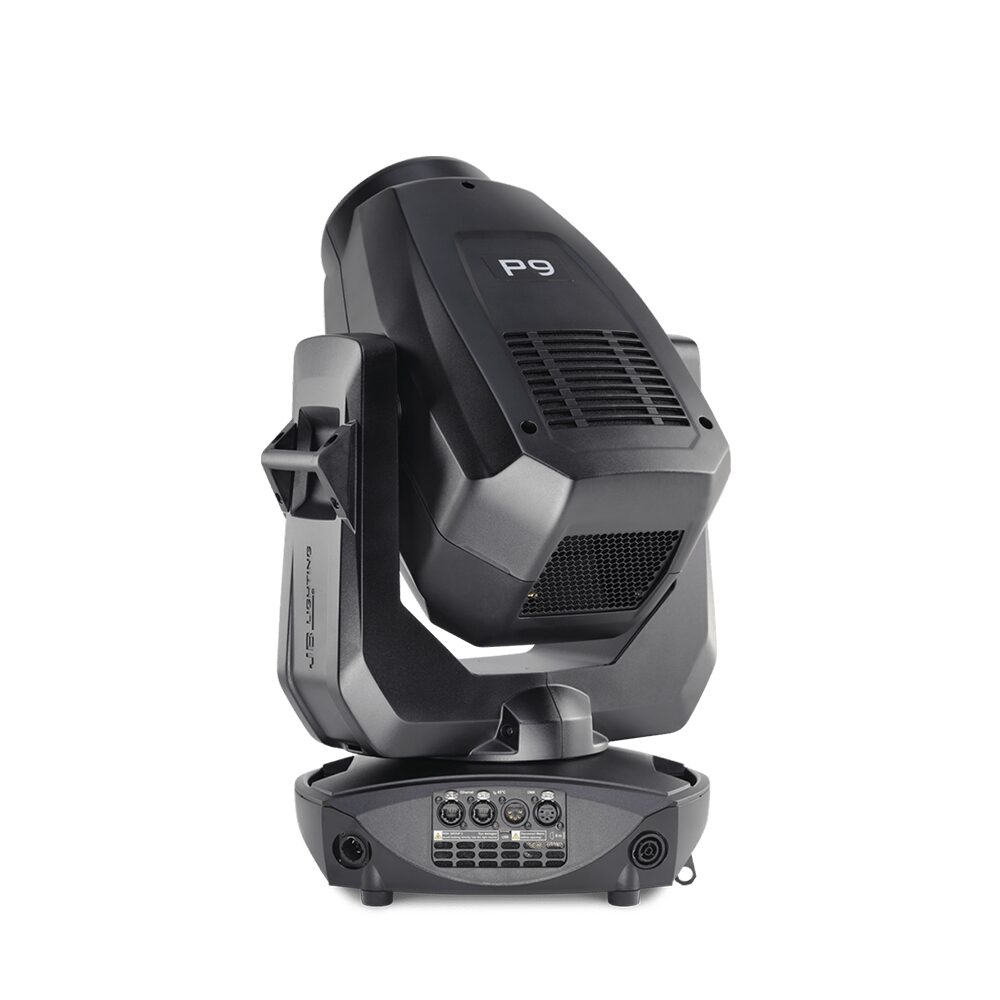

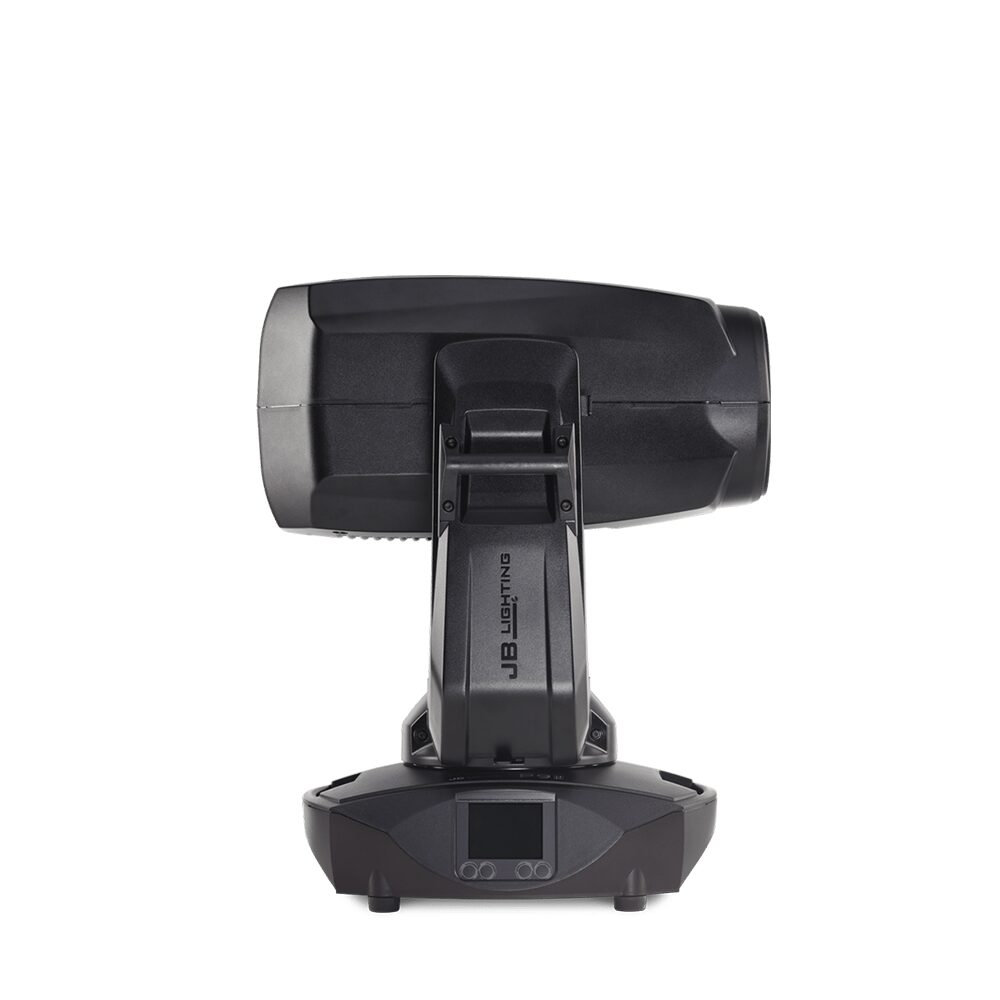

JB Lighting – P9 Beamspot

JB Lighting

The P9 HP rocks, is versatile to use and enjoys band life on tour just as much as TV appearances or any other type of event.

Categories: , , ,

Description

The P9 HP rocks, is versatile to use and enjoys band life on tour just as much as TV appearances or any other type of event. The “Small version” with 330 Watt LED engine (6800 K, 15,000 lm) and a weight of only 17 kg is not only a big player in terms of luminosity and handling.

Despite its compact dimensions, the P9 has a full range of effects in its tour case, including 2 gobo wheels, a color wheel with 7 color filters and 2 correction filters, linear CTO, CMY color mixing, prism, frost, etc. A full range of effects equipment in the tour case that is well worth seeing.

Features

  • Zoom from 3.4°– 54° (1:15.9)
  • 1 gobo wheel with 7 rotating gobos
  • 1 gobo wheel with 11 static gobos
  • 1 color wheel with 7 colors, High CRI filter, CTB filter
  • CMY color mixing unit and linear CTO
  • Electronic shutter with pre-programmed pulse and ramp functions
  • 3-section prism circular and infinitely adjustable frost filter
  • Ultra-quiet operation: only 29 dB(A)
  • Infinitely adjustable high-speed iris
  • Flicker-free operation, camera mode: 100 | 120 | 600 Hz and 3 kHz
  • 4 carrying handles for easy handling
  • Large light emission lens with Ø 135 mm

Video

JB-Lighting P9 Beamspot

Additional information

Optics and light source

330 W white light LED module
HP (High Power): 6800 K; 25,000 lm (15,000 lm Output); CRI > 70
Zoom range: 3.4° – 54° (1: 15.9)
Large light-emitting lens: Ø 135 mm
> 20,000 h life time
Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz
Effects

1 gobo wheel with 11 static gobos + open
1 gobo wheel with 7 rotatable, positionable and interchangeable gobos incl. multicolour gobo + open
1 color wheel with 7 full or half colors + linear CTO + open
CTB filter (8500 K) for automatic colour correction with gobo application
High CRI filter: 5800 K, CRI >90
CMY color mixing unit for rapid, even color mixing
Infinitely adjustable frost filter, 5°, exchangeable – further frost levels optionally available
3-section prism circular, rotatable and indexable
Motorised, infinitely adjustable high-speed iris
Electronic dimmer 0% – 100%
Electronic shutter with pre-programmed pulse and ramp functions
Sparkle effect
Focus with auto-focus function
Movement

3 phase extra strong stepping motors
Precise, very fast and silent movement
540° pan / 280° tilt
Control and programming

USITT DMX-512, RDM
Ethernet / Artnet – sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
LCD display with function keys and battery buffer, electronically rotatable
Mini USB for software update
Stand-alone mode
Master/slave function
Built-in DMX analyser
Construction

Original JB-Lighting slide-in module technology
Robust, roadworthy design with 4 carrying handles
Pan/Tilt transport lock
Fan control for almost noiseless operation, 29 dB(A)
Neutrik 5pin IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT
Prepared for mechanical path limitation
Rigging

2 Omega brackets with Original Camloc® fasteners for quick and convenient installation, with four different fastening options
Electrical & thermal specification

Maximum power consumption 460 VA
Input voltage range 100 V-240 V, 50/60 Hz
Total heat dissipation (calculated): 1,570 BTU/hr
Mechanical specification

Dimensions: W 398 x H 609 x D 264 mm
Weight: 17 kg
Scope of delivery

Schuko to powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets
Accessories

ZU0029 Travel limitation
CASE40 Amptown double flight case
CASE41 Amptown 4-compartment flight case
BLOB02 Omega bracket standard

Downloads

Data Sheet Download
User Guide Download
