1150W, 6000K LED Light Engine

Martin MAC Ultra Series

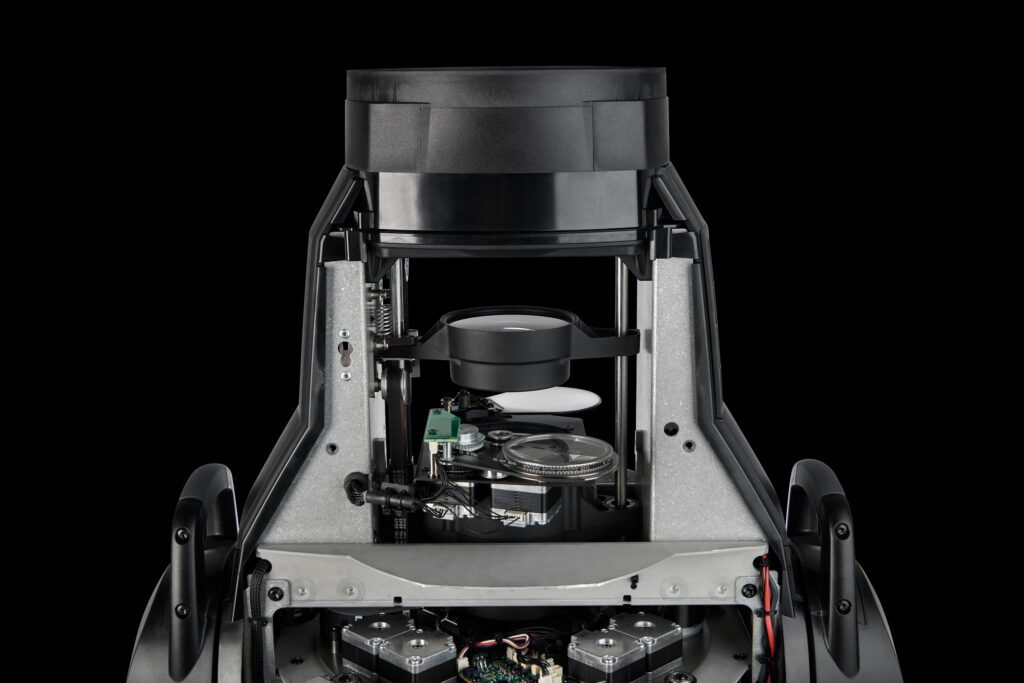

Martin MAC Ultra Performance

The MAC Ultra Performance features an all-new 1150 W, 6000 K proprietary LED light engine and pushes 46,500 lumens. The 50,000+ hour light engine provides high resolution dimming, strobing and Martin’s Animotion™ effect. A 1:7 zoom-range and precision focus-control is provided from the refined optical system.

Features include uniform color mixing, variable CTO, additional color and spectral correction filters, Martin’s Extended Framing system, two layers of rotating gobos, animation wheel, iris, frost and prism effects, and pan and tilt. It is perfect for concert and touring productions but equally applicable for noise-sensitive broadcast and theater stage lighting applications.

View Product

Specification

Light Source

1150 W proprietary LED light engine
84 x 20 W white LEDs
Minimum LED lifetime: >50,000 hours
(see specs for further details)

Photometric Data

Light Engine Luminous Output: 90,000 lumens
Fixture Luminous Output: 46,500 lumens
Peak Luminous Intensity: 2,600,000 cd
CCT: 6000 K

Optics

160 mm front Lens
1:7 zoom range – 7.7° – 53°
High resolution projection system

Dynamic Effects

0 – 100% continuous dimming and strobe effects
Choice of four dimming curves
CMY color mixing
Color temperature control – 6000-2850 K
Color wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter
Rotating gobo wheel 1 includes 5 interchangeable gobos + open
Rotating gobo wheel 2 includes 5 interchangeable gobos + open
Gobo animation wheel, indexing, continuous rotation with variable
angle
Frost (fade in)
4-facet prism
Iris
Zoom
Focus with auto tracking
Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
Pan: 540°
Tilt: 268°
P3 videomapping of fixture color and/or intensity
Pre-programmed effects: Two ranges of pre-programmed FX

Cooling & Noise

Low noise cooling system
User-selectable output vs. sound level control

Construction

Height (head straight up): 864 mm (34.1 in.)
Height (maximum): 876 mm (34.5 in.)
Weight: 44.0 kg (97.0 lbs.)

Control

DMX-512 in/out
Ethercon in/out for P3, Art-Net, sACN
Built in Ethernet switch with fail-safe bypass

Download

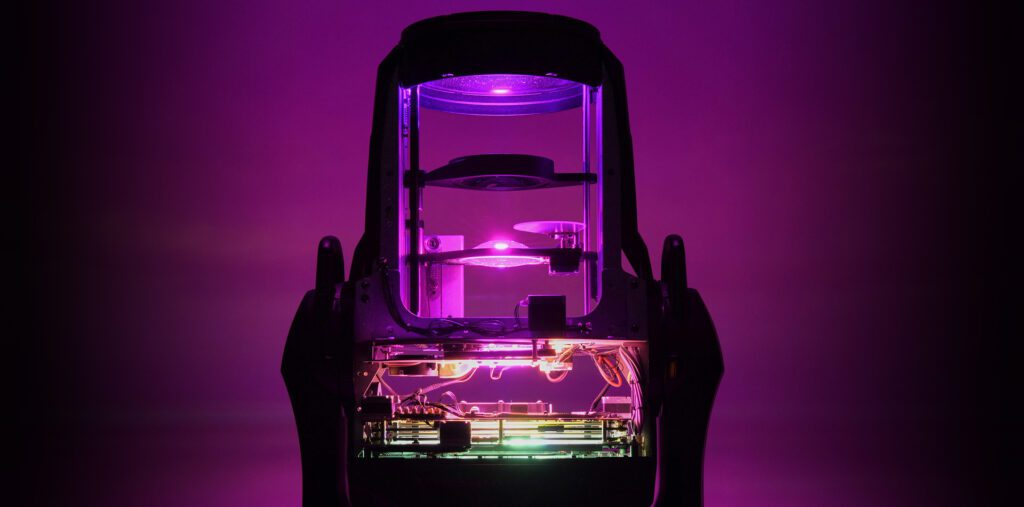

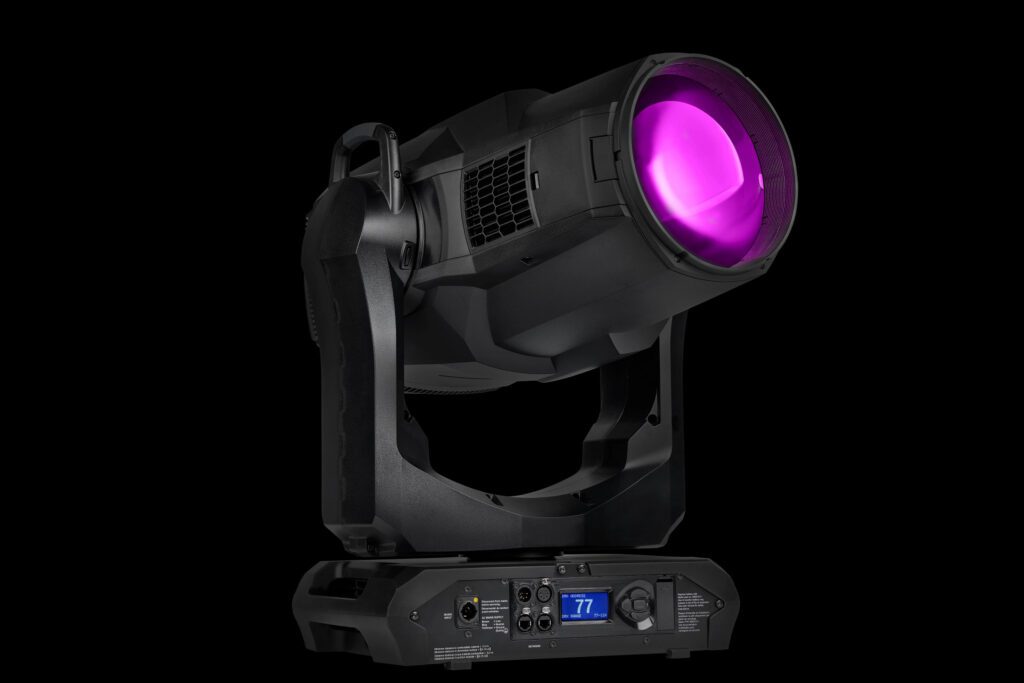

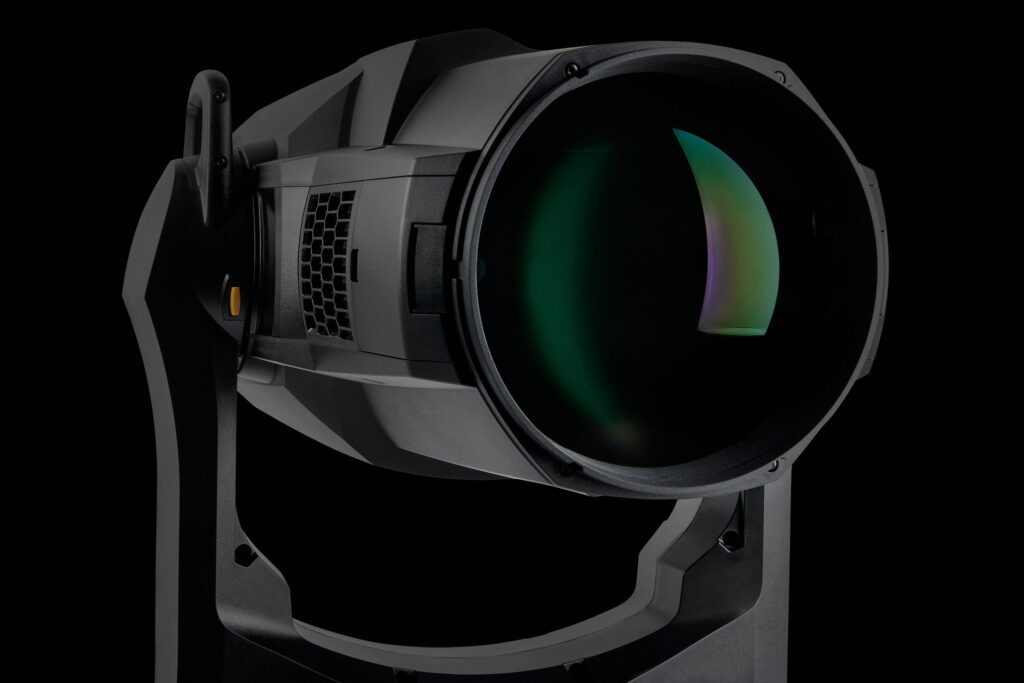

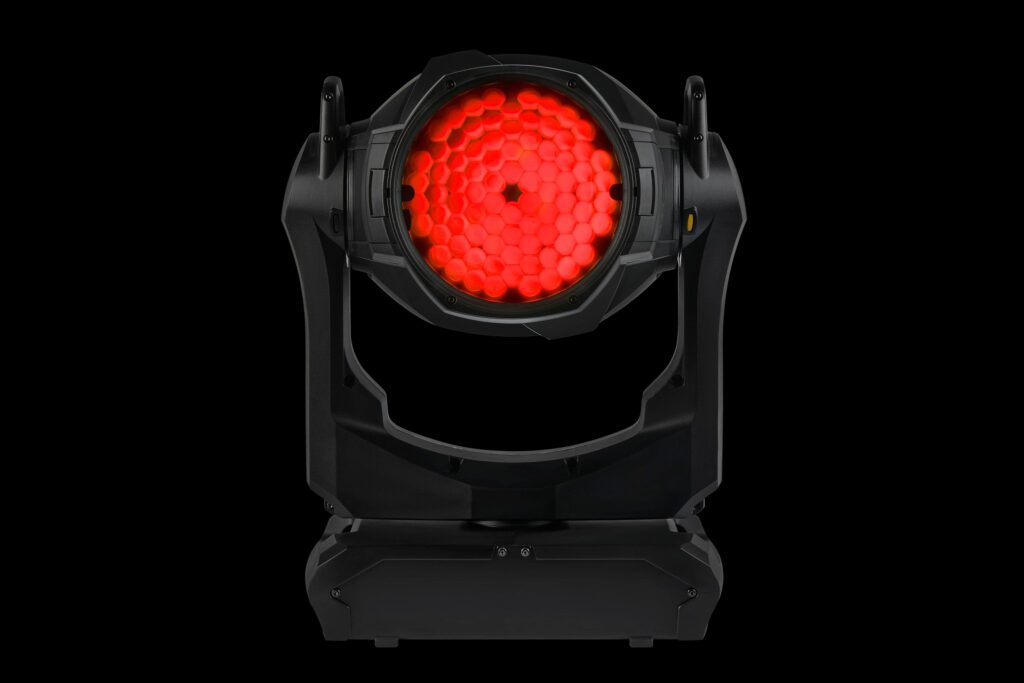

Martin MAC Ultra Wash

The MAC Ultra Wash is the brightest wash Martin have ever developed. Via its 1150W, 6000K LED light engine, it delivers a jaw-dropping 63,500 lumens from a 220 mm front lens and features fast 1:10 zoom range.

With its 50,000+ hour light engine, you can count on consistent quality of light and output for years to come. It also includes uniform color mixing, variable CTO, additional color and spectral correction filters, motorized frost for a softer field, high resolution dimming and strobing. It is ideal for touring, concerts, TV shows and performing arts.

View Product
