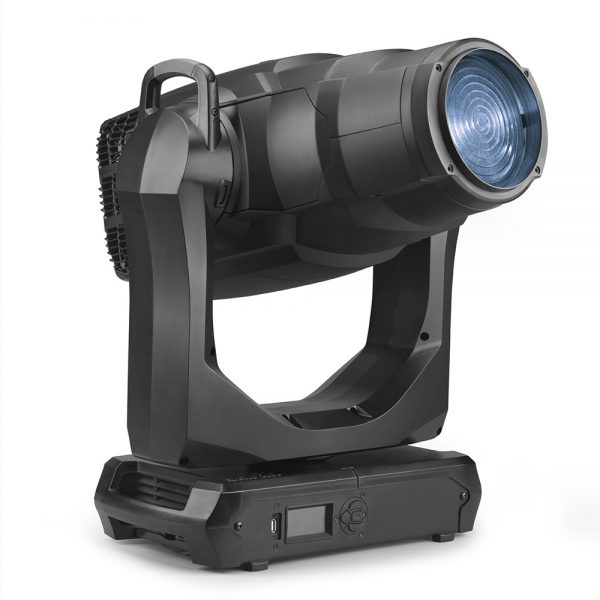

Martin MAC Encore Wash CLD Moving Head front right side head tilted upMartin MAC Encore Wash CLD Moving Head front right side head tilted up

Martin – MAC Encore Wash CLD

Martin

Soft edge colour mixing moving head with 6000 K crisp, neutral daylight, doubles as a replacement for generic fixtures like HMI based Fresnels

SKU: MAR-90234040 Categories: , , , ,

Description

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash CLD is an LED-based alternative to the MAC Viper Wash DX. The feature-packed soft edge moving head offers unparalleled 6000 K crisp, neutral daylight, and doubles as a modern replacement for generic fixtures like HMI based Fresnel fixtures, with the additional benefit of color mixing and movement.

  • Unparalleled 6000 K cold white light quality
  • Super silent cooling and effects operation
  • Best-in-class size/weight/performance ratio

Feature Quick View

  • Pure white LED engine with 6000 K CCT.
  • No colour temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY colour mixing with a superior palette of colours ranging from rich, saturated primary colours to light and smooth pastel shades.
  • Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Colour wheel—6 interchangeable dichroic filters + open.
  • PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
  • Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
  • Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
  • Precise and tight iris with adjustable dynamic effects.
  • Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
  • Low weight—28.5 kg/62.9 lbs
  • Foam rubber (SIP) flight case insert for secure shipment.

Video

Martin MAC Encore Wash Applications and Effects

Explore the various applications and effects made possible with the MAC Encore Wash and experience the quality of light it produces with comparisons between its WRM and CLD variants and against traditional incandescent light sources.

Additional information

Physical

Length: 452 mm (17.8 in.)
Width: 480 mm (18.9 in.) across yoke
Height:
755 mm (29.8 in.) maximum
745 mm (29.4 in.) head straight up

Weight: 28.5 kg (62.9 lb.)
Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
Dynamic Effects

Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 – 100%
Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Iris: Variable 0 – 100%
Zoom: Motorized
Color temperature control: Variable 6000 – 2700 K
Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
Dimmer/shutter: 0 – 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Control & Programming

Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
16-bit control: Dimming, pan and tilt
Movement control options: Tracking and vector
DMX channels: 24
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Fixture software update: USB memory device or over DMX link
Optics

Light source: 468 W custom Martin LED engine
Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard): 14° – 60° one-tenth peak (1:4)
Zoom range with PC lens (optional): 11° – 58° one-tenth peak (1:5)
*Figure obtained under manufacturer's test conditions
Photometric Data

Light engine luminous output: ≥ 39,400 lumens
Fixture luminous output with Fresnel lens (standard): 11,000 lumens
Fixture luminous output with PC lens (optional): 12,000 lumens
CRI (Color Rendering Index) : >80
CQS (Color Quality Scale): >80
TM-30 Rf (IES TM-30-15 Fidelity Index): >80
TM-30 Rg (IES TM-30-15 Gamut Index): >96
TLCI (Television Lighting Consistency Index): >70
CCT: 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction

Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation

Mounting points: 4 pairs of 1/4-turn locks
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

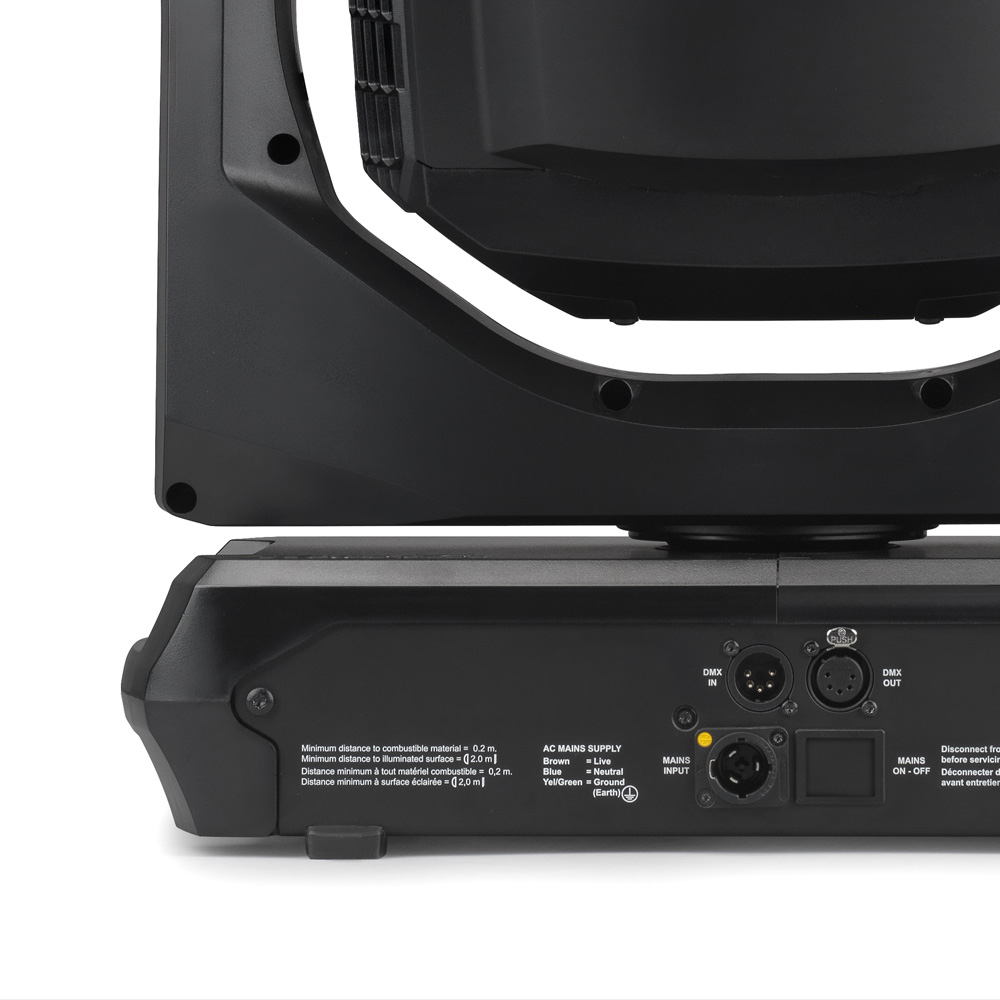

Connections

AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out: 5-pin locking XLR
Electrical

AC power: 120-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Power Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 V
Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *
Power Consumption
Typical: 596 W *
Idle: 64 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal

Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 17 lm/w
LWR*: 386 lm/kg (175 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals

EU safety: EN 60598-2-17, EN 62471, EN62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA C22.2 No. E598-2-17
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
Thailand: TIS
Included Items

Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
