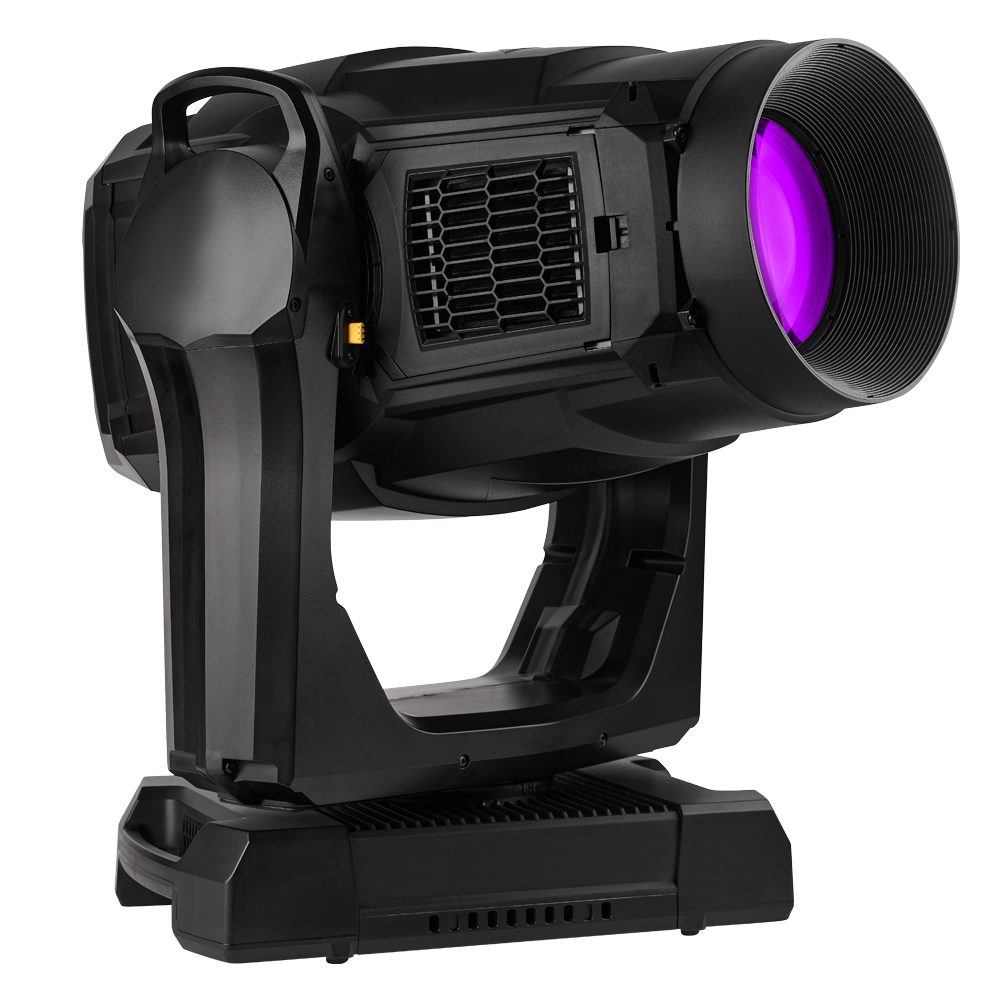

Physical

Width (across yoke): 479 mm (18.9 in.)
Width (base): 429 mm (16.9 in.)
Height (head straight up): 758 mm (29.8 in.)
Height (maximum): 776 mm (30.6 in.)
Length (head): 596 mm (23.5 in.)
Depth (base): 275 mm (10.8 in.)
Minimum center-to-center distance in side-by-side installation: 720 mm (28 in.)
Weight: 36.8 kg (81.1 lbs.)

Dynamic Effects

Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Dimming options: Choice of four dimming curves
Color Mixing: CMY, independently variable 0 – 100%
Physical Color Temperature Control: Variable 5,600 – 2,600 K
Virtual Color Temperature Control: Variable 2,000 – 12,850 K
Virtual Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Color Wheel: 5 dichroic filters (incl. Spectral Enhancement Filter) + open, indexing, shake, continuous wheel rotation & random color
Rotating Gobo Wheel: 7 interchangeable gobos + open, indexing, shake, continuous rotation, continuous wheel rotation & random gobo
Static Gobo Wheel: 11 gobos + open, indexing, shake, continuous wheel rotation & random gobo
Gobo Color Temperature Correction: Automatic
Animation Wheel: Interchangeable animation wheel, indexing, shake, bounce, continuous rotation & variable wheel insertion angle
Light Frost: Variable 0 – 100%
Heavy Frost: Variable 0 – 100%
Prism: 4 Facet, indexing, shake & continuous rotation
Iris: Variable 0 – 100%, opening and closing pulse effects
Zoom: Motorized with 1:10 zoom ratio
Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity, including focus tracking
Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 – 100%
Pan: Motorized 540°
Tilt: Motorized 268°
P3 Mix: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
PixelMapping: Individual control of each of the 6 LED Segments
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
LED Frequency control: Variable LED PWM control

Control and Programming

Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3 (additional protocols, incl. wireless, available via Universal Connect Module)
Protocol Detection: Automatic
DMX Modes: Basic, Extended & Ludicrous
DMX Channels: 52, 62 & 68
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Dimming, Color Mixing, CTO, Gobo Indexing and Rotation, Animation Wheel Indexing and Rotation, Prism Indexing and Rotation, Iris, Zoom, Focus, Framing Insertion and Angle, Framing Rotation, Pan and Tilt
Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2018
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

Optics

Front Lens Diameter: 150 mm (5.9 in.)
Zoom Range: 1:10
Full Zoom Range at Tenth Peak (Field Angle): 5.7° – 54.0°

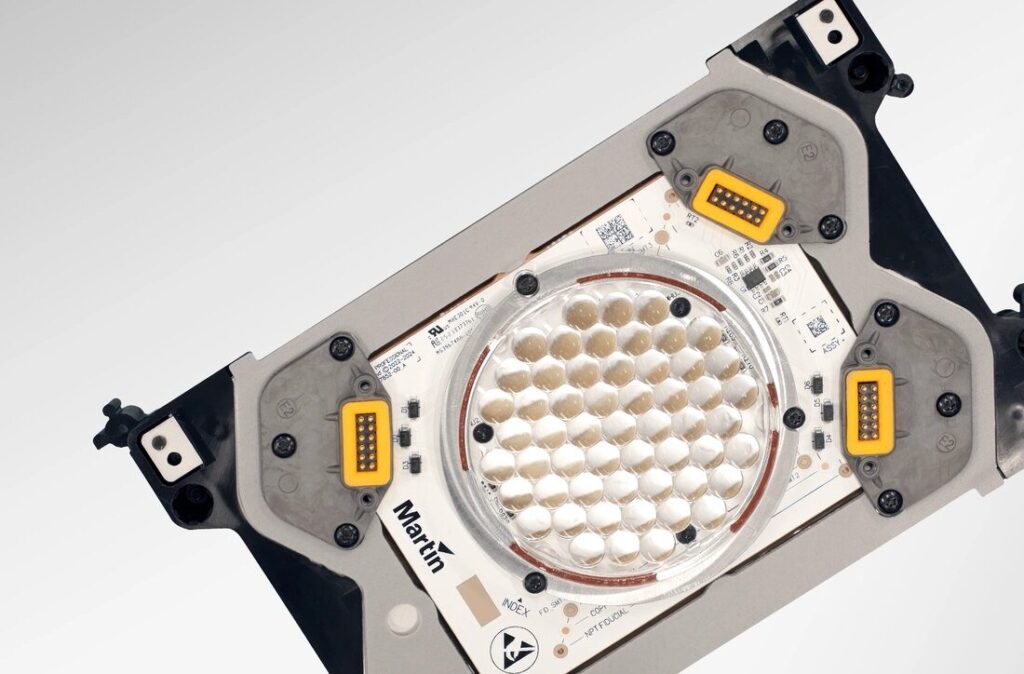

Light Source: 55 x 18 W High Light Quality White LED in a custom Martin engine
Max. Total LED Engine Power: 760 W
Minimum LED lifetime: > 50.000 hours (to > 80% luminous output) / > 20.000 hours (to > 90% luminous output)*
*Figure obtained under manufacturer’s test conditions

Photometric Data

Light Engine Luminous Output: 57,000 lumens

Without Spectral Enhancement Filter
Fixture Luminous Output Wide: 21,000 lumens
Peak Luminous Intensity Narrow: 2,000,000 cd
CCT: 5,600 K (+/- 300 K)
CRI (Color Rendering Index): 90 (+/- 3)
CQS (Color Quality Scale): 88 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 90 (+/- 3)
TM-30 Rg (IES TM-30-15 Gamut Index): 100 (+/- 3)
TLCI (Television Lighting Consistency Index): 90 (+/- 3)

With Spectral Enhancement Filter
Fixture Luminous Output Wide: 13,600 lumens
Peak Luminous Intensity Narrow: 1,300,000 cd
CCT: 5,600 K (+/- 300 K)
CRI (Color Rendering Index): 95 (+/- 3)
CQS (Color Quality Scale): 91 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 95 (+/- 3)
TM-30 Rg (IES TM-30-15 Gamut Index): 100 (+/- 3)
TLCI (Television Lighting Consistency Index): 95 (+/- 3)

LED Refresh Rate: 2,400 Hz with fine adjustment (+/- 2%) and Hybrid mode (DMX controllable)
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode

*All Photometric Data measured at 5,600 K white

*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

Construction

Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20

Gobos

Maximum image diameter: 22 mm (0.866 in.)External diameter: 27.1 mm +0 / -0.2 mm (1.067 in. +/ – in.)Maximum gobo thickness: 1.1 mm (0.04 in.)Coating: Heavy matted aluminumMaterial: Borofloat 33

Installation

Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 3.25 m (10.7 ft.)

Connections

AC mains power in/thru: Neutrik Rean powerCON TRUE1
DMX and RDM data in/thru: Neutrik 5-pin locking XLR
Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON
Firmware from flash memory: USB 2.0 type C port
Accessory Plug-In: Universal Connect Module Slot

Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
Typical earth-leakage current: 0.7 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
Max current draw: 11.0 A @ 100 V / 120 V , 5.2 A @ 208 V , 4.6 A @ 230 V / 240 V
Typical current draw: 9.5 A @ 100 V , 7.8 A @ 120 V , 4.4 A @ 208 V , 4.0 A @ 230 V , 3.9 A @ 240 V *
Power Consumption
Maximum: 1040 W
Typical: 945 W *
Idle: 68 W *
Hibernation: 6 W *

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal

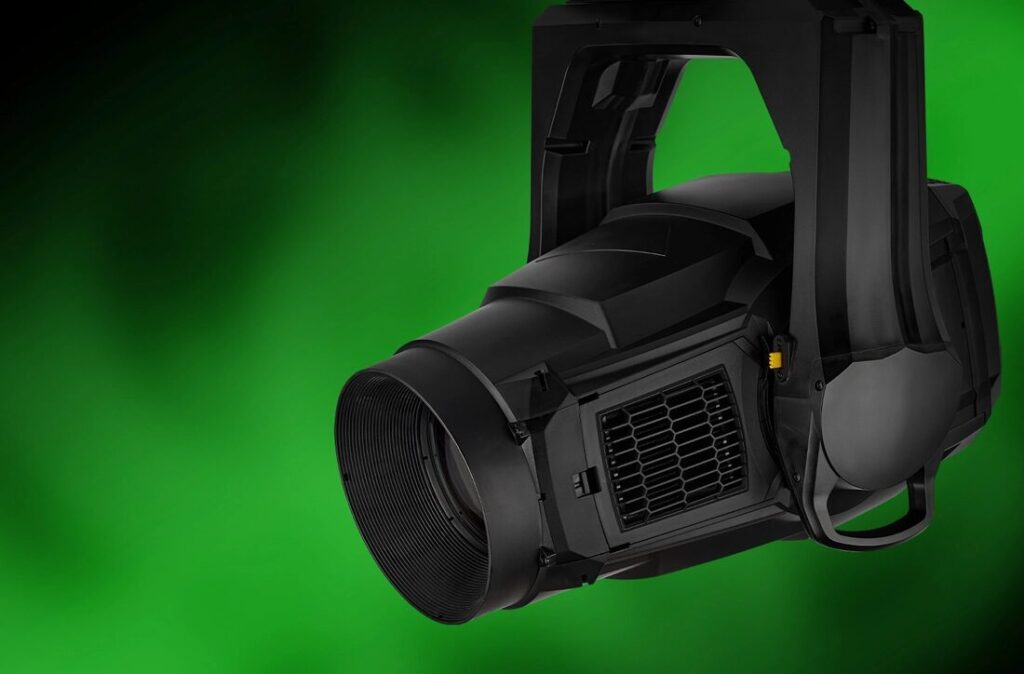

Cooling: Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
Total heat dissipation (calculated, +/- 10%): 3550 BTU/hr.

Acoustic Data

Sound Pressure Level (LpA) @ 1 m (regulated high fan mode, full output): 36.2 dB(A)
Sound Pressure Level (LpA) @ 1 m (regulated medium fan mode): 31.7 dB(A)
Sound Pressure Level (LpA) @ 1 m (regulated low fan mode): 27.6 dB(A)
Sound Pressure Level (LpA) @ 1 m (regulated ultra-low fan mode): 27.2 dB(A)

Warranty

Fixture: 2 years
Light Engine: 5 years

Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Packaging: FSC Certified cardboard outer packaging & Recycled EPS inner packaging
Efficacy (max output): 22.2 lm/w
LWR*: 580 lm/kg (262 lm/lbs.)

LWR = Lumen-to-Weight Ratio

Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMUnited Kingdom: UKCAThailand: TISI 1955-2551

Included Items

Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Multi-langugage Safety and Installation Manual
