Elation SŌL BLINDER Series
Modula Perfection.
Elevate your lighting to unprecedented heights with the SŌL, a groundbreaking LED luminaire designed to revolutionize stage illumination. The SŌL I Blinder, with its innovative modular design, merges state-of-the-art technology and sleek aesthetics, opening up a realm of creative lighting possibilities. Powered by a potent 250W RGB+Lime+Amber+White LED engine, it offers superior brightness and a vibrant color spectrum for captivating visual effects. Designed for versatility, it comes with various lens options and accessories, all housed in a compact, durable IP65-rated casing that stands up to any environment. Transform your stage with the SŌL Blinder series, redefining excellence in live entertainment lighting

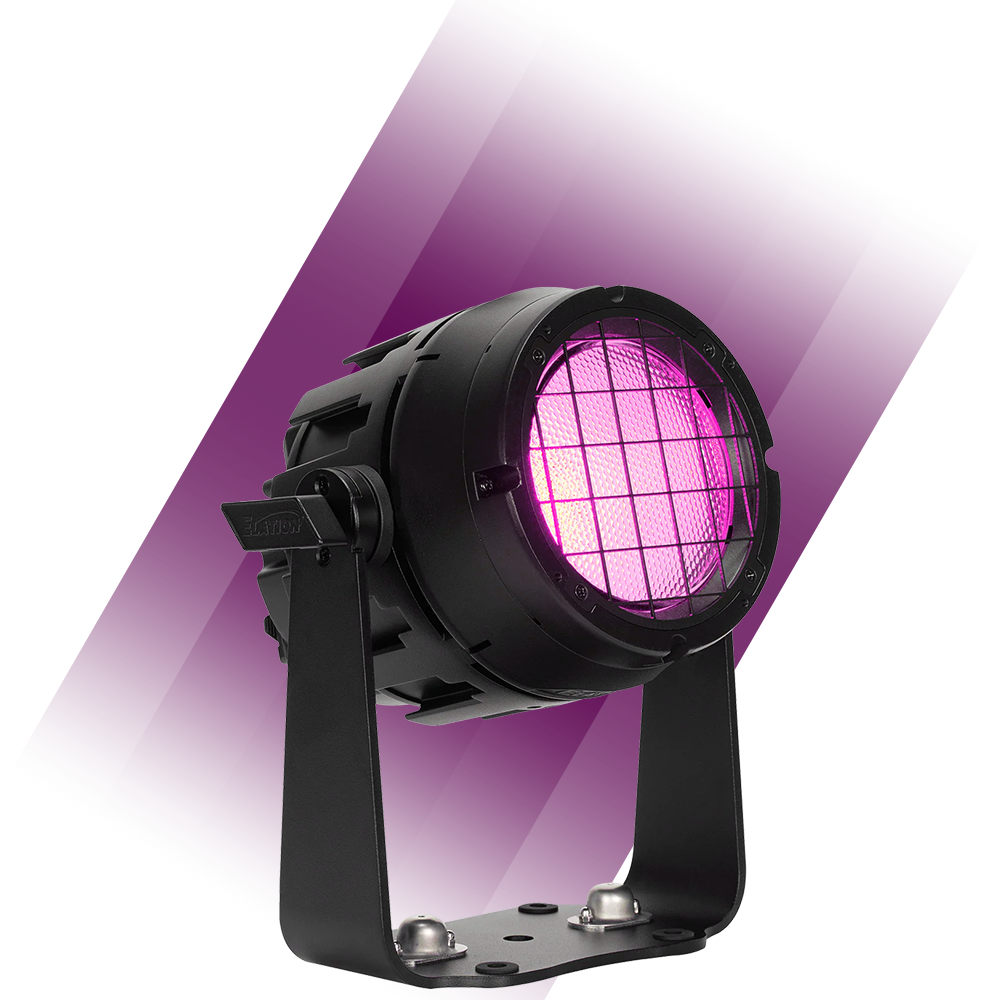

SŌL I BLINDER
Inspired by the radiant sun, the SŌL I BLINDER is the first in a new groundbreaking series of creative LED blinder and effects solutions that seamlessly marries cutting-edge technology with artistic ingenuity.
What Will You Create?
Features
- 250W RGBLAW LED
- 9128 Total Fixture Lumen Output (Sphere)
- 46° Beam Angle
- Simple ‘Array Mode’ Addressing System
- Dim-to-Warm/ Red Shift Emulation
- High Output Blinder Mode or Constant Output Mode
- Nearly Endless Mounting & Configuration Options
- IP65 Rated
SŌL I BLINDER
Use as a single-cell, 2 or 4-cell blinder, connect even more fixtures together for a versatile effects panel, perfect for eye-candy looks.
Multiple lens options, coupled with a host of accessories, enhance the fixture’s potential even further.
Specifications
SŌL I BLINDER
Source
250W RGBLAW LED
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data
Total Lumen Output
9128 (Integrating Sphere)
CRI TBA
Compound Lens
Beam Angle: 46°
Field Angle: 85°
No Lens
Beam Angle: 52°
Field Angle: 95°
Effects
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
High Output Blinder Mode or Constant Output Mode Options
Colour
RGBLAW Color Array
CMY Emulation
Variable CCT 1800K – 8500K
Virtual Gel Swatch Book
Control / Connections
12 DMX Channel Modes (1ch, 2ch, 3ch, 4ch, 6ch, 7ch, 13ch, 21ch, 10ch, 15ch, 10ch 15ch)
Simple ‘Array Mode’ Addressing System
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
Size / Weight (Without Accessories)
Length: 7.28″ (185mm)
Width: 4.48” (114mm)
Vertical Height: 4.48” (114mm)
Weight (Fixture Only): 5.5 lbs (2.9 kg)
Weight (With Floor Stand/Yoke): 9.25 lbs (4.2 kg)
Electrical / Thermal
AC 100-240V – 50/60Hz
285W Max Power Consumption
Power Thru Capacity: 8A (3 units @115V, 6 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 972
Included Items
Fixture Yoke / Floor Stand
Fixture Interconnect Adapter
Safety Cable
IP65 Locking Power Cable
Approvals / Ratings
CE | IP65 | FCC | UKCA

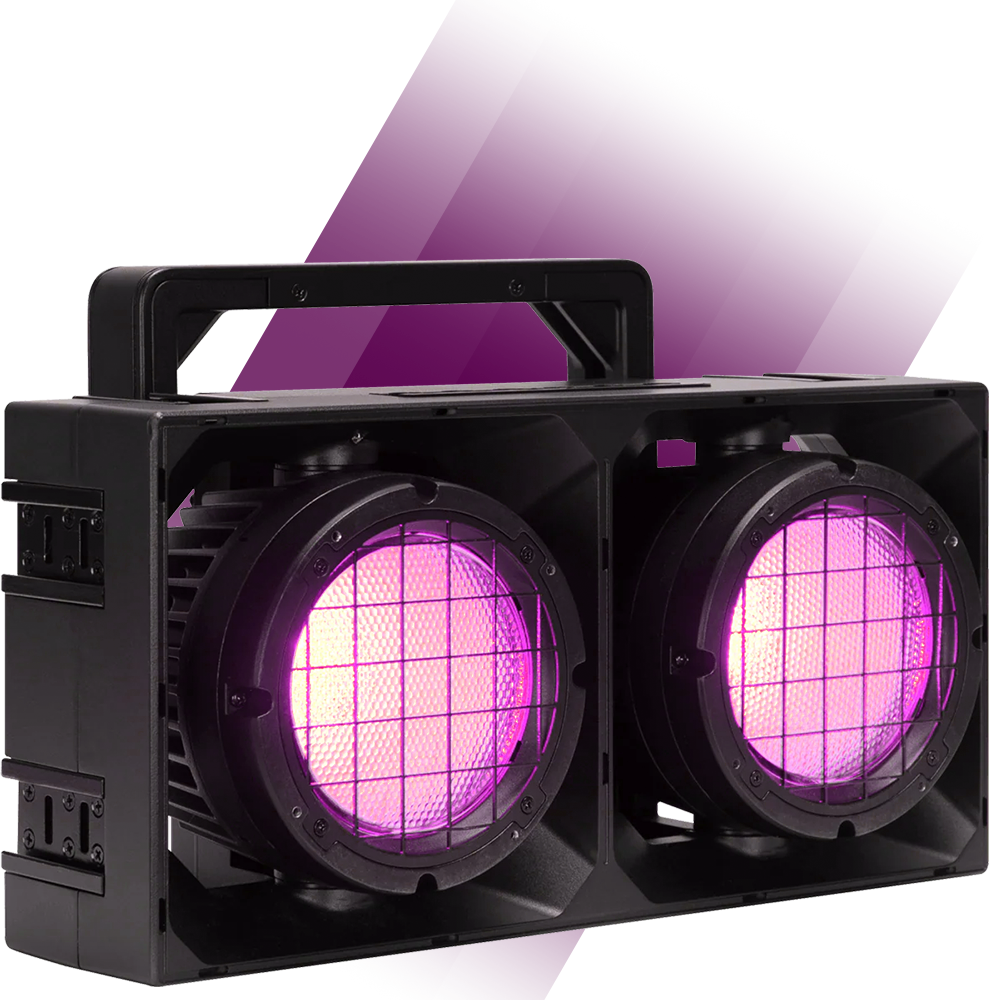

SŌL II BLINDER
Source
2x 350W RGBLAW LED
30,000 Hour Average LED Life**May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data
Total Lumen Output:
30,750 (Integrating Sphere)
CRI TBA
Compound Lens
Beam Angle: 46°
Field Angle: 85°
No Lens
Beam Angle: 52°
Field Angle: 95°
Effects
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
High Output Blinder Mode or Constant Output Mode Options
Colour
RGBLAW Colour Array
CMY Emulation
Variable CCT 1800K – 8500K
Virtual Gel Swatch Book
Control / Connections
18 DMX Channel Modes (1ch, 2ch, 2ch, 4ch, 3ch, 5ch, 4ch, 8ch, 6ch, 12ch, 7ch, 10ch, 22ch, 37ch, 16ch, 25ch, 16ch 25 ch)
Simple ‘Array Mode’ Addressing System
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
Size / Weight (Without Accessories)
Length: 9.3″ (236mm)
Width: 16.5” (420mm)
Vertical Height: 10.3” (261mm)
Weight (Fixture Only): 24.7 lbs (11.2 kg)
Electrical / Thermal
AC 100-240V – 50/60Hz
650W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 2216.5
Included Items
Removable Fixture Yoke / Omega Bracket
2x Fixture Interconnect splices
Safety Cable
IP65 Locking Power Cable
Approvals / Ratings
CE | IP65 | FCC | UKCA

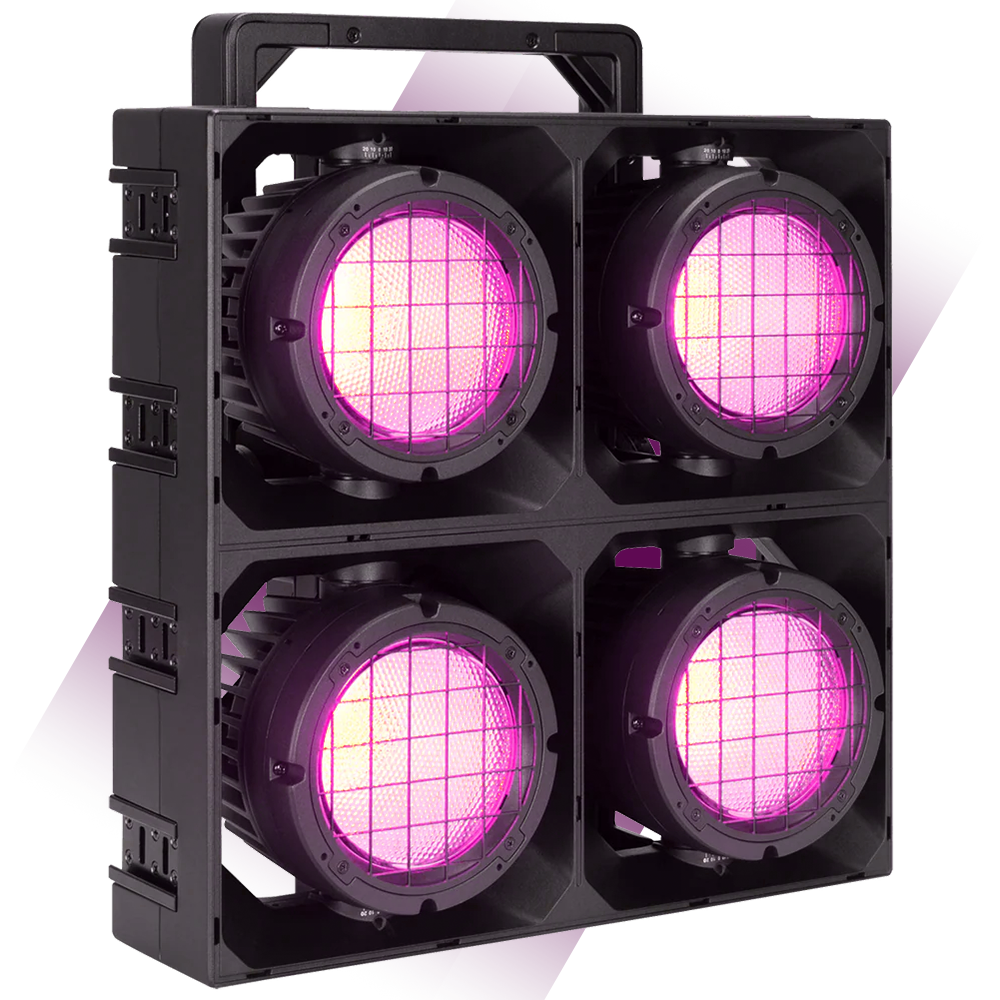

SŌL IV BLINDER
Source
4x 350W RGBLAW LED
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data
Total Lumen Output:
59,830 (Integrating Sphere)
CRI TBA
Compound Lens
Beam Angle: 46°
Field Angle: 85°
No Lens
Beam Angle: 52°
Field Angle: 95°
Effects
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
High Output Blinder Mode or Constant Output Mode Options
Colour
RGBLAW Colour Array
CMY Emulation
Variable CCT 1800K – 8500K
Virtual Gel Swatch Book
Control / Connections
24 DMX Channel Modes (1ch, 2ch, 4ch, 2ch, 4ch, 8ch, 3ch, 5ch, 9ch, 4ch, 8ch, 16ch, 6ch, 12ch, 24ch, 7ch, 10ch, 16ch, 40ch, 69ch, 28ch, 45ch, 28ch 45ch)
Simple ‘Array Mode’ Addressing System
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
IP65 5pin DMX Cable In/Out
IP65 Locking Power Cable In
Size / Weight (Without Accessories)
Length: 9.4″ (240mm)
Width: 16.5” (420mm)
Vertical Height: 18.6” (471mm)
Weight (Fixture Only): 41.9 lbs (19.0 kg)
Electrical / Thermal
AC 100-240V – 50/60Hz
1300W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 4262.5
Included Items
Removable Fixture Yoke / Omega Bracket
2x Fixture Interconnect splices
Safety Cable
IP65 Locking Power Cable
Approvals / Ratings
CE | IP65 | FCC | UKCA
