Power and Versatility
High End Systems GigaPix & MegaPix
Next-level performance pixel wash fixture.

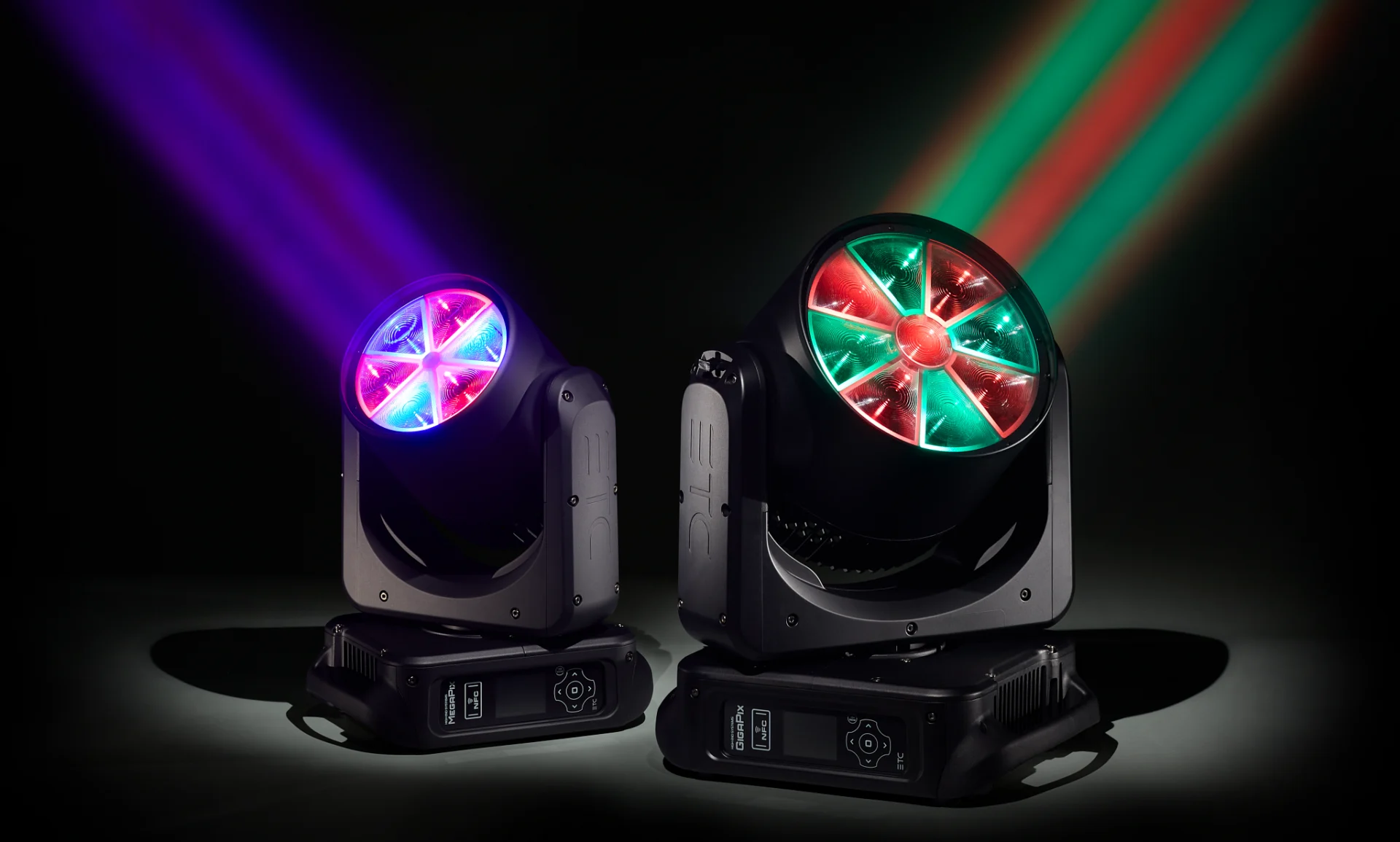

High End Systems MegaPix and GigaPix bring next-level performance to the pixel wash fixture. With advanced color capabilities, a patented Fresnel lens system, and an IP54 rating to protect from rain and dust, MegaPix and GigaPix are an ideal choice for indoor and outdoor theatre, concerts, and more.

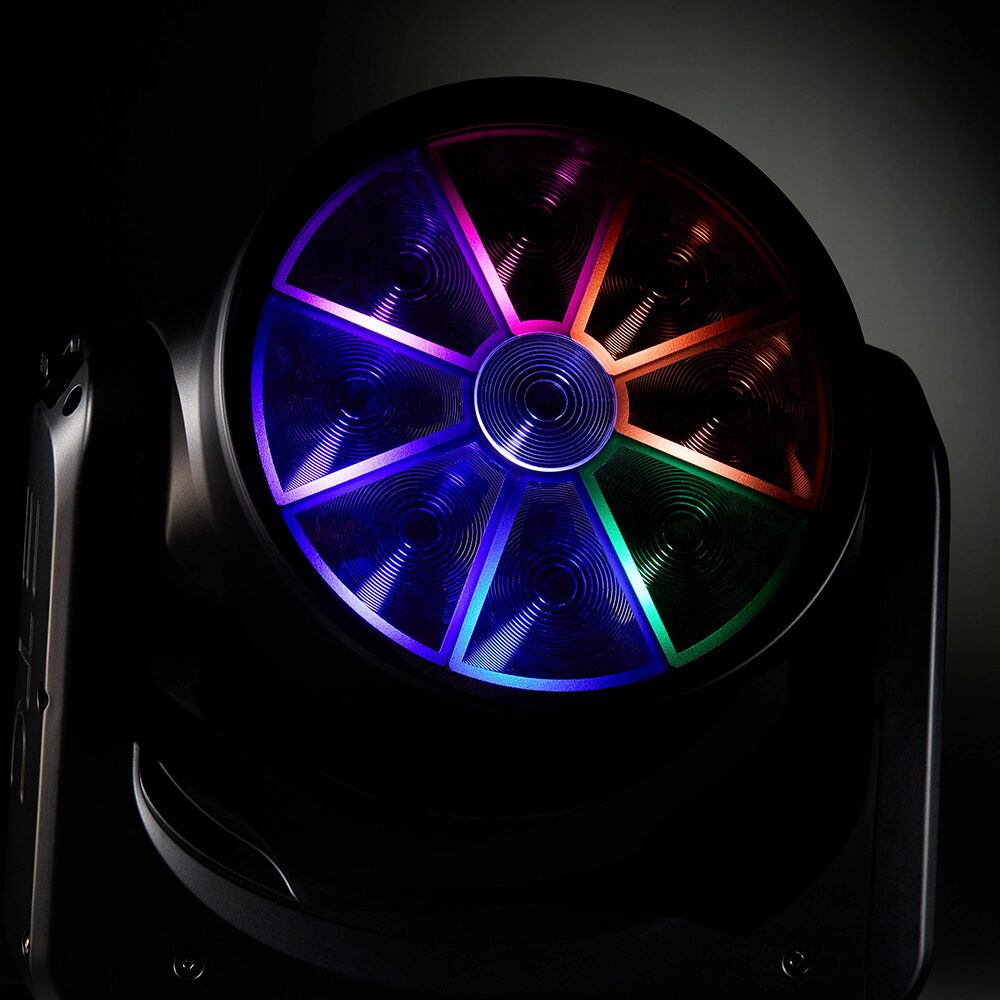

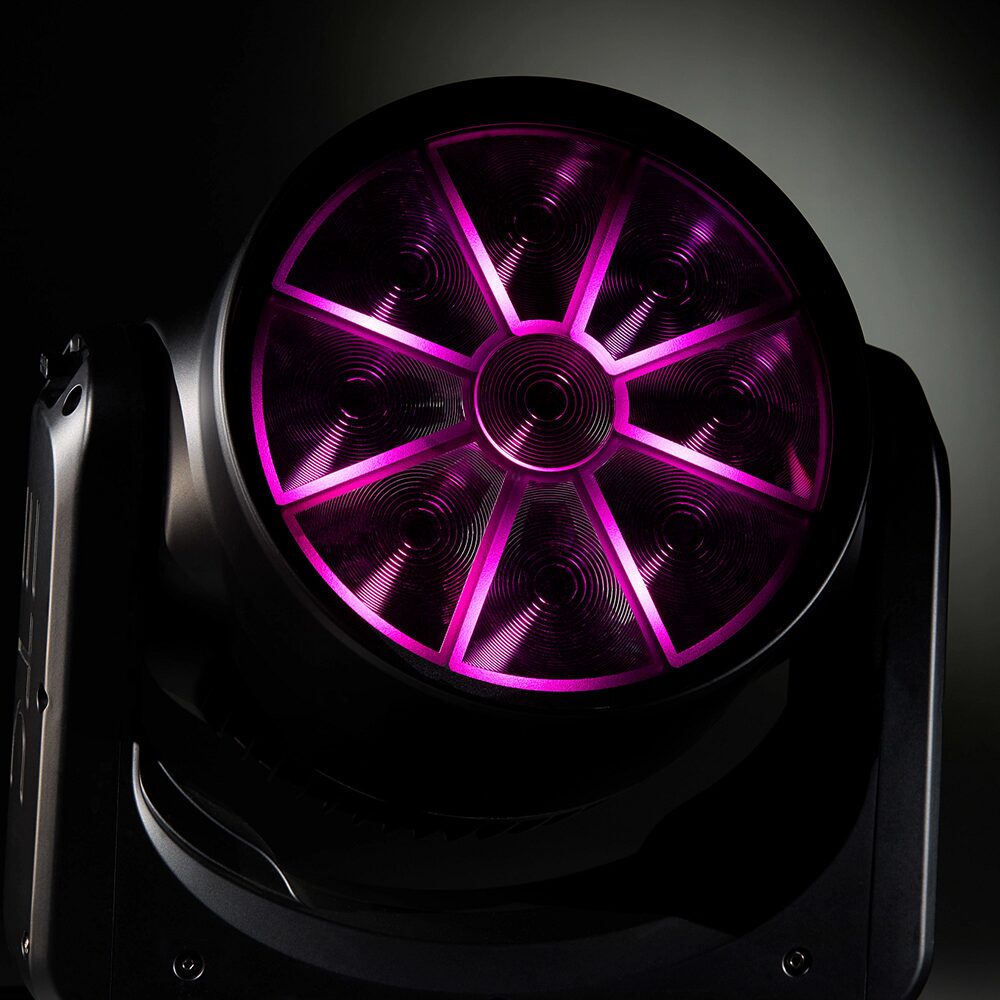

MegaPix and GigaPix feature a patented Integrated Fresnel Lens (IFL) System. This segmented Fresnel design delivers the beautiful light qualities of a classic Fresnel with the power and versatility of a pixel wash. Edge-to-edge lensing allows for increased output throughout the zoom range, including more powerful narrow beams, while yielding a beautiful Fresnel-like projection. The IFL system is also protected against buildup of fog condensate, minimizing maintenance requirements, while providing a
crisp, clear front lens show after show.
Industry-leading color scientists.
Designed by ETC’s team of industry-leading color scientists, the 2000-10000 K CT Channel delivers the highest TM-30 Preference rating (P1) throughout the entire range, while brightness never drops below 80 percent. The custom RGBL LED engine readily supports moments that call for vibrant or subtle color. Smooth dimming and a soft, fast, quiet zoom further elevate the experience of designing with MegaPix and GigaPix.
Users can draw from inclusive macros with built-in color or flex macros with customizable colors to create dynamic face looks with MegaPix and GigaPix. Art-Net and sACN options provide modular control of each pixel on the fixtures.
Weather-rated with an IP54 rating, MegaPix and GigaPix are protected from dust and rain. Maintenance remains simple whether they are used on indoor and outdoor events, festival rigs, summer theatre, and more.

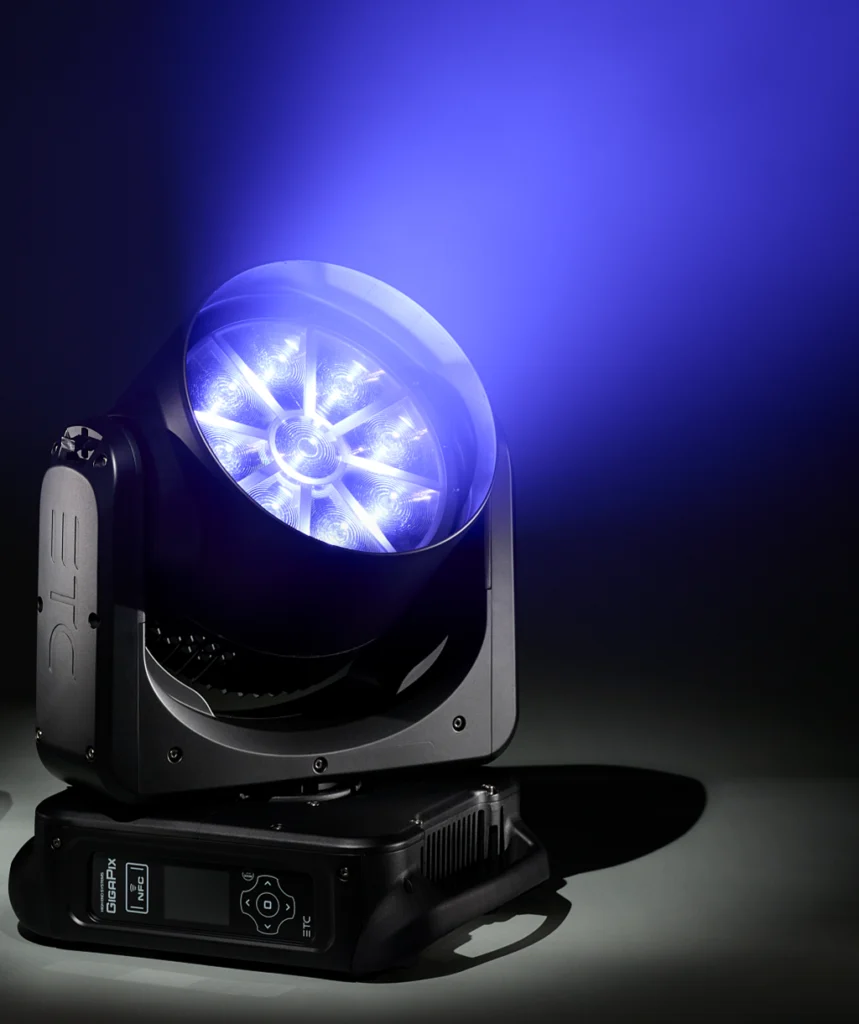

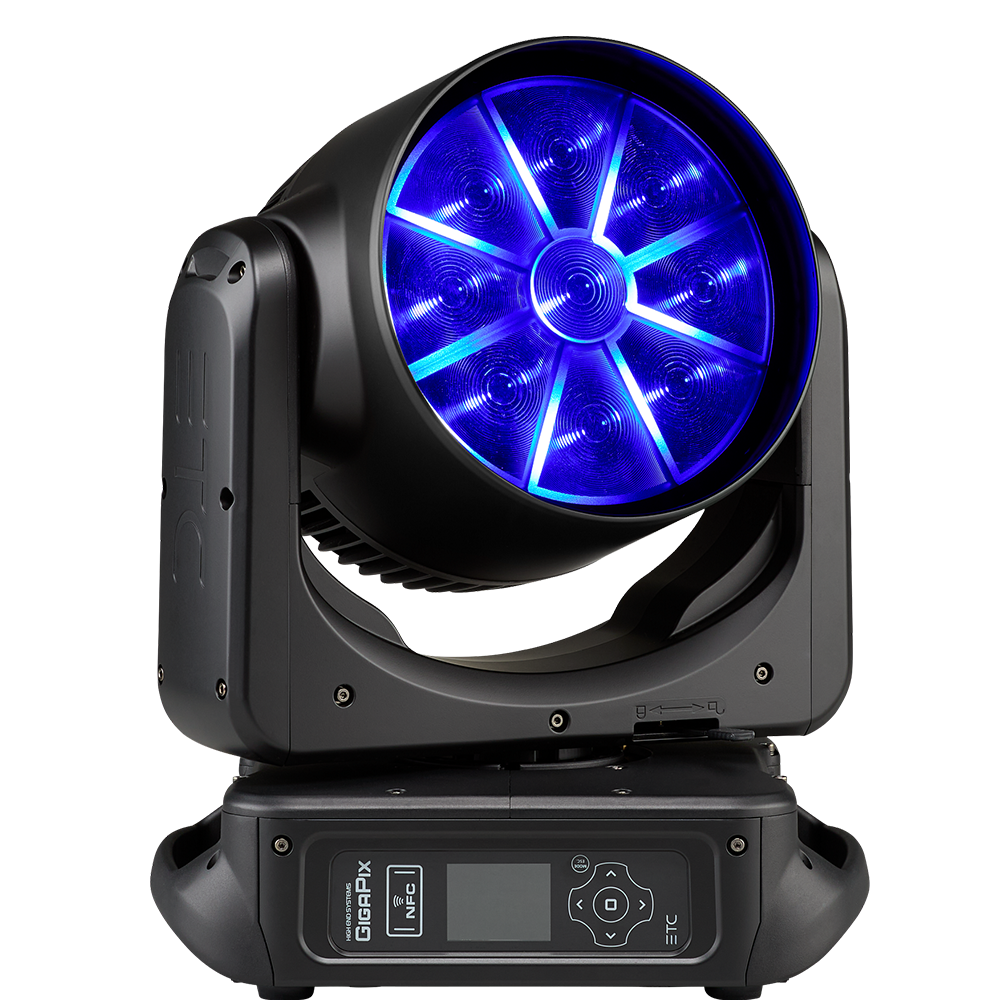

IP54 rated, Nine 60W custom RGBL LED moving head wash fixture featuring a patented Integrated Fresnel Lens.

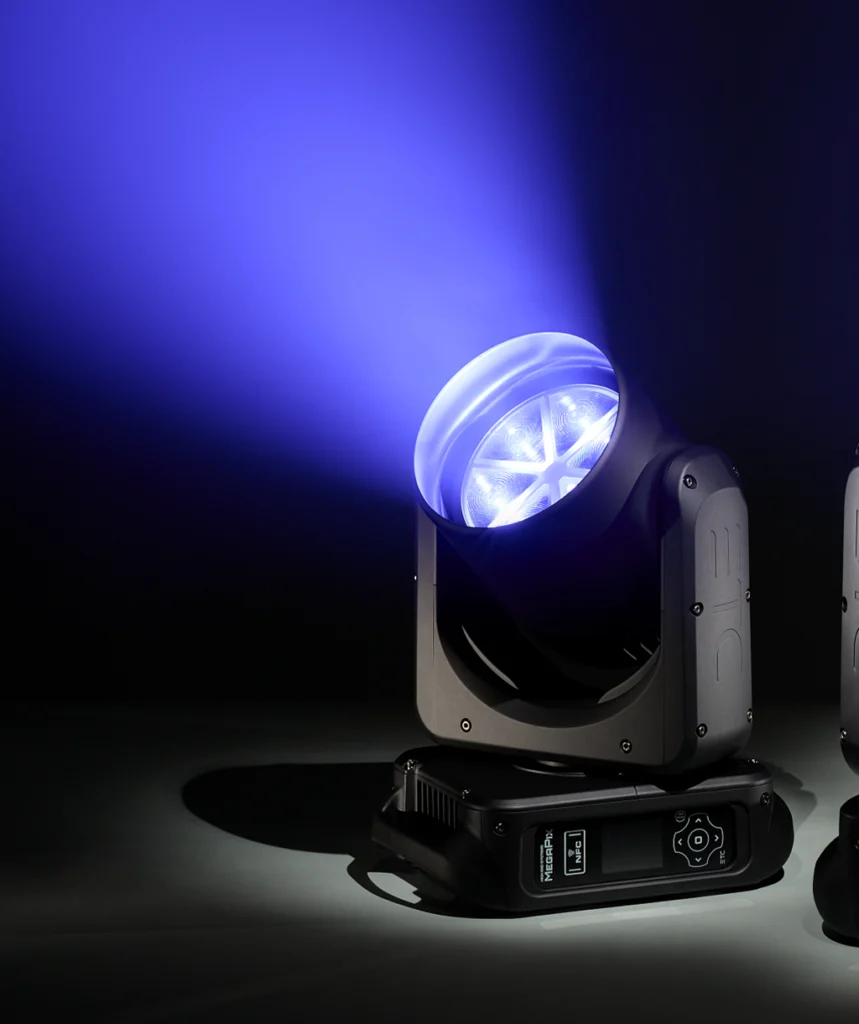

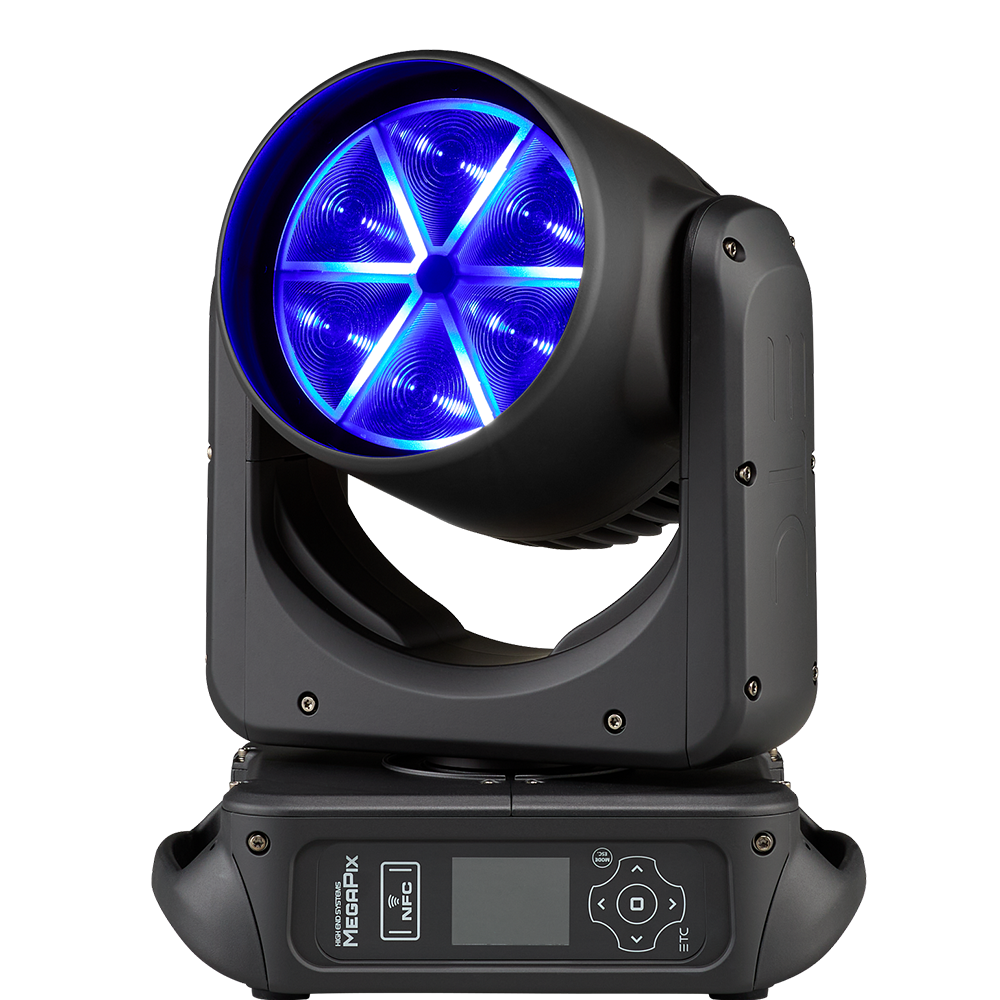

IP54 rated, Six 60W custom RGBL LED moving head wash fixture featuring a patented Integrated Fresnel Lens.
Specification
GigaPix
Source
Engine: Custom RGBL LED
LED Details: Nine (9) 60 W LED engines
Field Lumens: See photometrics on page 4
Max Integrating Sphere Lumens: 16,700
LPW: 31
LED Life: 50,000 hours
Color
Color Mixing: Additive RGBL color mixing
Color Temperature:
2000 K to 10000 K
TM-30 Preference 1
Optical
Angle Range: 4.5°–55°
Aperture Size: 217 mm
Diffusion: Soft and homogenized field of light throughout entire zoom range
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
Control
Input Method DMX: (5-pin) or Ethernet
Protocols: DMX via RS-485 Art-Net or sACN via Ethernet
Ethernet Pass-Thru: No
Modes (Footprint): Wash (15) Base (25), Base+Flex (45), and separately addressable Pixel Control Module (36)
RDM Functions: Yes
UI Type:
Full-color graphical UI
5-button navigational control
NFC configuration
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Electrical
Voltage Range: 100–240 V 50–60 Hz
Input Method: REAN® power X Series Connectors
Wattage: 750 W
Current (Max):
7.5 A @ 100 V
3.0 A @ 240 V
Inrush (First Half Cycle):
120 V: 25 A
230 V: 45 A
Fixtures per Circuit:
2 fixture (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
Thermal
Ambient Operating Temp: -10° to 40°C (14° to 104°F)
Fan Mode: Auto, Studio, Linear fan control
Physical
Pan and Tilt Range: 540° pan, 264° tilt
Max Pan/Tilt Speed: 360° in 1.3 s/180° in 0.65 s
Materials: Steel and aluminum frame with molded plastic covers and protected rubber bellows
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP54
Weight: 15 kg (33 lb)
Included Accessories:
REAN power X Series Connector to bare end fixture tail
Two (2) 107 mm single-hole Omega brackets
Safety cable
Fixture Warranty
Five (5) years for light engine
Two (2) years for complete fixture
MegaPix
Source
Engine: Custom RGBL LED
LED Details: Six (6) 60 W LED engines
Field Lumens: See photometrics on page 4
Max Integrating Sphere Lumens: 10,000
LPW: 28
LED Life: 50,000 hours
Color
Color Mixing: Additive RGBL color mixing
Color Temperature:
2000 K to 10000 K
TM-30 Preference 1
Optical
Angle Range: 4.5°–50°
Aperture Size: 217 mm
Diffusion: Soft and homogenized field of light throughout entire zoom range
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
Control
Input Method: DMX (5-pin) or Ethernet
Protocols: DMX via RS-485 Art-Net or sACN via Ethernet
Ethernet Pass-Thru: No
Modes (Footprint): Wash (15) Base (25), Base+Flex (45), and separately addressable Pixel Control Module (24)
RDM Functions: Yes
UI Type:
Full-color graphical UI
5-button navigational control
NFC configuration
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Electrical
Voltage Range: 100–240 V 50–60 Hz
Input Method: REAN powerCON TRUE1 TOP
Wattage: 450 W
Current (Max):
4.5 A @ 100 V
1.8 A @ 240 V
Inrush (First Half Cycle):
120 V: 47.6 A
230 V: 59.2 A
Fixtures per Circuit:
4 fixture (R20 module or similar)
Note: REAN TRUE1 TOP connector rated for
20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
Thermal
Ambient Operating Temp: -10° to 40°C (14° to 104°F)
Fan Mode: Auto, Studio, Linear fan control
Physical
Pan and Tilt Range: 540° pan, 264° tilt
Max Pan/Tilt Speed: 360° in 1.07 s/180° in 0.87 s
Materials: Steel and aluminum frame with molded plastic covers and protected rubber bellows
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP54
Weight: 9.2 kg (20.3 lb)
Included Accessories:
X Series IP65 to bare end fixture tail
Two (2) 107 mm single-hole Omega brackets
Safety cable
Fixture Warranty
Five (5) years for light engine
Two (2) years for complete fixture
