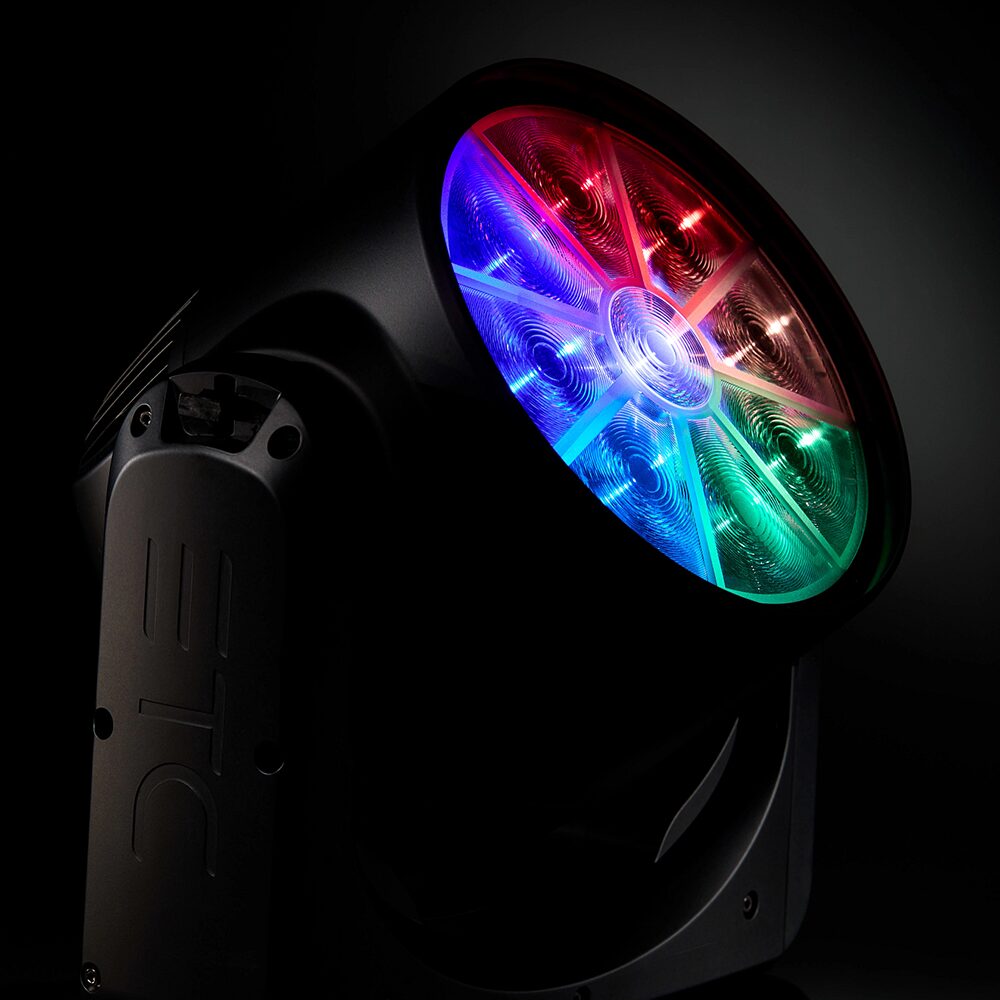

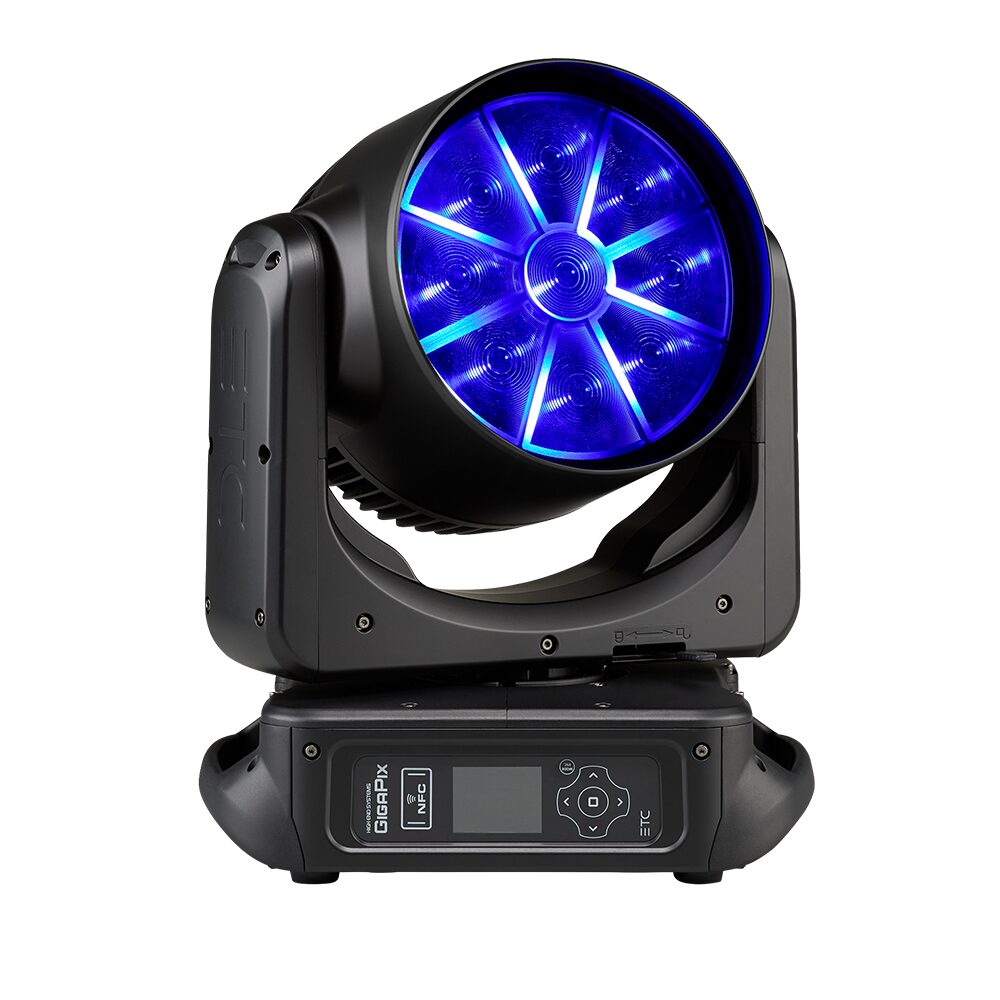

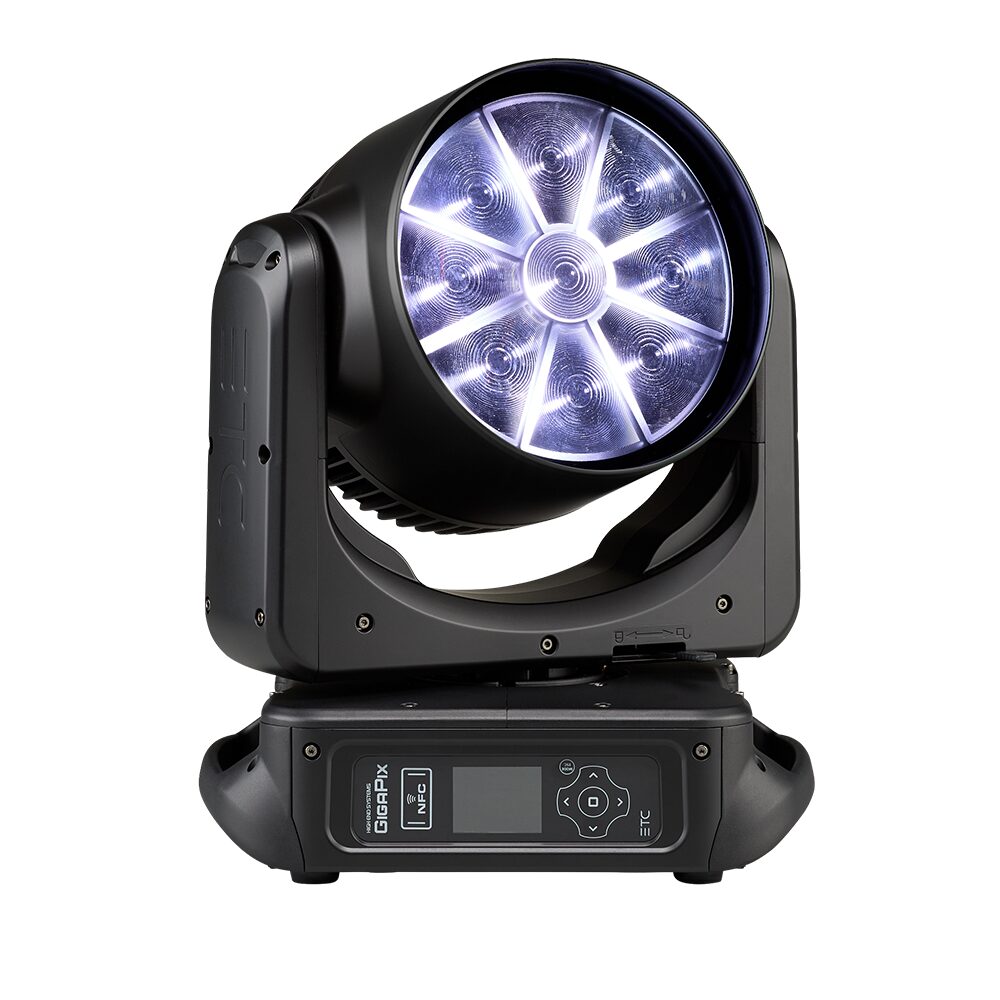

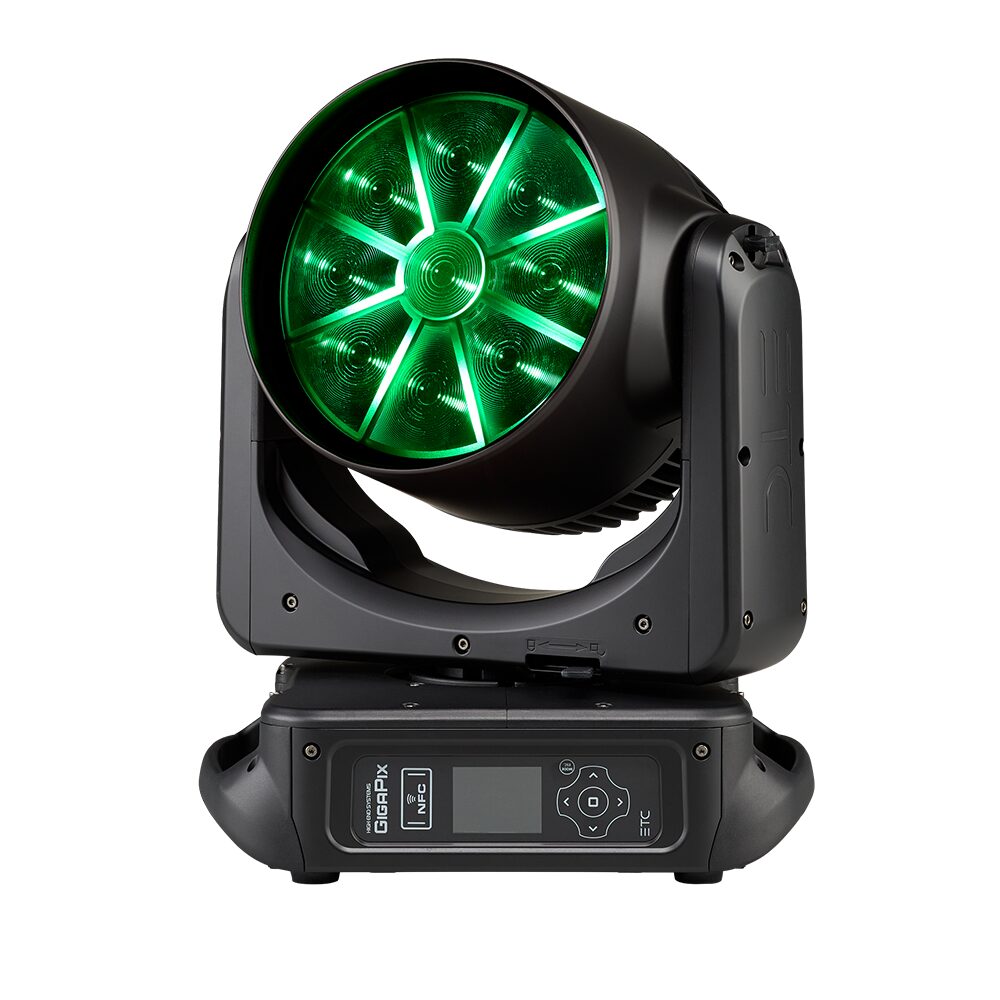

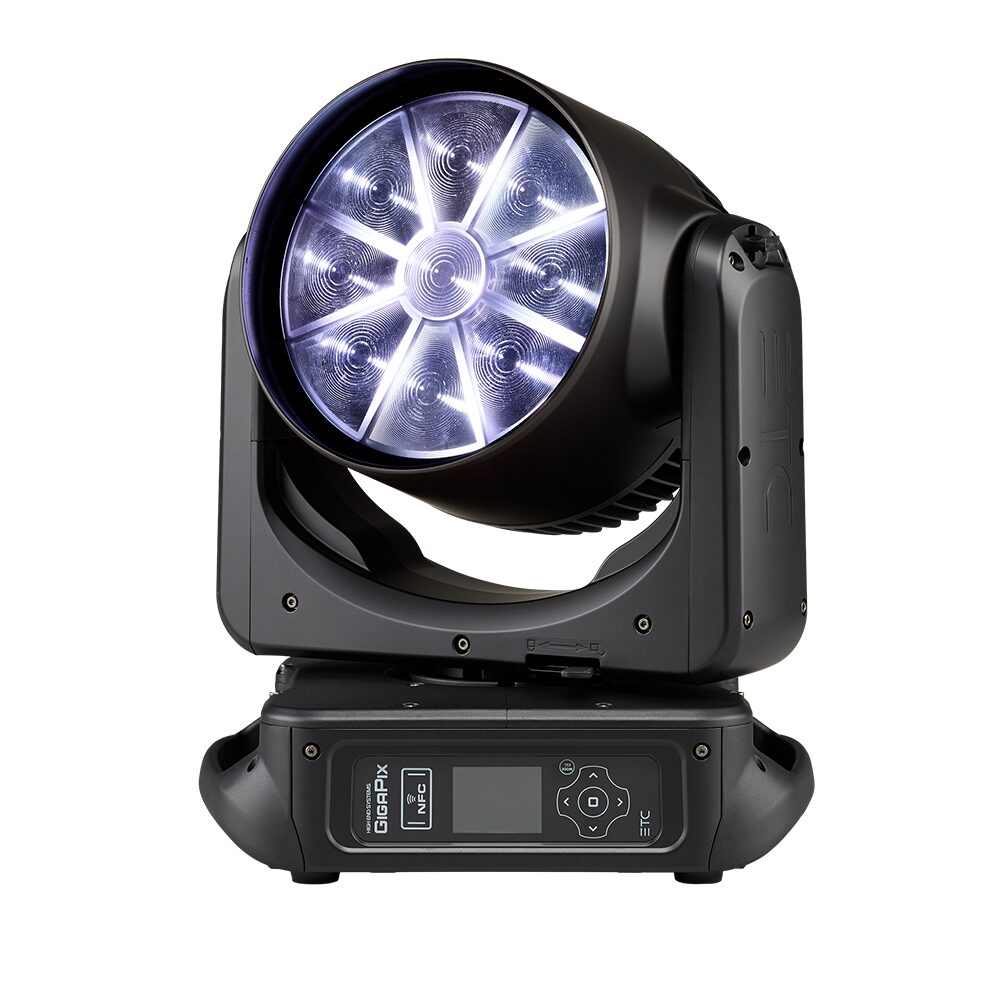

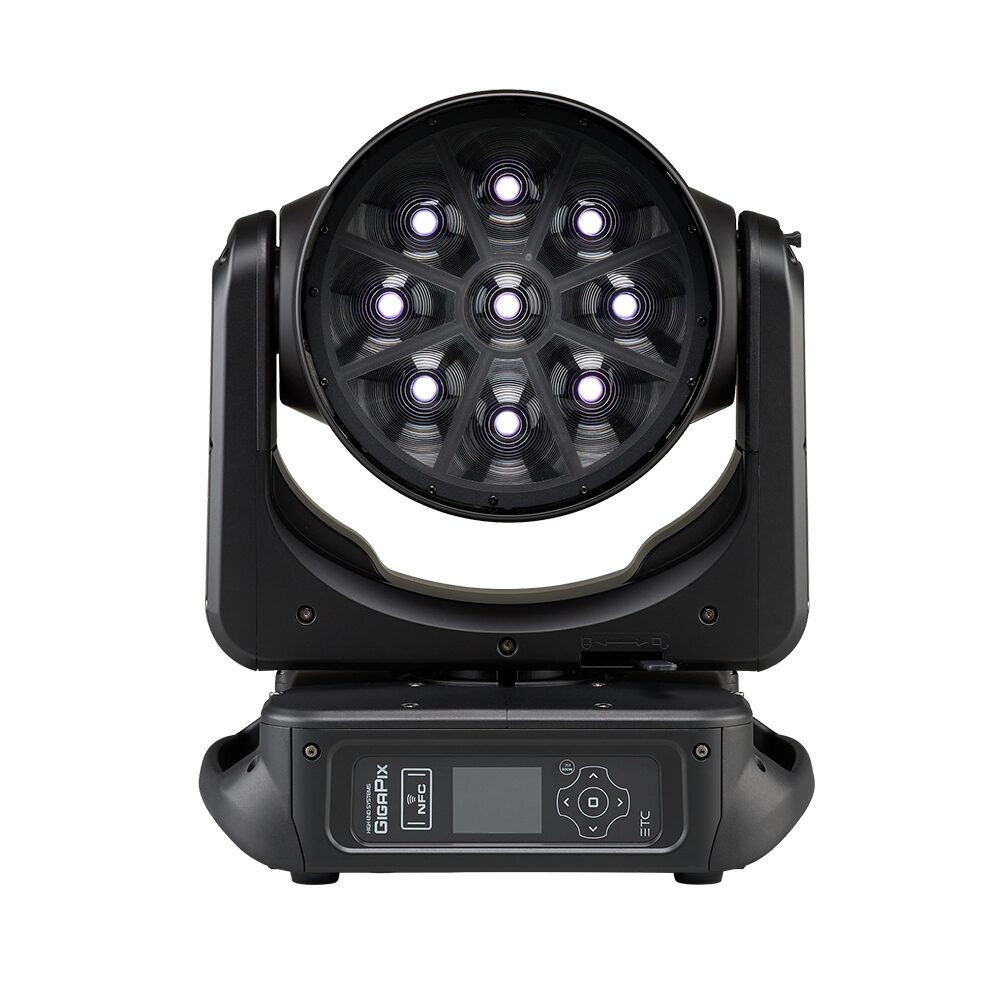

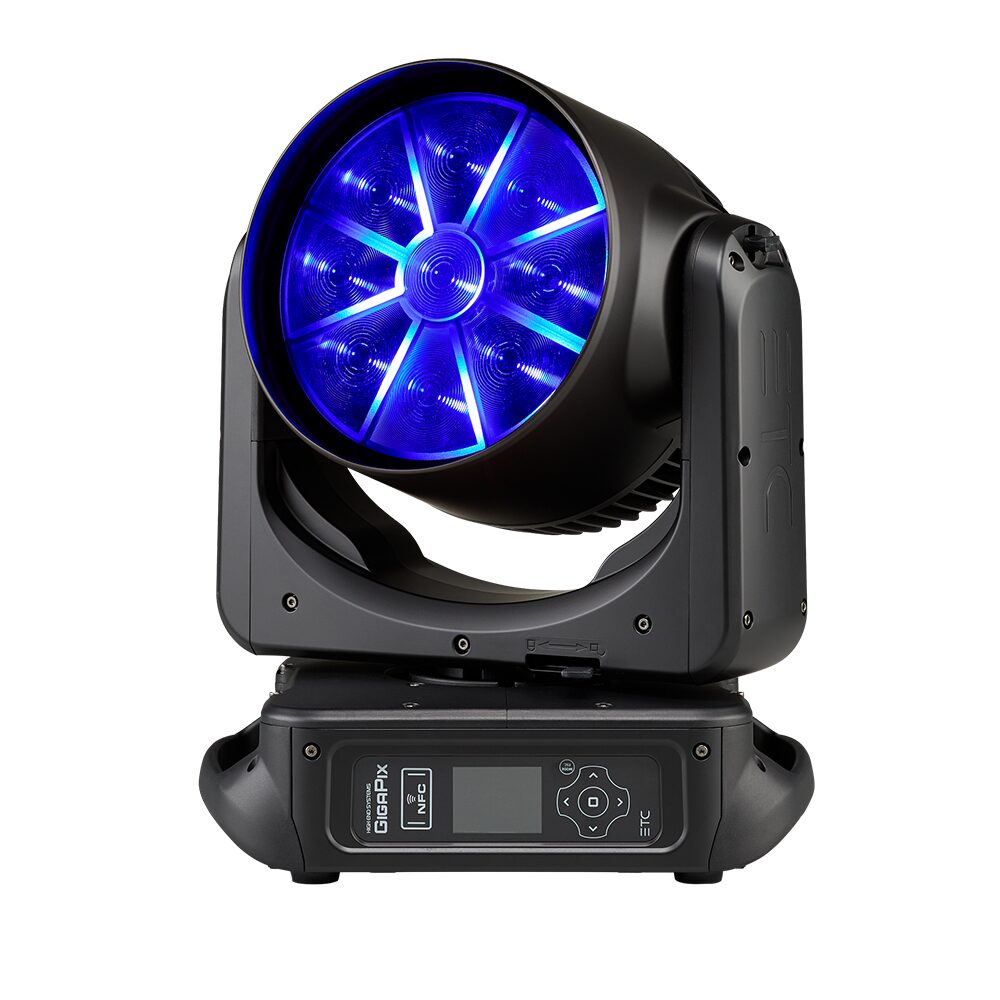

ETC - GigaPix - moving head fresnel with advanced colour mixingETC - GigaPix - moving head fresnel with advanced colour mixing

ETC – GigaPix – High End Systems

ETC

Delivers the beautiful output characteristics of a Fresnel lens with a wide range of elegant stage washes from advanced RGBL color mixing.

Features

  • Additive LED, RGBL, color mixing system for powerful
  • saturated colors and tunable white control
  • Exceeds 16,700 Lumens
  • Efficient and beautiful Integrated Fresnel Lens system
  • Soft field with 4.5°–55° zoom
  • CT Channel achieves the top tier TM30 color rendering
  • Preference 1 (P1) guidelines from 2,000–10,000 K
  • FleX Effects Generator for easily customizable macros
  • Nine cell pixel mapping
  • Modular control with Art-Net or sACN in addition to
  • simultaneous DMX control
  • Weather rated for temporary use outdoors against rain and dust (IP54)
SKU: ETCGP-MI Categories: , , ,

Description

GigaPix brings next-level performance to the pixel wash fixture. With a patented Integrated Fresnel Lens (IFL) System, these fixtures deliver the classically beautiful output characteristics of a Fresnel lens. Create a wide range of elegant stage washes with advanced RGBL color mixing, smooth dimming, and a 2000–10000 K CT channel. On top of all that, a robust Pixel, Macro, and Flex Effects system provides unique face looks and plenty of splash. Weather-rated with an IP54 rating, GigaPix is protected from dust and rain, whether used inside the theatre or outside on a festival stage.

Applications

  • Live concerts
  • Tradeshows
  • Festivals
  • Industrial shows
  • Award shows
  • Studios
  • Theatre
  • Corporate events

Video

ETC MegaPix and GigaPix

Meet High End Systems MegaPix and GigaPix, pixel wash fixtures that offer high-impact features in a compact package. These IP54 rated fixtures deliver beautiful washes, backed by a Fresnel lens system, smooth zoom range, RGBL color engine, and flawless dimming.

Additional information

Source

Engine: Custom RGBL LED
LED Details: Nine (9) 60 W LED engines
Field Lumens: See photometrics on page 4
Max Integrating Sphere Lumens: 16,700
LPW: 31
LED Life: 50,000 hours
Color

Color Mixing: Additive RGBL color mixing
Color Temperature:
2000 K to 10000 K
TM-30 Preference 1
Optical

Angle Range: 4.5°–55°
Aperture Size: 217 mm
Diffusion: Soft and homogenized field of light
throughout entire zoom range
Flicker Control/Hz: Range 2.4 kHz, 16 kHz, 25 kHz
Control

Input Method: DMX (5-pin) or Ethernet
Protocols:
DMX via RS-485
Art-Net or sACN via Ethernet
Ethernet Pass-Thru No
Modes (Footprint)
Wash (15) Base (25), Base+Flex (45), and
separately addressable Pixel Control Module
(36)
RDM Functions: Yes
UI Type:
Full-color graphical UI
5-button navigational control
NFC configuration
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
Wireless: Multiverse via optional MV-Mount Adaptor
Electrical

Voltage Range: 100–240 V 50–60 Hz
Input Method: REAN® power X Series Connectors
Wattage: 750 W
Current (Max):
7.5 A @ 100 V
3.0 A @ 240 V
Inrush (First Half Cycle):
120 V: 25 A
230 V: 45 A
Fixtures per Circuit:
2 fixtures (R20 module or similar)
Note: REAN power X Series connector rated
for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
Thermal

Ambient Operating Temp: -10°C to 40°C (14°F to 104°F)
Fan Mode: Auto, Studio, Linear fan control
Stationary Noise:
Standard – 39.4 dBA
Studio – 30.3 dBA
Lowest settable fan setting – 26.7 dBA
All tests at 18.9 dBA background noise
Physical

Pan and Tilt Range: 540° pan, 264° tilt
Max Pan/Tilt Speed: 360° in 1.3 s/180° in 0.65 s
Materials: Steel and aluminum frame with molded plastic covers and protected rubber bellows
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP54
Weight: 15 kg (33 lb)
Include Accessories:
REAN power X Series Connector to bare end fixture tail
Two (2) 107 mm single-hole Omega brackets
Safety cable
Warranty

etcconnect.com/Support/Warranty.aspx
Regulatory & Compliance

Approved regulatory standards:
cETLus Listed
Listed to UL 1573
Certified to CSA STD. C22.2 No: 166
CB Certified
CE Compliant
UKCA Compliant
Complies to the ROHS directive: Yes
Safety

Minimum distance to illuminated
surface = 1.0 m (3.3 ft)
Minimum distance from fixture head to
combustible materials = 0.1 m (4.0 in)
