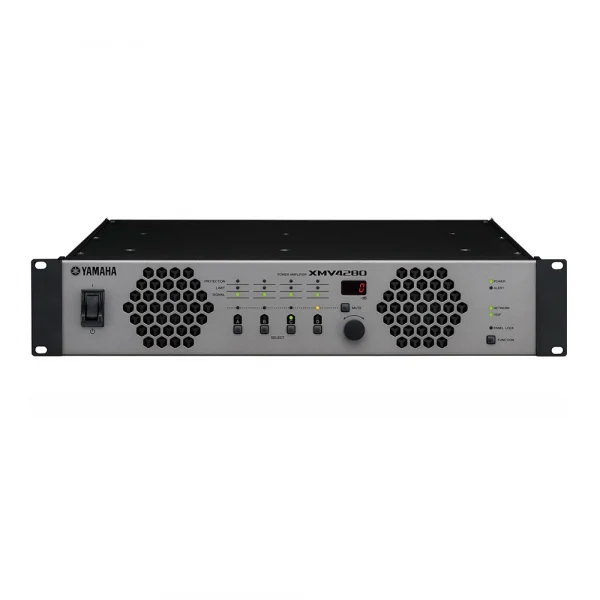

Yamaha_XMV4280-4-Channel-Amplifier_1Yamaha_XMV4280-4-Channel-Amplifier_1

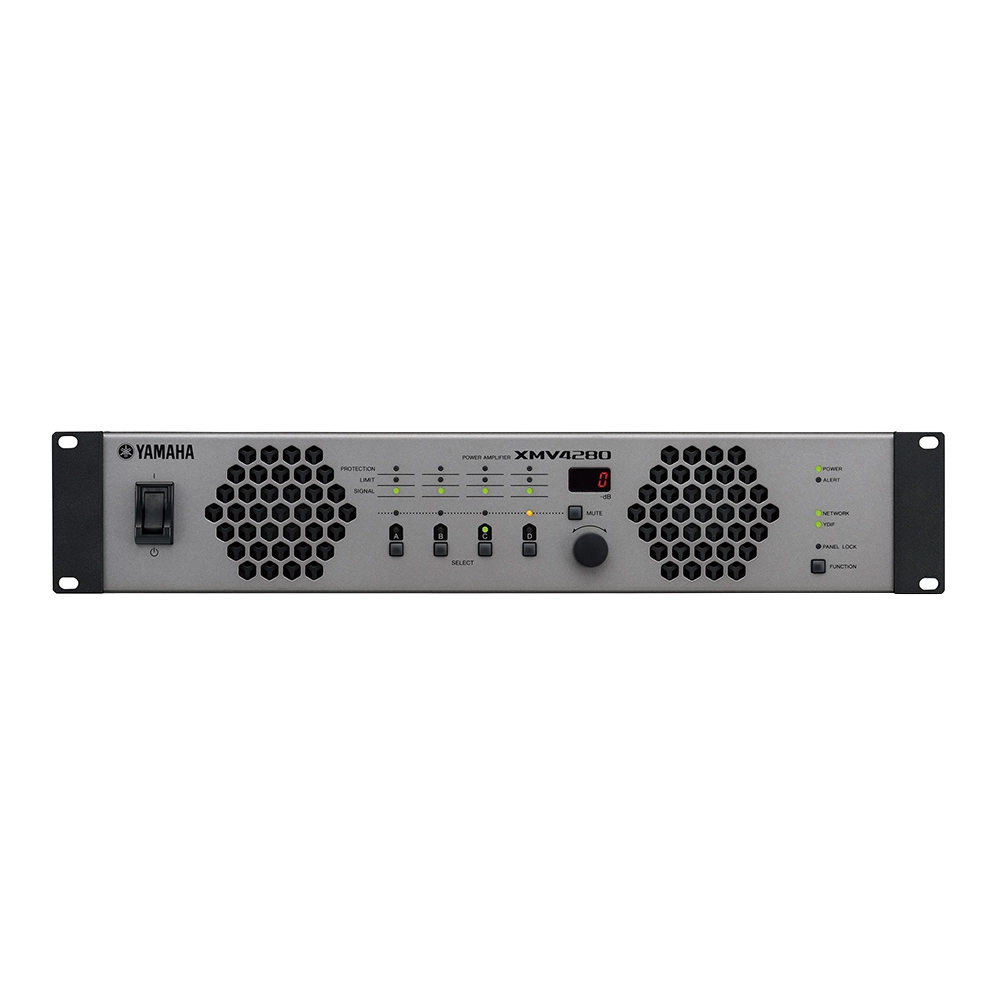

Yamaha – XMV4280 4 Channel Amplifier

Yamaha

Multi-channel power amplifiers designed specifically to benefit installation sound systems.

SKU: XMV4280 Categories: , ,

Description

Multi-channel power amplifiers with features designed specifically to benefit installation sound systems.

Features

  • Four-channel power amp that can operate in both high-impedance (70V/100V line) or low-impedance (4Ω/8Ω) modes simultaneously.
  • 70V or 100V mode can be assigned to every pair of channels without affecting the number of available output channels.
  • The newly developed Double Power Mode function effectively doubles the output power of selected channels.
  • Equipped with YDIF* digital audio format for simple and fast system configuration.
  • Easy setting such as the mute on/off or attenuator changes with MTX Editor when used in system with MTX Series.
  • An innovative, new, patent pending circuit improves the already highly efficient Class D circuit topology, bringing the efficiency level of the amplifier’s output stage up to over 90%.
  • Feature a Power Factor Correction equipped switching power supply, ensuring harmonic control and decreasing the amount of current draw while maintaining the same output power.
  • Powerful, intelligent protection features for more reliable operation.

* YDIF: the newly developed digital transmission format; a unique propriety Yamaha technology that delivers 16ch audio and word clock
transmission via standard CAT5 Ether cable.

Additional information

Weight 8.1 kg
Dimensions 48 × 8.8 × 42.2 cm
Output power

1kHz (THD+N=1%: 4Ω): 280W x 4
1kHz (THD+N=1%: 8Ω): 280W x 4
1kHz (THD+N=1%: 4Ω / Double Power Mode): 560W x 2
1kHz (THD+N=1%: 8Ω / Double Power Mode): 560W x 2
High impedance: 100V line: 250W x 4 / 40 Ω
High impedance: 70V line: 250W x 4 / 20 Ω
Voltage Gain

RL=8Ω: 31.7dB
RL=8Ω / Double Power Mode: 34.7dB
100V: 38.2dB
70V: 35.2dB
Power consumption

1/8 power (4 Ω pink noise):250W, Idle (4 Ω):37W, Standby:18.5W
Total harmonic distortion

≤ 0.2% (1kHz, half power)
Frequency response

0dB, ±1.0dB (RL=8Ω, 100V/70V, Po=1W, 20Hz – 20kHz)
S/N ratio

≥ 100dB(A-weighted)
Crosstalk

≤ -60dB
Input sensitivity

+4dBu
Input impedance

20kΩ (balanced), 10k Ω (unbalanced)
I/O Connectors

Analog I/O: Input: Euroblock x 2 (6P, balanced)
Digital I/O: RJ45 x 2 (YDIF IN / OUT)
Speaker Output: Barrier strip x 4 pairs
Control ports: Remote, Fault Output : Euroblock (3P) x 1
Network: RJ45 x 1
Others: AC Inlet x 1
Input Level

+24dBu (Maximum)
Protection circuit

Load protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
Amplifier protection: Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)
Power supply protection: Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C) , Integrated power: Gain reduction (Restored automatically)
Cooling

3-Speed fan x 2, front-to-back airflow
Power requirements

100V, 120V, 230V-240V; 50Hz/60Hz
