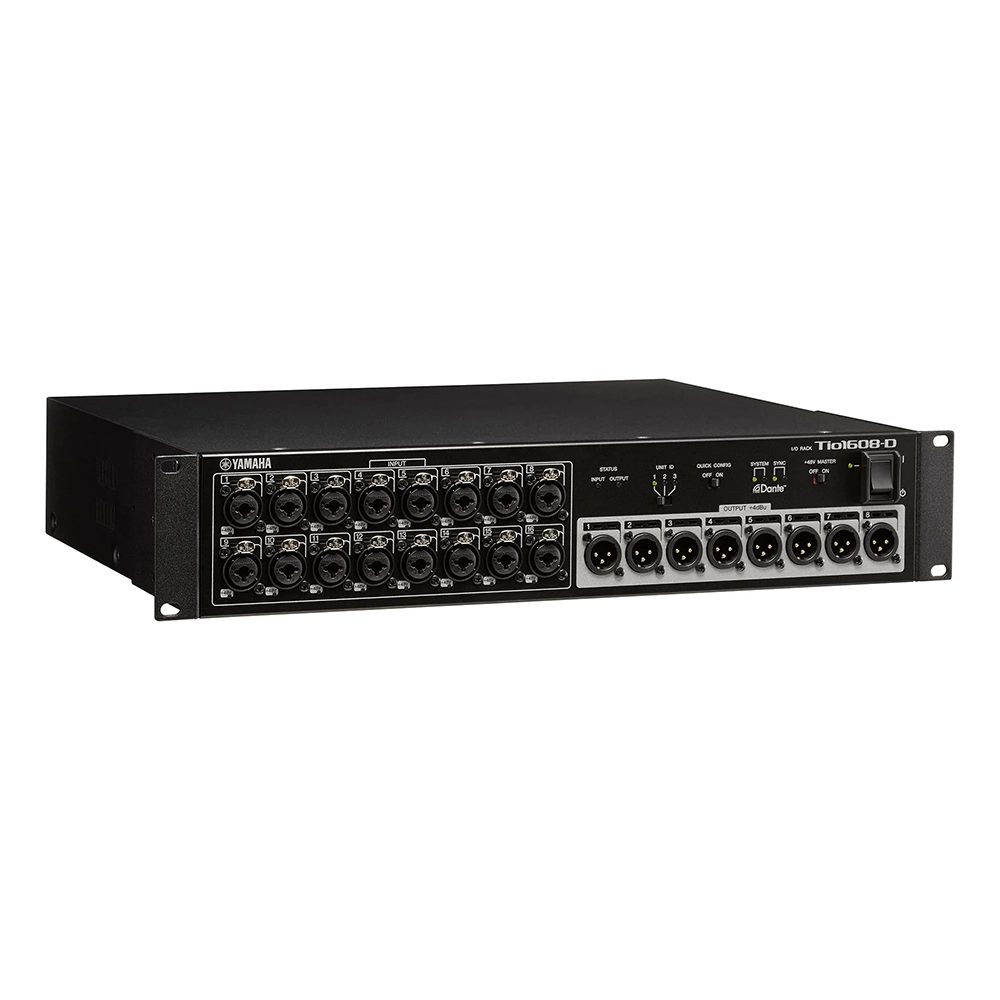

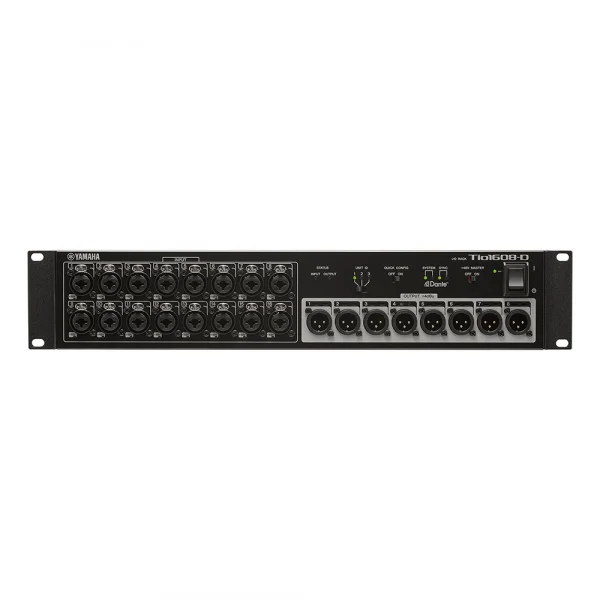

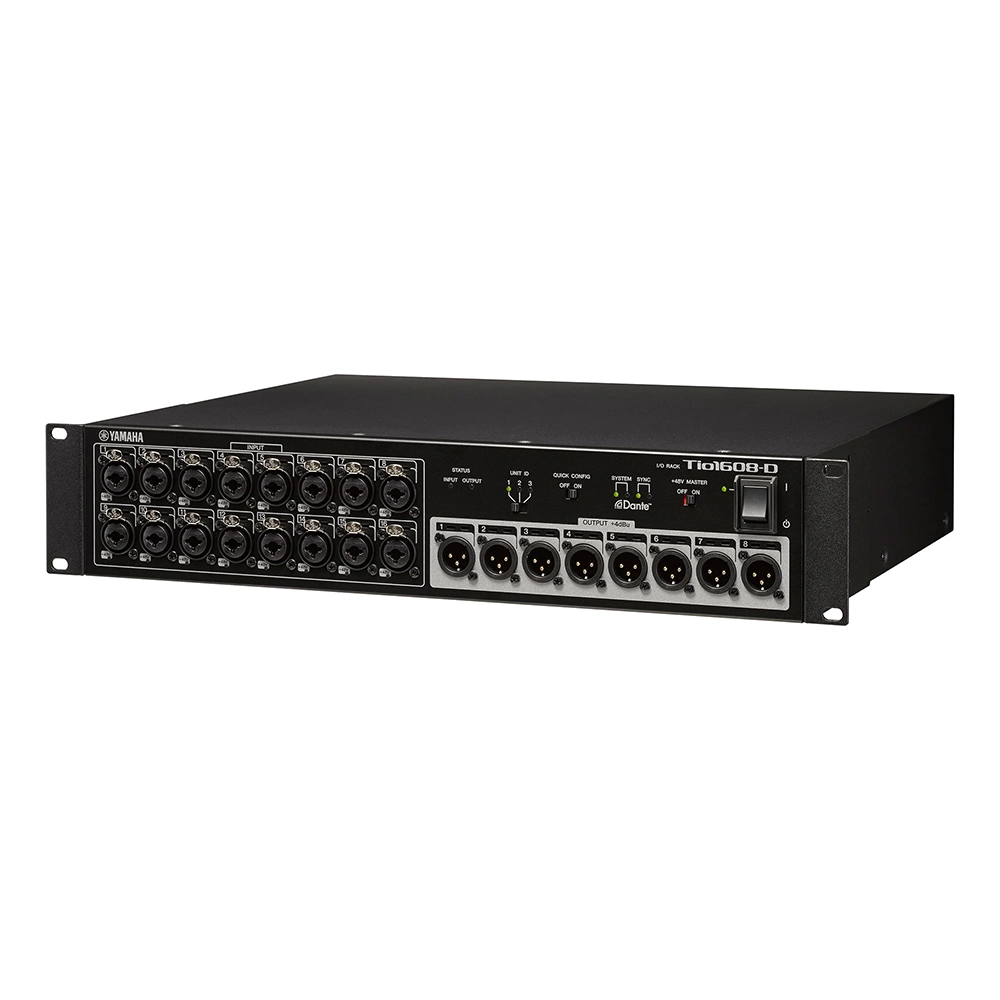

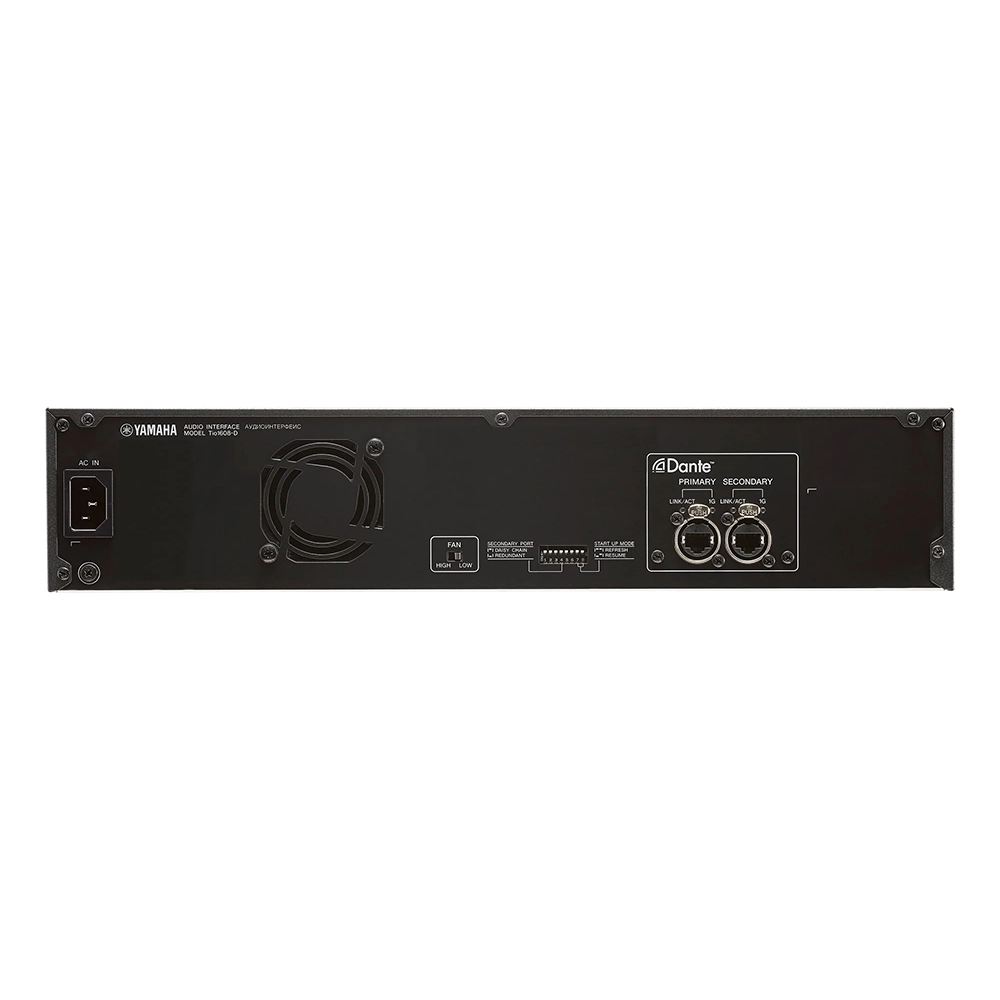

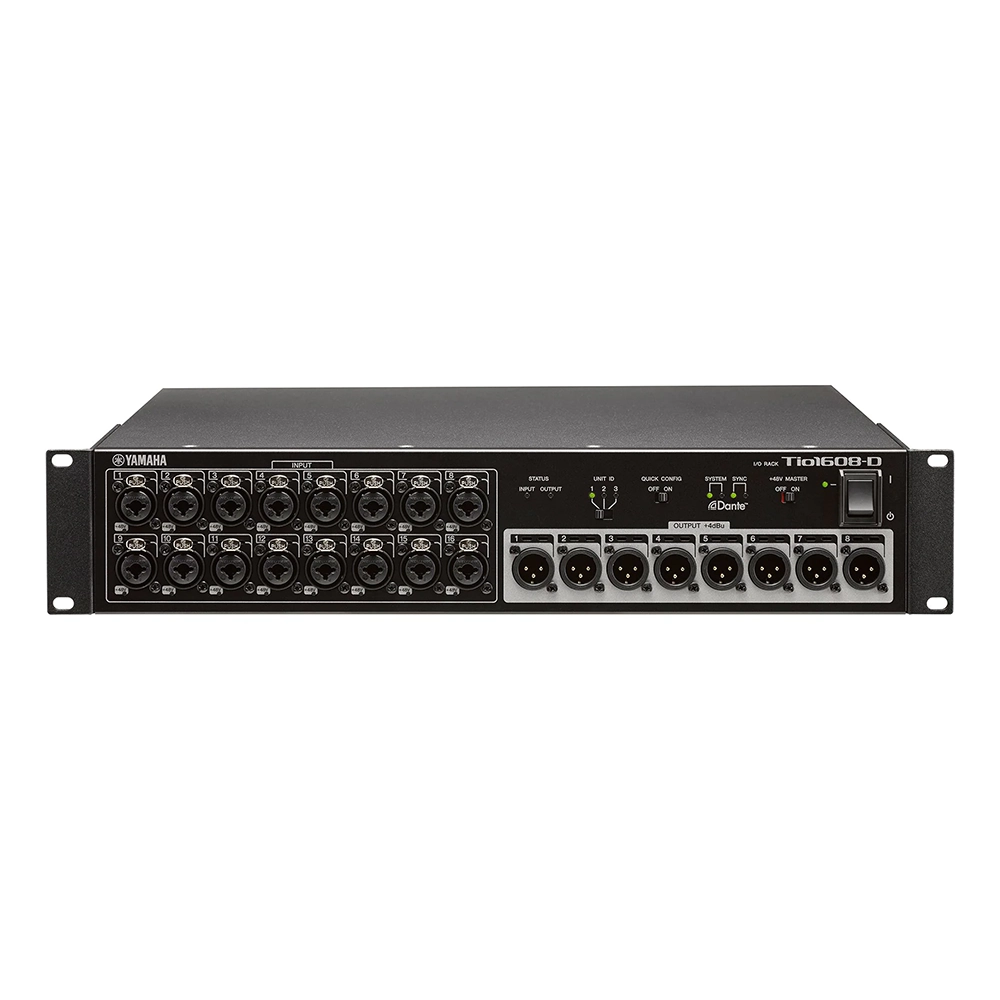

Yamaha – Tio 1608-D I/O Rack

Yamaha

Dante-equipped I/O rack with 16 microphone/line inputs and 8 line outputs. Features the same recallable D-PRE™ microphone preamplifiers as the TF series.

SKU: TIO-1608 Categories: , ,

Description

Plug In & Play Dante Stagebox Solution

The Tio1608-D is a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs. Tio racks feature the same recallable D-PRE™ microphone preamplifiers as the TF series delivering extraordinarily natural and musical sound. In combination with TF series consoles, Tio racks can be connected using up to three units with a fast and easy setup.

* Optional NY64-D Card is required.

Features

  • 3U size, 16 inputs and 8 outputs.
  • Dante network protocol contributes to greater system scalability and flexibility
  • Supports QUICK CONFIG Mode for TF series
  • Automatic digital-stage compensation for analog gain changes (CL/QL series only)
  • Features recallable D-PRE preamplifiers

Additional information

Weight 5.7 kg
Dimensions 36.4 × 48 × 8.8 cm
Sampling frequency rate

External: 44.1kHz or 48kHz
Signal delay

Less than 3ms INPUT to OUTPUT, connect with TF5 and NY64-D using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total harmonic distortion

Less than 0.1% +4dBu@20Hz-20kHz into 600Ω, Gain=+66dB / Less than 0.05% +4dBU@20Hz-20kHz into 600Ω, Gain=-6dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18dB/octave filter @80kHz
Frequency response

+0.5, -1.5dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT, Fs=44.1kHz or 48kHz
Dynamic Range

108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter
Hum & noise level

Equivalent input noise: -128dBu, Gain=+66dB *Measured with A-weighting filter
Residual output noise: -88dBu, ST master off *Measured with A-weighting filter
Crosstalk

-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB *Measured with a -30dB/octave filter @22kHz
Heat dissipation

100-240V, 50/60Hz, 43.5kcal/h
Power requirements

50W
Accessories

Owner’s Manual, Power Cord(2.5m), Rubber stoppers(4)
Others

Temperature Range: Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃
