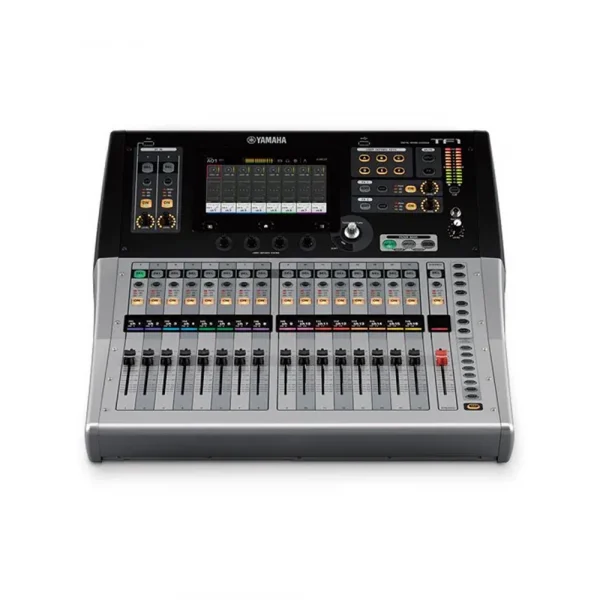

Yamaha – TF1 Digital Mixing Console

Yamaha

Yamaha TF Series digital mixing consoles allow engineers to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement.

SKU: TF1 Categories: , ,

Description

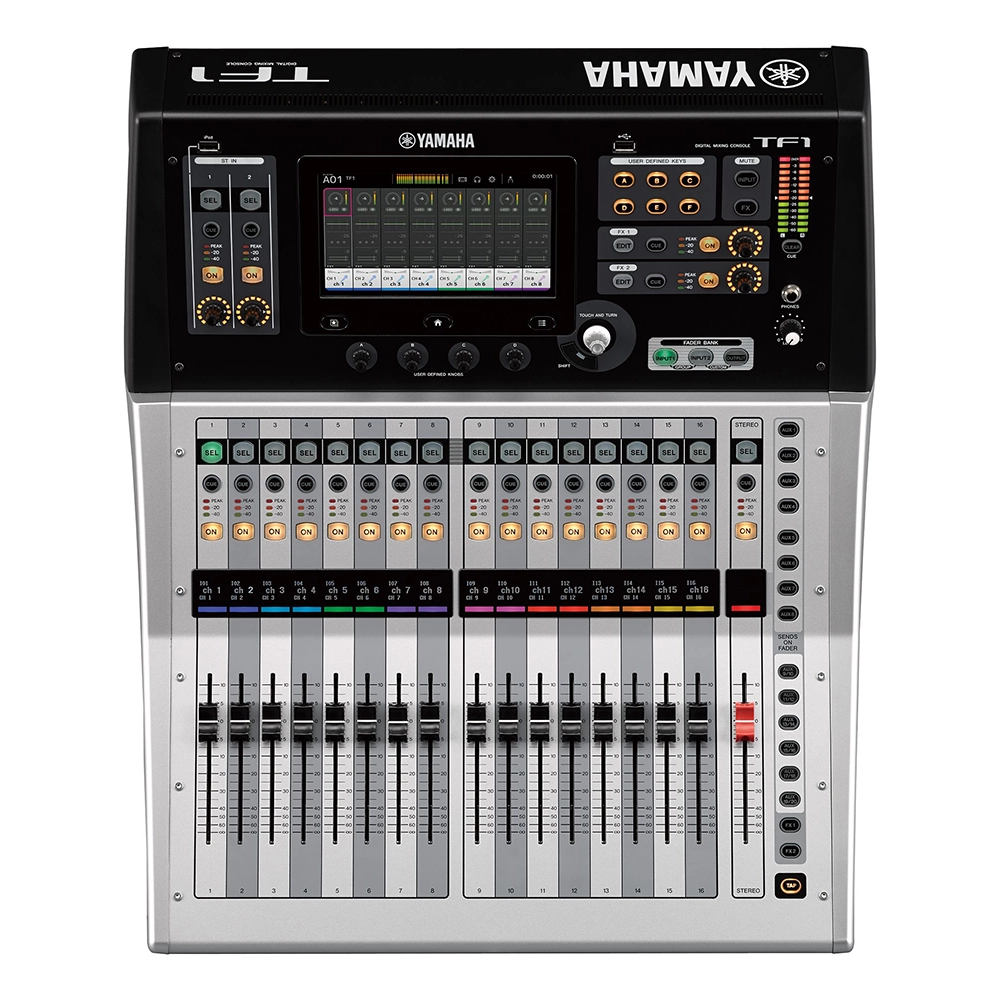

The intuitive TouchFlow Operation™ interface is optimized for touchpanel control and provides an easy-to-use digital mixing console environment for a broad spectrum of users and uses. The TF1 Digital Mixing Console features a 16 + 1 fader configuration in a compact rack-mountable unit.

Features

  • 16 + 1 fader configuration
  • Input channels: 32 mono, 2 stereo, 2 return.
  • Busses: 20 Aux (8 mono, 6 stereo), Stereo, Sub, 4 matrix.
  • Local I/O: 16 mic/line + 2 stereo line in, 16 out.
  • Recallable “D-PRE™” Microphone Preamplifiers provide an ideal sonic foundation.
  • Intuitive user interface optimized for touch panel operation.
  • Traditional Overview and Selected Channel Interfaces
  • “1-knob COMP™” & 1-knob EQ™ make it easy to dial in the ideal sound.
  • “QuickPro Presets™” provide instant access to pro sound setups.
  • “GainFinder™” supports precision gain setup
  • “DCA Roll-out” enhances group control.
  • “SENDS ON FADER” buttons instantly bring the specified AUX or FX bus levels up on the faders for easy verification and adjustment.
  • Seamlessly integrated remote control and offline editing via an Apple iPad® or other computing device.
  • Direct 2-track recording to USB storage devices, or serious multitrack recording to a DAW via USB.
  • Multitrack recordings can be used for “virtual sound checks” when performers aren’t available.
  • 1 expansion slot for NY64-D audio interface card
  • Other features: 8 Powerful Processing/Effect Units, User Defined Knobs, User Defined Keys, 8 DCA groups, and more.

Video

Yamaha TF Series: Features and Functions Tour

Yamaha TF Series digital mixing consoles allow engineers to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement.

Additional information

Fader Configuration

16 + 1 (Master)
Mixing Capacity

Input Channels: 40 (32 mono + 2 stereo + 2 return)
Aux Buses: 20 (8 mono + 6 stereo)
Stereo Buses: 1
Sub Buses: 1
Input channel functions

8 DCA Groups
I/O

Inputs: 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs: 16 (XLR)
Expansion slots: 1
On-board processors

DSP: 8 Effects + 10 GEQ
Sampling frequency rate

Internal: 48 kHz
Signal delay

Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader

100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion

Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response

+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range

110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level

Equivalent input noise: –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise: –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk

–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements

100–240 V 50/60 Hz
Power consumption

100 W
Accessories

Quick Guide, Power Cord, Nuendo Live
Options

Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
Others

Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
