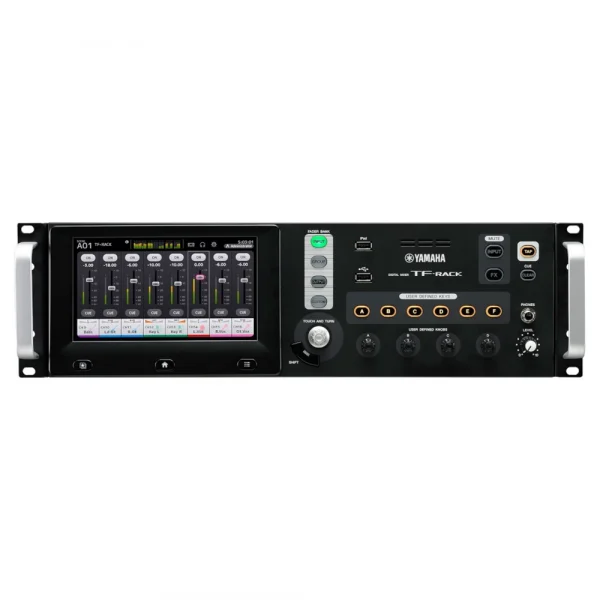

Yamaha_TF-RACK-Digital-Mixer_FrontYamaha_TF-RACK-Digital-Mixer_Front

Yamaha – TF-RACK Digital Mixer

Yamaha

The TF-RACK is a compact rack-mount version of the TF Series, offering the same levels of performance and groundbreaking operability.

SKU: TF-RACK Categories: , ,

Description

The TF-RACK is a compact rack-mount version of the TF Series, offering the same levels of performance and groundbreaking operability. This space-saving model is accessible to a wide range of users, from beginners to seasoned engineers. The TF-RACK is an unbeatable choice when smooth, intuitive setup and operation is required in limited spaces.

The intuitive TouchFlow Operation™ interface is optimized for touchpanel control and provides an easy-to-use digital mixing console environment for a broad spectrum of users and uses. The TF-RACK Digital Mixer packs TF-series performance and functionality into a compact 3U size rack-mount unit.

Features

  • The 3U size, rack-mount form digital mixer
  • Input channels: 32 mono, 2 stereo, 2 return.
  • Busses: 20 Aux (8 mono, 6 stereo), Stereo, Sub, 4 matrix.
  • Local I/O: 16 mic/line + 1 stereo line in, 16 out.
  • Recallable “D-PRE™” Microphone Preamplifiers provide an ideal sonic foundation.
  • Intuitive user interface optimized for touch panel operation.
  • Traditional Overview and Selected Channel Interfaces
  • “1-knob COMP™” & 1-knob EQ™ make it easy to dial in the ideal sound
  • “QuickPro Presets™” provide instant access to pro sound setups.
  • “GainFinder™” supports precision gain setup
  • “SENDS ON FADER” buttons instantly bring the specified AUX or FX bus levels up on the faders for easy verification and adjustment.
  • Seamlessly integrated remote control and offline editing via an Apple iPad® or other computing device.
  • Direct 2-track recording to USB storage devices, or serious multitrack recording to a DAW via USB.
  • Multitrack recordings can be used for “virtual sound checks” when performers aren’t available.
  • 1 expansion slot for NY64-D audio interface card
  • Other features: 8 Powerful Processing/Effect Units, User Defined Knobs, User Defined Keys, 8 DCA groups, and more.

Video

Intuitive TouchFlow Operation™ in Rack-mount Form

TF-RACK offers all-in-one mixing and processing capability for small to medium scale live sound, corporate speech events, installations and much more. It packs intuitive user interface, natural control flow, digital effects/processing units and many shortcuts to great sound into a compact, portable rack-style unit.

Additional information

Weight 9.2 kg
Dimensions 40.9 × 48 × 13.2 cm
Mixing Capacity

Input Channels: 40 (32 mono + 2 stereo + 2 return)
Aux Buses: 20 (8 mono + 6 stereo)
Stereo Buses: 1
Sub Buses: 1
Input channel functions

8 DCA Groups

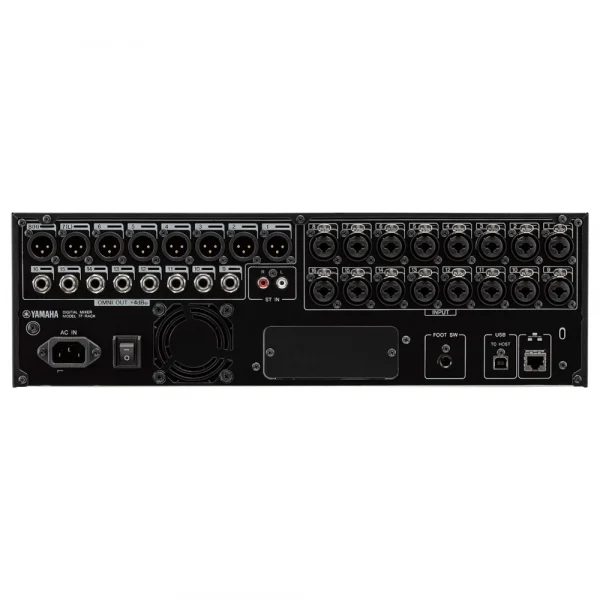

I/O

Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
Outputs: 16 (8 XLR + 8 TRS phone)
Expansion slots: 1 (for NY64-D)
On-board processors

DSP: 8 Effects + 10 GEQ
Sampling frequency rate

Internal: 48 kHz
Signal delay

Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader

Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion

Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response

+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range

110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level

Equivalent input noise: –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise: –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk

–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements

100–240 V 50/60 Hz
Power consumption

85 W
Accessories

Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubber stoppers(4)
Options

Audio Interface Card (NY-64D), Foot Switch (FC5)
Others

Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
