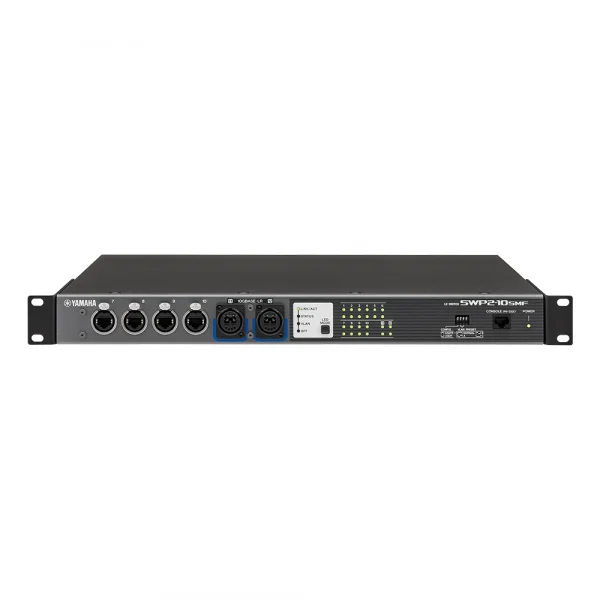

Yamaha_SWP2-10SMF-L2-Switch_1Yamaha_SWP2-10SMF-L2-Switch_1

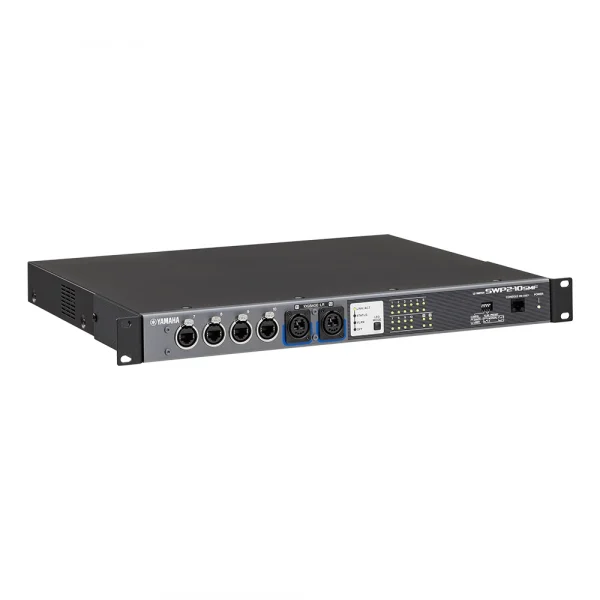

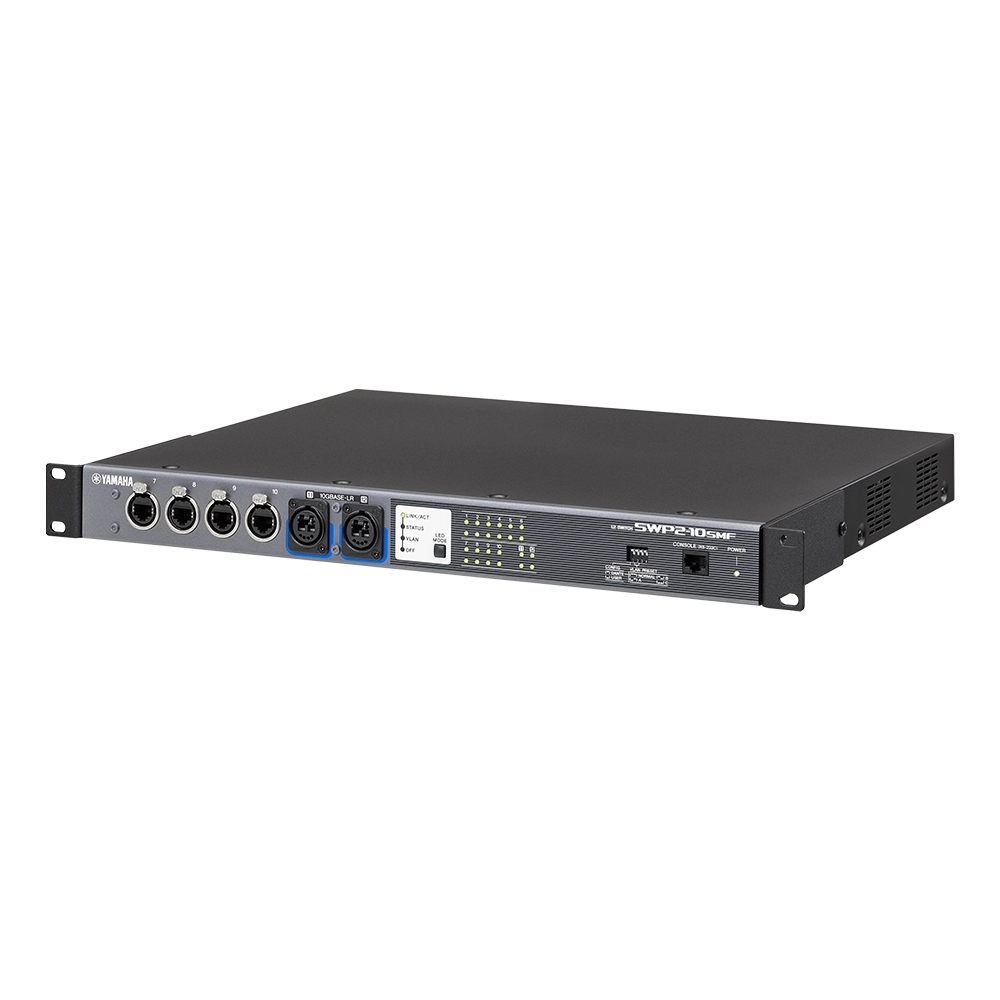

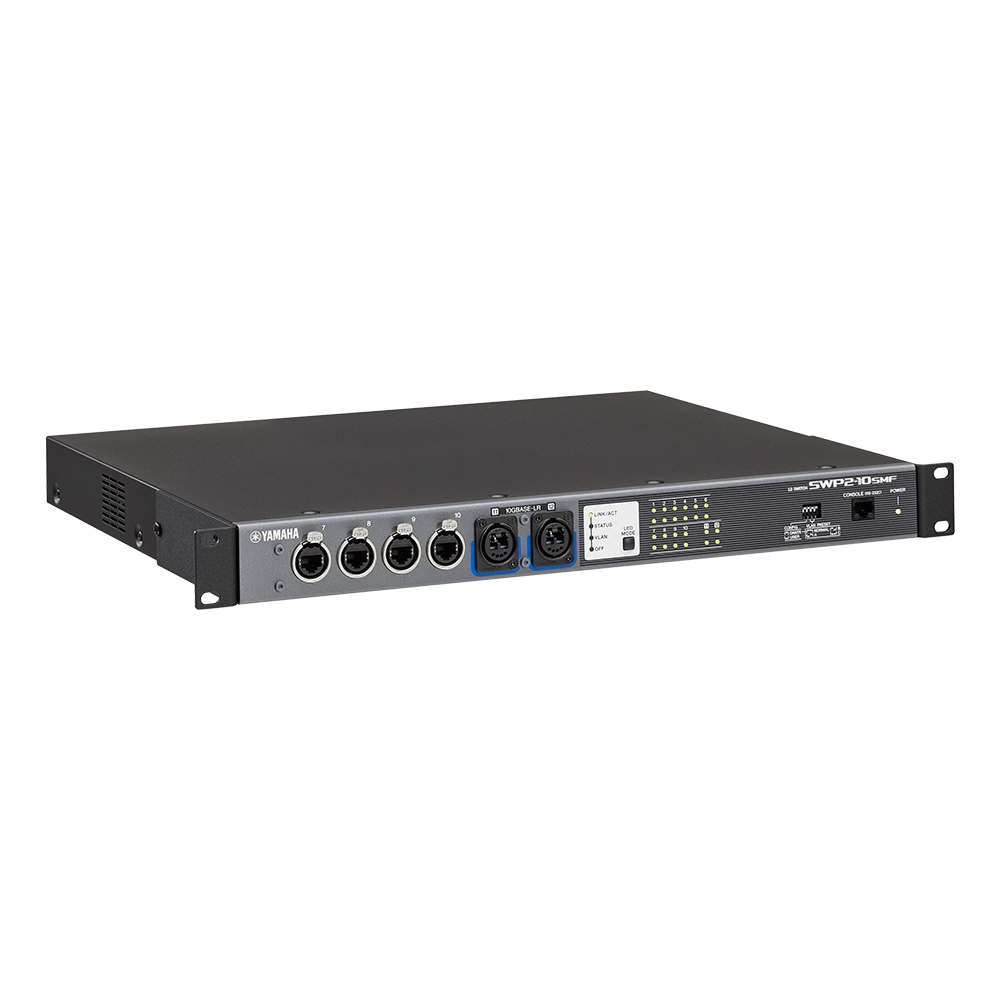

Yamaha – SWP2-10SMF L2 Switch

Yamaha

L2 switch ideal for Dante 96kHz network systems featuring 10 etherCON ports and two single mode fiber opticalCON ports.

Categories: , ,

Description

The SWP2 series L2 switch is ideal for Dante 96kHz network systems. It features 10 etherCON ports and two single mode fiber opticalCON ports.

Features

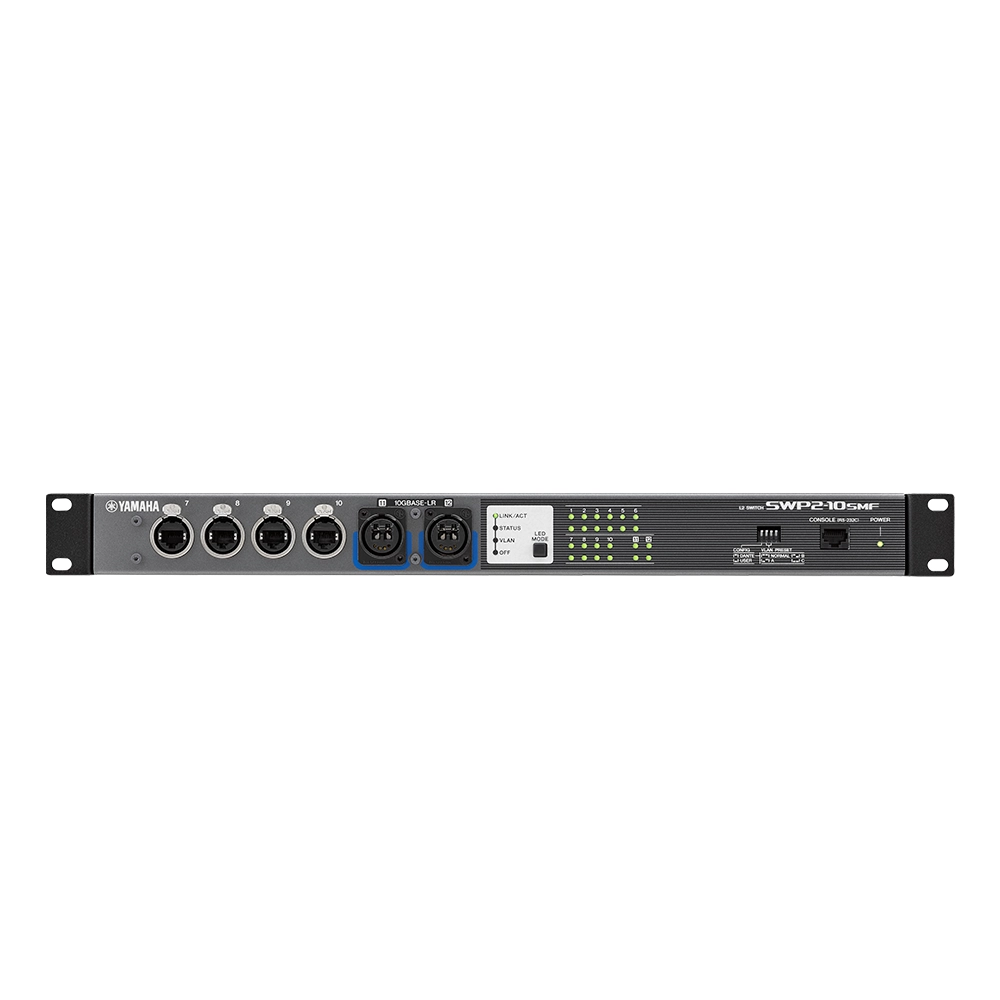

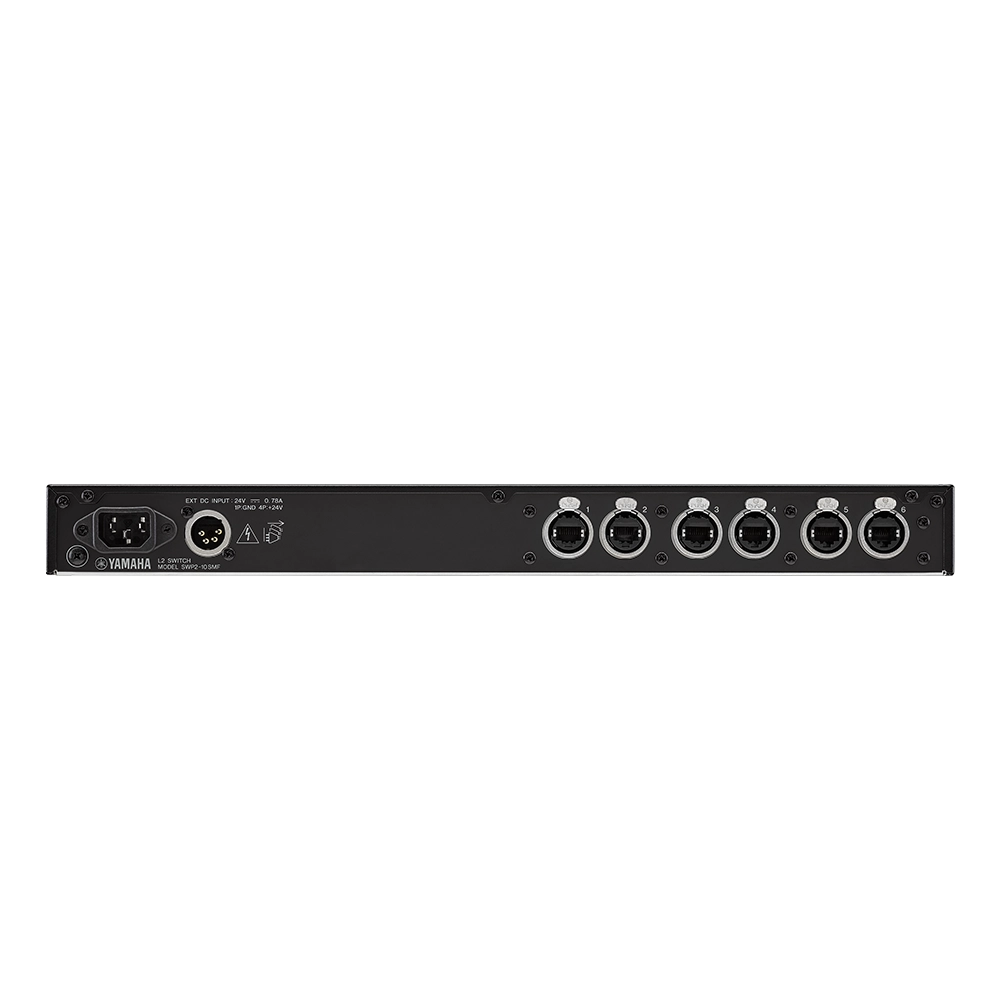

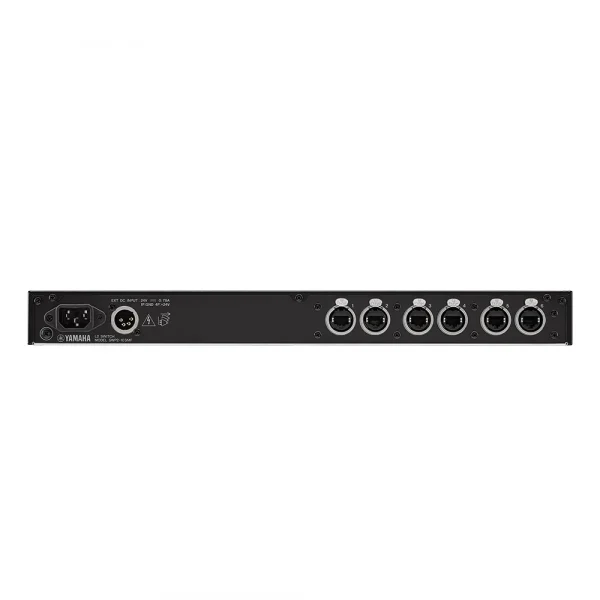

  • etherCON Connectors: 4 front / 6 rear
  • opticalCON Connectors: 2 front
  • Dimensions (WxHxD): 480 x 44 x 362 mm (18.9″ x 1.7″ x 14.2″)
  • Net Weight: 4.6 kg (10.1 lbs)
  • In-build RADIUS server for advanced security management

Video

Yamaha L2 Switch “SWP2 series”

The SWP2 series network switches allow the relevant settings for stable Dante network operation (QoS, EEE, IGMP Snooping, and others) to be optimized via a single DIP switch. The inclusion of 10G uplink ports is another advantage, providing ample bandwidth for Dante networks running at 96 kHz.

Additional information

Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector)

10
Number of SFP+ ports (10GBASE-SR, opticalCON DUO connector)

0
Number of SFP+ ports (10GBASE-LR, opticalCON DUO connector)

2
Console port

1 (RJ-45)
Automatic negotiation

Available
Auto MDI/MDI-X

Available
DIP switches

CONFIG, VLAN PRESET
Indicators

Front: POWER, LED MODE×4, PORT×10×2*, SFP+ ×2×2
Operating temperature

0 to 40°C
Storage temperature

-20 to 60°C
Power supply (AC IN inlet)

AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type
Power supply (EXT DC INPUT inlet)

24VDC±2V, 0.78A, XLR-4-32 type Connector
Maximum power consumption

21W, 0.35A
Heat dissipation

18.5 kcal/h
Body material

Metal case, no fan
Hazardous substances management

RoHS compliant
Dimensions (W x H x D)

Width: 480 mm
Height: 44 mm
Depth: 362 mm
Weight

4.5 kg (excluding accessories)
Accessories

Power cord, Owner's manual
Options

PA-700 (AC adaptor)

Downloads

User Guide Download
