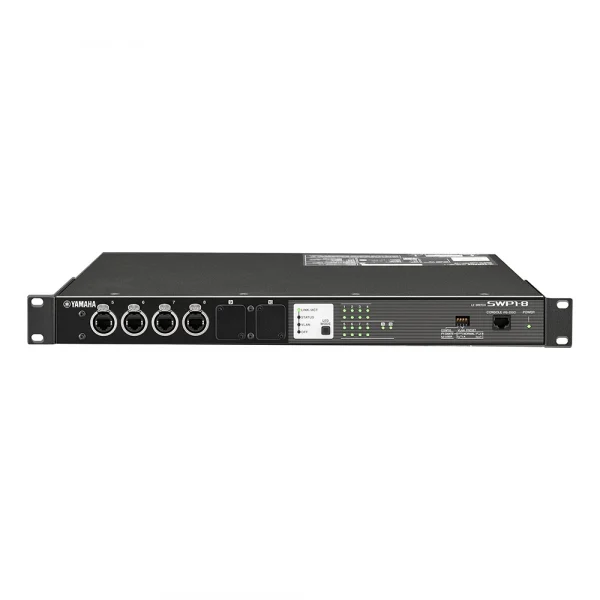

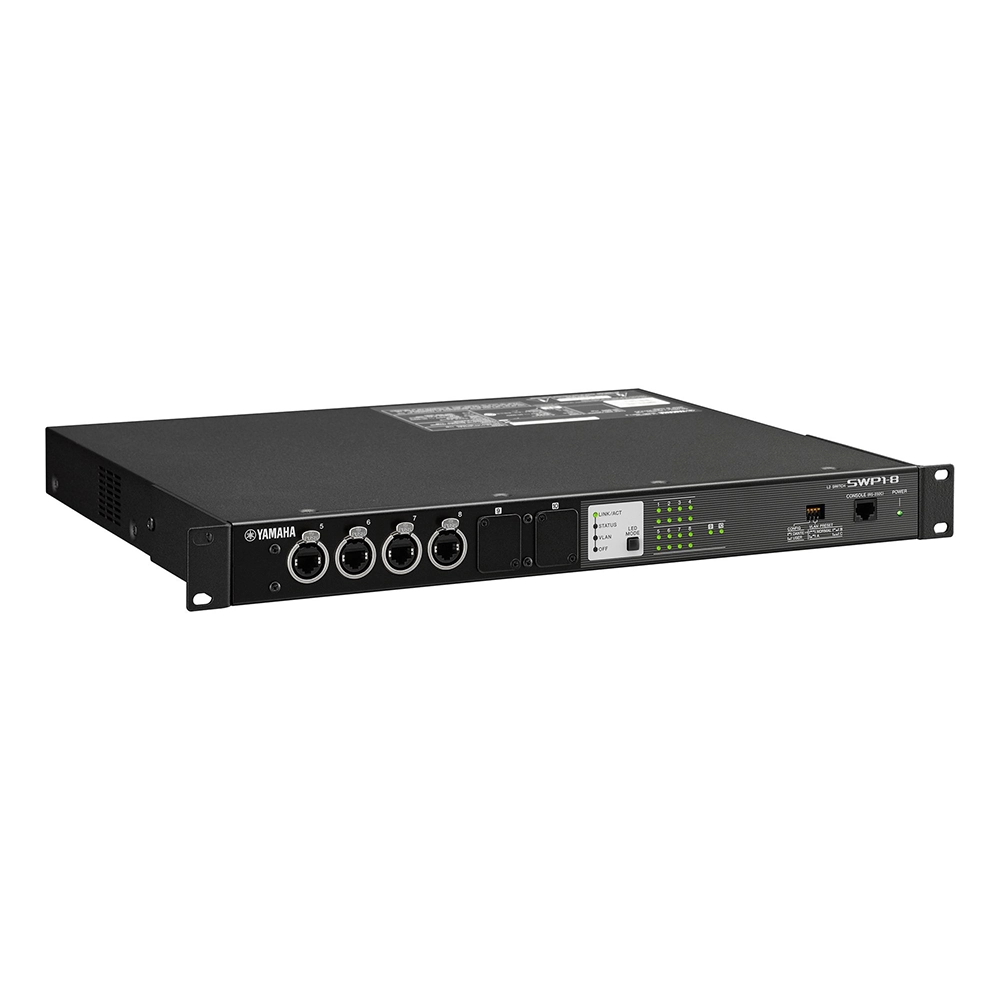

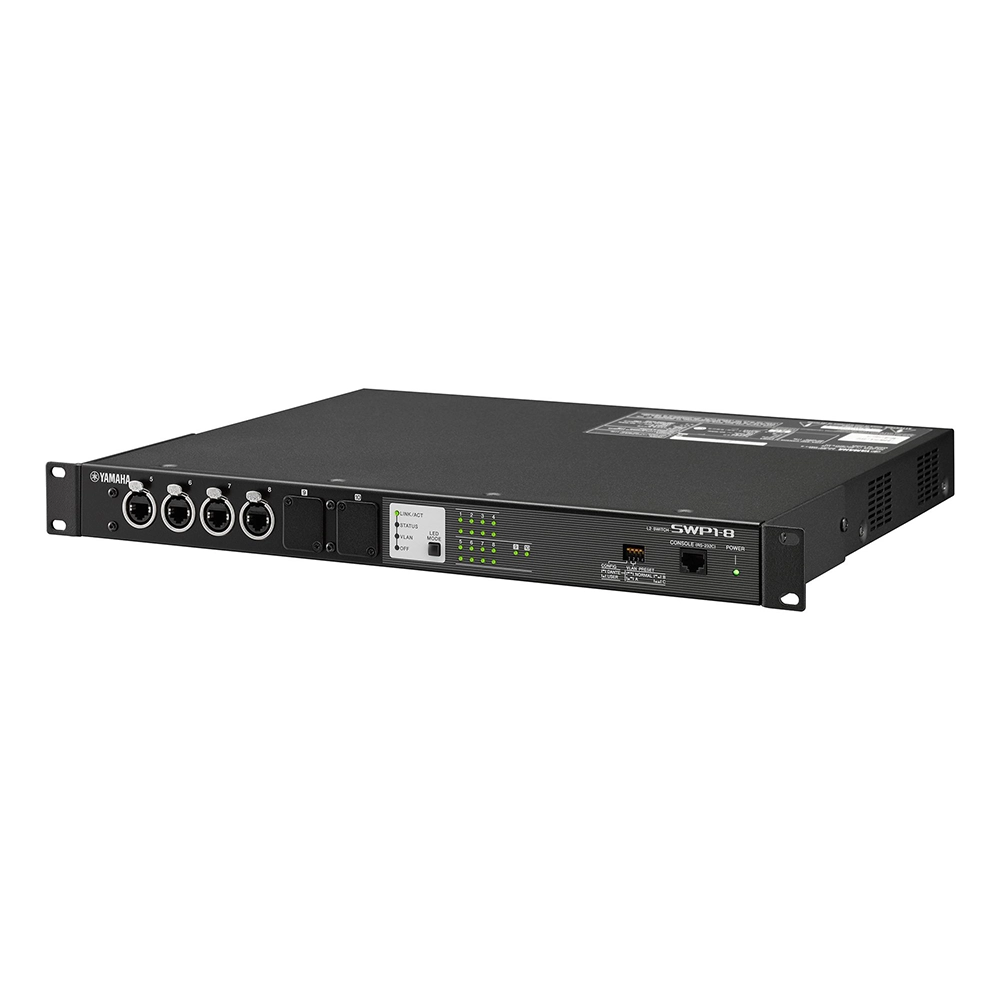

Yamaha – SWP1-8 L2 Switch

Yamaha

Ideal for Dante network systems.

SKU: SWP1-8 Categories: , ,

Description

The SWP1 series L2 switch is ideal for Dante network systems. It features eight etherCON ports and option slots for two more ports as needed.

Features

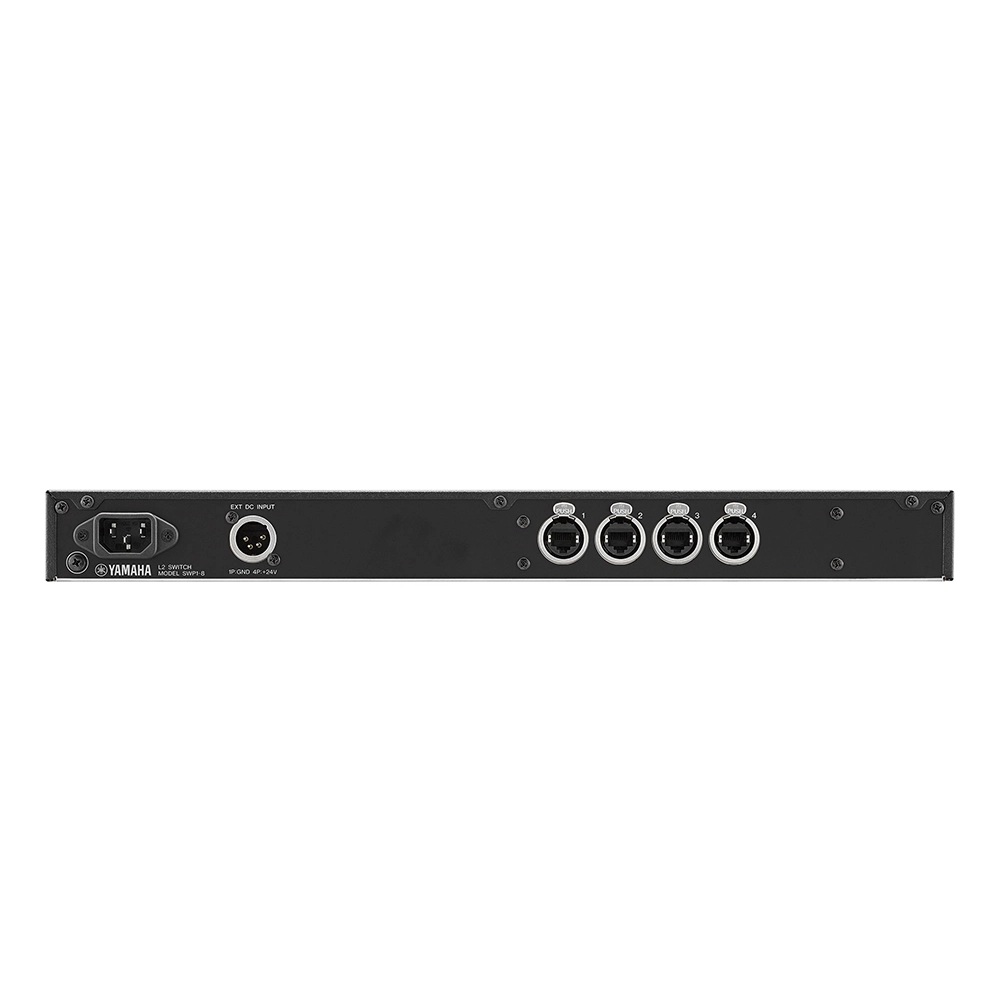

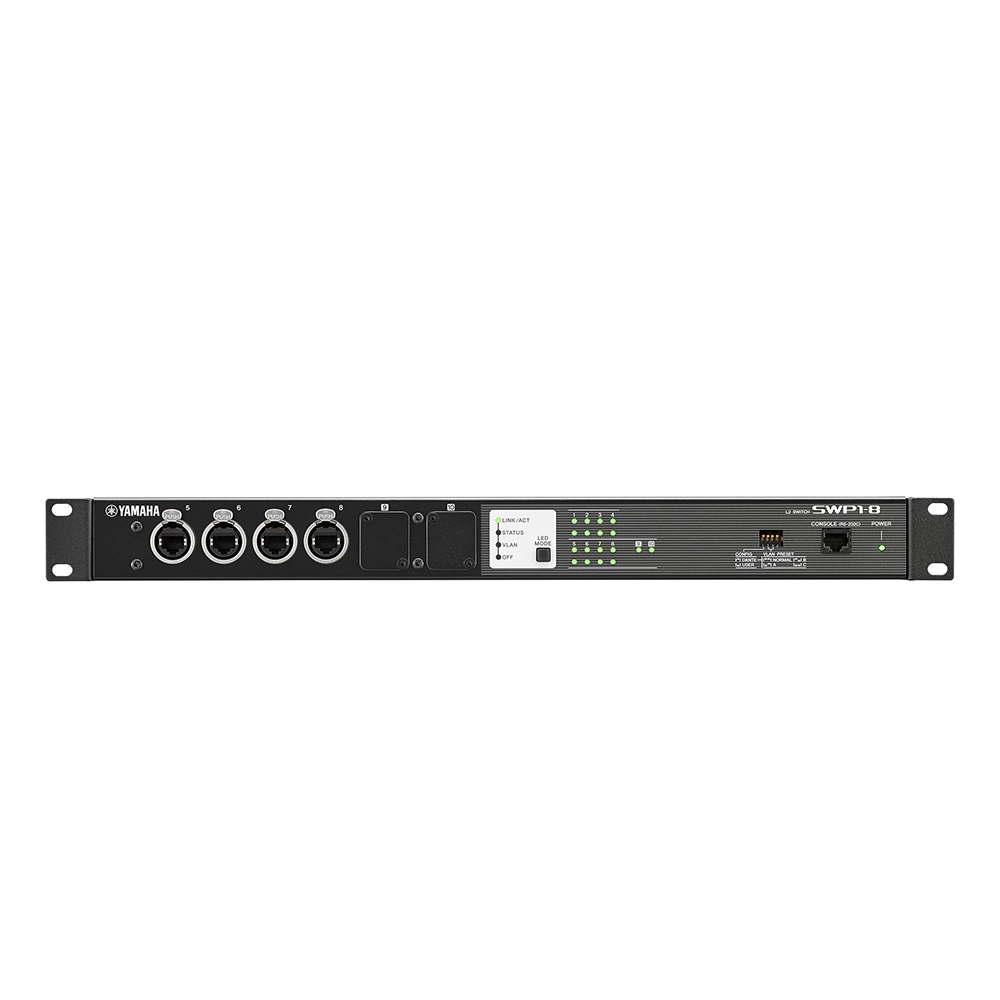

  • etherCON Connectors: 4 front / 4 rear
  • Optional optical module slot: 2 front
  • Power consumption: 11W
  • Dimensions (WxHxD): 480 x 44 x 362mm (18.9″ x 1.7″ x 14.2″)
  • Net Weight: 4.2 kg (9.3 lbs)

Video

Yamaha SWP1 Series L2 Switch

The SWP1 series network switch allows a Dante optimized setup and VLAN presets to be recalled by flipping DIP switches. The dedicated computer application also provides a comprehensive view of parameters required for Dante network management.

Additional information

Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector)

8
Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, RJ-45 connector)

–
Number of SFP ports (1000BASE-SX, opticalCON connector)

2 (optical modules are not installed as standard)
Console port

1 (RJ-45)
Automatic negotiation

Available
Auto MDI/MDI-X

Available
Switching capacity

20 Gbit/s
Throughput

15 Mpps
Maximum number of MAC addresses

16,384
Frame buffer

1024 kB
VLAN

Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN
Maximum number of VLANs

256 (VLAN ID 1-4,094) *VLAN ID 1 is the default VLAN ID.
IP multicast

IGMP Snooping (v1/v2/v3)
QoS

8 egress queues, Policy-based QoS, Remarking (CoS, ToS, DSCP), Scheduling (SP, WRR)
Flow control

IEEE802.3x (Full-duplex), back pressure (Half-duplex)
Support functions

Storm control, HOL blocking prevention, Loop detection, ACL, SNMP agents, Link aggregation (IEEE 802.3ad LACP, Static), Spanning tree (STP*, RSTP*, MSTP), Port mirroring, Port shutdown, Link speed down shift, Packet counter, Power saving mode (IEEE802.3az EEE; Disabled in DANTE mode), DHCP client, Logging, Firmware download via TFTP/HTTP, Config file download via TFTP *STP and RSTP are supported via downward compatibility of MSTP.
DIP switches

CONFIG, VLAN PRESET
Indicators

Front: POWER, LED MODE×4, PORT×8×2*, SFP×2 *The LED MODE button allows the PORT lamps to be switched between indicating LINK/ACT-SPEED, STATUS, or VLAN.
Operating temperature

0 to 40°C
Storage temperature

-20 to 60°C
Power supply (AC IN inlet)

AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type
Power supply (EXT DC INPUT inlet)

External power supply requirements: 24VDC±2V, 1A, XLR-4-32 type Connector
Maximum power consumption

11 W, 0.21 A
Heat dissipation

9.5 kcal/h
Chassis

Metal case, no fan
Hazardous substances management

RoHS compliant
Dimensions

Width: 480mm
Height: 44mm
Depth: 362mm
Weight

4.2 kg
Accessories

Power cord, Owner's manual
Options

MMF-SWP1 (Optical expansion unit), PA-700 (AC adaptor)
