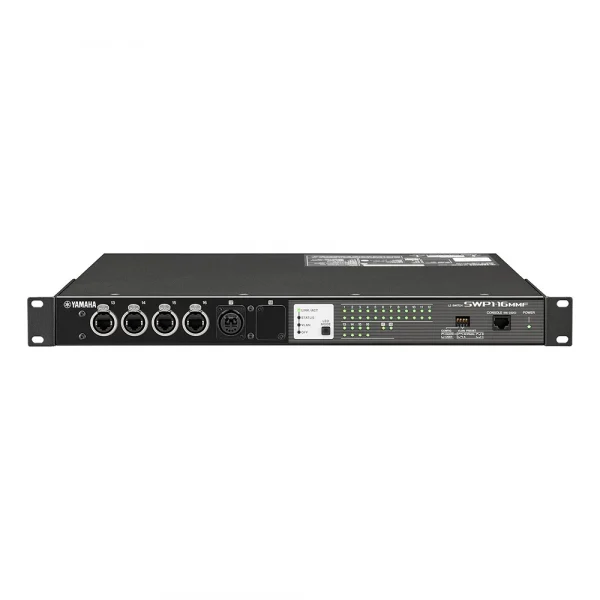

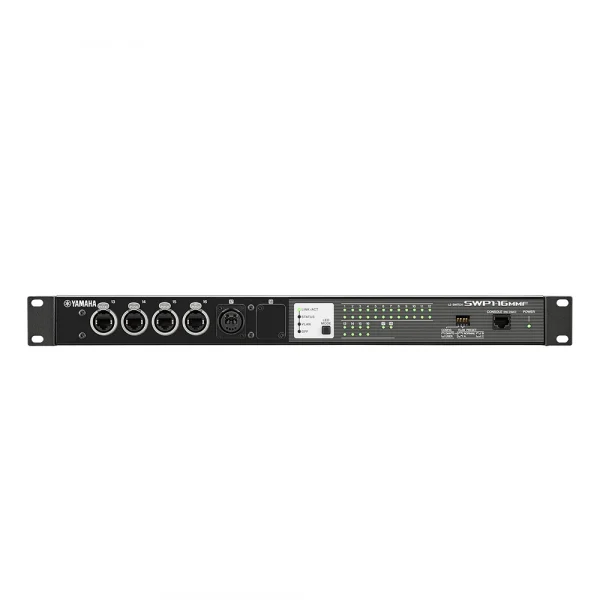

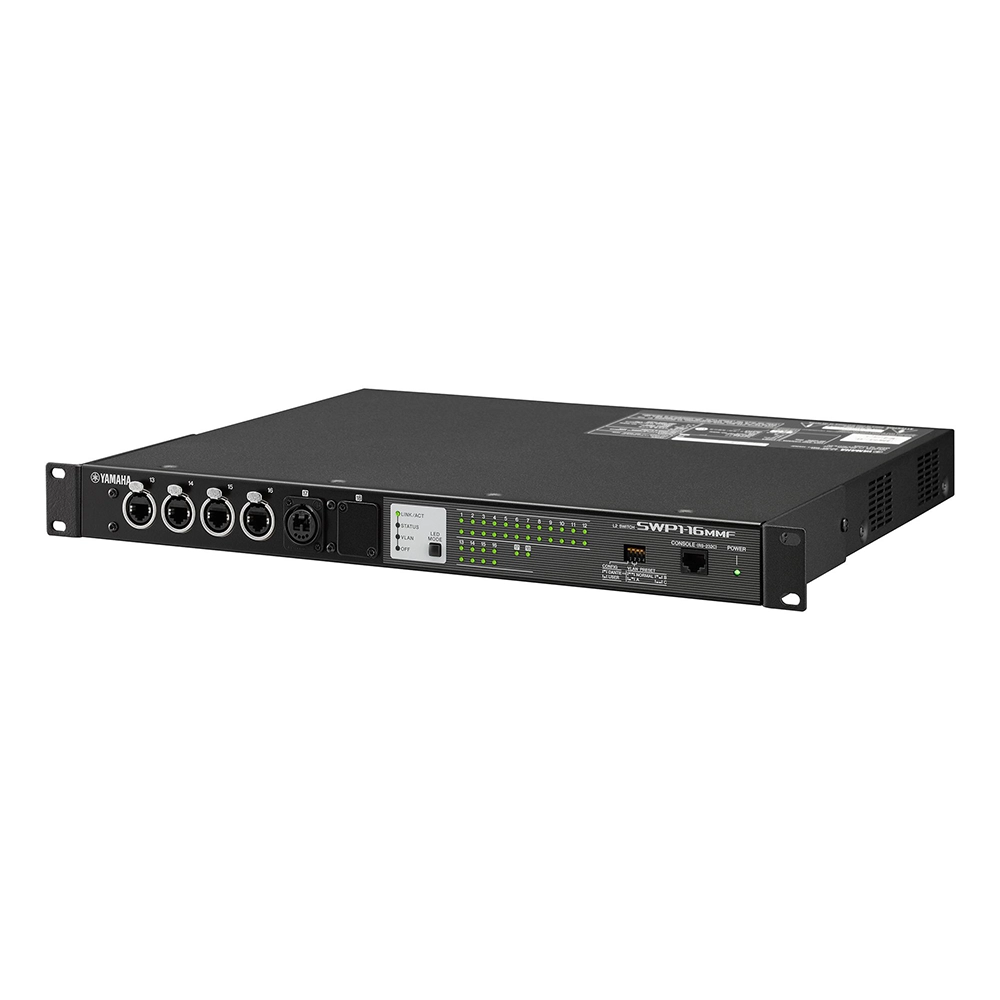

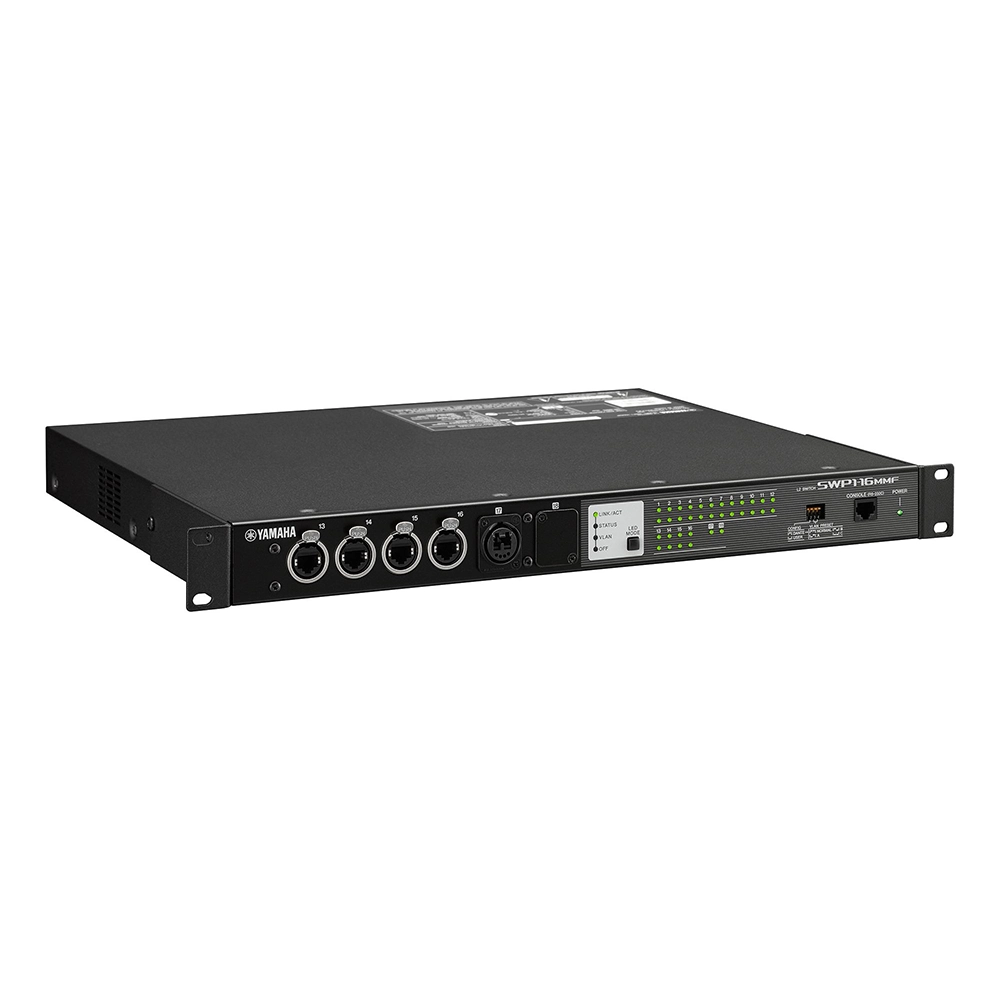

Yamaha – SWP1-16MMF L2 Switch

Yamaha

L2 switch ideal for Dante network sytems, featuring 12 etherCON ports, four RJ45 ports, one opticalCON port, and an option slot for one more port as needed.

SKU: SWP1-16MMF Categories: , ,

Description

The SWP1 series L2 switch is ideal for Dante network systems. It features 12 etherCON ports, four RJ45 ports, one opticalCON port, and an option slot for one more port as needed.

Features

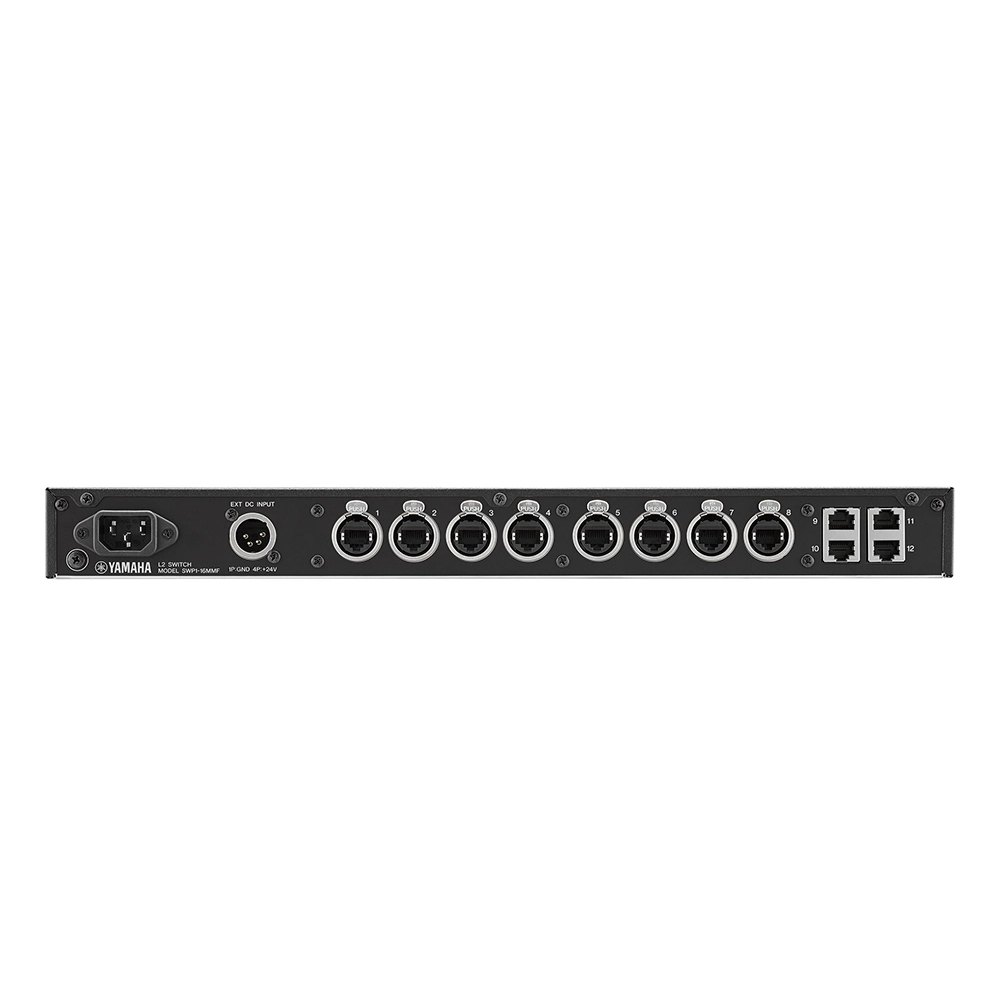

  • etherCON Connectors: 4 front / 8 rear
  • RJ45 Connectors: 4 rear
  • opticalCON Connectors: 1 front
  • Optional optical module slot: 1 front
  • Power consumption: 16W
  • Dimensions (WxHxD): 480 x 44 x 362mm (18.9″ x 1.7″ x 14.2″)
  • Net Weight: 4.6 kg (10.1 lbs)

Video

Yamaha SWP1 Series L2 Switch

The SWP1 series network switch allows a Dante optimized setup and VLAN presets to be recalled by flipping DIP switches. The dedicated computer application also provides a comprehensive view of parameters required for Dante network management.

Additional information

Weight 4.6 kg
Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector)

12
Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, RJ-45 connector)

4
Number of SFP ports (1000BASE-SX, opticalCON connector)

2 (1 optical module is installed as standard)
Console port

1 (RJ-45)
Automatic negotiation

Available
Auto MDI/MDI-X

Available
Switching capacity

36 Gbit/s
Throughput

27 Mpps
Maximum number of MAC addresses

16,384
Frame buffer

1024 kB
VLAN

Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN
Maximum number of VLANs

256 (VLAN ID 1-4,094) *VLAN ID 1 is the default VLAN ID.
IP multicast

IGMP Snooping (v1/v2/v3)
QoS

8 egress queues, Policy-based QoS, Remarking (CoS, ToS, DSCP), Scheduling (SP, WRR)
Flow control

IEEE802.3x (Full-duplex), back pressure (Half-duplex)
Support functions

Storm control, HOL blocking prevention, Loop detection, ACL, SNMP agents, Link aggregation (IEEE 802.3ad LACP, Static), Spanning tree (STP*, RSTP*, MSTP), Port mirroring, Port shutdown, Link speed down shift, Packet counter, Power saving mode (IEEE802.3az EEE; Disabled in DANTE mode), DHCP client, Logging, Firmware download via TFTP/HTTP, Config file download via TFTP *STP and RSTP are supported via downward compatibility of MSTP.
DIP switches

CONFIG, VLAN PRESET
Indicators

Front: POWER, LED MODE×4, PORT×16×2*, SFP×2 *The LED MODE button allows the PORT lamps to be switched between indicating LINK/ACT-SPEED, STATUS, or VLAN.
Operating temperature

0 to 40°C
Storage temperature

-20 to 60°C
Power supply (AC IN inlet)

AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type
Power supply (EXT DC INPUT inlet)

External power supply requirements: 24VDC±2V, 1A, XLR-4-32 type Connector
Maximum power consumption

16 W, 0.29 A
Heat dissipation

14.0 kcal/h
Chassis

Metal case, no fan
Hazardous substances management

RoHS compliant
Dimensions

Width: 480mm
Height: 44mm
Depth: 362mm
Accessories

Power cord, Owner's manual
Options

MMF-SWP1 (Optical expansion unit), PA-700 (AC adaptor)

Downloads

Data Sheet Download
User Guide Download
