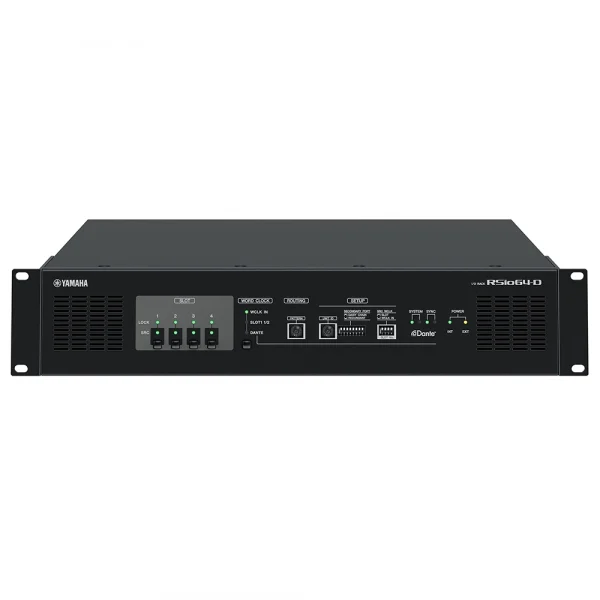

Yamaha – R Series (SLOT) I/O Rack

Yamaha

Audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs

Categories: , ,

Description

The RSio64-D is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs

Features

  • 2U size
  • Convert up to 64 inputs and 64 outputs between Dante and Mini-YGDAI formats
  • Accepts a wide range of Mini-YGDAI input/output and processing cards
  • Seven general routing presets, including routing between Mini-YGDAI cards
  • Supports matrix patching from R Remote V3 or a CL/QL series console
  • Sample rate converters for all four Mini-YGDAI slots
  • EXT DC INPUT for redundant power supplies
  • Supports Dante redundancy (primary/secondary)

Video

Yamaha RSio64-D I/O Rack

Yamaha RSio64-D, the latest addition to the R series, is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs. It provides versatile routing capability as well. Four Mini-YGDAI card slots allow cards for a wide variety of input/output formats as well as processing functions to be connected to a Dante network for live sound, broadcast, recording, post production, and other applications.

Additional information

Sampling frequency rate

External:
44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
SRC

SRC Lock Range: 39.7 kHz – 101.7 kHz, Sample Rate Ratio Limit: 1:2.6 to 2.6:1
Power requirements

100-240 V 50/60 Hz
Power consumption

60 W
Dimensions

Weight: 480mm
Height: 88mm
Depth: 365mm
Net weight

6.1kg
Accessories

Owner’s Manual, AC power cord
Options

PA-700 (AC adaptor)
Others

Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃

Downloads

Data Sheet Download
