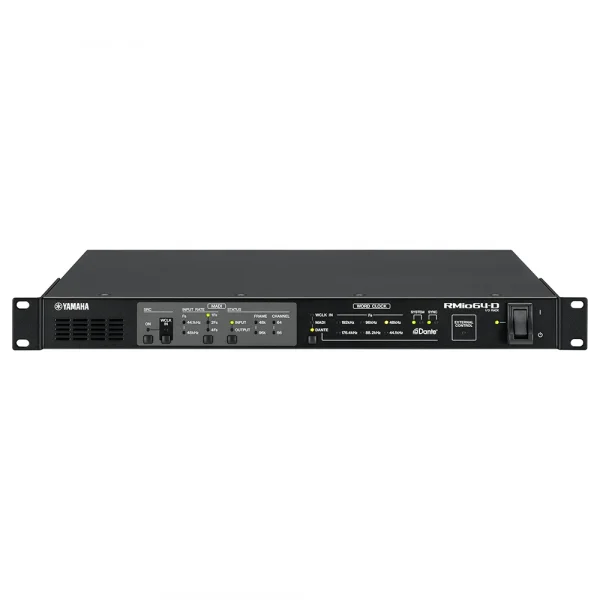

Yamaha_R-Series-MADI-I-O-Rack_FrontYamaha_R-Series-MADI-I-O-Rack_Front

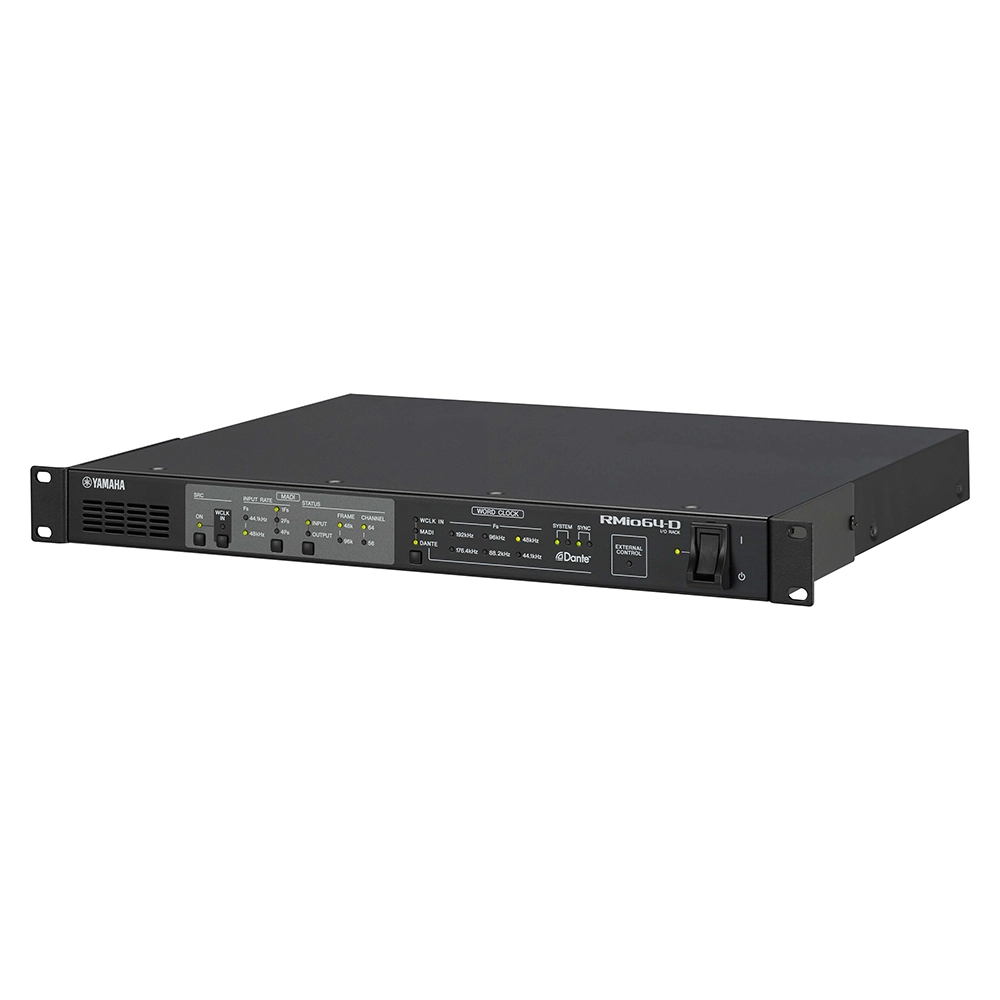

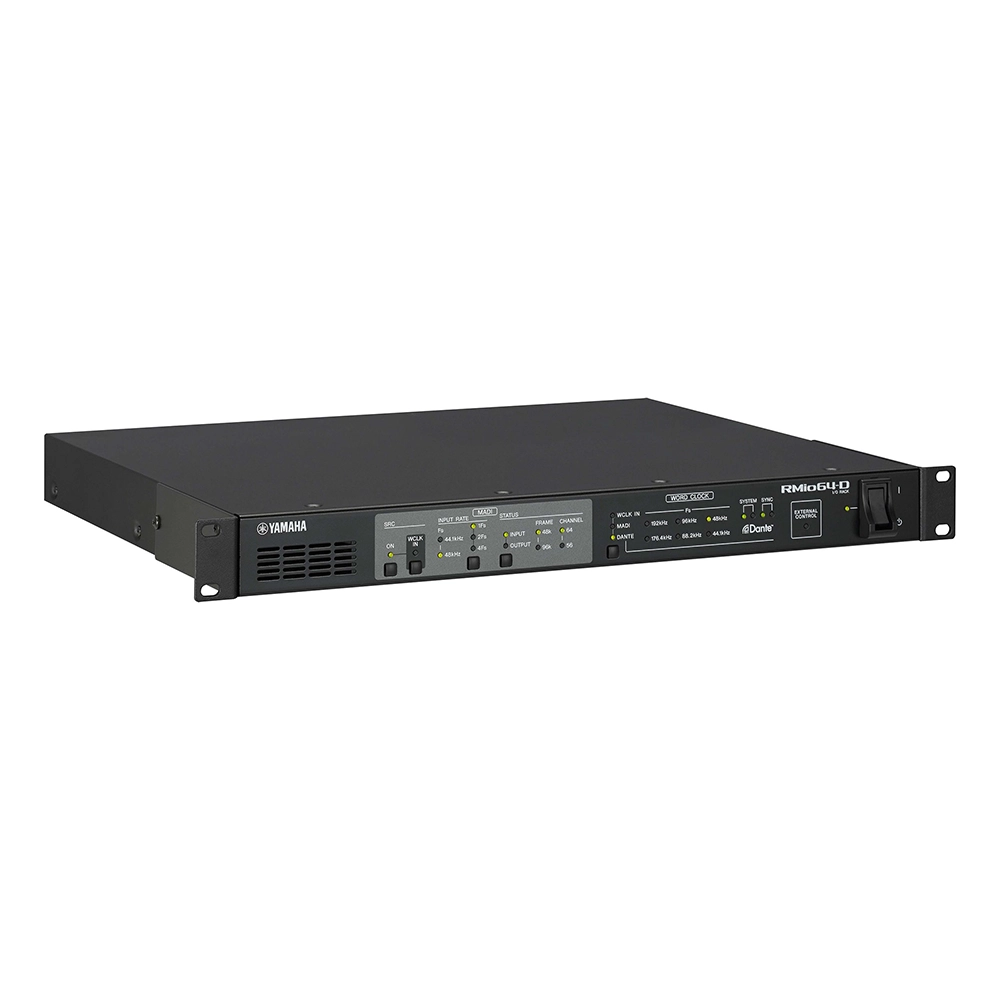

Yamaha – R Series (MADI) I/O Rack

Yamaha

The RMio64-D Dante/MADI conversion I/O rack supports a wide range of broadcast and live sound applications with extraordinary flexibility.

Categories: , ,

Description

The RMio64-D Dante/MADI conversion I/O rack is here. It supports a wide range of broadcast and live sound applications with extraordinary flexibility, and without getting in the way.

Features

  • 1U size
  • Transfer up to 64 digital inputs and 64 digital outputs between a Dante network and a MADI-compatible device
  • Built-in sample rate converters on inputs and outputs
  • Supports Dante redundancy
  • Redundant MADI connections can be made via optical and coaxial cables
  • MADI signals received via an optical (coaxial) input that can be retransmitted via a coaxial (optical) output
  • Mounting, Dante patching, and SRC settings can all be remotely controlled from a CL or QL series console
  • The Yamaha Nuage system offers Direct Monitoring functionality for recording, precision VST System Link synchronization
  • Supports remote controllability via Nuage Workgroup Manager system management software

Additional information

Sampling frequency rate

Internal:
44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm) / 176.4kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm) / 192kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±50ppm)
External:
44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 176.4kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 192kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
MADI Channels & Formats

fs=44.1kHz/48kHz:MADI Single fs 44.1/48k frame, 56/64 channels / fs=88.2kHz/96kHz:MADI Double fs 44.1/48k frame, 28/32 channels / MADI Double fs 88.2/96k frame, 28/32 channels / fs=176.4kHz/192kHz:MADI Quad fs 44.1/48k frame, 14/16 channels
SRC

SRC Lock Range:38.59kHz – 216kHz / Sample Rate Ratio Limit:6:1
Power requirements

US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
Power consumption

25W
Dimensions

Weidth: 480mm (18 7/8in)
Height: 44mm (1 3/4in)
Depth: 374mm (14 3/4in)
Net weight

4.7kg (10.4lb)
Accessories

Owner’s Manual, AC power cord
Others

Temperature Range: Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃

Downloads

Data Sheet Download
User Guide Download
