| Weight |
6.9 kg |
| Dimensions |
48 × 8.8 × 38.8 cm |
| 100V models |
Output power; 1kHz Non-clip 20msec Burst Both channels driven:
8Ω: 500W x 2
4Ω: 800W x 2
2Ω: 500W x 2
8Ω/Power Boost Mode: 800W x 1
4Ω/Power Boost Mode: 1200W x 1
|
| 120V models |
Output power; 1kHz Non-clip 20msec Burst Both channels driven:
8Ω: 500W x 2
4Ω: 800W x 2
2Ω: 500W x 2
8Ω/Power Boost Mode: 800W x 1
4Ω/Power Boost Mode: 1400W x 1
|
| 220V-240V models |
Output power; 1kHz Non-clip 20msec Burst Both channels driven:
8Ω: 500W x 2
4Ω: 800W x 2
2Ω: 500W x 2
8Ω/Power Boost Mode: 800W x 1
4Ω/Power Boost Mode: 1400W x 1
|
| Sampling frequency rate |
Internal: 48kHz
|
| A/D D/A Converters |
AD/DA: 24-bit linear, 128 times over sampling
|
| Total harmonic distortion |
0.1% (1kHz, 10W), 0.3% (1kHz, Half power)
|
| Frequency response |
±1.0dB (1W, 8Ω, 20Hz to 20kHz)
|
| S/N ratio |
100dB (A-weighted, 8Ω, Gain setting = +14dBu)
|
| Crosstalk |
Less than -60dB (Half Power, 8Ω, 1kHz, Vol max input 150Ω shunt)
|
| Voltage Gain/Sensitivity |
8Ω Volume max: 32.0dB/+6.3dBu (Gain setting: 32dB), 26.0dB/+12.3dBu (Gain setting: 26dB), 34.3dB/+4dBu (Gain setting: +4dBu), 24.3dB/+14dBu (Gain setting: +14dBu)
8Ω Volume max /Power Boost mode: 34.0dB/+6.3dBu (Gain setting: 32dB), 28.0dB/+12.3dBu (Gain setting: 26dB), 36.3dB/+4dBu (Gain setting: +4dBu), 26.3dB/+14dBu (Gain setting: +14dBu)
|
| Maximum input voltage |
+24dBu
|
| Input impedance |
20kΩ (Balance), 10kΩ (Unbalance)
|
| I/O Connectors |

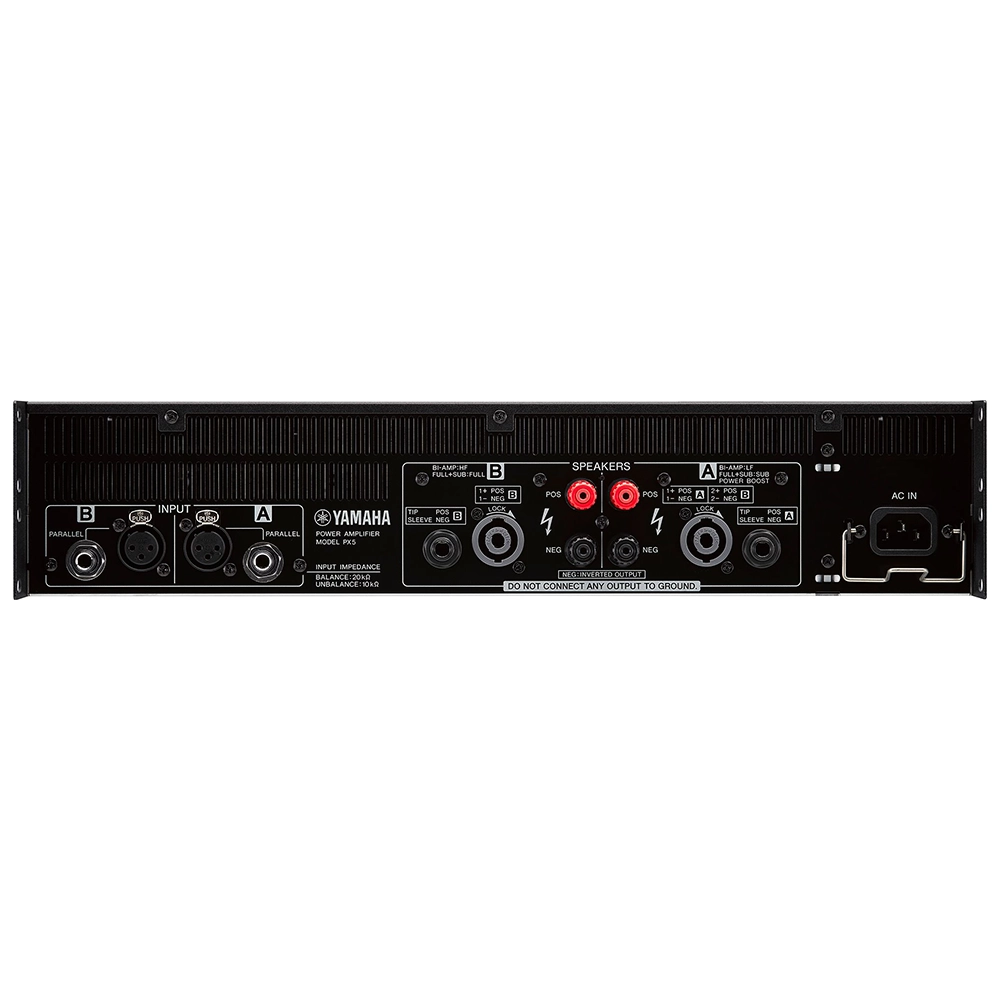

Speaker output ports: Neutrik speakON NL4 x2, Binding post x2 pairs, 1/4" PHONE(TS) x2
Line Input: XLR-3-31 x2, 1/4 "PHONE(TRS) x2
Others: USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
|

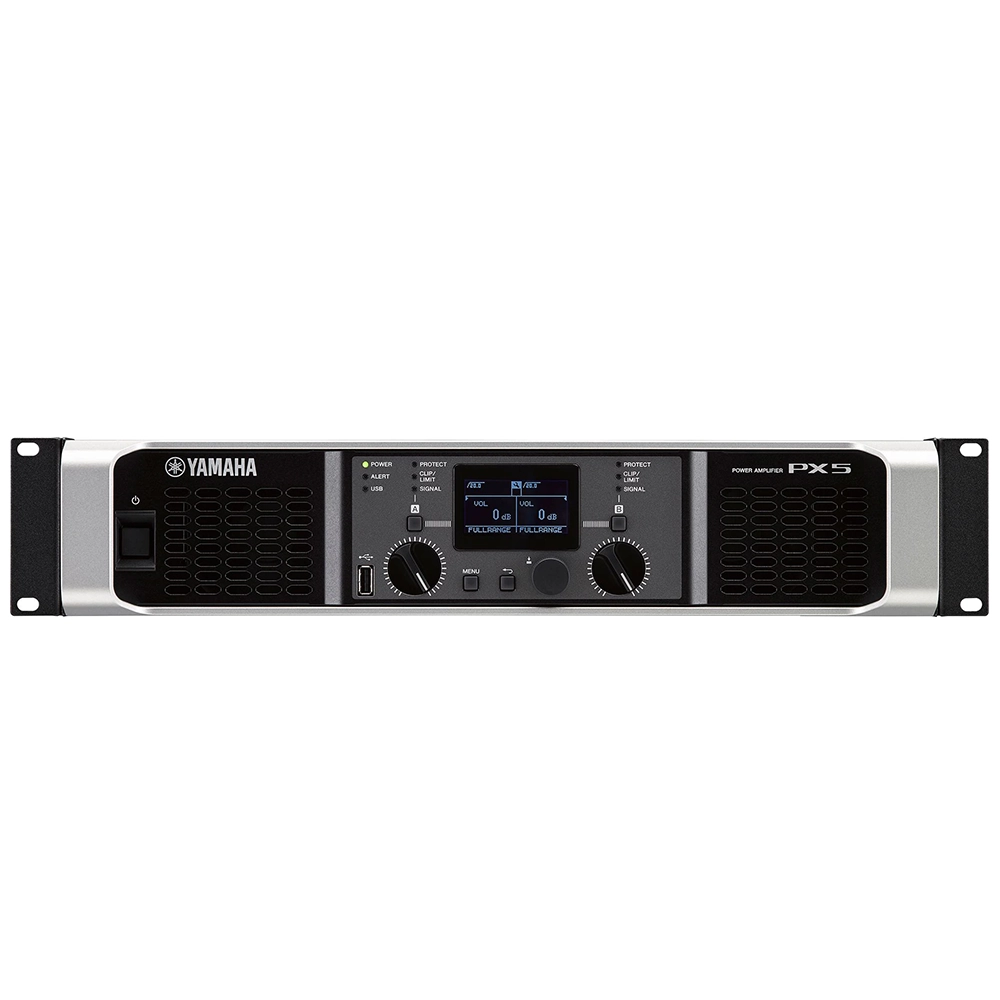

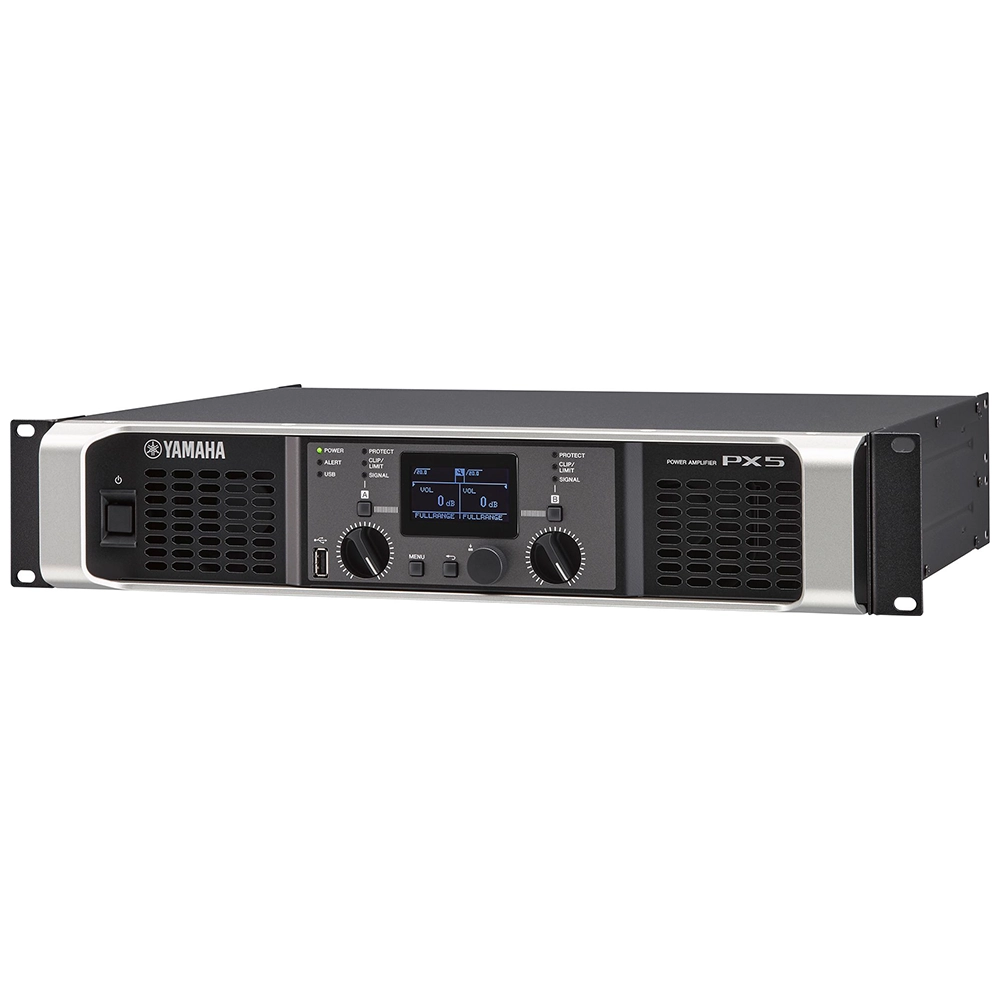

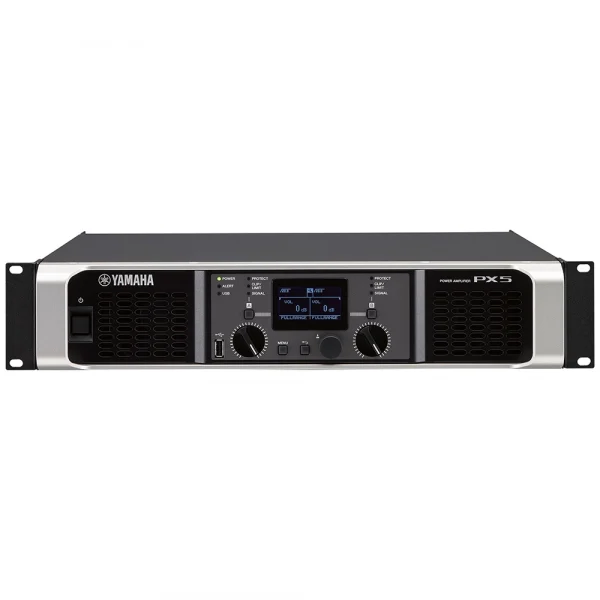

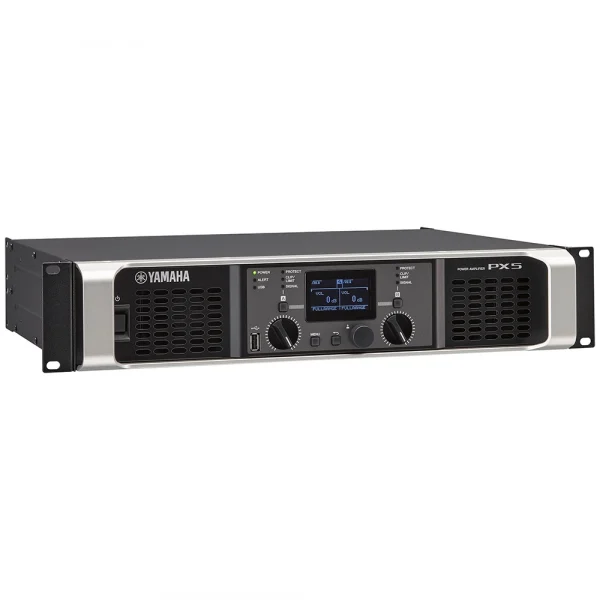

| Indicators |
POWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature
|
| Processors |
Input summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 – 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ + Limiter + Delay)
|
| Latency |
1.5 msec (Analog Input to Speakers)
|
| Presets |
8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers)
|
| Protection circuit |
Load protection: POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically)
Amplifier protection: Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically)
Power supply protection:
Thermal: Output limiter (Restored automatically) → Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown
|
| Amplifier class |
Class D, Balanced output circuit (BTL)
|
| Cooling |
16 step variable speed fan x 2, front to rear airflow
|
| Power requirements |
Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage.
|
| Power consumption |
230W (1/8 MAX power, 4Ω, Pink noise at all channels), 55W (4Ω, Idling)
|
| Accessories |
USB cover, Owner's Manual, Specification sheet, AC cable (2.0m) x 1
|
| Others |
Operating Temperature: 0°C to +40°C, Storage temperature: -20°C to +60°C
|
