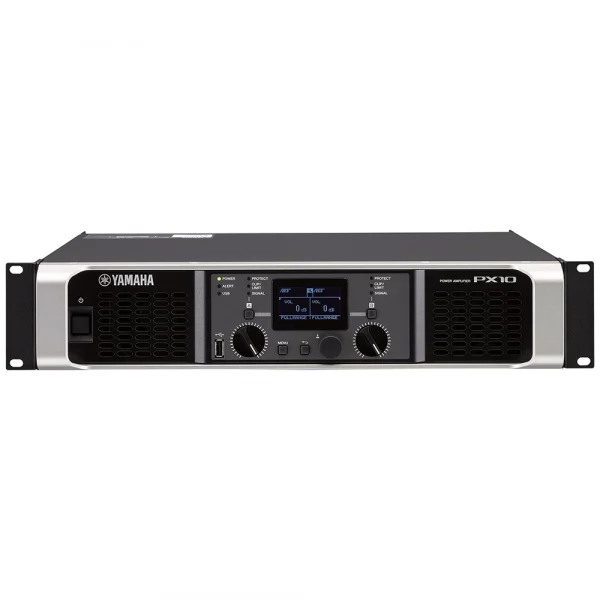

Yamaha_PX10-2-Channel-Speaker_Front-TopYamaha_PX10-2-Channel-Speaker_Front-Top

Yamaha – PX10 2 Channel Speaker

Yamaha

The versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. 1000W x 2 at 8Ω / 1200W x 2 at 4Ω.

SKU: PX-10 Categories: , ,

Description

The versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. 1000W x 2 at 8Ω / 1200W x 2 at 4Ω.

Features

  • High power and efficient design: 1200W (Stereo, into 4Ω)
  • Driven by a newly developed Class-D amplifier engine.
  • Stable 2-ohm drive capability.
  • Supremely efficient amplifiers with low noise, reliable protection features.
  • Amp Mode allows the user to configure the system without difficulty by selecting the input routing and output routing.
  • Sophisticated signal processing allowing users to achieve consistent clarity and high-quality sound for either front-of-house or monitor configurations.
  • Eight programmable presets for instant recall and reduced setup time that can be saved to a USB thumb drive and shared with other PX amplifiers.
  • Presets specifically tuned for each model in Yamaha’s extensive lineup of passive speakers.
  • A variety of input and output terminals.
  • Panel locking function to keep your settings safe.

Additional information

Weight 7.4 kg
Dimensions 48 × 8.8 × 38.8 cm
100V models

Output power; 1kHz Non-clip 20msec Burst Both channels driven:

8Ω: 1000W x 2
4Ω: 1200W x 2
2Ω: 700W x 2
8Ω/Power Boost Mode: –
4Ω/Power Boost Mode: –
120V models

Output power; 1kHz Non-clip 20msec Burst Both channels driven:

8Ω: 1000W x 2
4Ω: 1200W x 2
2Ω: 700W x 2
8Ω/Power Boost Mode: –
4Ω/Power Boost Mode: –
220V-240V models

Output power; 1kHz Non-clip 20msec Burst Both channels driven:

8Ω: 1000W x 2
4Ω: 1200W x 2
8Ω/Power Boost Mode: –
4Ω/Power Boost Mode: –
Voltage Gain/Sensitivity

8Ω Volume max: 32.0dB/+9.3dBu (Gain setting: 32dB), 26.0dB/+15.3dBu (Gain setting: 26dB), 37.3dB/+4dBu (Gain setting: +4dBu), 27.3dB/+14dBu (Gain setting: +14dBu)
8Ω Volume max /Power Boost mode: –
Maximum input voltage

+24dBu
Input impedance

20kΩ (Balance), 10kΩ (Unbalance)

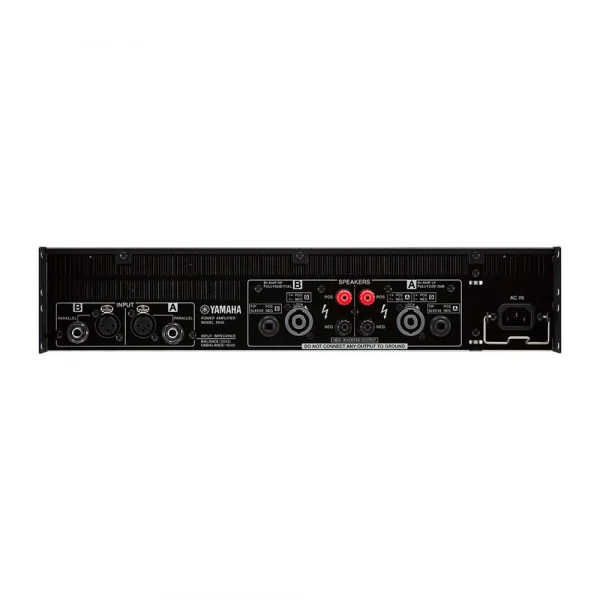

I/O Connectors

Speaker output ports: Neutrik speakON NL4 x2, Binding post x2 pairs, 1/4" PHONE(TS) x2
Line Input: XLR-3-31 x2, 1/4 "PHONE(TRS) x2
Others: USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
Indicators

POWER x1 (Green), ALERT x1 (Red), USB x1 (Green), PROTECT x2 (Red), CLIP/LIMIT x2 (Red), SIGNAL x2 (Green); Auto LED off feature
Processors

Input summing; D-CONTOUR(FOH/MAIN, MONITOR, OFF); Delay(0 – 74msec); HPF/LPF(cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor(6 band PEQ + Limiter + Delay)
Latency

1.5 msec (Analog Input to Speakers)
Presets

8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers)
Protection circuit

Load protection: POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically)
Amplifier protection: Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically)
Power supply protection: Thermal: Output limiter (Restored automatically) → Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown
Amplifier class

Class D, Balanced output circuit (BTL)
Cooling

16 step variable speed fan x 2, front to rear airflow
Power requirements

Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage.
Power consumption

310W (1/8 MAX power, 4Ω, Pink noise at all channels), 60W (4Ω, Idling)
Accessories

USB cover, Owner's Manual, Specification sheet, AC cable (2.0m) x 1
Others

Operating Temperature: 0°C to +40°C, Storage temperature: -20°C to +60°C
