| Weight |
15.6 kg |
| Dimensions |
52.8 × 48 × 8.8 cm |
| Output Power; 1kHz, Non-clip, 20msec Burst, All channels driven |
16Ω: 300W x 4
8Ω: 600W x 4
4Ω: 900W x 4
8Ω (BRIDGE mode): 1800W x 2
4Ω (BRIDGE mode): 2600W x 2
Hi-Z (70V mode): –
Hi-Z (100V mode): –
|
| Amplifier class |
Class D, Single ended output
|
| Total harmonic distortion |
0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven)
|
| Frequency response |
+0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru)
|
| Crosstalk |
≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)
|
| S/N ratio |
109dB (8Ω, Gain setting = 32dB, A-weighted)
|
| Voltage Gain/Sensitivity |
8Ω Volume max: 32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu)
Hi-Z 100V mode, Volume max: –
Hi-Z 70V mode, Volume max: –
|
| Protection circuit |
Load protection: POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)
Amplifier protection: Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)
Power supply protection: Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown
|
| Cooling |
7 step variable speed fan x 3, front to rear airflow
|
| Maximum input voltage |
+25dBu
|
| Input impedance |
20kΩ (balanced)
|
| Sampling frequency rate |
96kHz
|
| A/D D/A Converters |
AD: 24-bit linear; DA: 24-bit linear
|
| Dante Interface |
Channel count: 16 IN with Dante Redundancy, 16 OUT
Sampling frequency: 96/88.2/48/44.1kHz
Dante latency: 0.25/0.5/1/2/5ms
Bit depth: 32/24bit
|
| Processors |
20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 – 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter
|
| Latency |
Analog Input to Speakers: 1.5msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.8msec (fs=96kHz), 1.9msec (fs=88.2kHz), 2.5msec (fs=48kHz), 2.7msec (fs=44.1kHz)
|

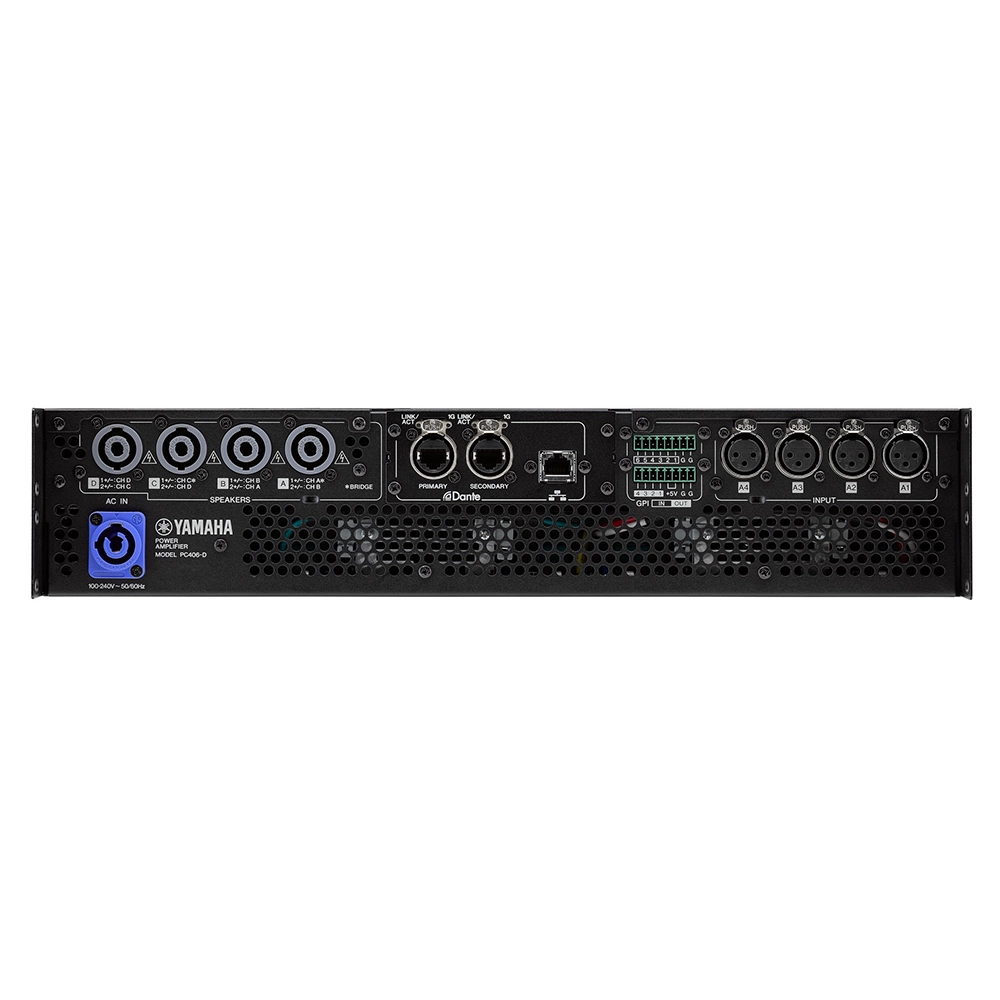

| I/O Connectors |
Analog Input: XLR-3-31 x 4
Digital I/O: Dante Interface: etherCON x 2 (Redundant/Daisy Chain)
Speaker Output: Neutrik speakON NL4 x 4
Control ports: RJ45 x 1
AC: AC inlet (powerCON 20A) x 1
Others: Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)
|
| Indicators |
Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)
|
| Power requirements |
100V – 240V 50Hz/60Hz **
|
| Power consumption |
1050W (1/8 MAX power, 2Ω, Pink noise at all channels), 165W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)
|
| Operating temperature |
0°C to +40°C
|
| Storage temperature |
-20°C to +60°C
|
| Accessories |
Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4
|
