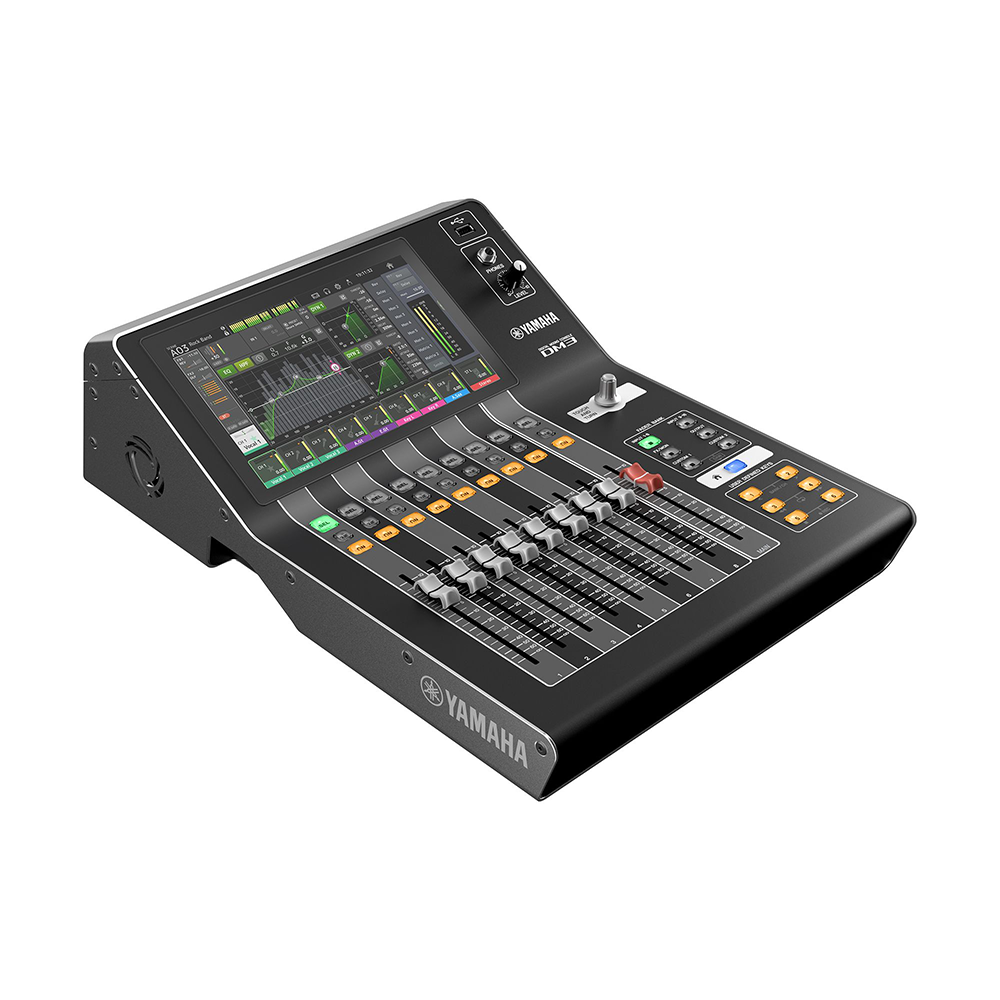

Yamaha – DM3 Digital Mixing Console

Yamaha

Dante enabled DM3 Requires less space & configuration time/setup thanks to flexible patching along with Quick Pro Presets, Editor and StageMix software.

SKU: DM3 Categories: , ,

Description

The DM3 is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features.

Features

  • 8 + 1 fader configuration
  • 9-inch multi-touch screen
  • Input mixing channels: 16 mono + 1 stereo + 2 FX return
  • Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
  • Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
  • Dante: 16 inputs, and 16 outputs
  • USB: 18 inputs, and 18 outputs
  • 18 Effects, and GEQ on Mix 1-6 and Stereo channels
  • Sampling rate: 48kHz/96kHz
  • Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
  • Net weight: 6.5 kg

Additional information

Weight 6.5 kg
Mixing Capacity

Input Mixing Channels: 16 mono, 1 stereo, 2 FX return
Mix Buses: 6
Matrices: 2 (Input to Matrix supported)
Stereo Buses: 1
FX Buses: 2
Cue Buses: 1

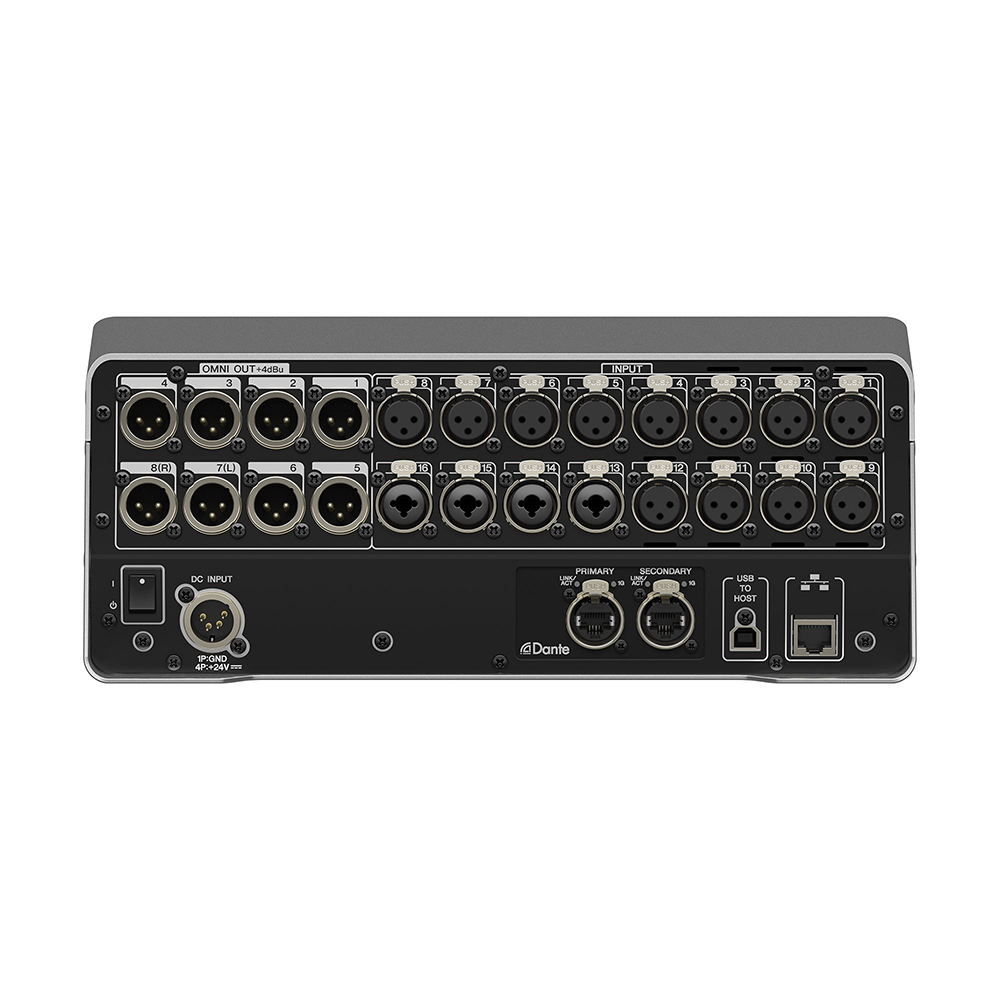

I/O Connectors

Analog Input: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
Analog Output: 8 (XLR)
Dante: 2 (etherCON: Primary/Secondary)
Network: 1 (RJ-45)
USB TO HOST: 1 (USB Type-B, USB2.0)
USB TO DEVICE: 1 (USB Type-A)
Phones: 1 (TRS Phones)
DC: 1 (XLR 4pin, DC power IN)
User Interface

1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
Recording & Playback

PC/Mac: Recording 18 track, Playback 18 track
USB storage device: Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
Sampling frequency rate

96 kHz / 48 kHz
Signal delay

Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
Frequency response

+0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
Total harmonic distortion

Less than 0.01 % 20 Hz – 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1
Hum & noise level

Equivalent input noise: -126 dBu typ., Input Gain= Max.
Residual output noise: -84 dBu, ST main off*2
Dynamic range

110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Crosstalk

-100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3
Power requirements

DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
Power consumption

43 W
Dimensions

Width: 320 mm (12.6")
Height: 140 mm (5.6")
Depth: 455 mm (18.0")
Included Accessories

Owner's Manual, Power Adapter, Download Information
Accessories

RK-DM3
Operating temperature

0 – 40 °C
Storage temperature

-20 – 60 °C
Footnotes

*1 Total Harmonic Distortion is measured with a –18 dB/octave filter@80 kHz.

*2 Hum & Noise are measured with an A-Weight filter.

*3 Crosstalk is measured with a –30 dB/octave filter@22 kHz
