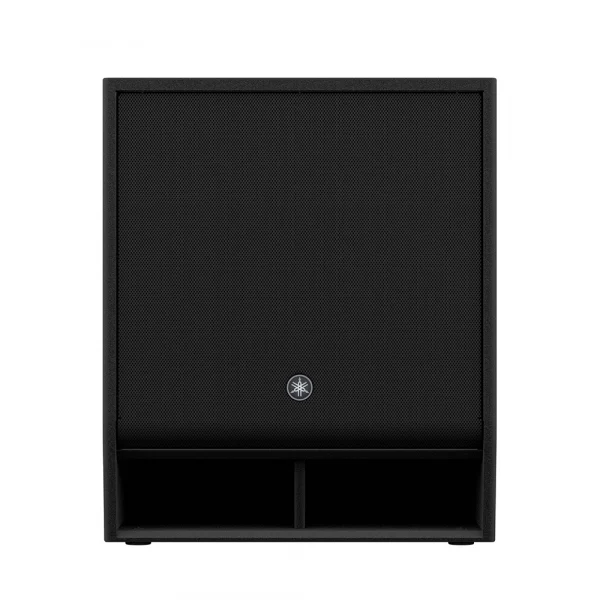

Yamaha_CXS18XLF-Subwoofer_FrontYamaha_CXS18XLF-Subwoofer_Front

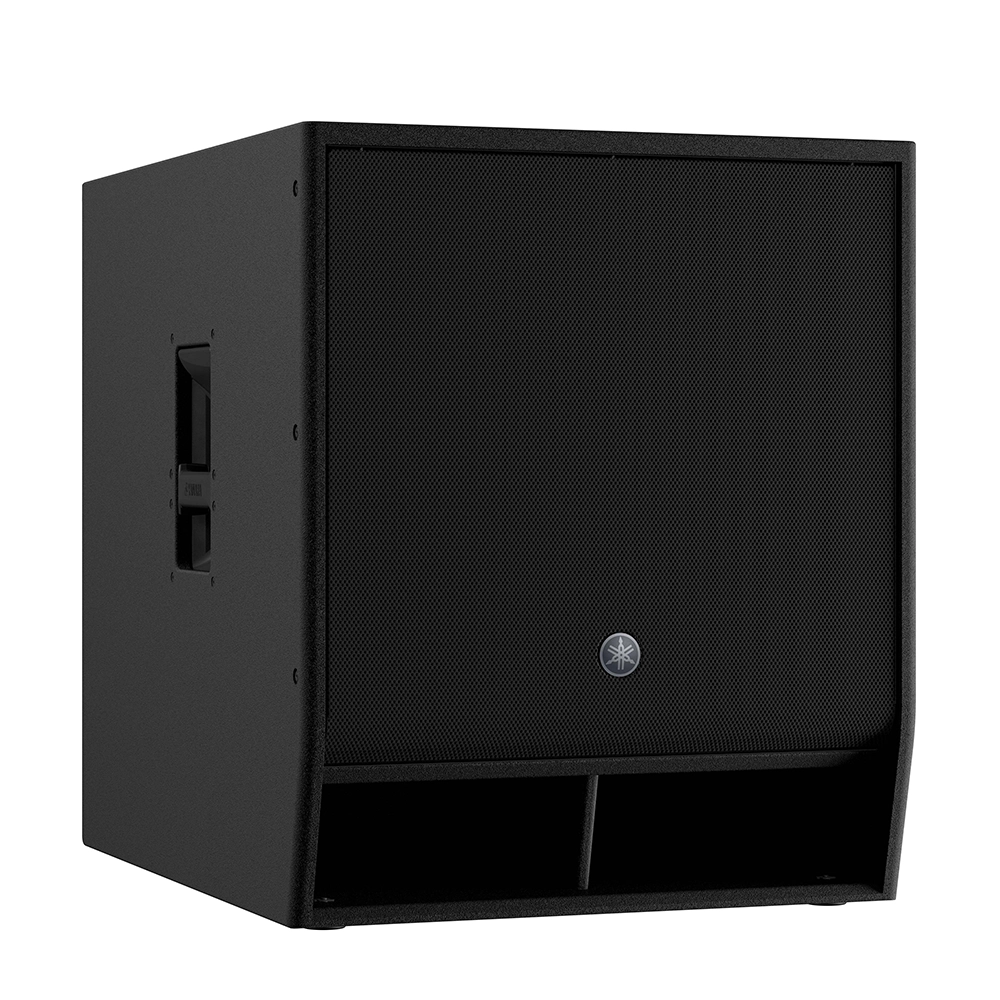

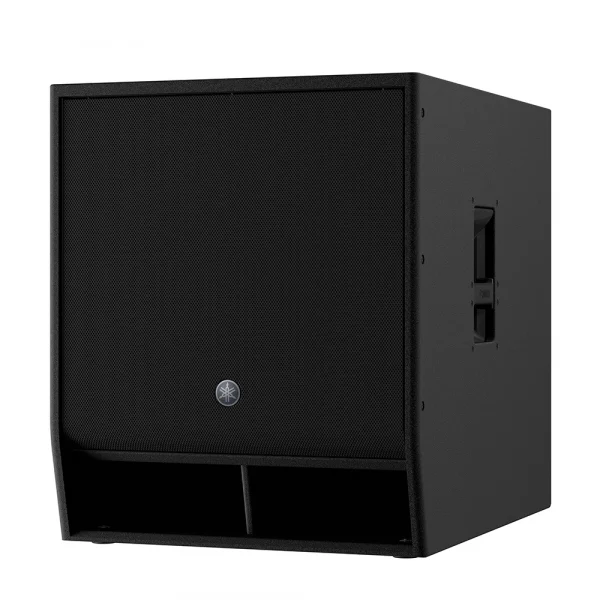

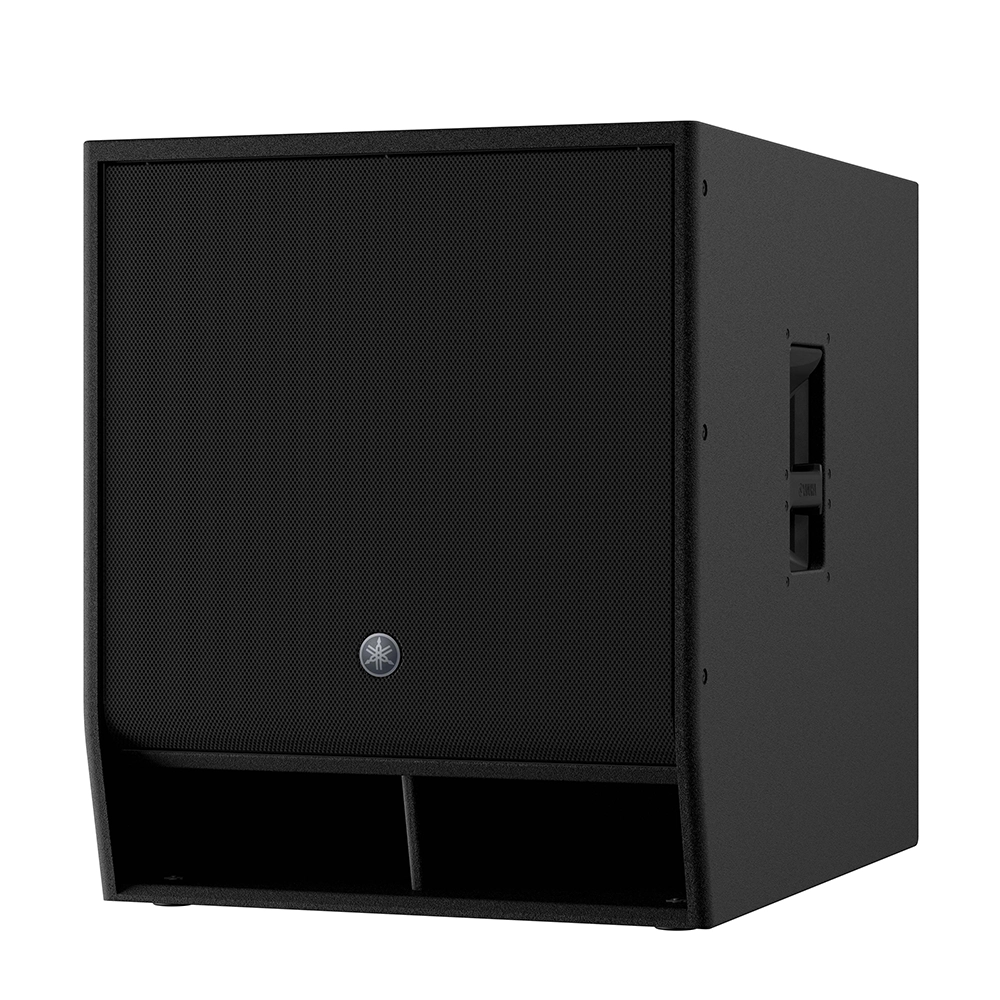

Yamaha – CXS18XLF

Yamaha

Passive Subwoofer

Perfectly suited for use with our CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.

Features

  • 18″ subwoofer with 4″ Voice Coil
  • High power 1000W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • SpeakON NL4MP x 3 (Parallel x 2, Output x 1)
  • Dual-pole socket
  • Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
  • Durable Black or white finish
SKU: CXS18XLF Categories: , , ,

Description

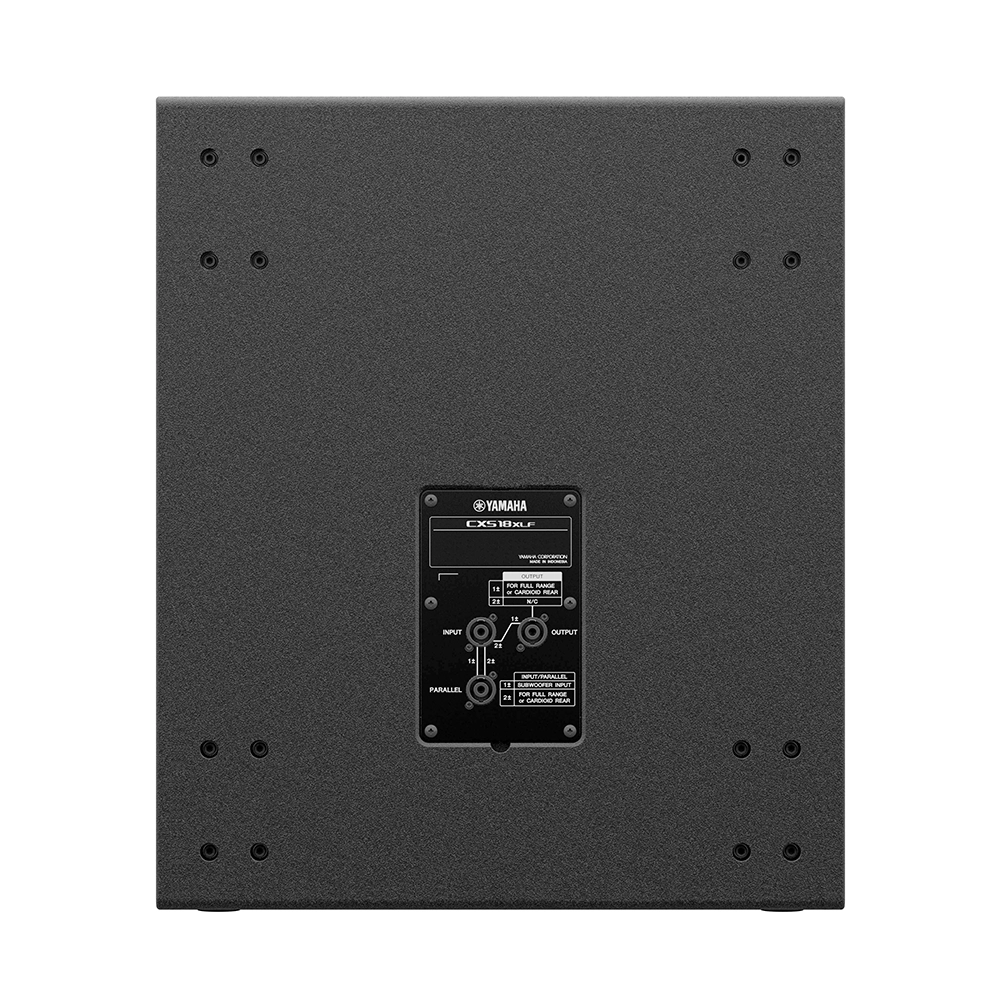

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.

Additional information

Weight 43.6 kg
Dimensions 72 × 55 × 65.7 cm
Speaker type

Subwoofer, Bass-reflex
Frequency range (-10dB)

Passive: 32 Hz – 3kHz, Normal (*1): 32 Hz – 150 Hz, Extend (*1): 29 Hz – 150 Hz
Components

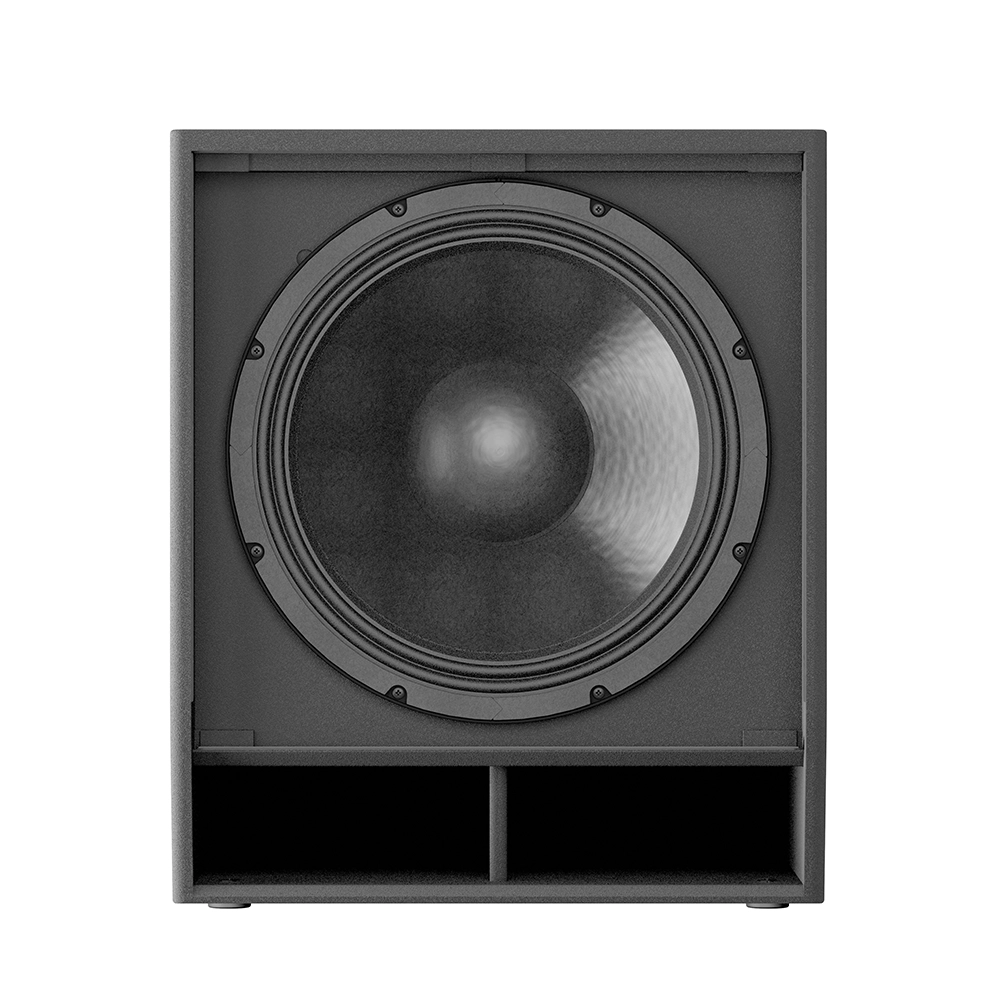

LF: 18" Cone, 4" Voice Coil, Ferrite magnet
Power rating

NOISE: 500 W (EIA 426-A)
PGM: 1000 W (EIA 426-A)
PEAK: 2000 W (EIA 426-A)
Nominal impedance

8Ω
SPL

Sensitivity (1W; 1m on axis): 100dB *2
Peak (Calculated): 133 dB *2
I/O connectors

SpeakON NL4MP x 3 (Parallel x2, Output x1)
Handle

Aluminium die-cast, Side x2
Pole socket

Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
Options

Cover: SPCVR-DXS18X, Caster: SPW-1
Others

Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White
