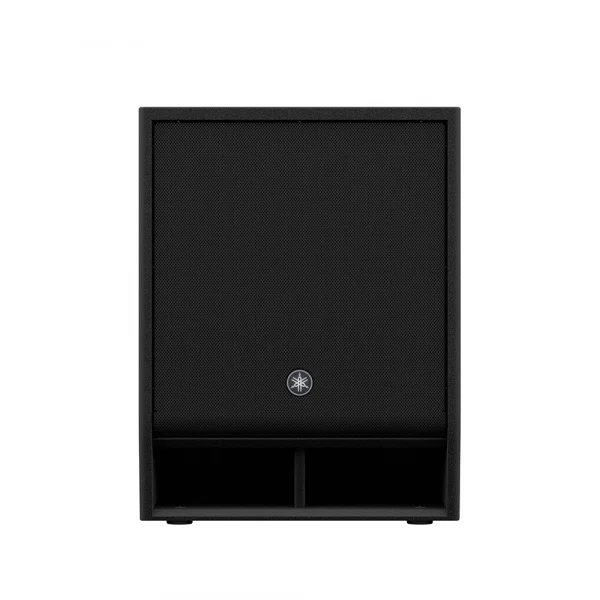

Yamaha_CXS15XLF-Subwoofer_FrontYamaha_CXS15XLF-Subwoofer_Front

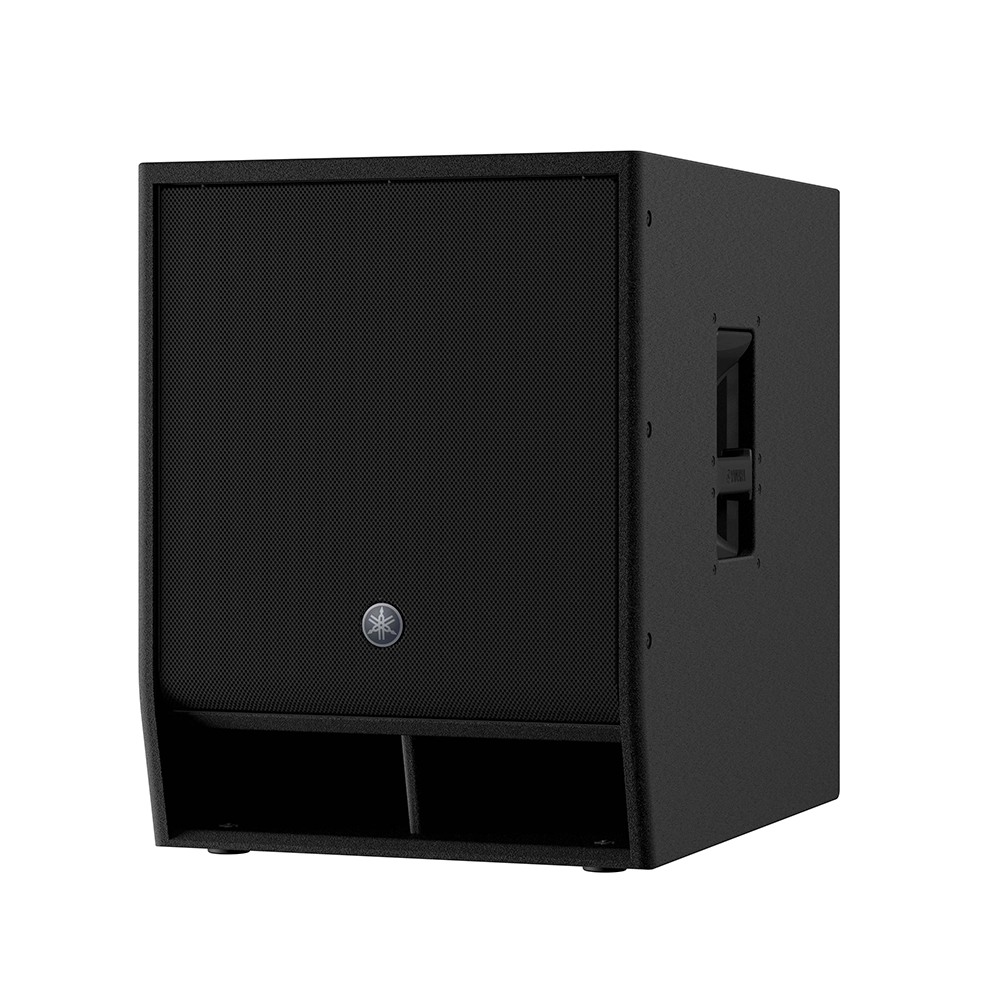

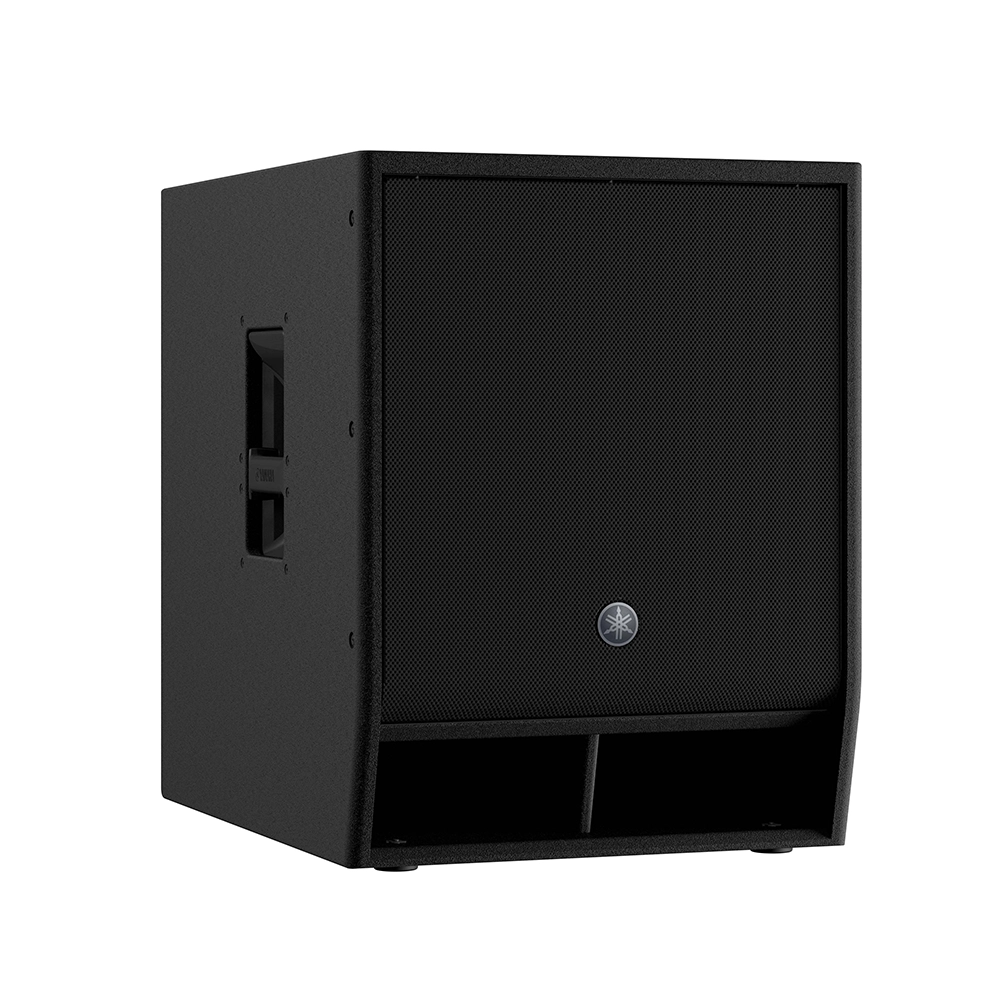

Yamaha – CXS15XLF Subwoofer

Yamaha

Passive Subwoofer With 15″ Woofer

Features

  • 15” subwoofer with 4” Voice Coil
  • High power 800W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

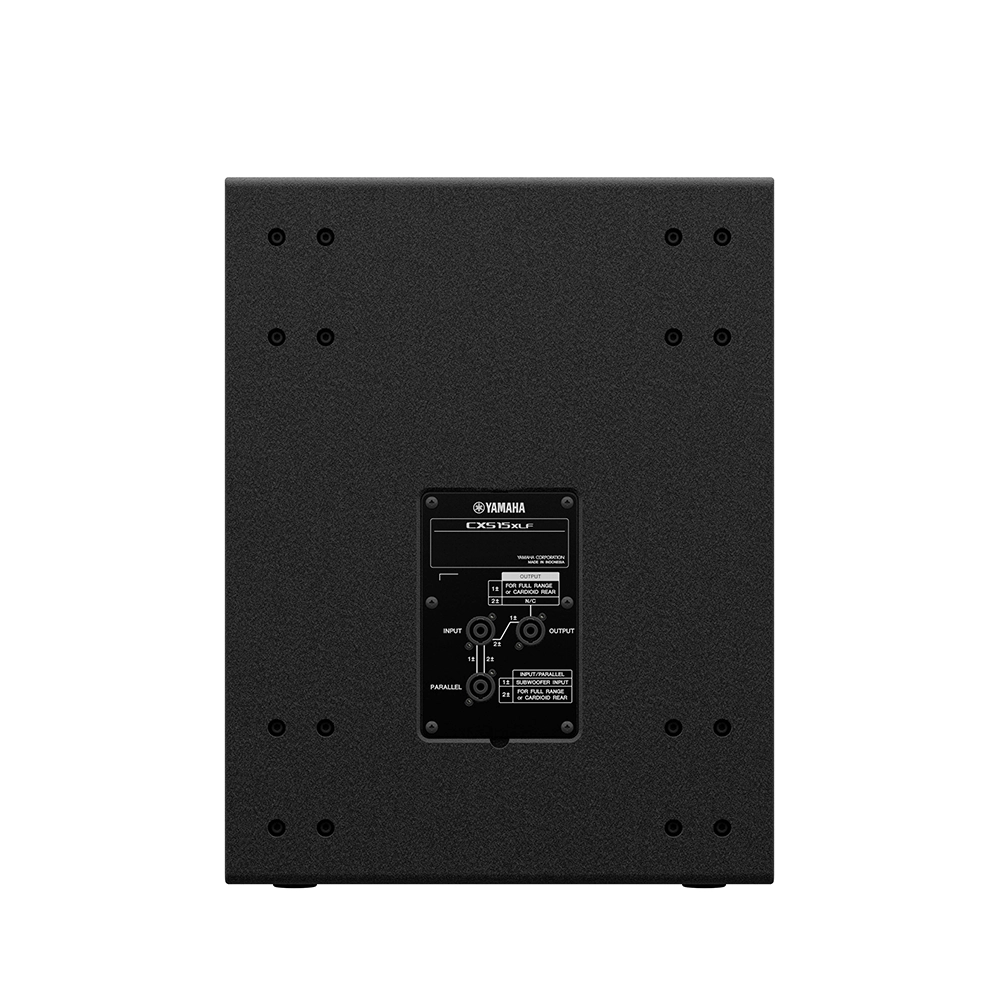

  • SpeakON NL4MP x 3 (Parallel x2, Output x1)
  • Dual-pole socket
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
  • Durable Black
SKU: CXS15XLF Categories: , , ,

Description

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.

Additional information

Weight 35.6 kg
Dimensions 60 × 45 × 58.7 cm
Speaker type

Subwoofer, Bass-reflex

Frequency range (-10dB)

Passive: 33 Hz – 3.5kHz, Normal (*1): 35 Hz – 150 Hz, Extend (*1): 33 Hz – 150 Hz

Components

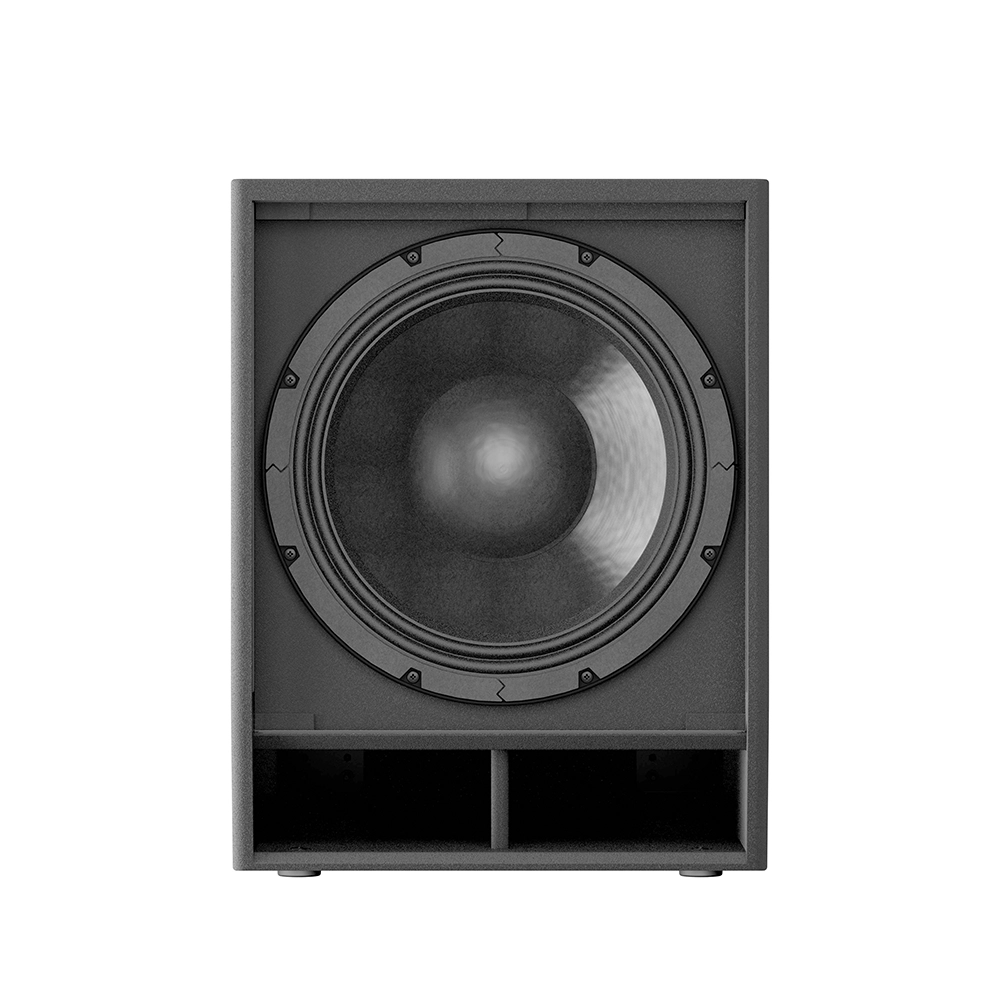

LF: 15" Cone, 4" Voice Coil, Ferrite magnet

Power rating

NOISE: 400 W (EIA 426-A)
PGM: 800 W (EIA 426-A)
PEAK: 1600 W (EIA 426-A)

Nominal impedance

8Ω

SPL

Sensitivity (1W; 1m on axis): 98dB *2
Peak (Calculated): 130 dB *2

I/O connectors

SpeakON NL4MP x 3 (Parallel x2, Output x1)

Handle

Aluminium die-cast, Side x2

Pole socket

Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)

Options

Cover: SPCVR-DXS15X, Caster: SPW-1

Foot Note

*1: With recommended DSP processing.
*2: Half space (2π)
