TMB – Solaris Mozart One

TMB

The Perfect Pixel!

SKU: TMBSOLMOZARTONE Categories: , , ,

Description

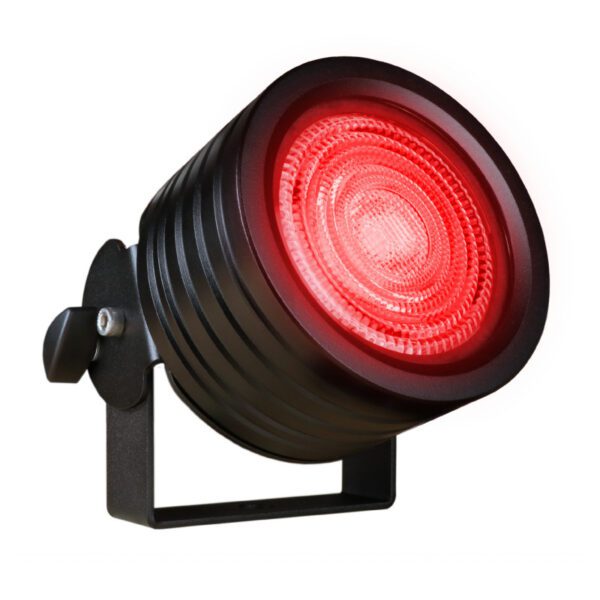

The extremely bright Mozart One is controlled via DMX512 protocol with RDM functionality. Due to its extremely compact size and low profile, Mozart One is ideal for stage sets and scenery.

Mozart One features one pixel comprised of six RGBW CREE XM-L LEDs beneath a single lens! A camera-friendly 1200 Hz refresh rate, 8-bit color dimming control, and three operating modes – 1-pixel WHITE (1 ch), 1-pixel RGB (3 ch), and 1-pixel RGBW (4 ch) – make Mozart One the most versatile single-lens LED fixture available today.

Features

  • One RGBW, single-lens “pixel”
  • 1, 3, or 4 channels – White, RGB, or RGBW
  • Standard and HiPower modes
  • IP65 rated, for indoor/outdoor use
  • Perfect for set lighting and stages

Additional information

Beam Angle

~120°
LED Light Sources

6 CREE XM-L LEDs (beneath single lens)
Peak Colour Wavelength (manufacturer rated)

Red: 632 nm
Green: 519 nm
Blue: 452 nm
Pixels per Fixture

1
DMX Channels per Fixture

1, 3, 4
Fixtures per Drive Output

8 max. in Standard Mode
5 max. in HiPower Mode
Colour LED’s

RGBW
Colour Mode

WHITE, RGB, RGBW
Refresh Rate

1200 Hz
Intensity Control

8-bit
Control

DMX512A, RDM
DC Power

48 V
Power Consumption

20 W
Cooling

Convection
IP Rating

IP65
Operating Temperature

-20 to +40 °C
Control/Power Connectors

In/Out – Amphenol Sensor M12
Unit Dimensions (HxWxD)

5.55 x 4.6 x 6.3 in [141 x 118 x 160 mm]
Shipping Dimensions (HxWxD)

6.75 x 7.5 x 7.5 in [171 x 191 x 191 mm]
Unit Weight

3.85 lbs. [1.75 kg]
Shipping Weight

4.5 lbs. [2.04 kg]

Downloads

Data Sheet Download
