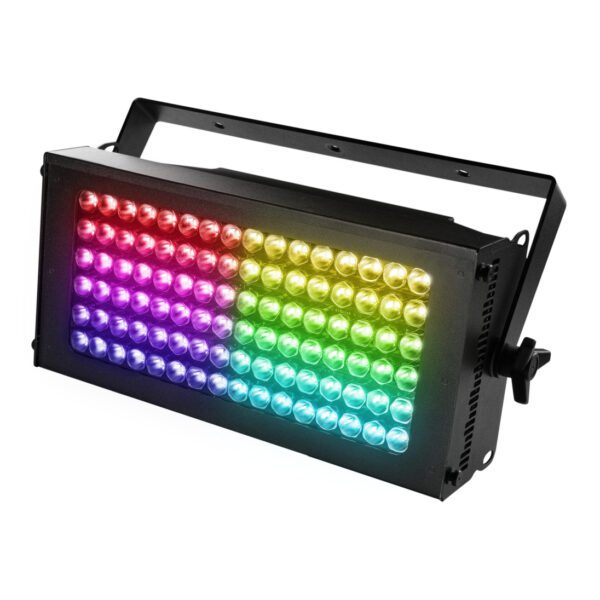

TMB – Solaris Flare Q+

TMB

The World Famous Flare Just Got Quieter and Brighter!

SKU: TMBSOLFQ1K36R Categories: , , ,

Description

Flare Q+ – A New Generation of Flare

Flare Q+ Technology – Revolutionary driver technology maximizes LED output for unprecedented brightness, while also optimizing LED temperatures for long term reliability.

MORE QUIET! Perfect for stage and studio!

MORE BRIGHT! Over 1000 Watt brightness (in Turbo Mode)

MORE OPTIONS! Three modes for improved performance + full compatibility with earlier generation Flares. Perfect for retrofitting in existing systems.

Features

  • Theatre Mode: Quiet, effectively silent operation, 8% brighter
  • Turbo Mode: At least 40% brighter, yet still very quiet. Up to an amazing 52,000 Lumens!
  • The same world-class ease of programming, dimming, colors, smoothness, control features and flicker-free performance
  • Calibration mode allows precise matching of intensity and color

Video

Additional information

Weight 10 kg
Light sources

96 10W CREE© LEDs (divided in to 12 segments)

Beam Spread

36°

Colours

4- R, G, B, W

Average colour wavelength (manufacturer rated)

red: 625 nm
green: 530 nm
blue: 460 nm
white: >5700K

Refresh rate

1200 Hz

Intensity control

16-bit or 8-bit

Control

DMX-512, RDM, Demo, Manual mode

AC Power

100-277 VAC Universal Input, 50-60 Hz

Fuse

12A 250V slow-blow (5x20mm)

Cooling

Air cooling + fan

Operating Temperature

-13 °F – +104 °F [-25 °C – +40 °C]

DMX Channels

3-56 depending on control mode

DMX Connectors

Input 5-pin XLR male, Thru 5-pin XLR female

DMX pin configuration

pin 1 shield, pin 2 (data-), pin 3 (data+), pin 4 n/a, pin 5 n/a

Max. power draw

1250 W

Power Connectors

Input PowerCON 20A blue

Fixing

Adjustable yoke

Unit Dimensions (HxWxD)

10 x 19.7 x 6.5 in (257 x 500 x 164 mm)

Shipping Dimensions (HxWxD)

9 x 20.5 x 12.25 in (229 x 521 x 311 mm)

Downloads

Data Sheet Download
User Guide Download
