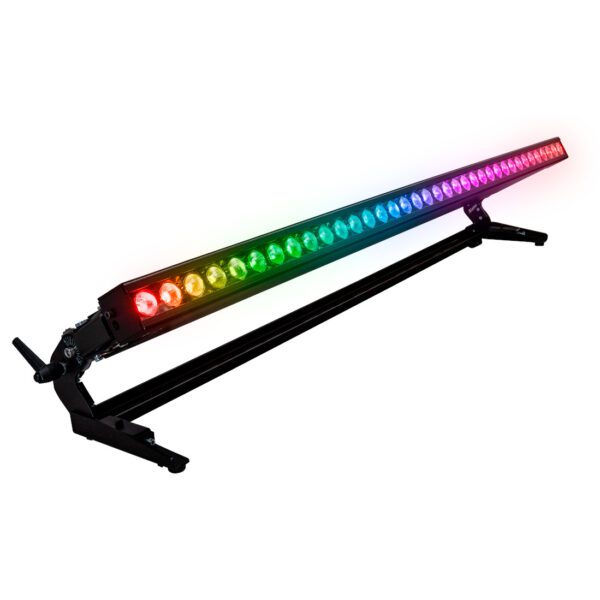

TMB – Solaris Flare Q+ Ratzr

TMB

The World Famous Flare in Blade Format!

SKU: N/A Categories: , , ,
Clear

Description

The World Famous Flare in Blade Format!

Featuring Flare Q+ LED Driver and Cooling Technology

Features

  • Available in 50 cm and 100 cm formats. 18 or 36 10W RGBW LEDs, 3-pixel groups.
  • Patent Pending Preset Yoke™ included! Innovative indexing function, adjustable in 15-degree increments
  • Flexible mounting/joining options available for scenery, truss, pipe, and floor. Vertically hang coupled units up to 5m in total length!
  • Q+ Technology™ for virtually silent operation + increased brightness!
  • Function, Colors, and Brightness consistent with other Flare Q+ fixtures. Retrofit in existing systems.
  • Mounting options for end-to-end alignment, hanging, wall mounting, and pipe attachment
  • 36° beam angle optimized for most applications. 22°, 54°, and 70° options available.
  • Intense, deep reds and blues. Ultra-bright greens. Brilliant camera-friendly whites.
  • Simultaneous color wash and strobe in ONE fixture. All the features of the fabulous Flare.

Additional information

Weight N/A
Light sources

0.5 Meter: 18 CREE© LEDs (divided in to 6 pixels)
1 Meter: 36 CREE© LEDs (divided in to 12 pixels)
Beam Spread

36°
Colours

4- R, G, B, W
Average colour wavelength (manufacturer rated)

4- R, G, B, W
Red: 625 nm
Green: 530 nm
Blue: 460 nm
White: >5700K
Refresh rate

1200 Hz
Intensity control

16-bit or 8-bit
Control

RDM, DMX-512, Demo, Manual Mode. Light output and fan controlling modes – Turbo (full output), Quiet (theatre mode), Compatible (matches regular Flare);
AC power

100-277 VAC Universal Input, 50-60 Hz
Fuse

0.5 Meter: 2A 250V slow-blow (5x20mm)
1 Meter: 4A 250V slow-blow (5x20mm)
Cooling

Air cooling + fan
Operating temperature

-4 to +104 °F [-20 to +40 °C]
DMX channels

0.5 Meter: 3-32 depending on control mode
1 Meter: 3-56 depending on control mode
DMX connectors

Input 5-pin XLR male, Thru 5-pin XLR female
DMX pin configuration

pin 1 shield, pin 2 (data-), pin 3 (data+), pin 4 n/a, pin 5 n/a
Max. power draw

0.5 Meter: 200 W
1 Meter: 400 W
Power Connectors

Input PowerCON 20A blue, Thru PowerCon 20A grey
Fixing

Adjustable yoke
Unit Dimensions (LxWxH)

0.5 Meter: 19.6 x 1.61 x 9.39 in. [498 x 41 x 238.5 mm]
1 Meter: 39.3 x 1.61 x 9.39 in. [998 x 41 x 238.5 mm]
Shipping Dimensions (LxWxH)

0.5 Meter: 22.25 x 10.5 x 7.75 in. [565 x 267 x 197 mm]
1 Meter: 42 x 10.5 x 7.75 in. [1067 x 267 x 197 mm]
Unit Weight

0.5 Meter: 8.10 lbs. [3.67 kg]
1 Meter: 13.65 lbs. [6.19 kg]
Shipping weight

0.5 Meter: 9.55 lbs. [4.33 kg]
1 Meter: 16.10 lbs. [7.3 kg]

Downloads

Data Sheet Download
User Guide Download
