Swisson – Wireless Transmitter / Wireless Receiver – XWL

Swisson

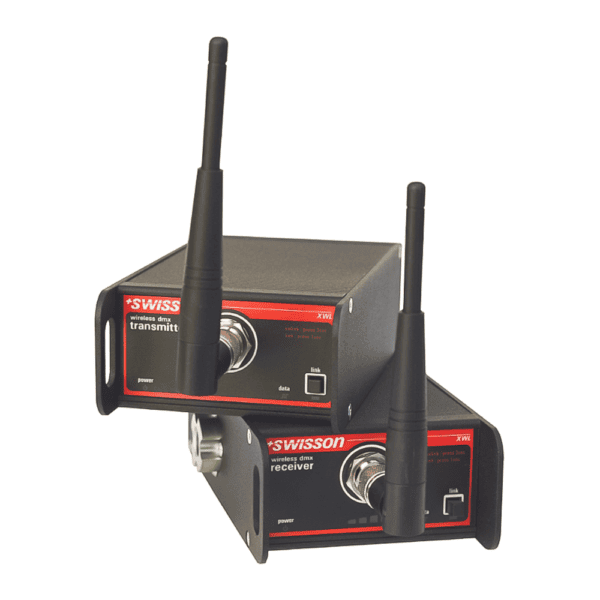

The XWL series encompasses both, W-DMX as well as CRMX compatible and compact wireless DMX transmitters and receivers.

SKU: N/A Categories: , , ,
Clear

Description

With a latency of only about 5 ms, CRMX guarantees a DMX connection with the properties and reliability level equivalent to those of a wired link.

Several transmitters can be operated in parallel, each of which is easily linkable to any number of receivers and capable of handling one full universe of 512 DMX channels.

All XWL products are equipped with M10/M12 and 3/8″ threads to provide a variety of installation possibilities, such as mounting on a microphone stand.

Feature Quick View

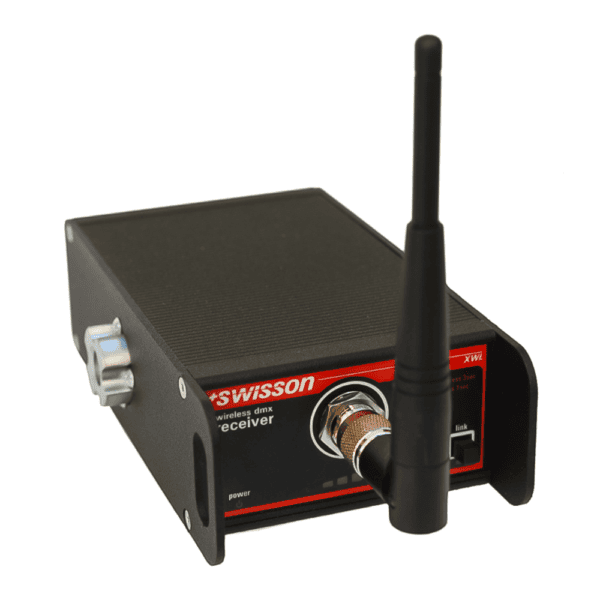

  • Wireless DMX receiver (XWL-R models)
  • Wireless DMX transmitter (XWL-T models)
  • M10/M12 threads for truss mount
  • 3/8” thread for mounting on a microphone stand

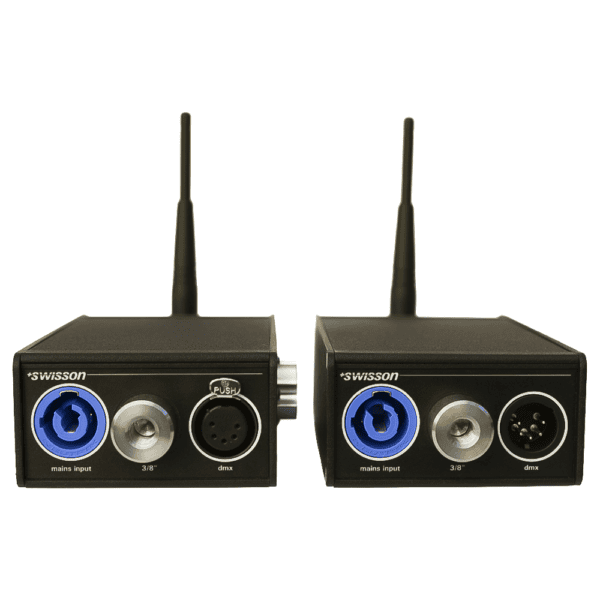

  • Built-in power supply (powerCON connected)
  • Compact, rugged housing

Additional information

Weight 0.58 kg
Dimensions (L x W x H)

164.5 x 92 x 44.4 mm (6.52" x 3.62" x 1.75")
Ambient temperature

-17 to +55°C (0 to +131°F)
Typical power consumption

2 W
AC power input

100-240 V AC
Transmission power

100 mW (20dBm)
Range

up to 500 m
Frequency

2.4 GHz
Modulation

GFSK
Latency

< 5 ms
No. of receivers per transmitter

unlimited
No. of transmitters per venue

4-6
M10 for clamp / safety eye

Yes / Yes
DMX

ANSI E1.11
