Description

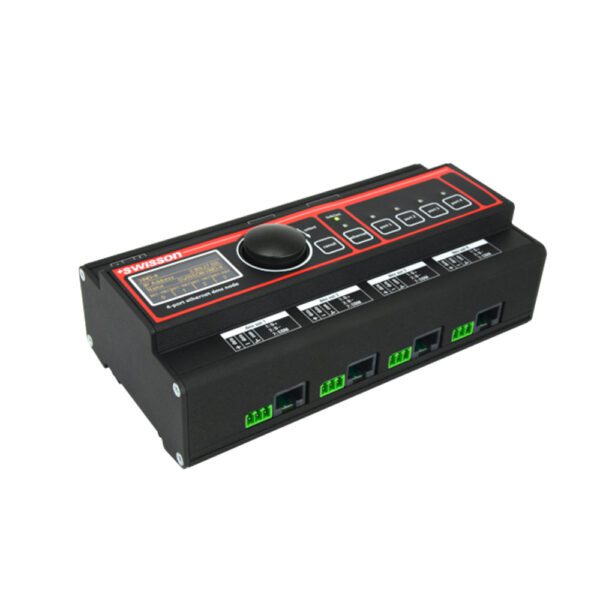

The XND-4D nodes convert Art-Net and sACN for up to 4 DMX universes. The DIN rail mounting as well as the RJ45 & terminal ports make the XND-4D node a perfect match for the use in fixed installations. The configuration can be done either directly at the device or via the web interface, which can also be used to install firmware updates or checking on status information.
The XND-4D sends DMX data coming from your lighting console, computer or even from a mobile device to the fixtures. Many lighting control programs for PC or Mac support Art-Net natively and thanks to the XND’s DHCP capability, you can leave the network configuration to your network infrastructure.
Power is supplied by an external power supply (not included). For further distributing the DMX signal, the DIN rail DMX splitters of the ISP series fit perfectly with XND-4D.
Features
- Art-Net and sACN to DMX converter for 4 independent universes
- Supports Art-Net 1 through 4 (DMX and RDM)
- sACN release and draft version

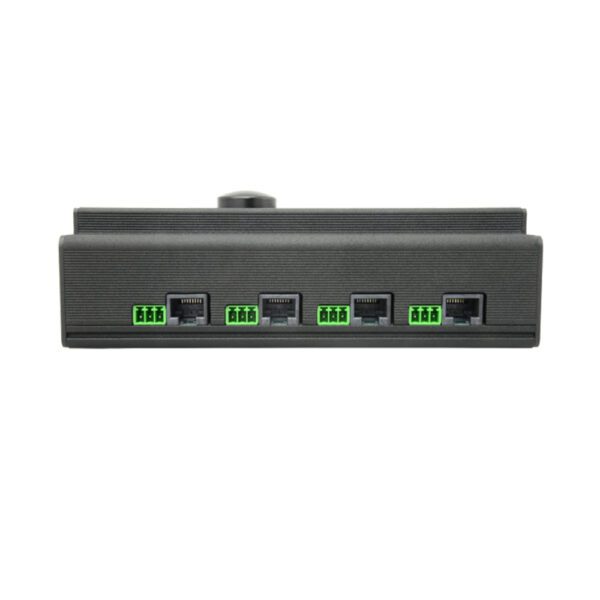

- 4 individually optically isolated DMX ports, each configurable as input or output
- Graphic display and encoder knob for easy configuration and precise status information
- Quick access button for each DMX port for selection of Art-Net or sACN universe
- Web interface for status observation, adjusting settings and firmware updates

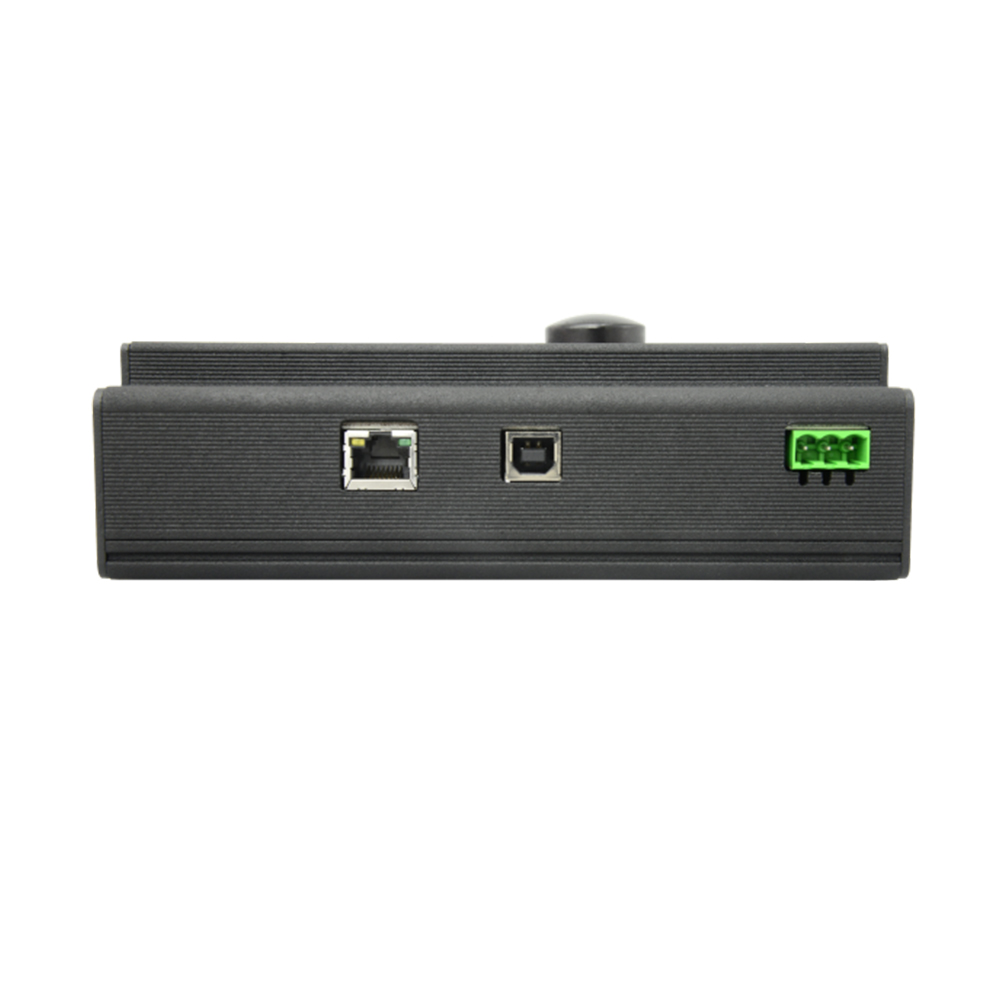

- RJ45 and terminal connectors
