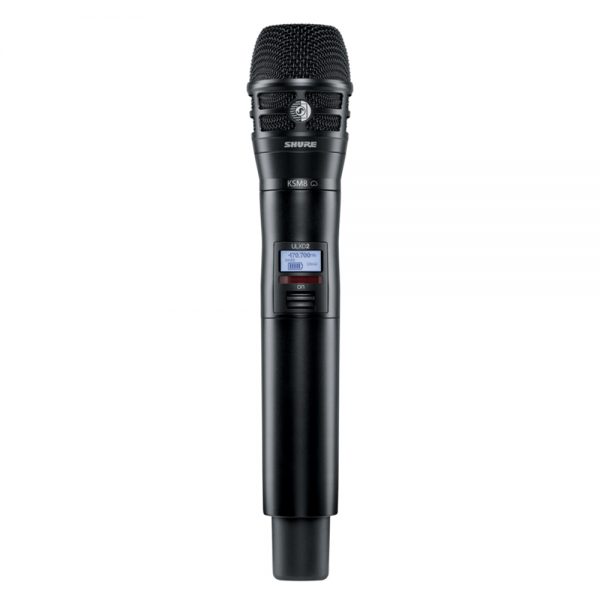

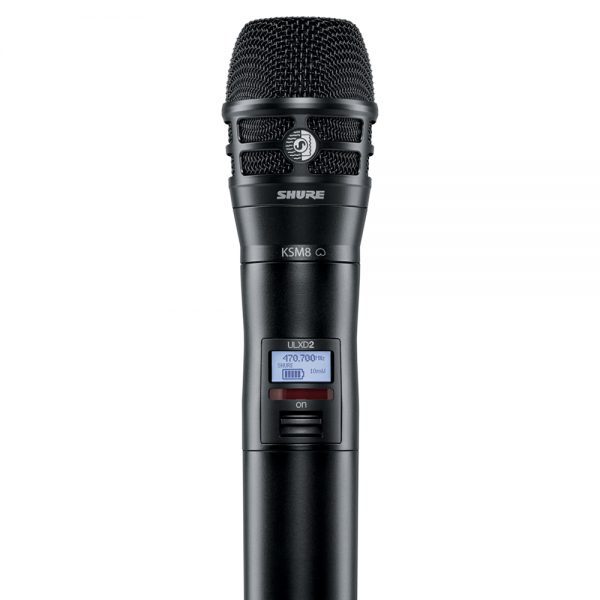

Shure – ULXD2/K8 Digital Handheld Transmitter with KSM8 Capsule

Shure

Includes the KSM8 Microphone and ULXD2 Handheld Wireless Transmitter to deliver outstanding sound for touring professionals the world over.

Clear

Description

The ULXD/K8 is a handheld wireless microphone transmitter compatible with ULX-D Wireless Systems. Now shipping with expanded wide-tuning frequency bands for more open channels, country-wide.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimises the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Optional Shure SB900B Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout

Video

Shure ULX-D Digital Wireless System: Wide Selection of Mics

A great variety of mics can be used in combination with the ULX-D wireless system.

Additional information

Specifications

Gain Offset Range: 0 to 21 dB (in 3 dB steps)
Battery Type: Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Runtime @ 10 mW:
Shure SB900A: up to 9
Alkaline: 8 hours
Dimensions:
256 mm × 51 mm (10.1 in. × 2.0 in.) L × Dia.
V50, V51 Bands: 278 mm × 51 mm (10.9 in. × 2.0 in.) L × Dia.
Weight:
340 g (12.0 oz.), without batteries
V50, V51 Bands: 348 g (12.3 oz.), without batteries
Housing: Machined aluminum

Audio Input

Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD:
145 dB SPL (SM58), typical
Note: Dependent on microphone type
Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20:
120 dBV, A-weighted, typical

RF Output

Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Proprietary Digital
Power:
1 mW, 10 mW, 20 mW
See Frequency Range and Ouput Power table, varies by region

Downloads

ULX-D Data Sheet Download
KSM8 Data Sheet Download
