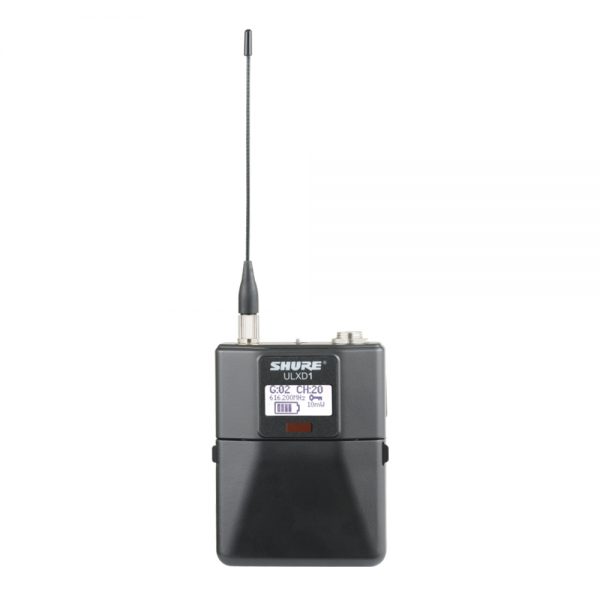

Shure – ULXD1 Digital Wireless Bodypack Transmitter

Shure

The Shure ULXD1 is a handheld wireless transmitter compatible with Digital Wireless Systems.

SKU: SHUULXD1 Categories: , , , ,
Clear

Description

The Shure ULXD1 is a handheld wireless transmitter compatible with Digital Wireless Systems.

With a rugged yet lightweight aluminium body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications. Now shipping with expanded wide-tuning frequency bands for more open channels, country-wide.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

  • AES 256-bit encryption for applications requiring secure data transmission
  • Proprietary Shure Gain Ranging optimises the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Optional Shure SB900B Lithium-Ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect

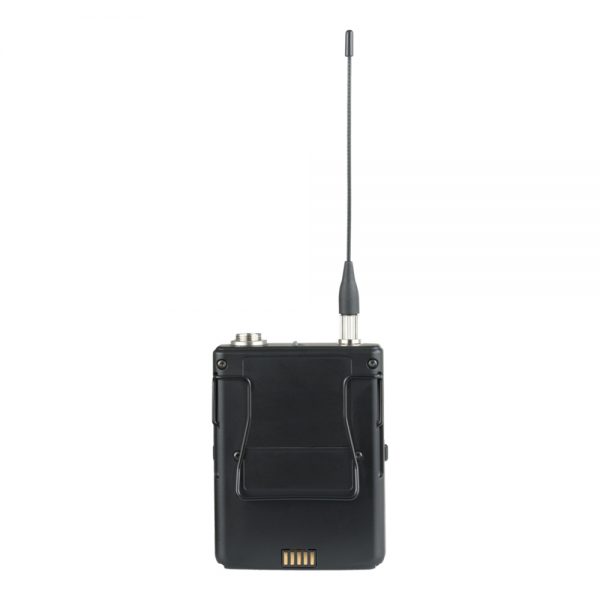

  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Detachable ¼ wave antenna
  • Frequency and power lockout



Video

Shure ULX-D Digital Wireless System: Bodypack Frequency Diversity

Prevent audio drop-outs with Frequency diversity.

Additional information

Mic Offset Range

0 to 21 dB (in 3 dB steps)

Audio Frequency Response

20 – 20 kHz (±1 dB)

Battery Type

Shure SB900B Rechargeable Li­Ion or LR6 AA batteries 1.5 V

Battery Runtime @ 10 mW

Shure SB900C >11 hours
alkaline 9 hours

Dimensions

86 mm x 66 mm x 23 mm (3.4 in. x 2.6 in. x 0.9 in.) H x W x D

Weight

142 g (5.0 oz.), without batteries

Housing

Cast aluminum

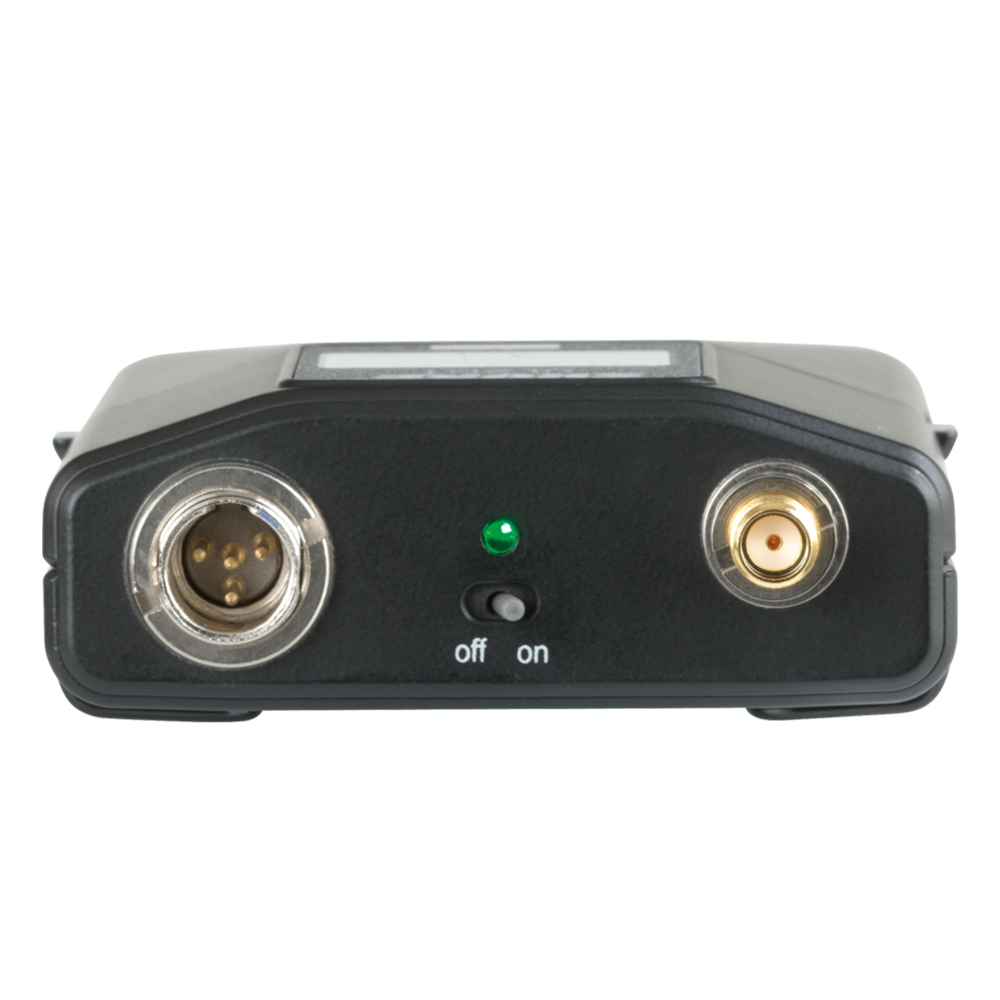

Audio Input

Connector: 4-Pin male mini connector (TA4M), See drawing for details
Configuration: Unbalanced
Impedance: 1 MΩ, See drawing for details
Maximum Input Level 1 kHz at 1% THD:
Pad Off: 8.5 dBV ( 7.5 Vpp)
Pad On: 20.5 dBV ( 30 Vpp)
Preamplifier Equivalent Input Noise (EIN): System Gain Setting ≥ +20­120 dBV, A­weighted, typical

RF Output

Connector: SMA
Antenna Type: 1/4 wave
Impedance: 50 Ω
Occupied Bandwidth: <200 kHz
Modulation Type: Shure proprietary digital
Power: 1 mW, 10 mW, 20 mW
See Frequency Range and Output Power table, varies by region
