Shure – UABIAST In-Line Power Adapter

Shure

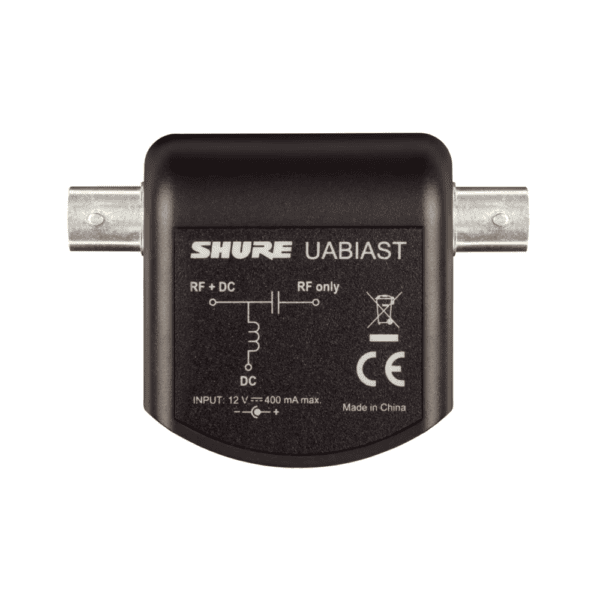

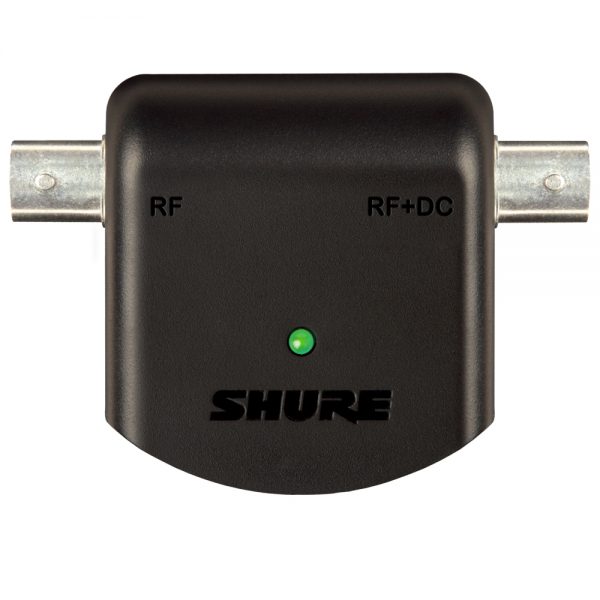

The Shure UABIAST is an in-line adapter that supplies 12V DC bias power over coaxial cable, supports up to three active Shure antenna devices.

SKU: SHUUABIAST Categories: , , , , ,
Clear

Description

Compatible with the UA874 active antenna and the UA830 in-line antenna amplifier, the UABIAST allows those accessories to be used with Shure wireless systems that do not supply power from their BNC antenna inputs and are used without an antenna distribution amplifier UA844 or UA845. One UABIAST supplies power to any combination of up to three connected active Shure antenna accessories for extended cable runs and antenna placement options.

Available Configurations:

  • UABIAST-E: In-Line Power Supply, BNC-BNC
  • UABIAST-UK: In-Line Power Supply, BNC-BNC

Additional information

Weight 0.5 kg
Frequency Range

100–2000 MHz
Maximum Input Power 12.4 V DC, 400 mA

+3 dB+10 dB
Insertion Loss

<1 dB
Connector Type

BNC, Female
Impedance

50 Ω
Bias Voltage

12 V DC
Dimensions

25 x 67 x 49 mm (H x W x D)
Net Weight

49 g (1.73 oz.)
Operating Temperature Range

−7°C (45°F) to 38°C (100°F)
