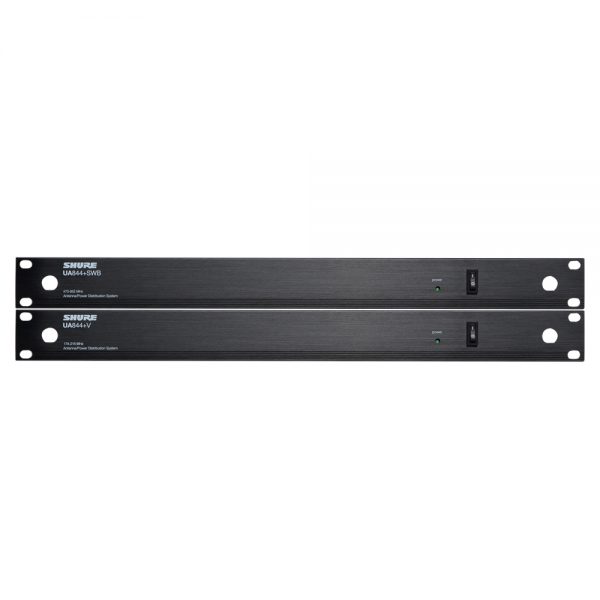

Shure – UA844+SWB Antenna Distribution System

Shure

It seems like there’s never as much time as you’d like for the sound check. That’s why the UA844+SWB Antenna Distribution System lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time. So you can set and forget, and have more flexibility to make sure it all sounds perfect.

SKU: SHUUA844-SWB Categories: , , , ,
Clear

Description

The Shure Model UA844+ is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+ system can support up to five wireless receivers. A maximum of five UA844+ systems may be used in a two-tiered configuration.

Features

  • Front-mounting antenna hardware
  • Rack-mounting hardware
  • External power supply
  • Antenna cables for receiver connections

Whats in the box

  • 2 – 6 ft. (ca. 1,8 m) BNC cables
  • 10 – 22 in. (60 cm) BNC cables
  • 4 – Locking DC power cables (for ULX4D, ULXP4)
  • 4 – Non-locking DC power cables (for QLXD4, SLX4, BLX4R)
  • 2 – Bulkhead adaptors
  • 1 – Rack mount Hardware kit
  • 1 – PS60 Power supply

Additional information

Weight 1.62 kg
Specification

Power Requirements: 14 to 18 V DC

DC Output: 14 to 18 V DC (x4)

Output Current Combined total from all DC outputs:
2.5 A, maximum

Operating Temperature Range: -18°C (0°F) to 63°C (145°F)

Dimensions: 45 x 483 x 172 mm (H x W x D)

Net Weight: 1.62 kg (3.6 lbs)

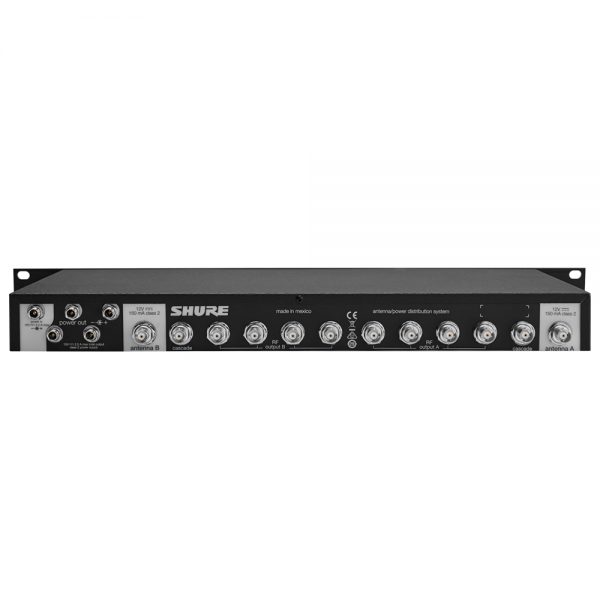

RF Input

Connector Type: BNC

RF Frequency Range model dependent: 174 to 1805 MHz

Bias Voltage: 15 V DC (150 mA, maximum) (x2)

Impedance: 50 Ω
RF Output

RF Frequency Range model dependent: 174 to 1805 MHz

Output Intercept Point: 21 dBm, typical

Connector Type: BNC

Impedance: 50 Ω

Output Connector Isolation: 30 dB, typical

Gain Input to any output port (Unused ports terminated in 50 Ω): -1 to +1 dB

Downloads

User Guide Download
