Description
Passive antenna splitter splits an incoming signal into 2 outgoing signals or combines 2 incoming signals into 1 signal. The kit includes 2 UA221 Splitters/Combiners, 4 coaxial cables, and attaching hardware.
Add items to your Wish List to send to our team for pricing. We respond to enquiries within one working day.

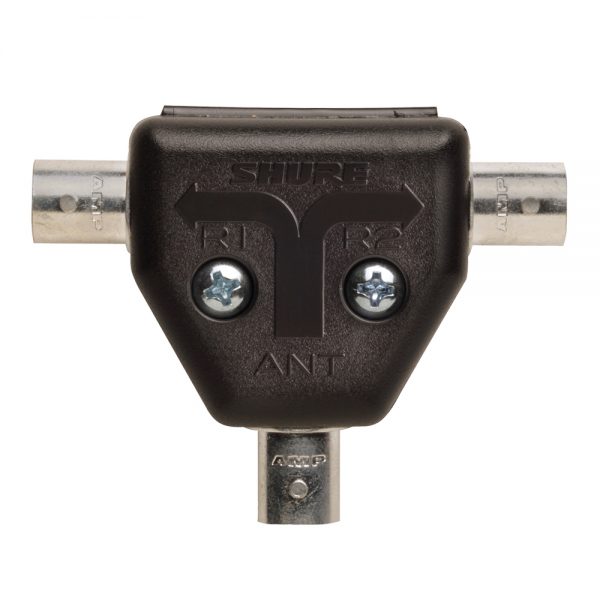

Shure – UA221 Passive Antenna Splitter
ShurePassive antenna splitter splits an incoming signal into 2 outgoing signals or combines 2 incoming signals into 1 signal. The kit includes 2 UA221 Splitters/Combiners, 4 coaxial cables, and attaching hardware.
Additional information
| Frequency Range | UA221/UA221-C-J: 10 MHz-1000 MHz |
|---|---|
| Voltage Standing Wave Ratio (VSWR) | 2:0 |
| Impedance | 50 Ω |
| Isolation | 20 dB |
| Insertion Loss | 2 dB (3 dB splitter loss not included) |
| Dimensions | 64 x 48 x 22 mm (H x W x D) |
| Weight | 45.3 g (1.6oz.) |
Downloads
| User Guide | Download |
|---|
