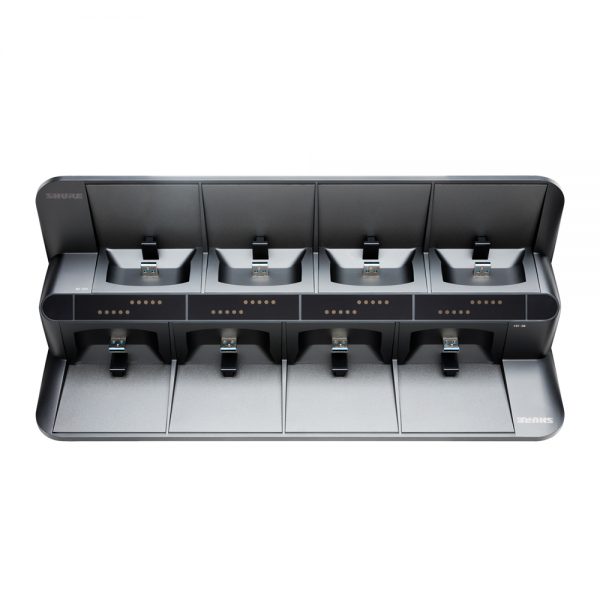

8-bay networked docking station charges up to 8 ULXD6 or ULXD8 transmitters equipped with the SB900A Rechargeable Battery. Features include remote viewing of charging status and compatibility with Wireless Workbench and SystemOn.
8-bay networked docking station charges up to 8 ULXD6 or ULXD8 transmitters equipped with the SB900C Rechargeable Battery. Features include remote viewing of charging status and compatibility with Wireless Workbench and SystemOn.
| ULXD6 and ULXD8 Charge Time | 15 minutes = 1 hour runtime; 1 hour = 50% charged; 3 hours = 100% charged |
|---|---|
| Network Interface | 10/100 Mbps Ethernet |
| Power Requirement | 15 V DC @ 4.0 A maximum, supplied by external power supply (tip positive) |
| Housing | Molded Plastic, Cast Zinc Alloy |
| Dimensions | SBC450: 82.1 mm x 224.4 mm x 192 mm (3.23 in. x 8.83 in. x 7.56 in.), H x W x D SBC850: 82.1 mm x 392 mm x 192 mm (3.23 in. x 15.43 in. x 7.56 in.), H x W x D |
| Weight | SBC450: 1.59 kg (3.51 lbs) |
| Operating Temperature Range | 0°C (32°F) to 45°C (113°F) |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
