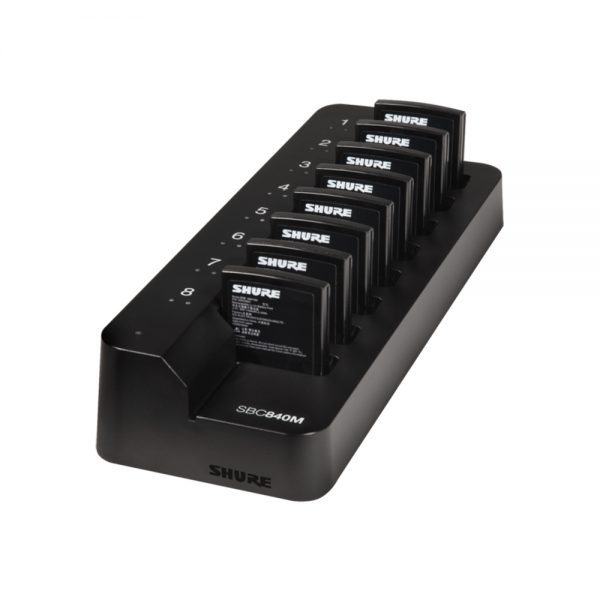

The SBC840M networked charger provides a compact charging and storage solution for up to 8 SB910M batteries. The charger is network-enabled to allow for remote monitoring of charger and battery parameters using Shure Wireless Workbench software.
The SBC840M networked charger provides a compact charging and storage solution for up to 8 SB910M batteries. The charger is network-enabled to allow for remote monitoring of charger and battery parameters using Shure Wireless Workbench software.
| Weight | 0.425 kg |
|---|---|
| Battery Type | Up to 8 SB910M |
| Charge Current | 575 mA maximum |
| Charge Time | 1 hour = 50% charged; 3 hours = 100% charged |
| External Power Supply | PS60 |
| Power Requirement | 15 V, 3.33 A maximum |
| Housing | Molded Plastic |
| Dimensions | 52.06 x 88.22 x 250.54 mm (2.05 x 3.47 x 9.86 in.) H x W x D |
| Weight | 425 g (1 lb) Without Battery |
| Operating Temperature Range | -18°C (0°F) to 50°C (122°F) |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
| Network Interface | 10/100 Mbps Ethernet |
| Network Addressing Capability | DHCP or Manual IP address |
| User Guide | Download |
|---|
