Description
4-bay networked docking station charges up to 4 ULXD6 or ULXD8 transmitters equipped with the SB900C Rechargeable Battery. Features include remote viewing of charging status and compatibility with Wireless Workbench and SystemOn.
Add items to your Wish List to send to our team for pricing. We respond to enquiries within one working day.

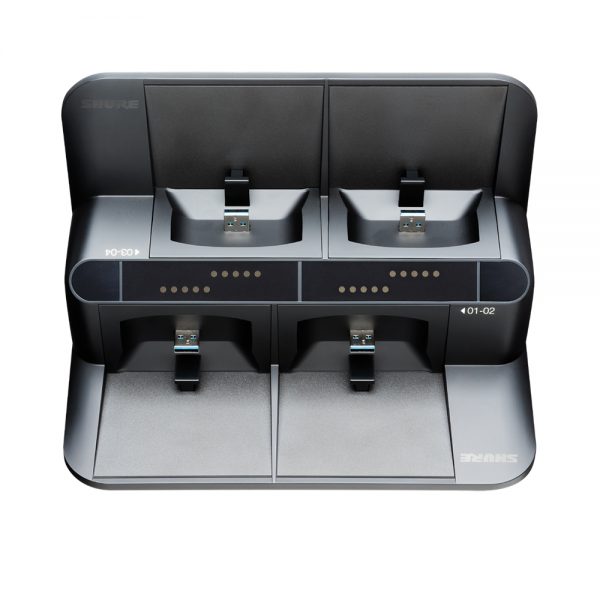

Shure – SBC450 4-bay Networked Docking Station
Shure4-bay networked docking station charges up to 4 ULXD6 or ULXD8 transmitters equipped with the SB900C Rechargeable Battery. Features include remote viewing of charging status and compatibility with Wireless Workbench and SystemOn.
Additional information
| ULXD6 and ULXD8 Charge Time | 15 minutes = 1 hour runtime; 1 hour = 50% charged; 3 hours = 100% charged |
|---|---|
| Network Interface | 10/100 Mbps Ethernet |
| Power Requirement | 15 V DC @ 4.0 A maximum, supplied by external power supply (tip positive) |
| Housing | Molded Plastic, Cast Zinc Alloy |
| Dimensions | SBC450: 82.1 mm x 224.4 mm x 192 mm ( 3.23 in. x 8.83 in. x 7.56 in.), H x W x D SBC850: 82.1 mm x 392 mm x 192 mm ( 3.23 in. x 15.43 in. x 7.56 in.), H x W x D |
| Weight | SBC450: 1.59 kg ( 3.51 lbs) |
| Operating Temperature Range | 0°C (32°F) to 45°C (113°F) |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
Downloads
| User Guide | Download |
|---|
