Shure – SBC240 Two-bay networked docking charger

Shure

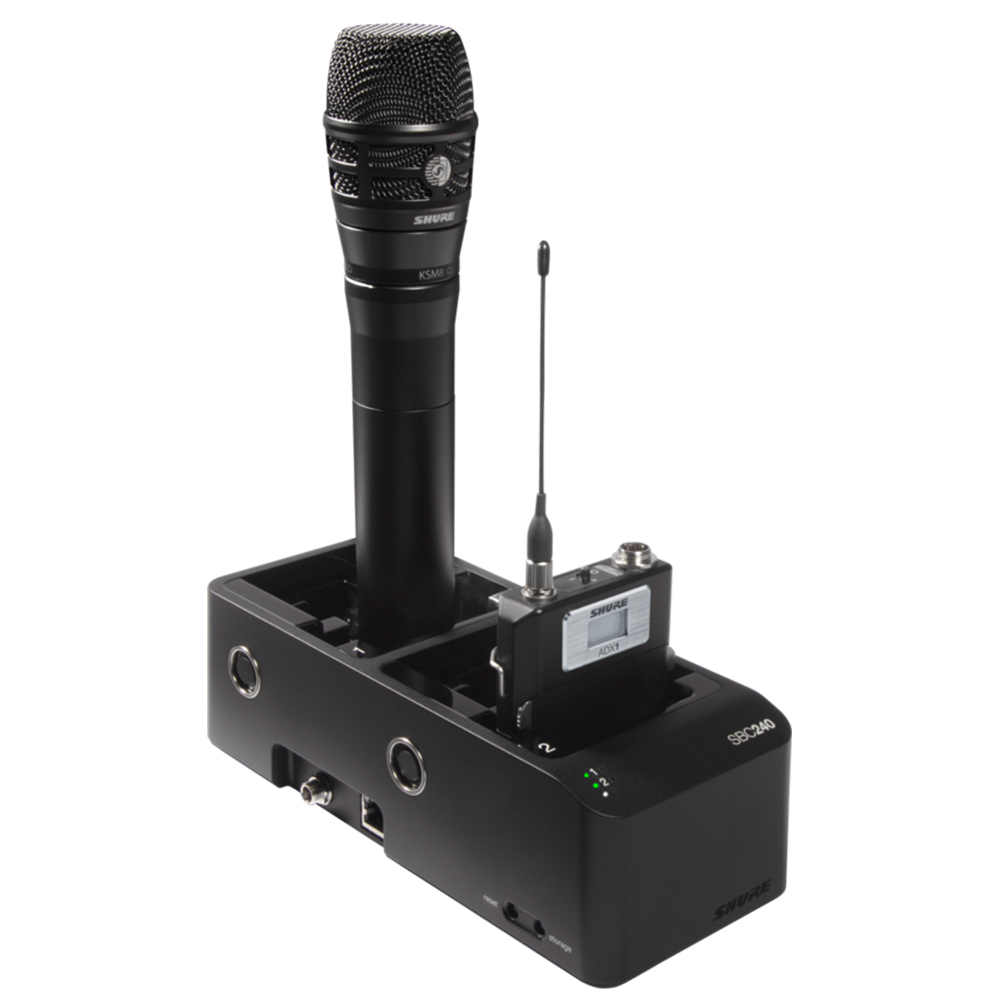

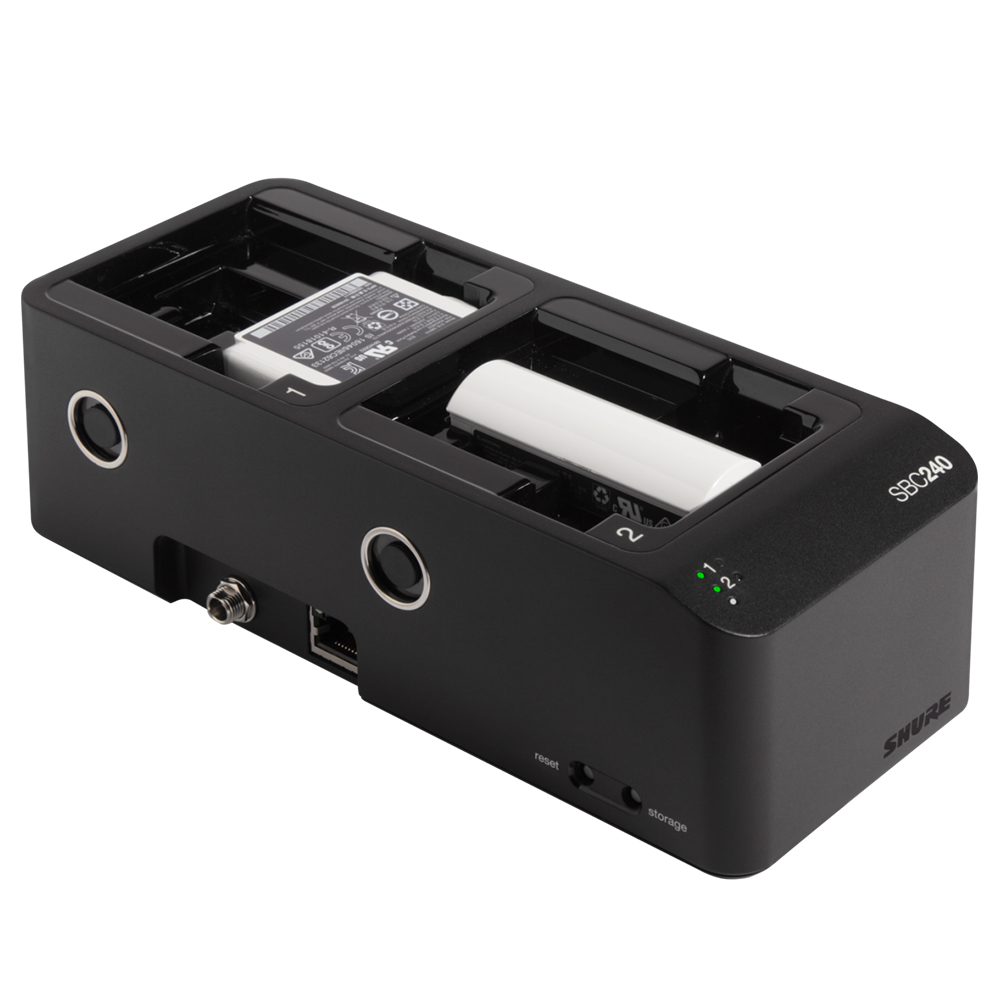

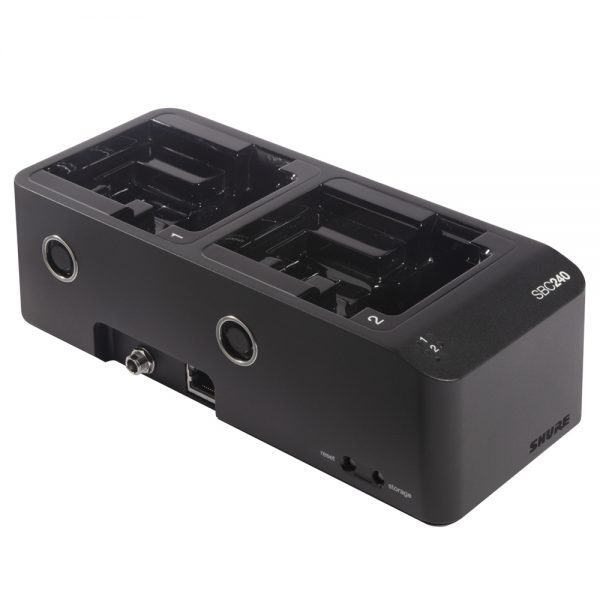

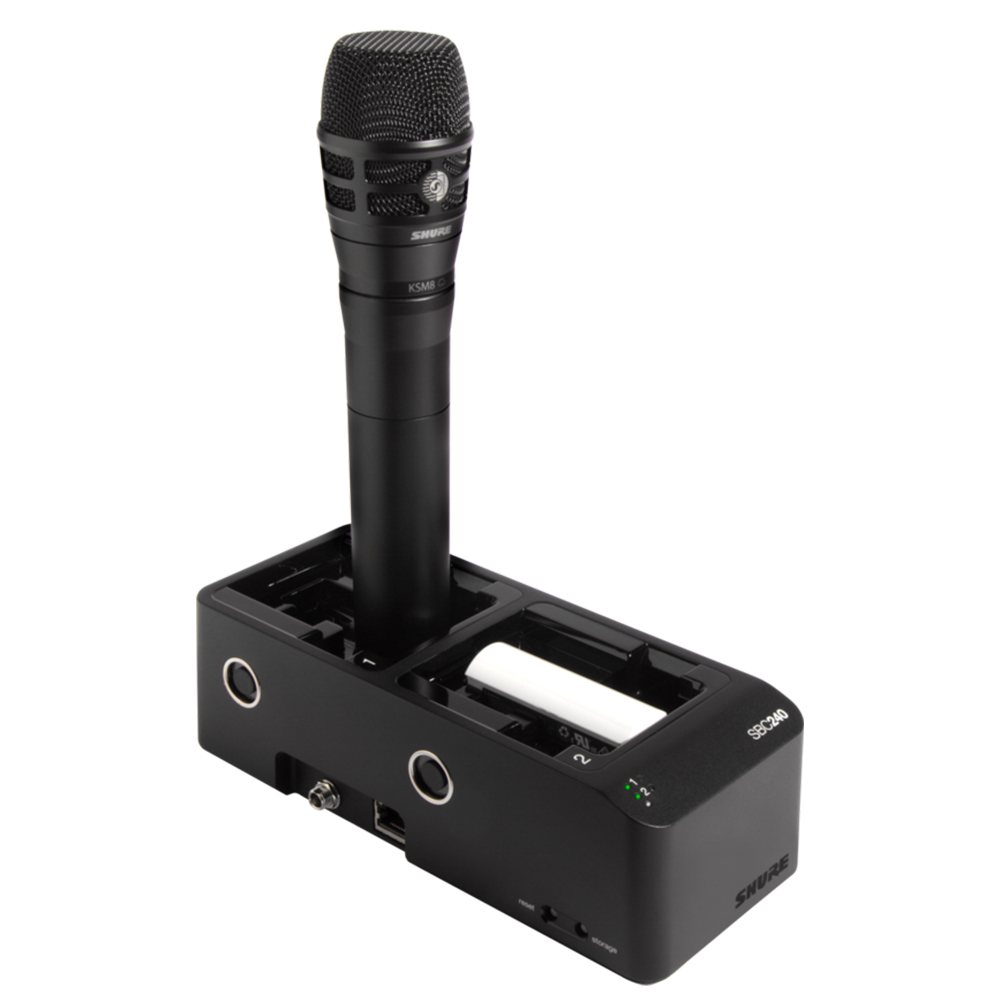

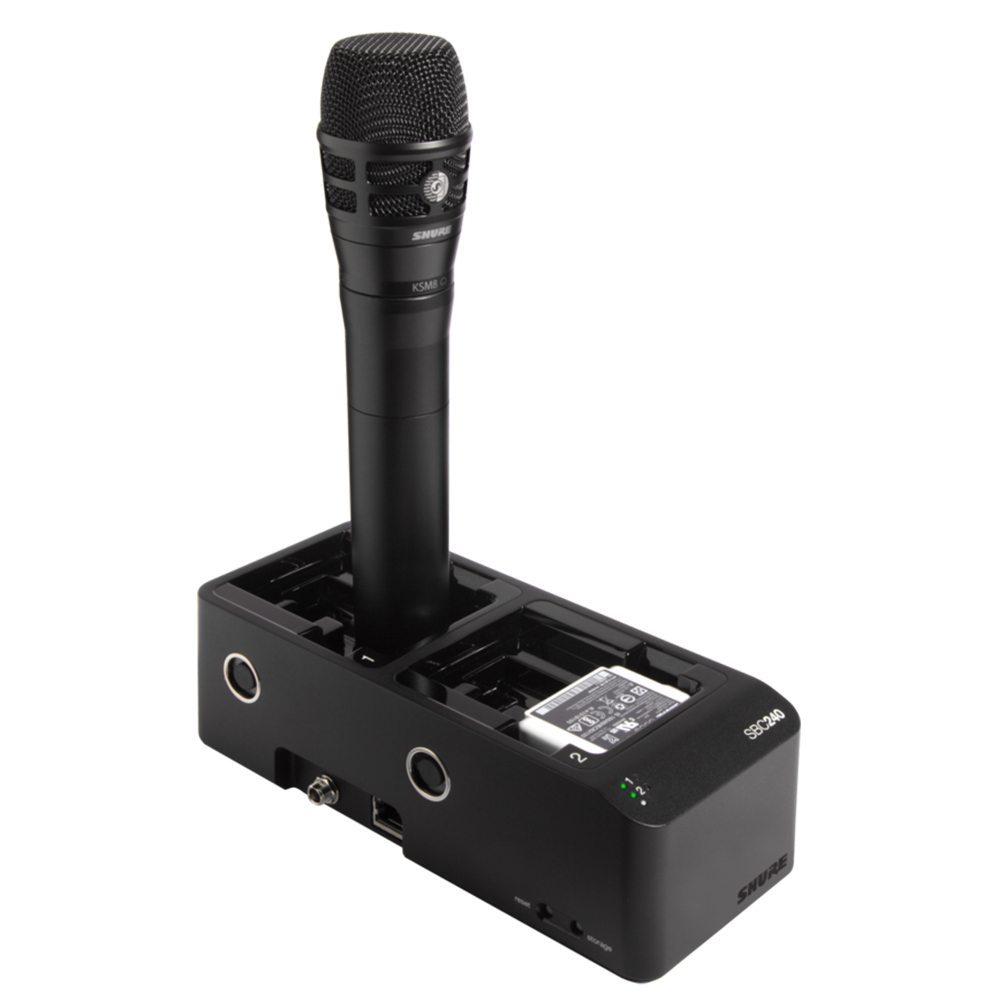

The SBC240 networked docking charger provides a compact charging and storage solution for any combination of 2 SB910/SB920A batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries.

SKU: N/A Categories: , , , ,
Clear

Description

The charger is network-enabled to allow for remote monitoring of charger and battery parameters using Shure Wireless Workbench software. Connect up to 4 SBC240 chargers together to share power and network connectivity.

Features

  • Charging for any combination of up to 2 SB910/SB920A batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries
  • Connect up to 4 chargers together to share power and network connections and save space
  • LEDs indicate charge status and battery errors
  • Storage mode to prepare batteries for long-term storage
  • Network-enabled for remote monitoring

Additional information

Weight 0.45 kg
Compatible Batteries

Up to 2 SB910 or SB920
Compatible Transmitters

Up to 2 ADX1, ADX2, or ADX2FD
Charge Current

1.25 A maximum
Charge Time

1 hour = 50% charged; 3 hours = 100% charged
External Power Supply

PS60
Power Requirement

15 V, 3.33 A maximum
Housing

Molded Plastic
Dimensions

65.25 x 88.74 x 210.82 mm (2.57 x 3.49 x 8.30 in.) H x W x D
Operating Temperature Range

-18°C (0°F) to 50°C (122°F) Note: Battery characteristics may limit this range
Storage Temperature Range

-29°C (-20°F) to 74°C (165°F) Note: Battery characteristics may limit this range.
Network Interface

10/100 Mbps Ethernet
Network Addressing Capability

DHCP or Manual IP address

Downloads

Data Sheet Download
