Shure – PA821B Antenna Combiner for PSM® Wireless Systems

Shure

Eight-to-One Wideband PSM Antenna Combiner for all P3T, P9T and P10T Transmitters (470-865 MHz)

SKU: SHUPA821B-UK Categories: , , ,

Description

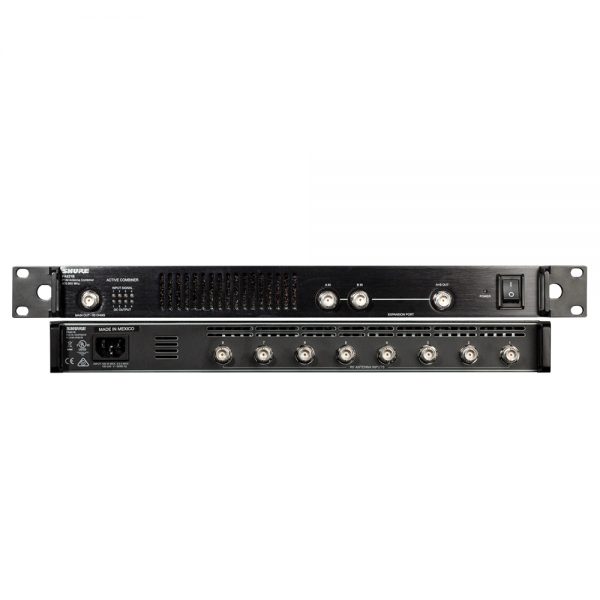

The PA821B active broadband antenna combiner streamlines the simultaneous operation of many PSM systems at a venue. The PA821B combines the RF outputs from up to eight PSM transmitters into one RF output to feed a single transmit antenna.

This provides significantly improved reception quality due to reduced intermodulation distortion and dropouts due to multipath interference.

The PA821B is compatible with the wireless personal monitors Shure PSM 300, PSM 900 and PSM 1000.

Features

  • Combines up to eight PSM transmitters to a single antenna set for improved RF networking & reduced rack clutter
  • Wideband operation (470-865 MHz)
  • Quieter fan for significant reductions in ambient unit noise – especially useful for installation work
  • Temperature-sensitive fan power for significant reductions in ambient unit heat
  • 8 Input LED Signals (green when active; off when inactive)
  • LED indications of signal presence, signal overload

Additional information

Weight 4.6 kg
Specifications

Dimensions: 43 x 401 x 365 mm (1.7 x 15.8 x 14.4 in.), H x W x D
Weight:
PA421B, PA421BX 4.3 kg (9.5 lbs)
PA821B, PA821BX 4.8 kg (10.5 lbs)
Operating Temperature Range: -18°C (0°F) to 63°C (145°F)
Power Requirements: 100 to 240 V AC, 50­60 Hz
Current Drain
PA421B, PA421BX (referenced at 100 V AC) 1.09 A (109 VA)
PA821B, PA821BX (referenced at 100 V AC) 1.59 A (159 VA)
Power Consumption:
PA421B, PA421BX 98 W max.
PA821B, PA821BX 143 W max.
RF Input

Connector Type: BNC
Configuration: Active
Impedance: 50 Ω
RF Gain: 0 dB (±2 dB)
RF Input Normal Operating Range: up to +20 dBm max., protected up to +24 dBm
LED Indicator Minimum Detection Threshold to Activate Channel: 2.5 dBm
LED Indicator Overload Threshold: >24 dBm
Main Output

Connector Type: BNC
Impedance: 50 Ω
Expansion Port

Connector Type: BNC
Configuration: Passive
Impedance: 50 Ω
Insertion Loss: <4 dB
DC Outputs (PA421B, PA421BX)

Output Voltage: 15 V DC
Output Current per output: 660 mA max.
Output Power per output: 9.9 W
LED Indicator Minimum Detection Threshold: 85 mA
LED Overcurrent Indicator: >660 mA
Included Accessories

IEC Power Cord: Four (4) 2 ft. DC power output cables
Four (4) 22 in. coaxial cables, BNC terminated: One (1) 11 in. coaxial cable, BNC terminated
