Directional antenna for increased range and reduced interference as compared to omnidirectional 1/2-wave antennas.

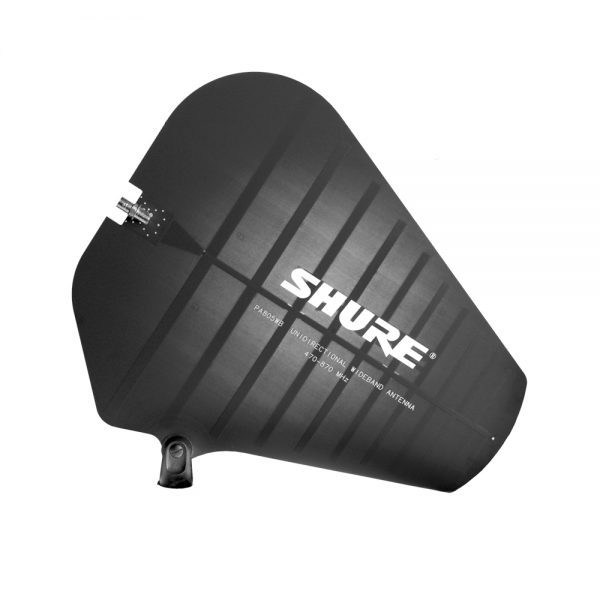

The Shure PA805 is a directional antenna for increased range and reduced interference as compared to omnidirectional 1/2-wave antennas.
The PA805 can be mounted on a microphone stand or mounted to a wall using the integral swivel adapter bracket.
| Weight | 0.227 kg |
|---|---|
| Frequency Range | PA805SWB: 470–952 |
| Dimensions H x W x D | PA805SWB: 334 x 378 x 27 mm (13.15 x 14.88 x 1.10 in.) |
| Net Weight | PA805SWB: 11.3 oz. (319 g) with mounting accessories |
| Antenna Gain | PA805: 6 dBi typical |
| Radiation Pattern | Directional; Cardioid |
| Connector | 50 Ω, Female, BNC-type |
| Stand | 5/8-27 thread mount |
| User Guide | Download |
|---|
