Shure – P9T Wireless Transmitter

Shure

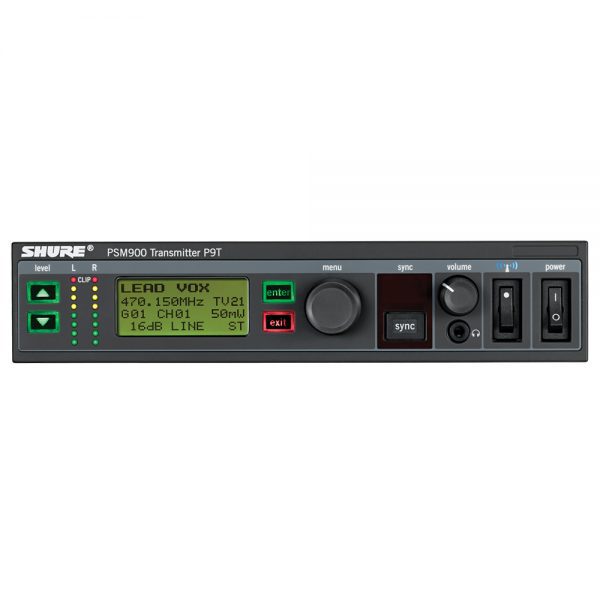

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System.

Clear

Description

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System.

The P9T Wireless Transmitter combines state-of-the-art technology with an ideal set of features for professional monitoring applications of any kind, including IEM and IFB applications.

Feature Quick View

  • Exceptional transmitter linearity vastly reduces frequency intermodulation and allows up to 20 compatible channels per frequency range
  • RF Mute Switch allows system setup without causing RF interference
  • Scan and Sync syncs the transmitter to a P9RA+ or P9RA bodypack quickly and easily over IR link

Video

Shure PSM® 900 | Personal Monitor System

Shure’s single-channel, stereo PSM® 900 In-Ear Monitor System offers a tuning bandwidth of 36 to 40 MHz and delivers up to 20 compatible channels per frequency band. The P9RA+ bodypack receiver is powered by advanced digital signal processing technology, offering superb audio quality with optimized headroom and exceptional stereo separation.

Additional information

Weight 0.45 kg
Specification

RF Output Power Selectable: 10, 50, 100 mW (regionally dependent)
RF Output Impedance: 50 Ω (typical)
Net Weight: 850 g
Dimensions: 197 mm x 166 mm x 42 mm (7.75in X 6.55in X 1.65in)
Power Requirement: 415 mA typical @ 120VAC (with RF on 100 mW power mode, no audio)

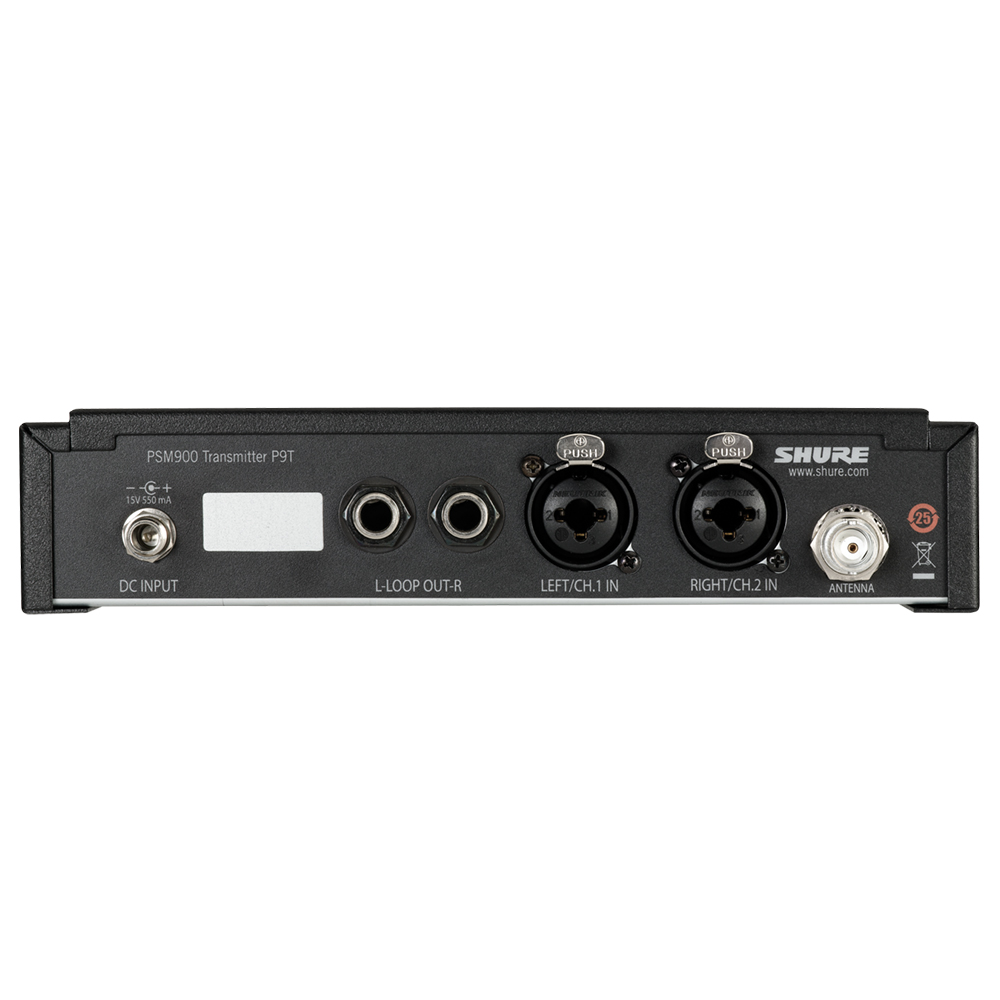

Audio Input

Connector Type: Combination XLR and 6.35 mm (1/4”) TRS
Polarity:
XLR: Non-inverting (pin 2 positive with respect to pin 3)
6.35 mm (1/4”) TRS: Tip positive with respect to ring
Configuration: Electronically balanced
Impedance: 70.2 kΩ (actual)
Nominal Input Level: Switchable: +4 dBu, –10 dBV
Maximum Input Level:
+4 dBu: +23.3 dBu
–10 dBV: +12.5 dBu
Pin Assignments:
XLR: 1=ground, 2=hot, 3=cold
6.35 mm (1/4”) TRS: Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection: up to 60 V DC

Audio Output

Connector Type: 6.35 mm (1/4”) TRS
Configuration: Electronically balanced
Impedance: Connected directly to inputs
