Shure – MX415 38.1 cm Gooseneck Microphone

Shure

Surface mount version is a gooseneck microphone.

SKU: SHUMX415 Categories: , , ,
Clear

Description

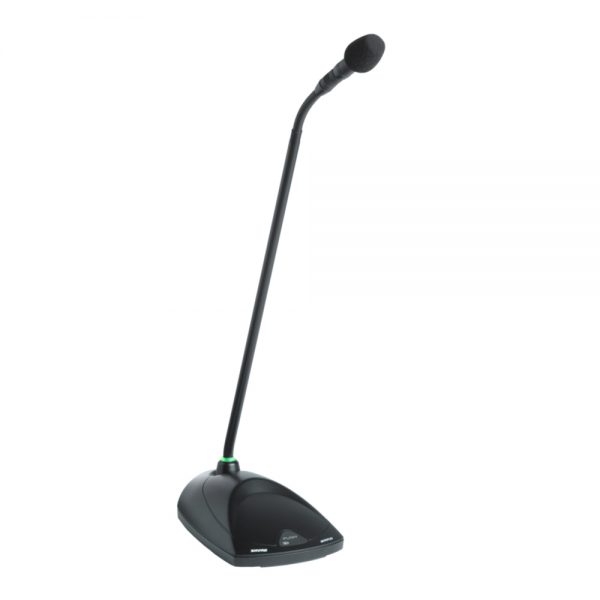

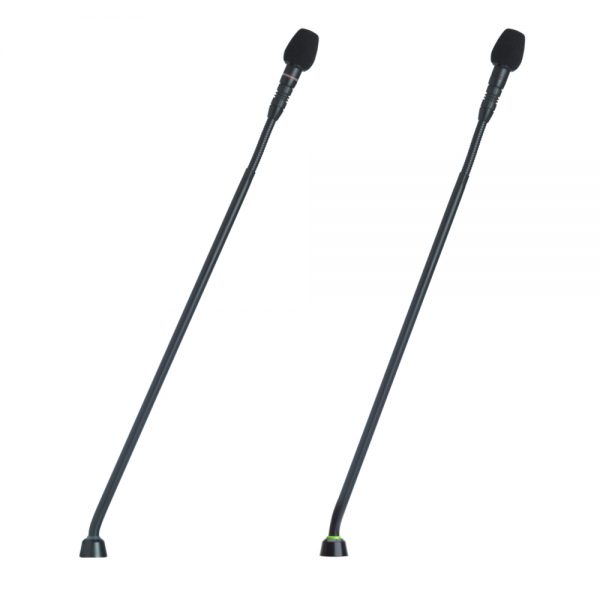

The MX415 surface mount version is a gooseneck microphone with a Bi-Color LED or light ring status display. It has a 38.1 cm gosseneck and is suitable for boardrooms and other sites where aesthetics are important.

  • Gooseneck length: 15 inch / 38.1 cm
  • Low profile, aesthetic design
  • Wide dynamic range and smooth frequency response
  • RF filtering with CommShield™ technology
  • Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
  • Capsule options: None, Cardioid, Supercardioid
  • Preamplifier Options
    • MX400DP Desktop Base for MX405, MX410 and MX415 models
    • MX890 Wireless Desktop Base for MX405, MX410 and MX415 models
    • MX400SMP Surface Mount Preamp for MX405, MX410 and MX415 models
    • MXW8: Wireless Desktop Base for MX405, MX410 and MX415 models
    • ULXD8: Wireless Desktop Base for MX405, MX410 and MX415 models

In the Box

  • MX415 38.1 cm Gooseneck Microphone
  • 1 – RK513WS Snap-fit Foam Windscreen
  • 1 – MX400SMP Surface Mount Preamp
  • 1 – 65A2190 Fastening Wing Nut
  • 2 – 66A405 Rubber Isolation Rings
  • 1 – 95A2529 5-Pin XLR Female Connector

Additional information

Type

Electret Condenser
Frequency Response

50–17000 Hz
Polar Pattern

MX405/C, MX410/C, MX415/C: Cardioid MX405/S, MX410/S, MX415/S: Supercardioid MX405/MS: Mini-shotgun
Output Impedance

170 Ω
Output Configuration

Active Balanced
Sensitivity @

1 kHz, open circuit voltage Cardioid −35 dBV/Pa (18 mV) Supercardioid −34 dBV/Pa (21 mV) Mini-shotgun -33 dBV/Pa (22 mV) 1 Pa=94 dB SPL
Maximum SPL

1 kHz at 1% THD, 1 kΩ load Cardioid 121 dB Supercardioid 120 dB Mini-shotgun 121 dB
Self Noise

A-weighted Cardioid 28 dB SPL Supercardioid 27 dB SPL Mini-shotgun 26 dB SPL
Signal-to-Noise Ratio

Ref. 94 dB SPL at 1 kHz Cardioid 66 dB Supercardioid 68 dB Mini-shotgun 68 dB
Dynamic Range

1 kΩ load, @ 1 kHz 93 dB
Common Mode Rejection

10 to 100,000 kHz 45 dB, minimum
Clipping Level

at 1% THD −8 dBV (0.4 V)
Polarity

3-pin XLR Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector 5-pin XLR Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
Weight

MX405 0.054 kg (0.119 lbs) MX410 0.068 kg (0.150 lbs) MX415 0.07 kg (0.154 lbs) MX400DP 0.516 kg (1.138 lbs) MX400SMP 0.125 kg (0.275 lbs)
Logic Connections

LED IN Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC OUT Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
Mute Switch Attenuation

-50 dB minimum
Cable

MX400DP 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
Environmental Conditions

Operating Temperature –18–57°C (0–135°F) Storage Temperature –29–74°C (–20–165°F) Relative Humidity 0–95%
Power Requirements

Phantom Power 48–52 V DC, 8.0 mA

Downloads

User Guide Download
