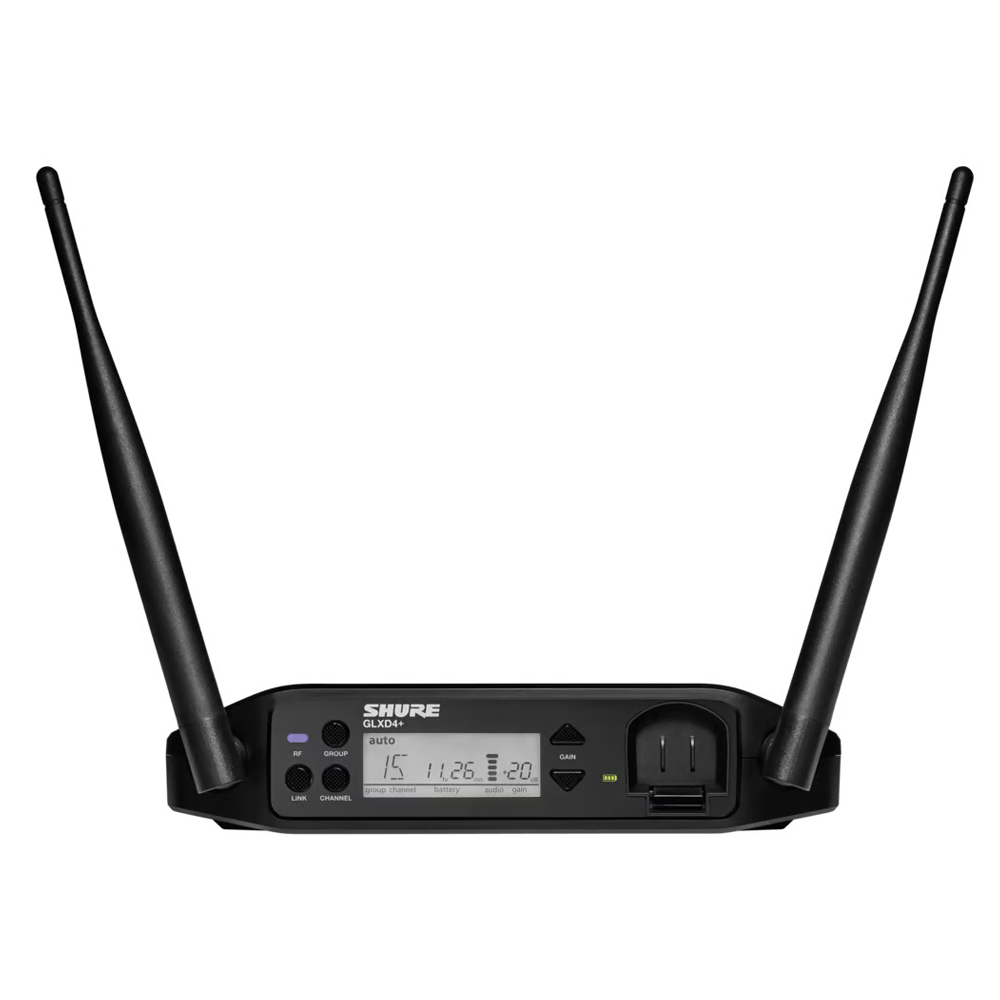

Shure_GLXD4-Plus_Face-Of-Table-Top-ReciverShure_GLXD4-Plus_Face-Of-Table-Top-Reciver

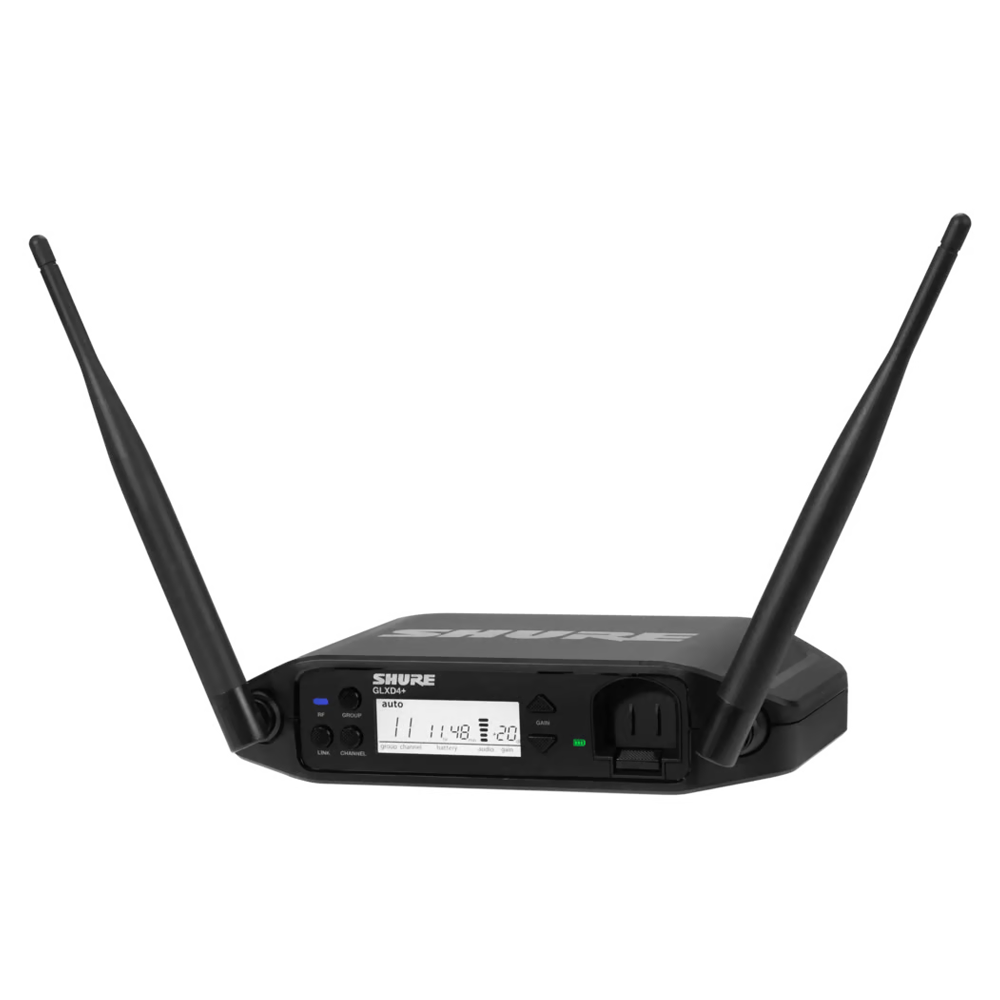

Shure – GLXD4+ Digital Wireless Dual Band Tabletop Receiver

Shure

The GLXD4+ Dual Band Tabletop Receiver delivers exceptional digital audio clarity.Go wireless without complication.

SKU: SHUGLXD4+ Categories: , , , ,

Description

Ready-To-Go. Every time. Automatically.

The new GLXD4+ Dual Band Tabletop Receiver delivers exceptional digital audio clarity. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance. Go wireless without complication.

Features

  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Automatically moves away from interference without audio interruption
  • Operates in 2.4 and 5.8 GHz spectrum*
  • Rechargeable battery delivers up to 12 hours of runtime
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range

Additional information

Power Requirements

14.5 V – 17 V, 600 mA (efficiency level VI power supply)
Antenna Type

Dual-band ½ Wave Sleeve Dipole, non-removable
Dimensions

Antenna folded: 7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3mm)
Antenna opened: 7.2 x 4
Weight

10.9 oz (310 g)
Housing

PC/ABS
Spurious Rejection

> 35 dB, typical
Gain Adjustment Range

-20 to 40 dB, 1 dB increments
Phantom Power Protection

Yes
Audio Output

Configuration:
XLR Output: Impedance balanced
6.35 mm (1/4") output: Impedance balanced

Impedance:
XLR Output: 100 Ω
6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)

Maximum Audio Output Level:
XLR connector: +1 dBV
6.35 mm (1/4") connector: +8.5 dBV

Pin Assignments
XLR Output: 1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
Reciver Antenna Input

Impedance: 50 Ω
Maximum Input Level: -20 dBm

Downloads

User Guide Download
