Shure_GLXD16-Plus_SetShure_GLXD16-Plus_Set

Shure – GLXD16+ Digital Wireless Guitar Pedal System

Shure

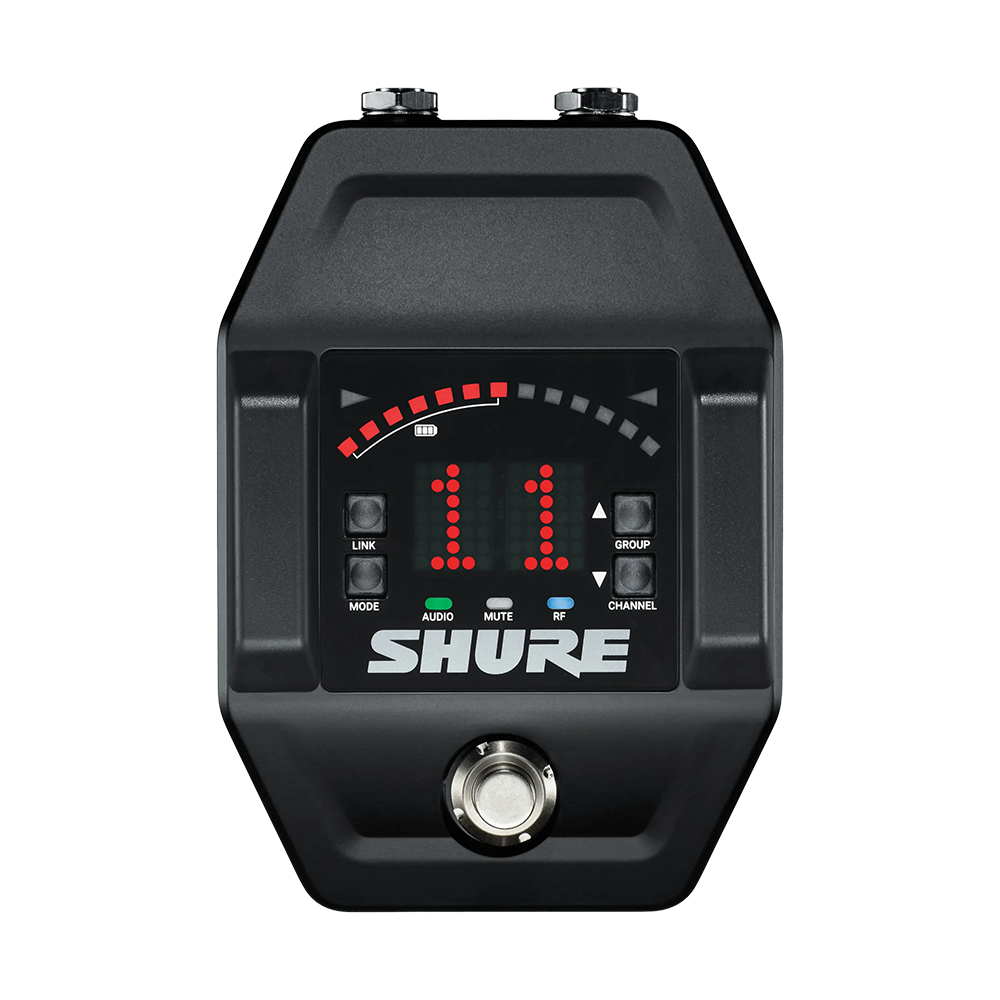

The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack, and the GLXD6+ Guitar Pedal. Go wireless without compromising your tone or complicating your rig.

SKU: SHUGLXD16+ Categories: , , , ,

Description

The GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack with SB904 rechargeable battery, and the GLXD6+ Guitar Pedal w/ tuner. Go wireless without compromising your tone or complicating your rig.

Features

  • Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz.
  • Rugged metal chassis design that can be completely integrated into your pedalboard.
  • GLXD6+ Guitar Pedal Receiver is compatible with 9V power supply in Pedalboards (minimum current: 400mA).
  • Transmitter battery life monitoring via highly visible LED segment display.
  • Included Tuner with adjustable mode (Strobe / Needle) and selectable reference pitch (432 – 447 Hz).
  • Included SB904 rechargeable battery delivers up to 12 hours of runtime.
  • New ¼” true bypass input allows you to switch between two instruments (one wired and one wireless guitar/bass) during live performance by toggling the push button on the pedal receiver. Integrated guitar input also enables easy transition from practice to live performance.
  • Output ¼” connector for easy daisy-chain connection with other pedals.

In the box

  • 1 PS24 Power Supply
  • 1 SB904 Lithium-Ion Rechargeable Battery
  • 1 WA305 Premium Instrument Cable

Additional information

Tuning Bandwidth

Z2: 2400 – 2483.5 MHz
Z3: 2400 – 2483.5 MHz and 5725 – 5850 MHz
Z4: 2400 – 2483.5 MHz and 5725 – 5875 MHz
Z5: 2400 – 2483.5 MHz and 5725 – 5825 MHz

Dependent on frequency band
Transmit Mode

Shure proprietary digita
RF Output Power

10 mW E.I.R.P. maximum
Operating Temperature Range

0°C (32°F) to 50°C (122°F)
Polarity

Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the
high impedance ¼-inch output
Audio Frequency Response

20 Hz – 20 kHz
Dynamic Range

120 dB, A-weighted
RF Sensitivity

-88 dBm, typical
Total Harmonic Distortion

0.02%, typical
Battery Life

Up to 11.5 hours
Guitar Tuner

Tuning Accuracy: ±1 cent
Tuning Range: F#0 to C8
Channel Count

Up to 4 typical, 8 optimal
2.4 GHz only: Up to 4 typical, 5 optimal

Downloads

User Guide Download
