Shure_GLXD1-Plus_Beltpack-FaceShure_GLXD1-Plus_Beltpack-Face

Shure – GLXD1+ Digital Wireless Dual Band Bodypack Transmitter

Shure

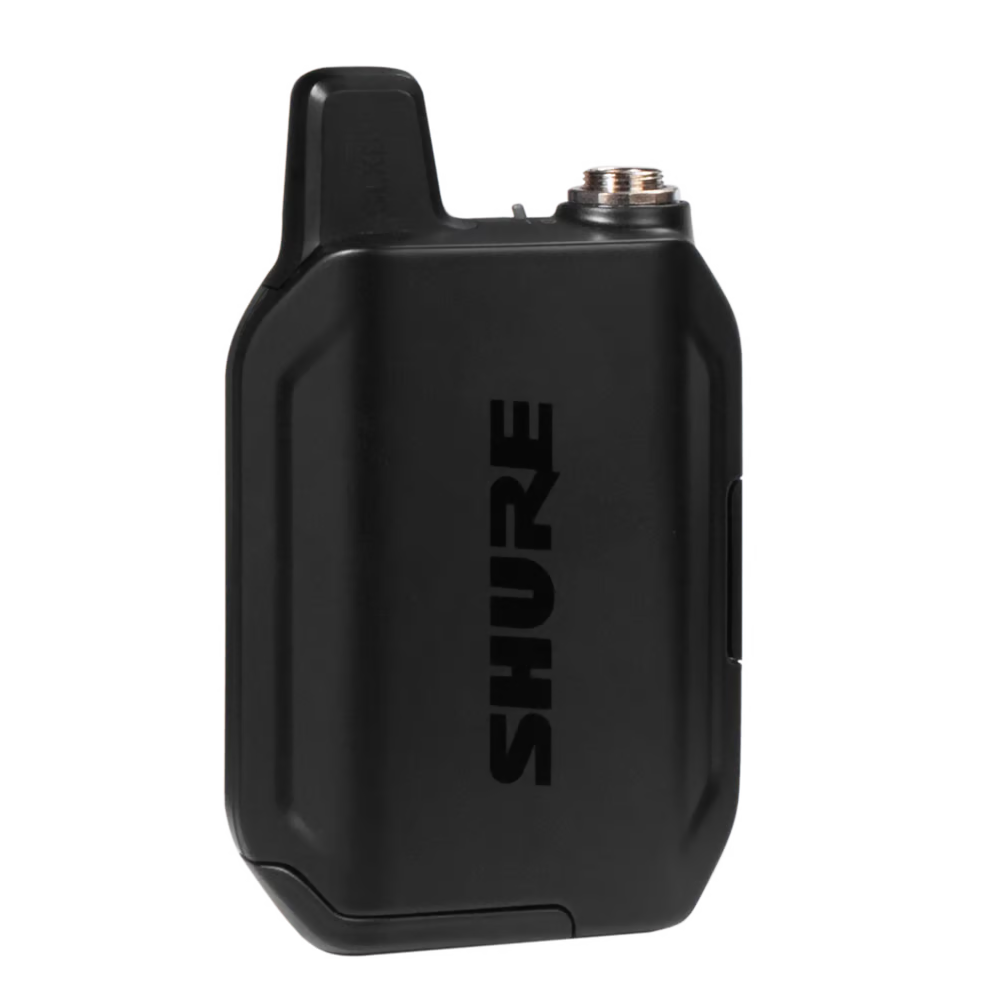

The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions.

SKU: SHUGLXD1+ Categories: , , , ,

Description

Ready-To-Go. Every time. Automatically.

The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Compatible with instrument cable, and a variety of headset and lavalier microphone options.

In The Box

  • 1 SB904 Lithium-Ion Rechargeable Battery

Additional information

Power Requirements

Shure Rechargeable Li-Ion Battery: SB904
Antenna Type

Dual-band Internal Monopole
Dimensions

4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)
Weight

5.4 oz (153.1 g), without battery
Housing

Aluminum alloy, ABS plastic
Input Impedance

900 kΩ

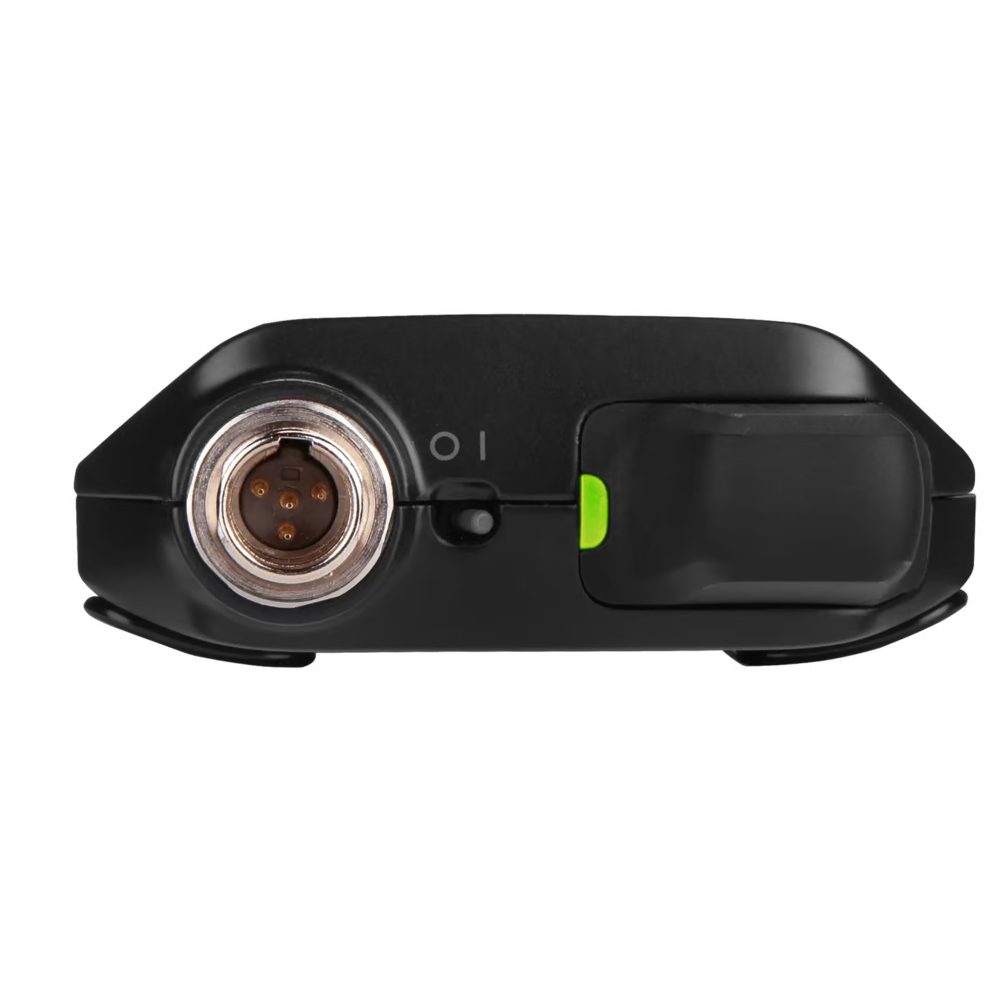

TX Input

Connector: 4-pin male mini connector (TA4M)
Maximum Input Level: +8.4 dBV (7.5 Vp-p)
Configuration: Unbalanced

Pin Assignments:
1: Ground (cable shield)
2: + 5 V bias
3: Audio
4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)

Downloads

User Guide Download
