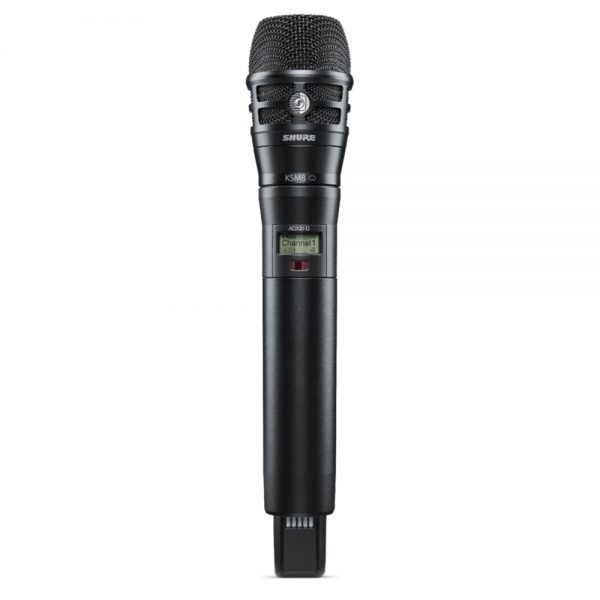

Shure – ADX2FD/K8 Handheld Wireless Microphone Transmitter

Shure

ADX2FD/K8, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

SKU: SHUADX2FDK8 Categories: , , , ,
Clear

Description

ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance. This transmitter additionally features Frequency Diversity for seamless audio in even the most challenging environments. Light-weight aluminum construction, SB920A rechargeable power options (with dockable charging).

Features

  • Ability to transmit RF signal on two discrete carriers
  • Optional 50mW High Power mode for driving increased power on a single frequency
  • Durable, moisture-resistant, lightweight metal case in black or nickel finish
  • Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

The ADX2FD/K8 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.

  • Works with Axient® Digital Wireless Systems
  • Ability to transmit RF signal on two discrete carriers for improved signal stability
  • Features the KSM8 cartridge
  • Includes two SB920A rechargeable batteries

Video

Shure Axient Digital Wireless System

Wireless microphones live in a complex ecosystem of broadcast stations,
telecom operators, and connected devices, which will only get more crowded in the future.

Additional information

Weight 0.332 kg
Specifications

Gain Offset Range: –12 to 21 dB (in 3 dB steps)
Battery Type: SB920A Rechargeable Lithium-Ion
Battery Run Time @10 mW:
Single-Carrier Mode: up to 9 hours
Frequency Diversity: up to 6.5 hours
Dimensions (L × Dia.):
10.0 × 2.0 in
(254 × 51 mm)
Weight: 11.9 oz (338 g) without battery
Housing: Cast Aluminum
Audio Input

Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD:
145 dB SPL, typical (SM58)
Note: dependent on microphone type
RF Output

Antenna Type: Integrated Dual-Band Helical
Occupied Bandwidth: <200 kHz
Channel-to-Channel Spacing:
Standard Mode: 350 kHz
High-Density Mode: 125 kHz
Modulation Type: Shure Axient Digital Propietary
Power:
Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW
Frequency Diversity Mode: 2 × 20 mW
Varies by region. See Frequency Range and Output Power Table.
Specific Absorption Rate (SAR): <0.21 W/kg
ShowLink®

Network Type: IEEE 802.15.4
Antenna Type: ZigBee Dual Conformal
Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
RF Output Power Varies By Region: 10 dBm (ERP)
