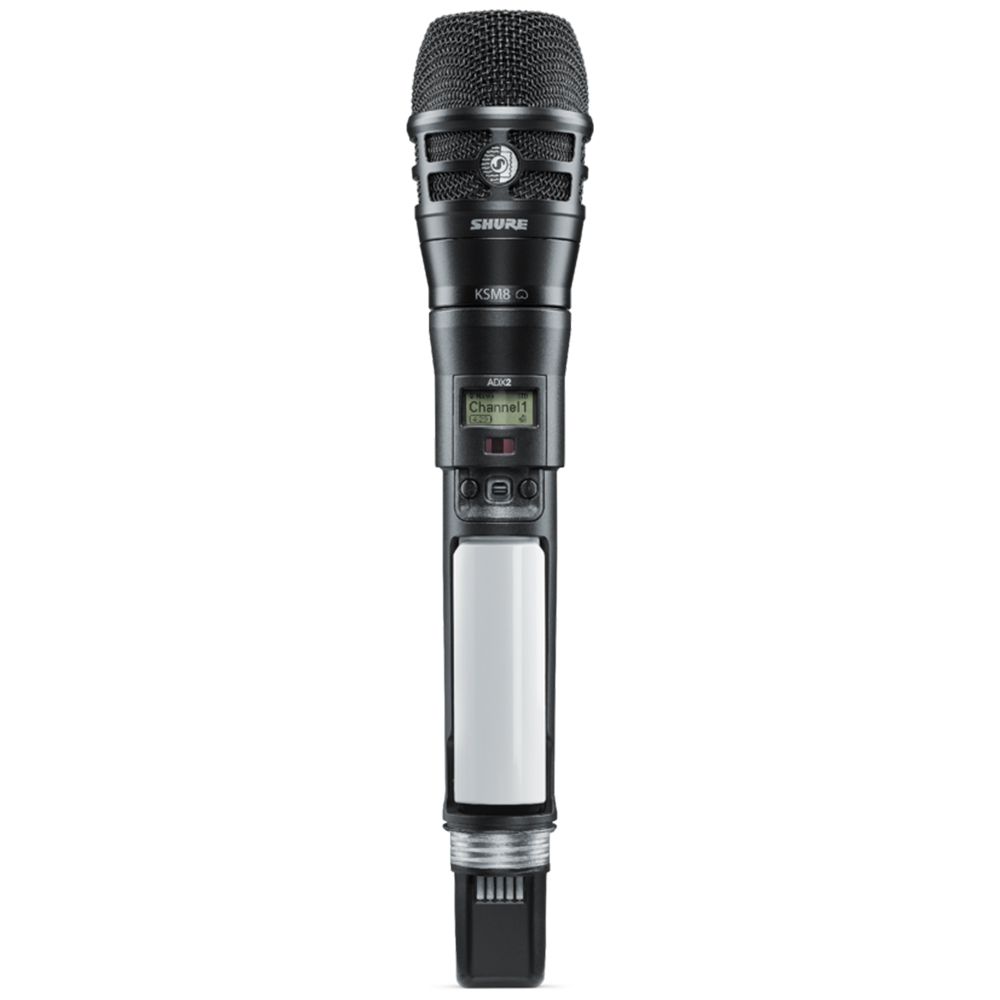

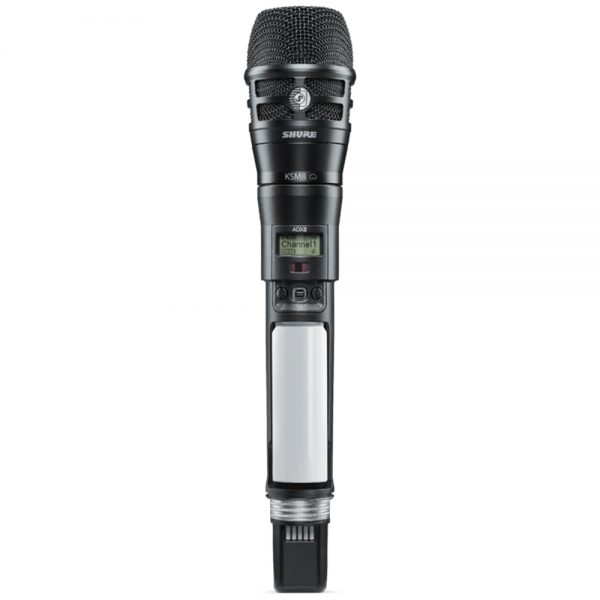

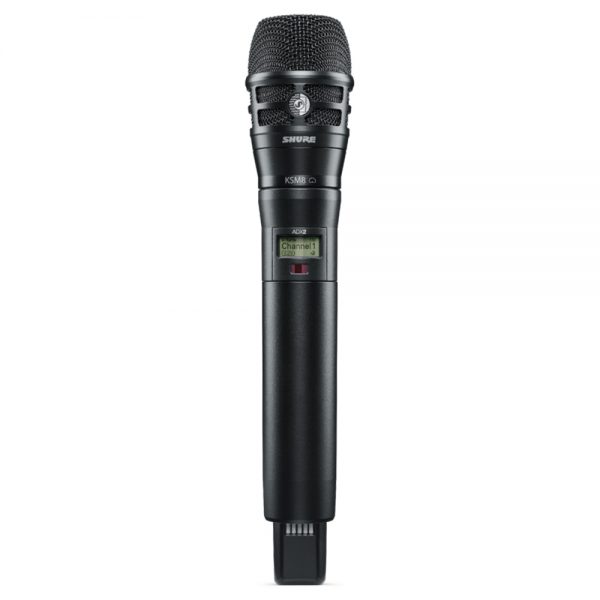

Shure – ADX2/K8 Handheld Wireless Microphone

Shure

ADX2/K8, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

SKU: SHUADX2K8 Categories: , , , ,
Clear

Description

ADX2/K8, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

  • Durable, moisture-resistant, lightweight metal case in black or nickel finish
  • Up to 9 hours of runtime with SB920 rechargeable battery
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

The ADX2/K8 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.

  • Works with Axient® Digital Wireless Systems
  • Features the KSM8 cartridge
  • Includes two SB920 rechargeable batteries

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Video

Shure Axient Digital Wireless System

Wireless microphones live in a complex ecosystem of broadcast stations,
telecom operators, and connected devices, which will only get more crowded in the future.

Additional information

Weight 0.334 kg
Specifications

Gain Offset Range: –12 to 21 dB (in 3 dB steps)
Battery Type: SB920 Rechargeable Lithium-Ion
Battery Run Time @10 mW: up to 9 hours
Dimensions (L × Dia.):
10.0 × 2.0 in
(254 × 51 mm)
Weight:
11.9 oz (338 g)
wihtout battery
Housing: Cast Aluminum
Audio Input

Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD:
145 dB SPL, typical (SM58)
Note: dependent on microphone type
RF Output

Antenna Type: UHF 1/4 Wave
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Axient Digital Propietary
Power:
2 mW, 10 mW, 20 mW, 40 mW
Varies by region. See Frequency Range and Output Power Table.
Specific Absorption Rate (SAR):
<0.19 W/kg
ShowLink®

Network Type: IEEE 802.15.4
Antenna Type: ZigBee Dual Conformal
Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
RF Output Power Varies By Region:
10 dBm (ERP)
