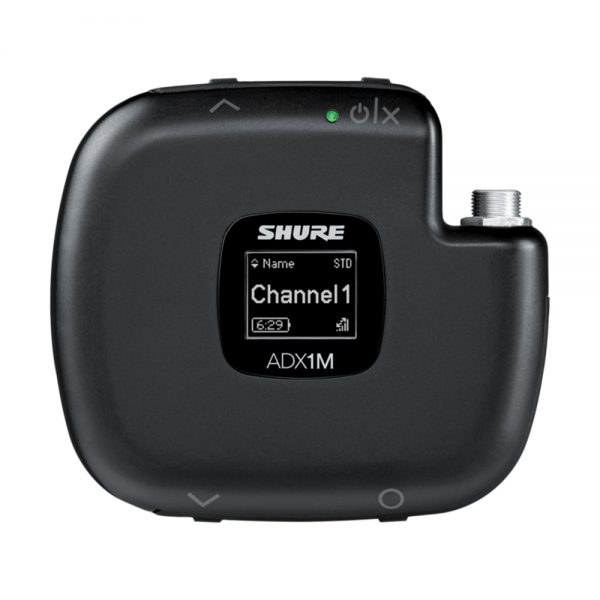

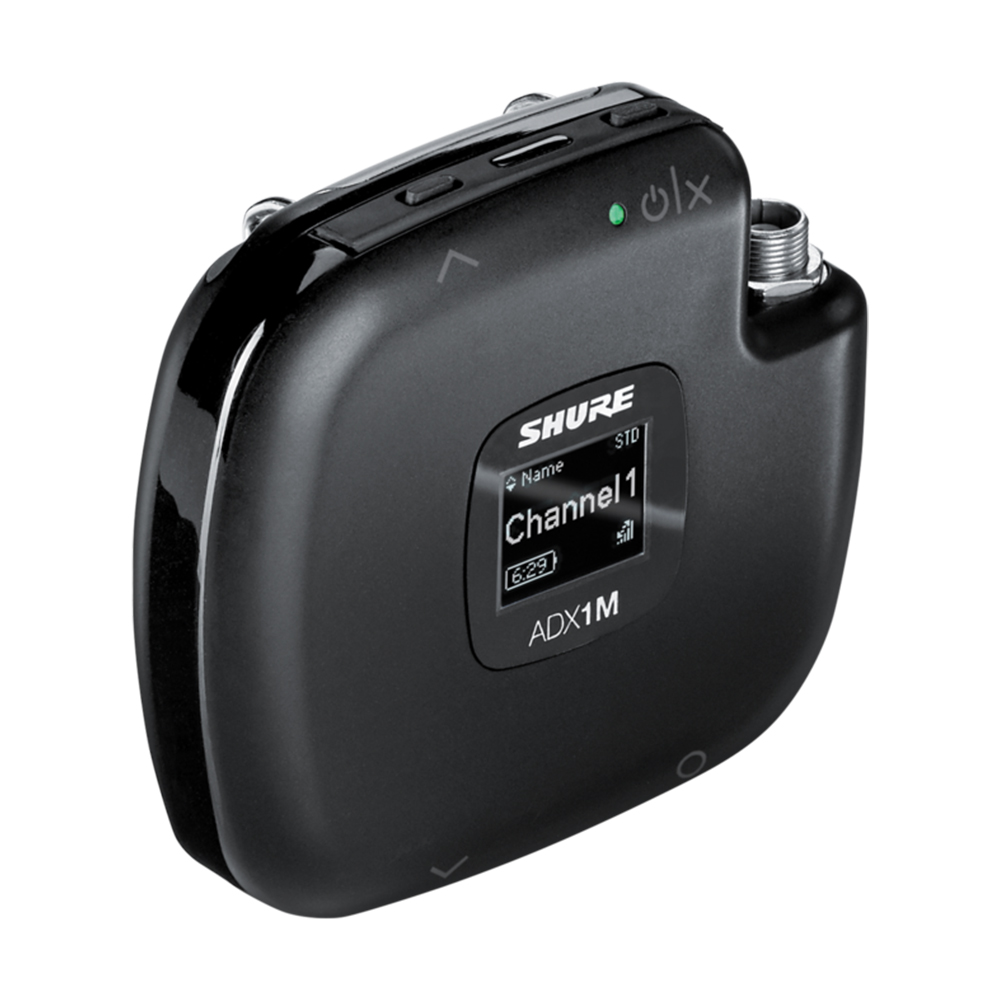

Shure – ADX1M Micro Bodypack Transmitter

Shure

ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance.

SKU: SHUADX1M Categories: , , , ,
Clear

Description

The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability. Membrane switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments. Includes two SB910M rechargeable batteries.

The ADX1M is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

ADX transmitters set the stage for exceptional performance, featuring wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Features

  • Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
  • High-contrast OLED display
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
  • Ultem®PEI construction for heat resistance and durability

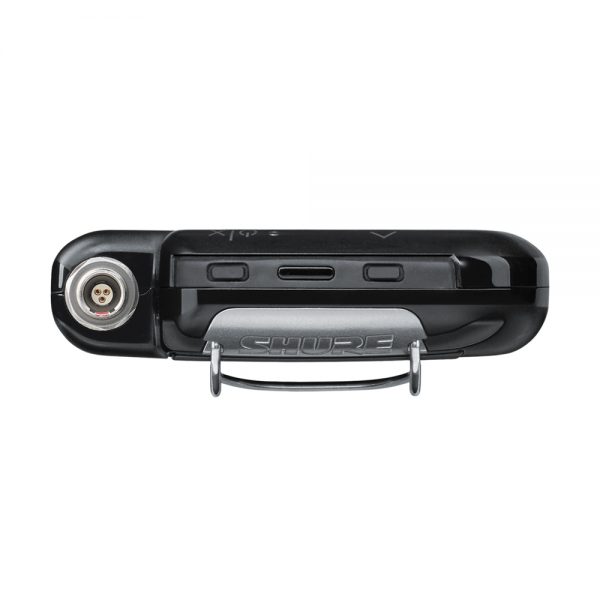

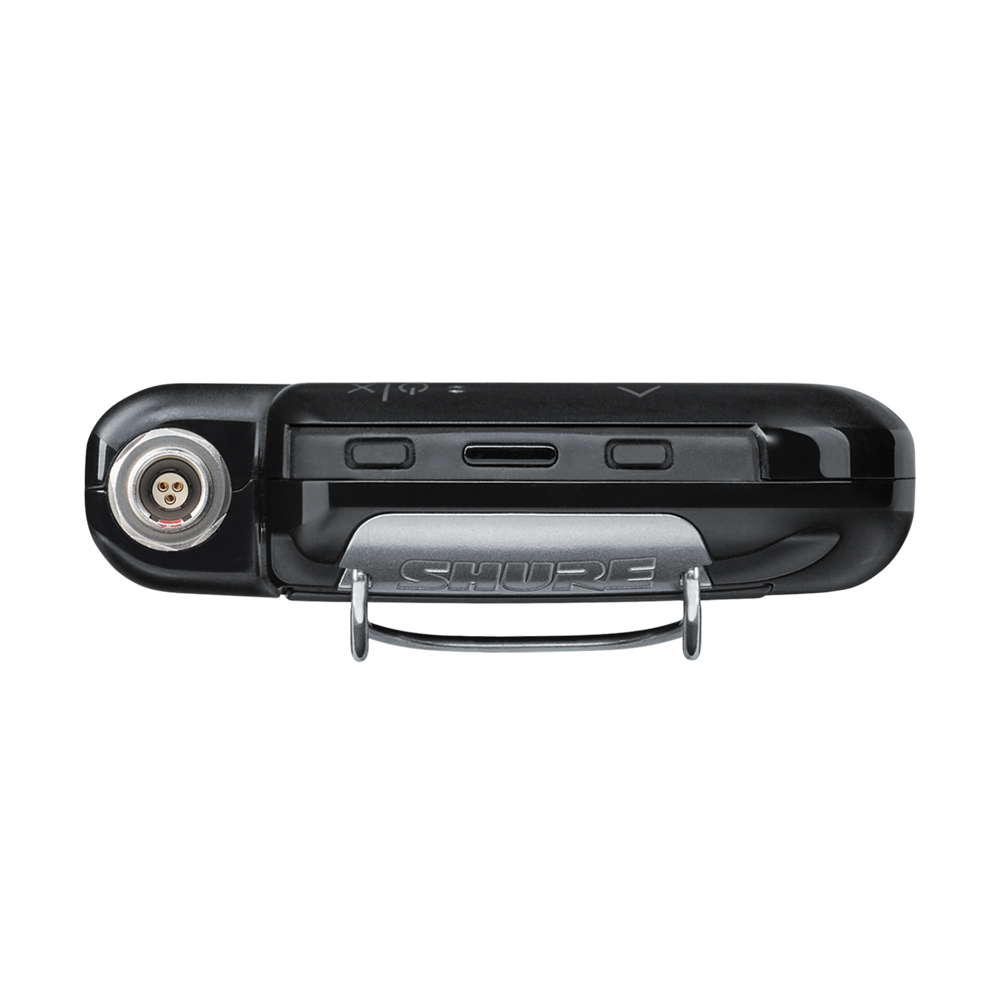

  • Recessed LEMO connector
  • Sealed buttons and LEMO connection for protection against sweat and moisture ingress
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Up to 7 hours of runtime with SB910M rechargeable battery

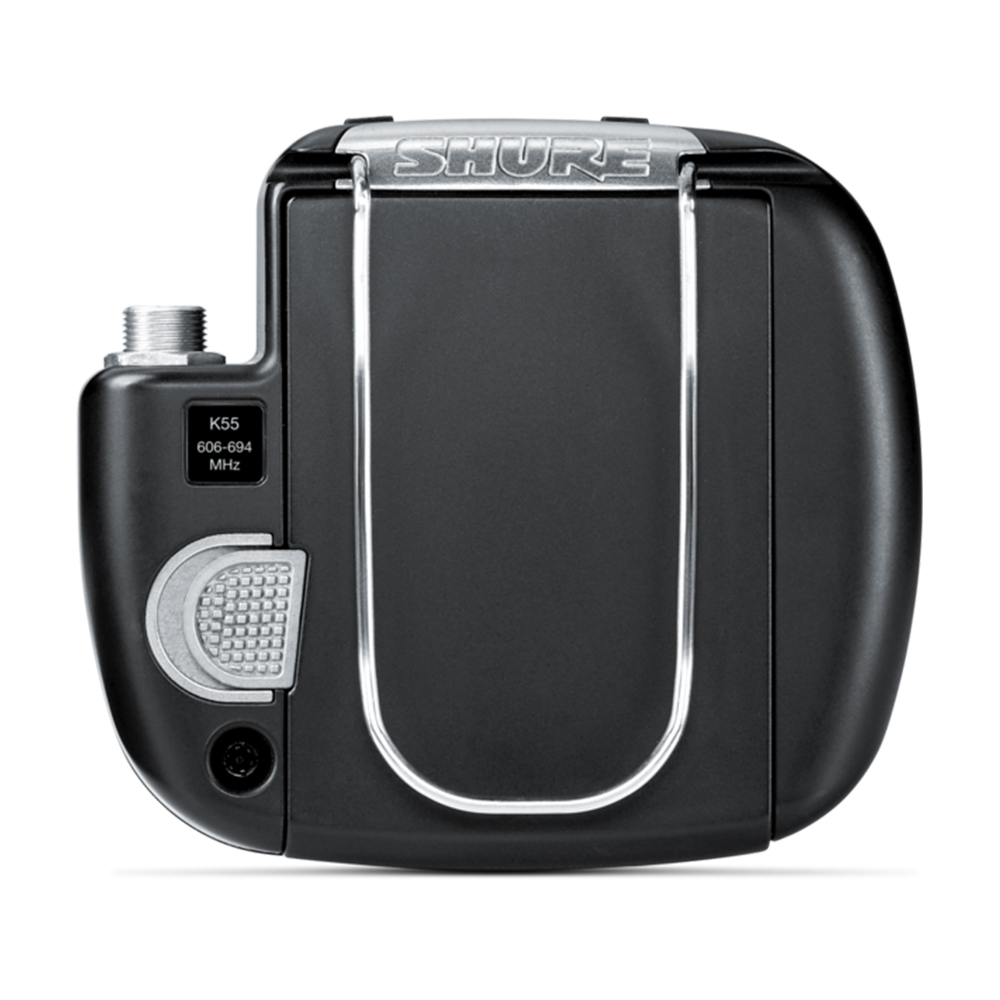

  • Detachable belt clip

Video

Shure Axient Digital Wireless System

Wireless microphones live in a complex ecosystem of broadcast stations,
telecom operators, and connected devices, which will only get more crowded in the future.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Additional information

Weight 0.1 kg
Specification

Mic Offset Range: ­12 to 21 dB (in 1 dB steps)
Battery Type: Shure SB910M Rechargeable Li­Ion
Battery Runtime @ 10 mW: Shure SB910M up to 7 hours
Dimensions: 60.4 mm x 68.0 mm x 18.0 mm (2.4 in. x 2.7 in. x 0.7in.) H x W x D without clip
Weight:
with battery: 100 g (3.5 oz.)
without battery: 68 g (2.4 oz.),
Housing: Plastic
Operating Temperature Range:
-18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
Storage Temperature Range:
-29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
Audio Input

Connector: Lemo Connector
Configuration: Unbalanced
Impedance: 8.2 kΩ
Maximum Input Level 1 kHz at 1% THD: 8.5 dBV ( 7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20:
­120 dBV, A­weighted, typical
RF Output

Antenna Type: Integrated Helical
Impedance: 50 Ω
Occupied Bandwidth: <200 kHz
Channel-to-Channel Spacing:
Standard Mode: 350 kHz
High Density Mode: 125 kHz
varies by region
Modulation Type: Shure Axient Digital Proprietary
Power: 2 mW, 10 mW, 20 mW
See Frequency Range and Output Power table, varies by region
Specific Absorption Rate (SAR): < 0.24 W/kg
ShowLink

Network Type: IEEE 802.15.4
Antenna Type: Zigbee Dual Conformal
Frequency Range: 2.40 to 2.4835 GHz ( 24 Channels)
RF Output Power:
10 dBm (ERP)
varies by region
