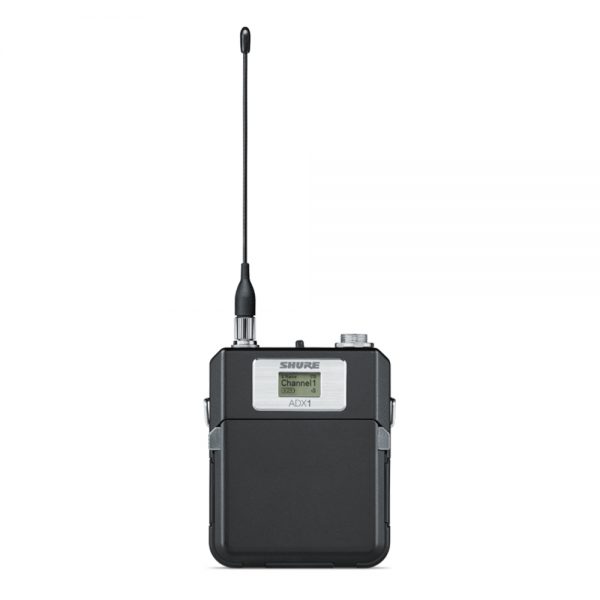

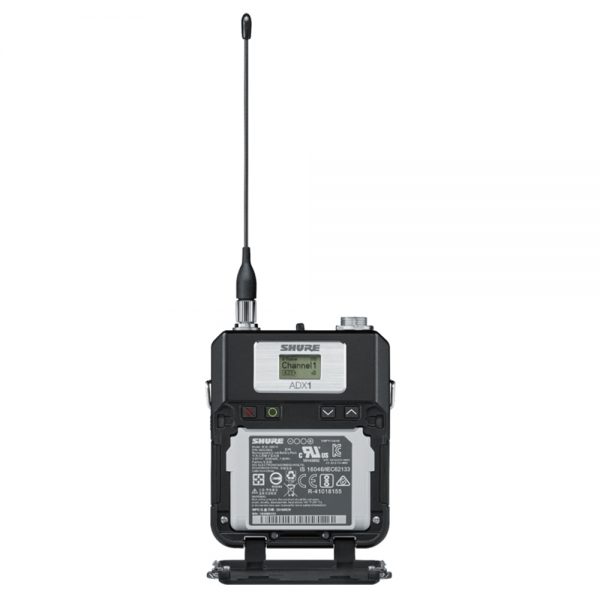

Shure – ADX1 Bodypack Transmitter

Shure

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems

SKU: N/A Categories: , , , ,
Clear

Description

ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. Includes two SB910 rechargeable batteries.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Feature Quick View

  • Removable antenna and fully concealed buttons and switch

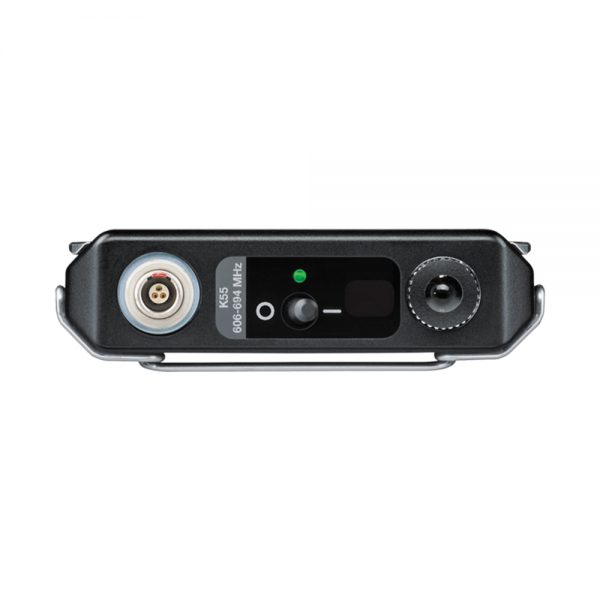

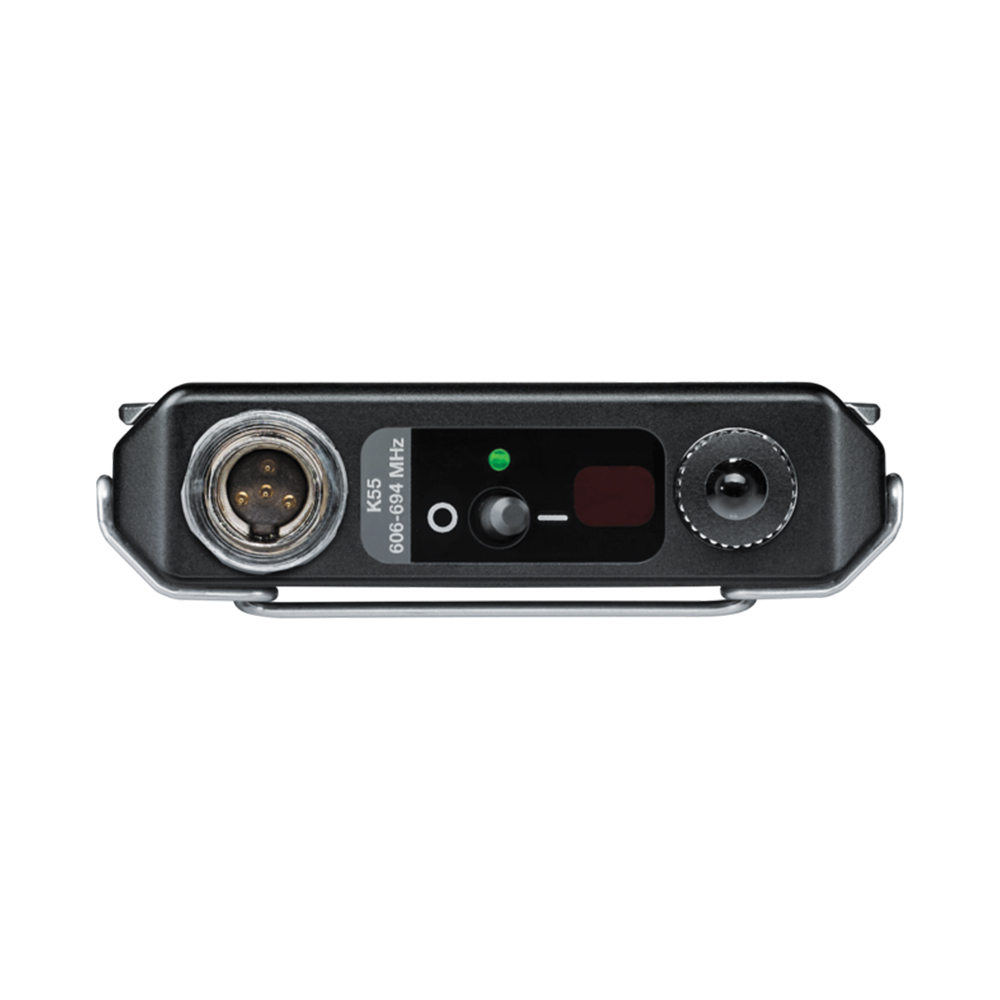

  • Two connector options: TA4 and LEMO3
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of runtime with SB910 rechargeable battery
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • External contacts for docked charging
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Video

Shure Axient Digital Wireless System

Wireless microphones live in a complex ecosystem of broadcast stations,
telecom operators, and connected devices, which will only get more crowded in the future.

Additional information

Weight 0.14 kg
Specifications

Mic Offset Range: -­12 to 21 dB (in 1 dB steps)
Battery Type: Shure SB910 Rechargeable Li­Ion
Battery Runtime @ 10 mW: Shure SB910 up to 10 hours
Dimensions: 91 mm x 68 mm x 19 mm (3.6 in. x 2.7 in. x 0.8 in.) H x W x D
Weight: 142 g (5.0 oz.), Without Battery
Housing: Aluminum
Operating Temperature Range: -18°C (0°F) to 45°C (113°F)
Note: Battery characteristics may limit this range.
Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range
Audio Input

Connector: 4-Pin male mini connector (TA4M) or Lemo Connector
Configuration: Unbalanced
Impedance:
4-Pin male mini connector (TA4M) 910 kΩ
Lemo Connector 8.2 kΩ
Maximum Input Level 1 kHz at 1% THD
Pad Off 8.5 dBV ( 7.5 Vpp)
Pad On 20.5 dBV ( 30 Vpp)
Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ≥ +20
-120 dBV, A­weighted, typical
RF Output

Antenna Type: UHF 1/4 wave
Connector Type: SMA
Impedance: 50 Ω
Occupied Bandwidth: <200 kHz
Channel-to-Channel Spacing:
Standard Mode: 350 kHz
High Density Mode 125 kHz
varies by region
Modulation Type:
Shure Axient Digital Proprietary
Power:
2 mW, 10 mW, 40 mW
See Frequency Range and Output Power table, varies by region
Specific Absorption Rate (SAR): < 0.39 W/kg
SHOWLINK®

Network Type: IEEE 802.15.4
Antenna Type: Zigbee Dual Conformal
Frequency Range: 2.40 to 2.4835 GHz (16 channels)
RF Output Power:
10 dBm (ERP)
varies by region
Connector

TQG (TA4F, 4-PIN MINI), LEM03
