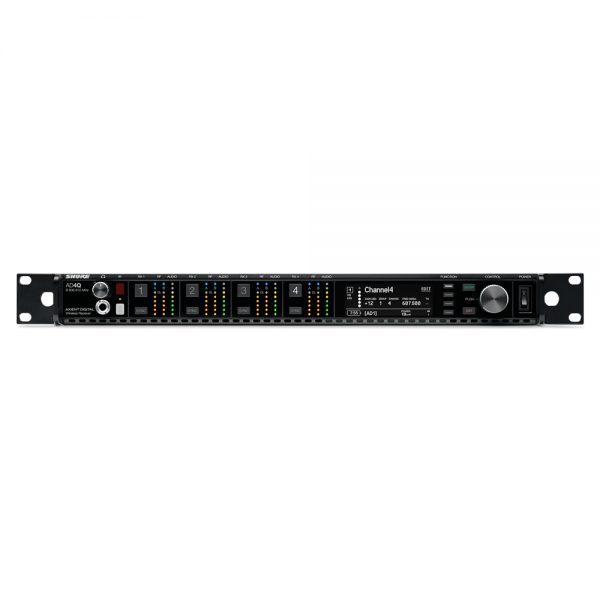

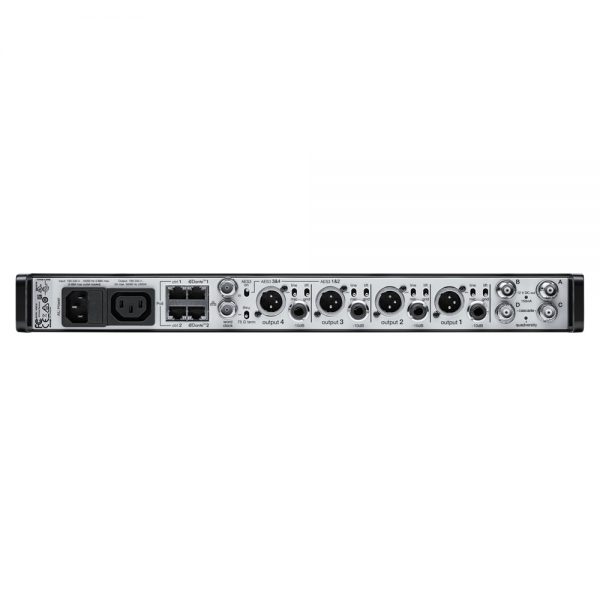

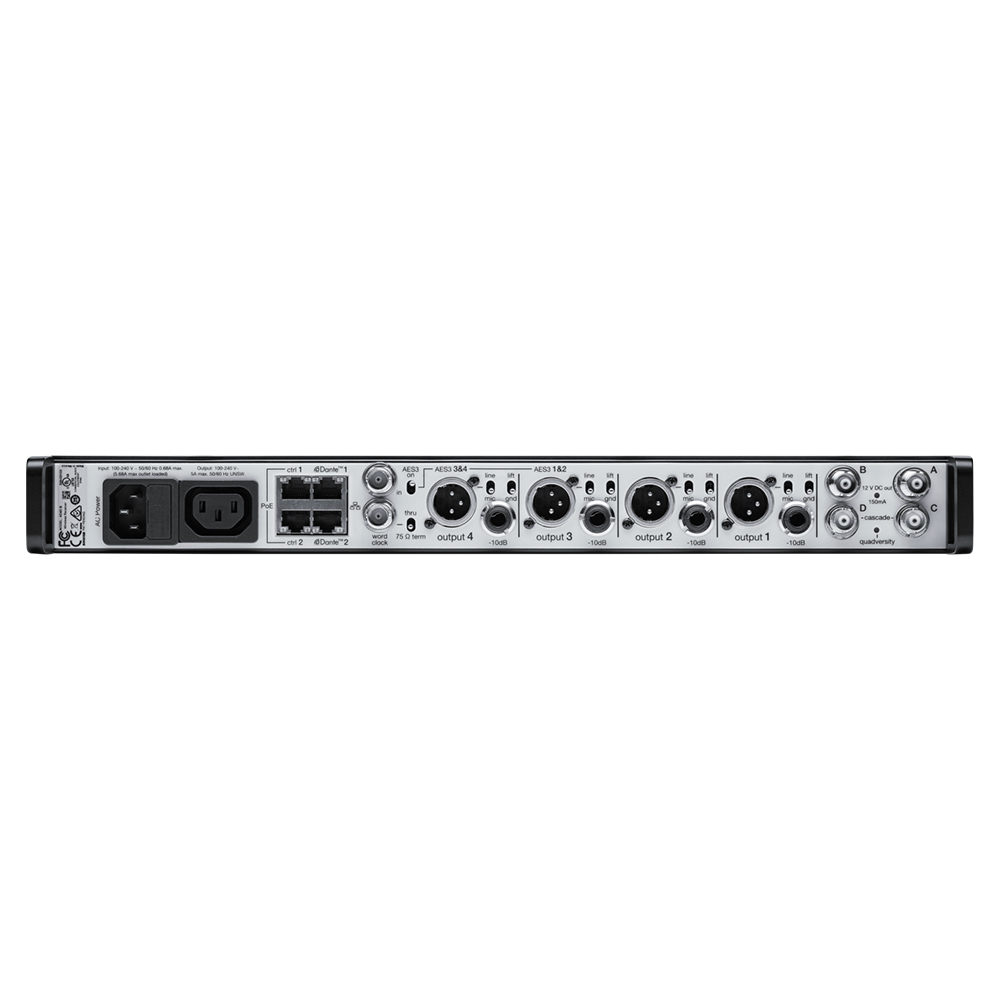

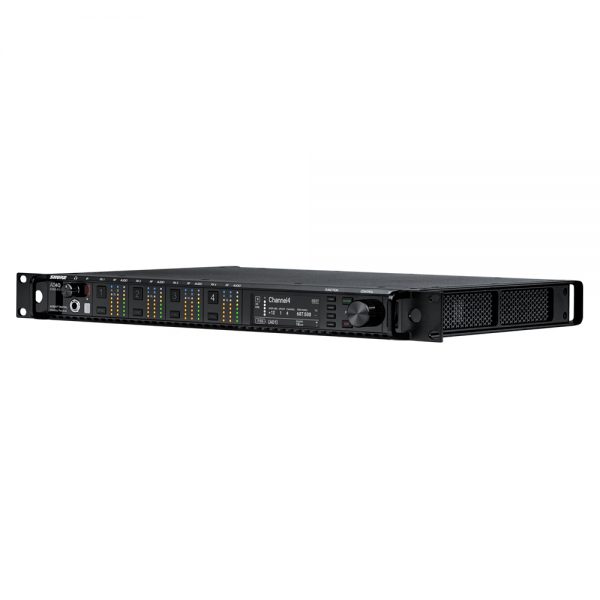

Shure – AD4Q Four-Channel Digital Wireless Receiver

Shure

Compatible with all AD series and ADX series transmitters.

SKU: SHUAD4Q Categories: , , , ,
Clear

Description

Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

  • Works with Axient® Digital Wireless Systems
  • Features Quadversity™ mode for extended antenna coverage, switchable XLR and AES3 outputs, and all capabilities of the AD4D Two-Channel Digital Receiver
  • Available with or without accessories
  • Wide tuning range up to 184 MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
  • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
  • Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
  • Configurable Ethernet switch for redundant Dante or AES67 digital output
  • Switchable XLR and AES3 outputs
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors

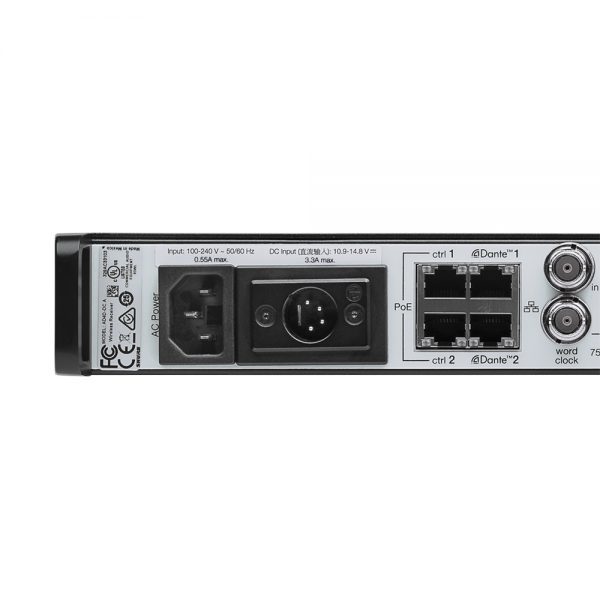

  • DC module version available to support redundant power

Video

Shure Axient Digital Wireless System

Wireless microphones live in a complex ecosystem of broadcast stations,
telecom operators, and connected devices, which will only get more crowded in the future.

Additional information

Weight 4.8 kg
Specifications

Dimensions (H × W × D):
1.7 × 19.0 × 13.1 in
(44 × 483 × 333 mm)
Weight:
10.6 lb (4.8 kg)
without antennas
Housing: Steel; extruded aluminum
Power Requirements:
100 to 240 VAC, 50–60 Hz
0.68 A max
Thermal Dissipation:
Maximum: 31 W (106 BTU/hr)
Idle: 21 W (72 BTU/hr)
Audio Output

Gain Adjustment Range: –18 to +42 dB in 1 dB steps (plus Mute setting)
Configuration:
1/4" (6.35 mm): Transformer-coupled Balanced
(Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Transformer-Coupled Balanced
(1=ground, 2=audio +, 3=audio –)
Impedance:
Typical, XLR Line Out 100 Ω
Full Scale Output 200 kΩ load:
1/4" (6.35 mm): +8 dBV
XLR (LINE setting): +18 dBV
XLR (MIC setting): –12 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection:
Yes
Networking

Network Interface: 10/100 Mbps, 1 Gbps, Dante Digital Audio
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)
Cascade output

Connector Type:
BNC
Note: For connection of one additional receiver in the same band
Configuration: Unbalanced, passive
Impedance: 50 Ω
Insertion Loss: 0 dB, typical
RF Input

Spurious Rejection: >80 dB, typical
Connector Type: BNC
Impedance: 50 Ω
Bias Voltage: 12-13.5 VDC, 150 mA maximium, per antenna, switchable on/off
RF Carrier Frequency Range Model-Dependent:
AD4Q=A: 470–636 MHz
AD4Q=B: 606–810 MHz
AD4Q=C: 750–960 MHz
