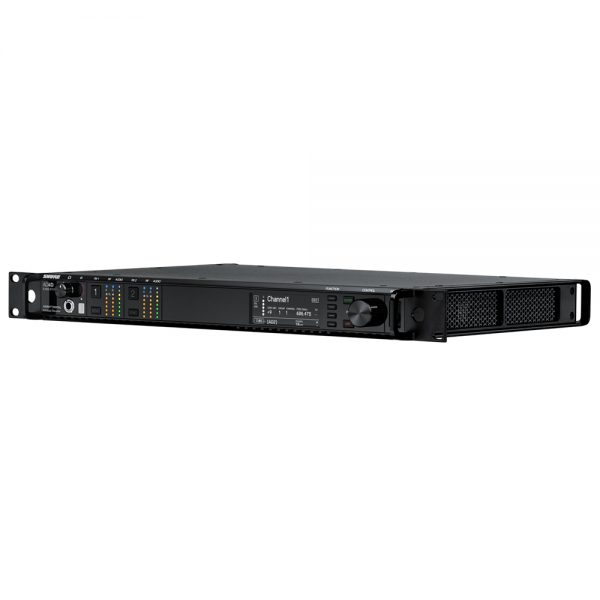

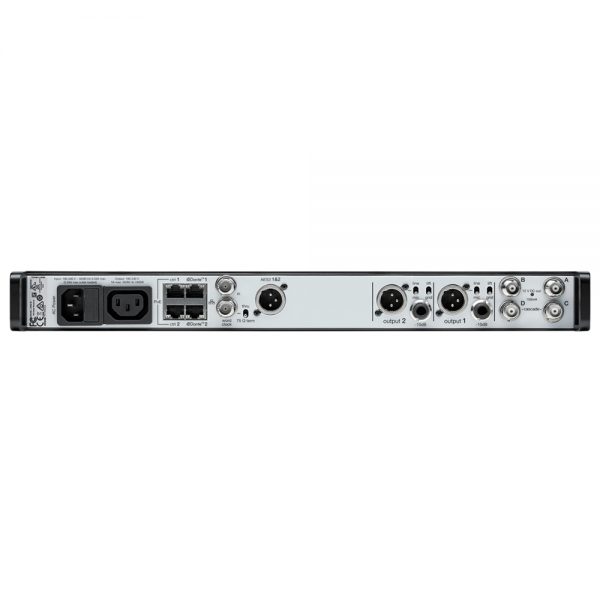

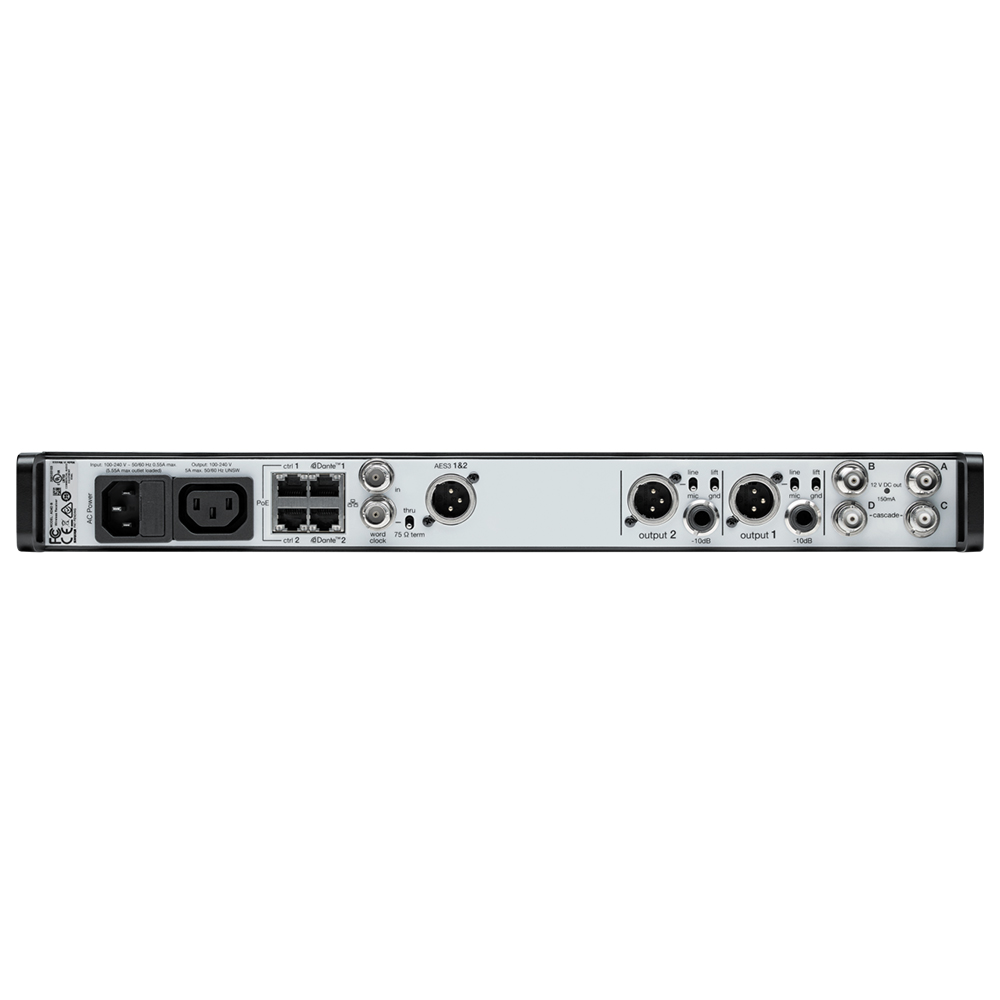

Shure – AD4D Two-Channel Digital Wireless Receiver

Shure

Compatible with all AD series and ADX series transmitters.

SKU: SHUAD4D Categories: , , , ,
Clear

Description

Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Feature Quick View

  • Works with Axient® Digital Wireless Systems
  • Features networked control and signal routing options, plus mobile monitoring and control capabilities
  • Available with or without accessories
  • Wide tuning range up to 184 MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
  • Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
  • Configurable Ethernet switch for redundant Dante or AES67 digital output
  • AES3 output
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors

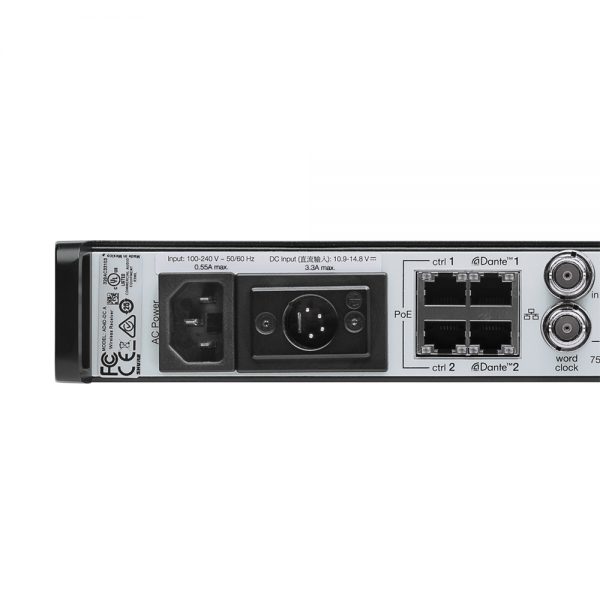

  • DC module version available to support redundant power

Video

Shure Axient Digital Wireless System

Wireless microphones live in a complex ecosystem of broadcast stations,
telecom operators, and connected devices, which will only get more crowded in the future.

Additional information

Weight 4.6 kg
Specifications

Dimensions (H × W × D):
1.7 × 19.0 × 13.1 in
(44 × 483 × 333 mm)
Weight:
10.1 lb (4.6 kg)
without antennas
Housing: Steel; extruded aluminum
Power Requirements:
100 to 240 VAC, 50–60 Hz
0.68 A max
Thermal Dissipation Maximum:
23 W (78 BTU/hr)
Idle: 15 W (51 BTU/hr)
Audio Output

Gain Adjustment Range:
–18 to +42 dB in 1 dB steps (plus Mute setting)
Configuration:
1/4" (6.35 mm): Transformer-coupled Balanced
(Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Transformer-Coupled Balanced
(1=ground, 2=audio +, 3=audio –)
Impedance:
Typical, XLR Line Out 100 Ω
Full Scale Output:
200 kΩ load 1/4" (6.35 mm): +8 dBV
XLR (LINE setting): +18 dBV
XLR (MIC setting): –12 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection: Yes
Networking

Network Interface: 10/100 Mbps, 1 Gbps, Dante Digital Audio
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)
Cascade output

Connector Type:
BNC
Note: For connection of one additional receiver in the same band
Configuration: Unbalanced, passive
Impedance: 50 Ω
Insertion Loss: 0 dB, typical
RF Input

Spurious Rejection >80 dB, typical
Connector Type BNC
Impedance 50 Ω
Bias Voltage 12-13.5 VDC, 150 mA maximium, per
antenna, switchable on/off
RF Carrier Frequency Range Model-Dependent:
AD4D=A: 470–636 MHz
AD4D=B: 606–810 MHz
AD4D=C: 750–960 MHz
